Supply capacity: | 1500 tons per month | Mechanical test report: | if |
Packaging Details: | carton, pallet | Bast Weight: | 16.5-22gsm |
Marketing Type: | 2019 Hot Products | width: | 125mm-250mm |
Applicable industries: | Hotels, manufacturing plants, food and beverage factories, home use, food stores, food and beverage stores, advertising agencies | Core components: | Programmable Controllers |
Showroom location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany | brand: | Tian Fang |
type: | Qualitative | place of origin; place of origin: | Zhejiang, China |
Health status: | new | After warranty service: | Video Technical Support |
Product Keywords: | Heat-sealed teabag filter paper | Local service location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines |
Video shipment inspection: | if | thickness: | 60um |
Warranty: | 1.5 years | Package preview: | |
payment terms: | L/C, D/A, D/P, T/T, Western Union | Core component warranty: | 5 years |
Material: | wood pulp | port: | Shanghai |
usage: | other |
1. Product name:
heat seal filter paper
16.5gsm, 17gsm, 18gsm, 20gsm, 21gsm, 22gsm, 23gsm, 25gsm
Can be widely used in the latest packaging machines
Italy IMA (C2000,C51,CA1,CA3,CAL123)
Argentina MAIS.A (EC12, EC12/B, EC12/CY)
German tee pack CONSTANTA, etc.
Suitable for all DXD, YD teabag packaging machines in China.
two. material ingredient
1. Wood pulp
2.PP fiber
3. Product Appearance Requirements
1. The surface of the paper should be flat.
2. The color of the same batch should be consistent without obvious difference.
3. The edge of the paper roll should be flat, and the density on both sides should be the same. There should be no deformation of the paper core.

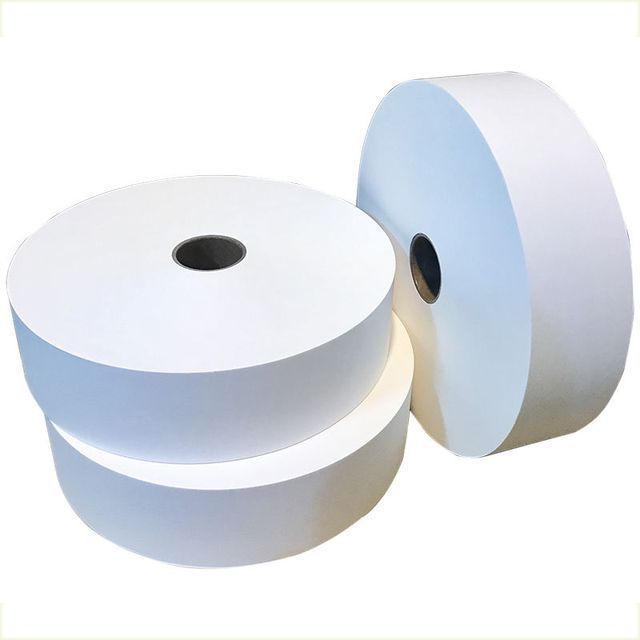

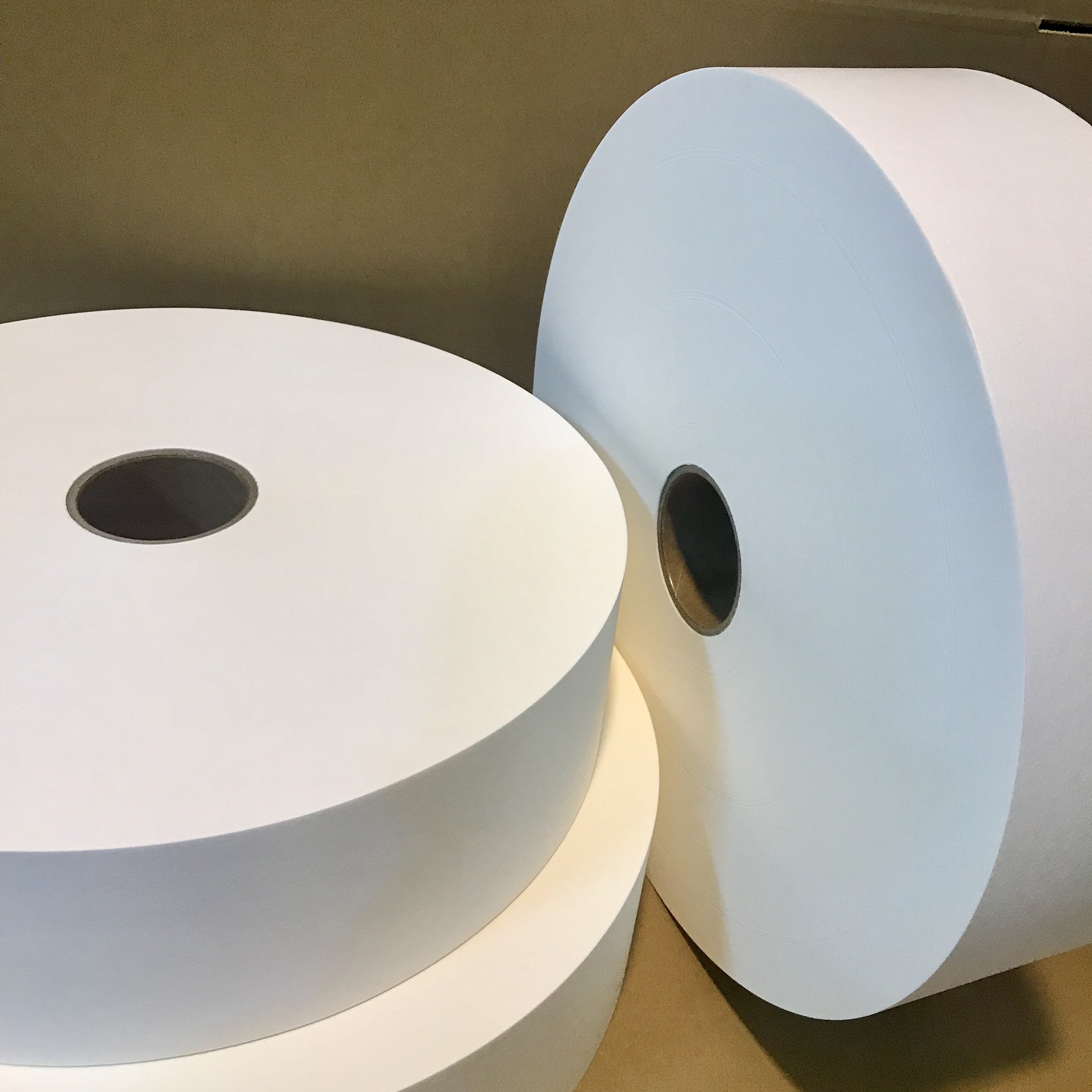

4. Size
The roll width of our products can be customized, usually 87,125,130,140,264,320,370,484,564mm
The outer diameter of the coil is 300-500mm according to customer requirements
The inner diameter of the core is 76mm.
Five, the main technical indicators:
Specifications of heat-sealed tea bag filter paper | |||||||||||
index | unit | Specification | |||||||||
Gram weight | g/m² | 16.5±0.8 | 18±1.0 | 19g±1.0 | 20±1.2 | 21±1.2 | 23±1.5 | 24±1.5 | 25±1.5 | ||
tensile strength | Medical PhD | ≥ | kN/m | 0.75 | 0.92 | 0.93 | 1.05 | 1.15 | 1.25 | 1.31 | 1.34 |
CD | 0.18 | 0.21 | 0.22 | 0.22 | 0.22 | 0.23 | 0.28 | 0.30 | |||
Wet Tensile Strength (MD) | ≥ | kN/m | 0.20 | 0.23 | 0.23 | 0.23 | 0.25 | 0.30 | 0.33 | 0.33 | |
thickness | Micron | 54 | 58 | 60 | 63 | 65 | 67 | 71 | 72 | ||
filter time | ≤ | small | 1.30 | 1.70 | 1.80 | 1.90 | 2.00 | 2.00 | 2.50 | 3.00 | |
air permeability | ≥ | copper | 12960 | 11000 | 10050 | 9500 | 9200 | 7500 | 6500 | 5580 | |
Brightness (whiteness) | ≥ | % | 77-80 | ||||||||
heat sealability | ≥ | kN/m | 0.12-0.18 | ||||||||
delivery moisture | ≤ | % | 5-8 |
