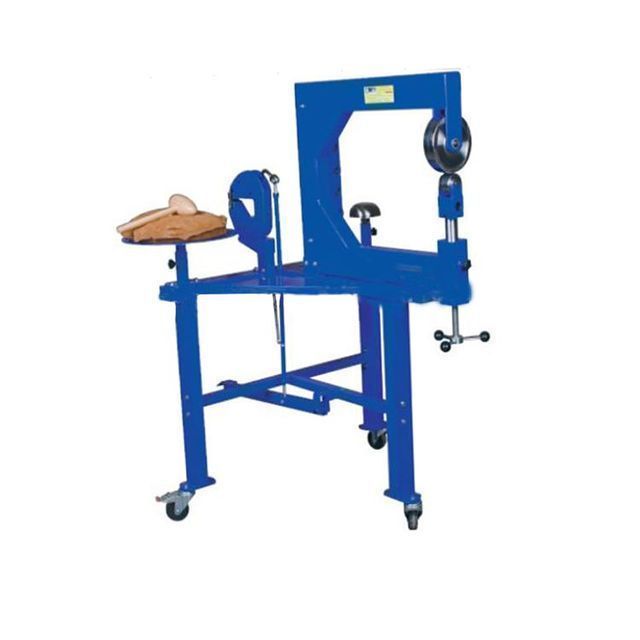

Manual desktop English wheel

Supplier: Hangzhou Cnjacks Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr Luke Yu
Price: $300.00 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

port:	Qingdao or Shanghai Seaport	After-sales service provided:	No after-sales service, no overseas service
payment terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal	Throat width:	610mm
Anvil:	Diameter: 8"; Width: 2"	Low Anvil:	6 Pieces (Diameter 2", 3", 4", 6", 8", 12"); Width: 2"
place of origin; place of origin:	Zhejiang, China	Supply capacity:	3000 pieces per month
Packaging Details:	Standard export plywood box or strong carton	Warranty:	1 year
product name:	British Wheels 24"	Function:	Forms mild steel up to 1.5mm
brand:	Jack Sole	Machining Metal Thickness:	1.5mm
type:	metal processing	Carton size:	105x105x42cm
Net weight/GW:	130KGS/150KGS

Product Description

Applications

An English wheel, also known as a turbine in the UK, is a metalworking tool that enables craftsmen to form composite (double curvature) curves from flat metals such as aluminium or steel.
The process of using English wheels is called wheeling. Its main advantage is the flexibility to produce different panels using the same machine. It is a forming machine that works by surface stretching, and is related to the panel beating process in function.

It is used where a small amount of composite curved panels is required; typically used in passenger car manufacturing, automotive restoration, space frame chassis racing, which comply with regulations requiring sheet metal panels similar to mass production vehicles, automotive prototypes and aircraft skin components. In low-volume sports car production, UK wheel production is highest, especially when easier-to-form aluminium alloys are used.

Model number	Workpiece thickness	Throat width	Roller (upper wheel)	Anvil wheel (lower wheel)
EW075.508	0.75mm	508mm		3 Pieces (1", 2", 3" Diameter) Anvil Hammer Opening 4"
EW080.360	0.80mm	360mm	6" diameter x 1" wide	5 pieces (diameter 1/2", 1-1/2", 2-1/2", 5", 9" x w.1")
EW120.510	1.20mm	510mm	8" diameter x 2" wide	6 pieces (diameter 2", 3", 4", 6", 8", 12" x w. 2")
EW120.560	1.20mm	560mm	8" diameter x 2" wide	6 pieces (diameter 2", 3", 4", 6", 8", 12" x w. 2")
EW120.766	1.20mm	766mm	8" diameter x 2" wide	6 pieces (diameter 2", 3", 4", 6", 8", 12" x w. 2")
EW120.1000	1.20mm	1000mm	8" diameter x 2" wide	6 pieces (diameter 2", 3", 4", 6", 8", 12" x w. 2")
EW150.610	1.50mm	610mm	8" diameter x 2" wide	6 Pieces (2" Dia, 3", 4", 6", 8", 12" x 2" W)
EW150.686	1.50mm	686mm	8" x w.2" diameter	6 Pieces (2" Dia, 3", 4", 6", 8", 12" x 2" W)
EW150.686L	1.50mm	686mm	8" diameter x 2" wide	6 Pieces (2" Dia, 3", 4", 6", 8", 12" x 2" W)
EW150.686M	1.50mm	686mm	8" diameter x 2" wide	6 Pieces (2" Dia, 3", 4", 6", 8", 12" x 2" W)
EW150.686Z	1.50mm	686mm	8" diameter x 2" wide	6 Pieces (2" Dia, 3", 4", 6", 8", 12" x 2" W)
EW150.762	1.50mm	762mm	8" x w.2" diameter	6 Pieces (2" Dia, 3", 4", 6", 8", 12" x 2" W)
EW150.915	1.50mm	915mm	8" diameter x 2" wide	6 Pieces (2" Dia, 3", 4", 6", 8", 12" x 2" W)

main feature

1) Heavy-duty English grinding wheel is used for camber processing of sheet metal without heating and hammering.

2) Different arcs and curved surfaces can be produced according to the different forming wheels.

3) Includes heavy duty steel brackets with mounting holes and bottom anvil storage for easy and comfortable operation.

4) Rigid steel welded C-frame; top and bottom anvils are hardened

5) Quick lever mechanism

process images

detailed image

Packaging and Delivery

Bale
size	105x105x42cm
weight	150kg
Packaging Details	Normal packing is CTN or wooden case (dimensions: 105x105x42cm). If exported to European countries, the wooden box will be fumigated. We can pack according to customers' special requirements.
