ENGLISH WHEELS 20"

Supplier: Hangzhou Cnjacks Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr Luke Yu
Price: $100.00 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal	type:	metal processing
Function:	Forming mild steel up to 0.75 mm thick	Supply capacity:	3000 pieces per month
Processed metal thickness:	1.2mm	After-sales service provided:	Online support, no overseas service
brand:	Jack Sal	Type of machine:	English round
Throat width:	508mm	Low anvil:	3 pieces (1", 2", 3" diameter); Width: 2"
Applicable industries:	Mechanical repair shops, manufacturing plants, construction, energy and mining	Origin:	China
Warranty:	13 months	Anvil:	Diameter: 8"; Width: 2"
Packaging Details:	Standard export plywood box or strong carton	port:	Qingdao or Shanghai seaport
Net/Gross:	70KGS/73KGS	Box size:	98x34x75cm
product name:	English wheel 20"

Related Products

Product name: trailer jack wheel

Product Description

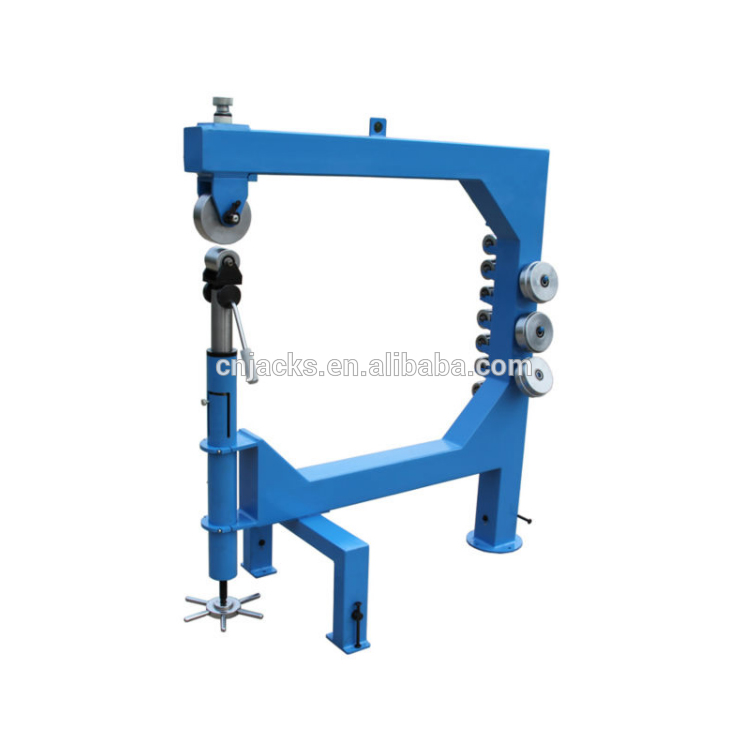

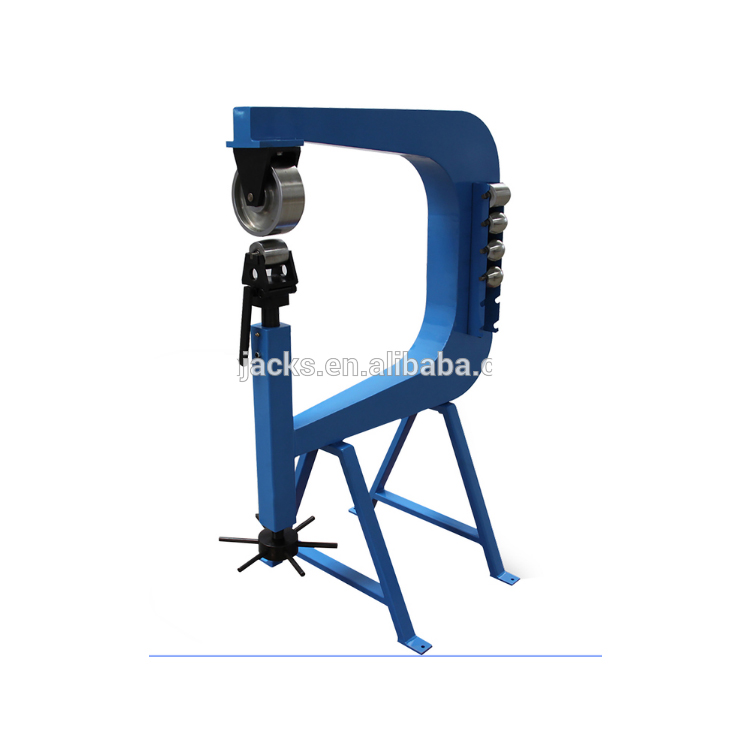

An English wheel, also known as a roller machine in the UK, is a metalworking tool with which a craftsman can form compound (double curvature) curves from a flat sheet of metal such as aluminum or steel.
The process of using an English wheel is called tumbling. Its key advantage is the flexibility to produce different panels using the same machine. It is a forming machine that works by surface stretching and is related in action to the paneling process.

It is used where a small number of composite curved panels are required; often in passenger car construction, automotive restoration, space frame chassis racing to meet regulations requiring sheet metal panels similar to mass production vehicles, automotive prototypes and aircraft skin components. British wheel production is at its highest level in low-series sports car production, especially when using the easier-to-form aluminum alloys.

model	Work piece thickness	Throat width	Roller (upper wheel)	Anvil wheel (lower wheel)
EW075.508	0.75mm	508mm		3 pieces (1", 2", 3" diameter) anvil to hammer opening 4"
EW080.360	0.80mm	360mm	6" diameter x 1" width	5 pieces (diameter 1/2", 1-1/2", 2-1/2", 5", 9" x w.1")
EW120.510	1.20mm	510mm	8" diameter x 2" width	6 pieces (diameter 2", 3", 4", 6", 8", 12" x w. 2")
EW120.560	1.20mm	560mm	8" diameter x 2" width	6 pieces (diameter 2", 3", 4", 6", 8", 12" x w. 2")
EW120.766	1.20mm	766mm	8" diameter x 2" width	6 pieces (diameter 2", 3", 4", 6", 8", 12" x w. 2")
EW120.1000	1.20mm	1000mm	8" diameter x 2" width	6 pieces (diameter 2", 3", 4", 6", 8", 12" x w. 2")
EW150.610	1.50 mm	610mm	8" diameter x 2" width	6 pcs (diameter 2", 3", 4" ,6", 8", 12" x w.2")
EW150.686	1.50 mm	686mm	8" diameter x 2" width	6 pcs (diameter 2", 3", 4" ,6", 8", 12" x w.2")
EW150.686L	1.50 mm	686mm	8" diameter x 2" width	6 pcs (diameter 2", 3", 4" ,6", 8", 12" x w.2")
EW150.686M	1.50 mm	686mm	8" diameter x 2" width	6 pcs (diameter 2", 3", 4" ,6", 8", 12" x w.2")
EW150.686Z	1.50 mm	686mm	8" diameter x 2" width	6 pcs (diameter 2", 3", 4" ,6", 8", 12" x w.2")
EW150.762	1.50 mm	762mm	8" diameter x 2" width	6 pcs (diameter 2", 3", 4" ,6", 8", 12" x w.2")
EW150.915	1.50 mm	915mm	8" diameter x 2" width	6 pcs (diameter 2", 3", 4" ,6", 8", 12" x w.2")
