Place of Origin: | Guangdong China (Mainland); | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,cash; |
Brightness: | 3500cd/m2 or 3500 nit; | Display Function: | Video; |
IP Rating: | IP65; | Screen Dimension: | 960 mm X 320 mm; |
Usage: | Outdoor; | Port: | Shenzhen, Guangzhou; |
Packaging Detail: | P5 wireless taxi/car/taxicab led top light display plywooden package: One wooden package one taxi LED Display 1125x282x660mm,Gross weight is 36kg One wooden package two taxi led display 1130x520x660mm Gross weight is 70Kg; | Outer dimension of taxi led top: | 985 mm X 508 mm (can be customized); |
Pixels: | 5mm; | Input voltage: | 110-240 V; |
Model Number: | TOF-P5; | Brand Name: | MPLED; |
Tube Chip Color: | Full Color; | module size: | 160mm x 160mm; |
Supply Ability: | 3000 Square Meter/Square Meters per Month; | module resolution: | 32 x 32; |
Max. power consumption: | 480 W/m2; | scan mode: | 1/8 SCAN; |
Refresh Rate: | >800Hz; | Grey scale: | 14 bit; |

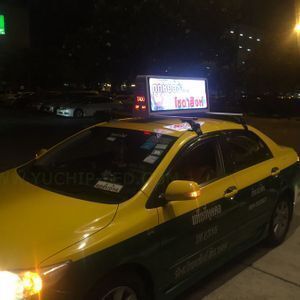

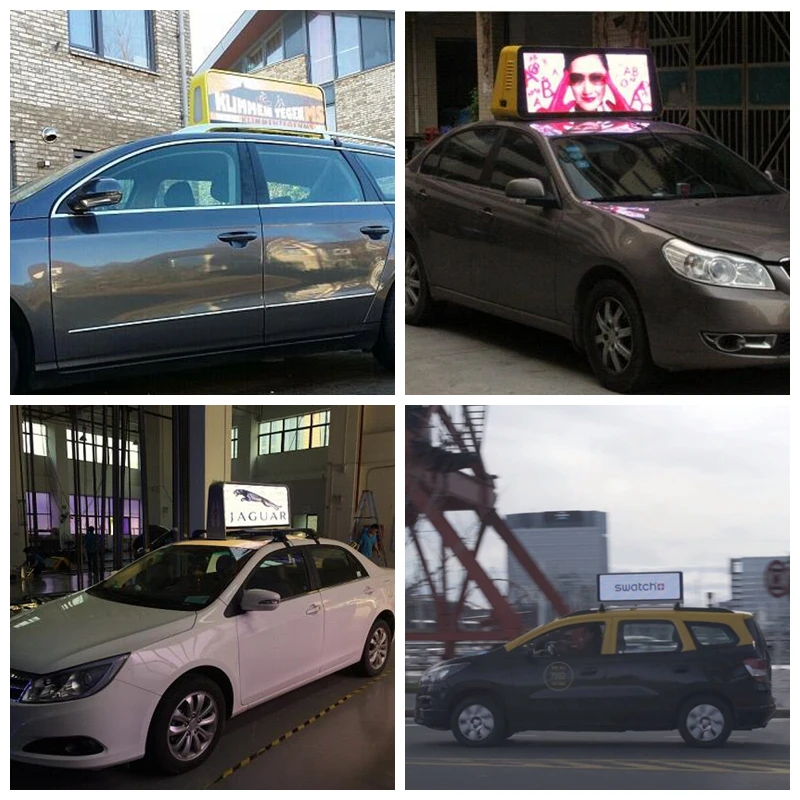

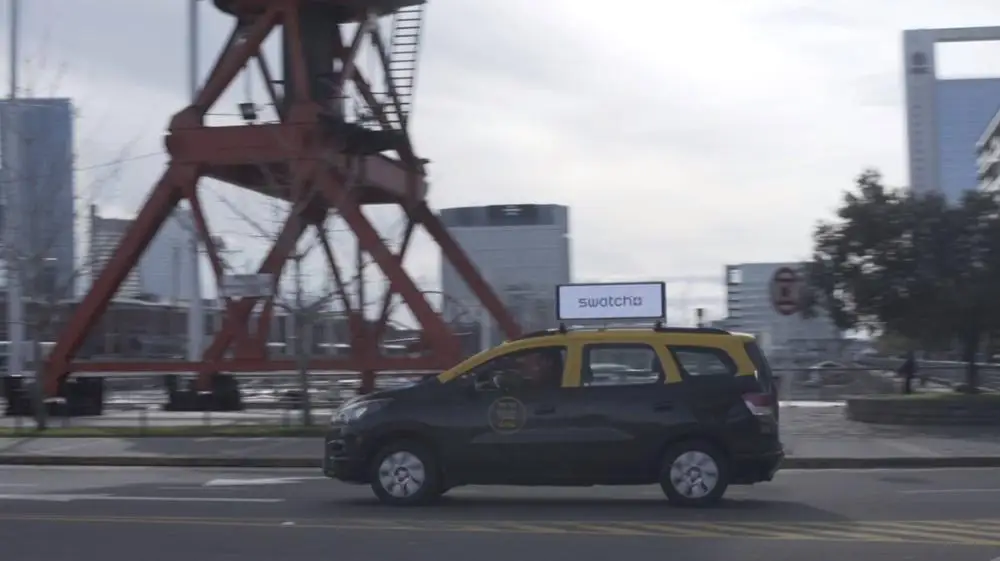

Taxi Top LED Display is becoming a popular new mobile media for city advertising. It’s definitely more attractive than traditional printing paper taxi tops, in its higher brightness, dynamic programs, longer lifetime and more flexible way of updating the adverts.
MPLED provides 4 models of Taxi Top LED Displays, including pitch 2.5mm, 4mm, 5mm, 6mm. Our products are double-sided, highly weather-proof, with high brightness visible in the sun, and meanwhile, brightness can be automatically adjusted according to the environment. Display sizes and housing styles are customizable.
More specification:
LED Module | |||
Dimensions (w x h) | 160mmx160mm | Resolution (w x h) | 32 x 32 |
Pixel pitch | 5mm | Pixel Density | 40000/m2 |
LED Chip | Epistar | Pixel Configuration | SMD3528 |
Standard Panel | |||
Display size(w x h )(mm) | 960x 320 mm | External size(wxhxd)(mm) | 1040x440x220 |
Physical Resolution (w x h)(dots) | 192 x 64 | Physical Pixels (dots) | 12288/cabinet |
Weight/Panel (kgs) | 20 | Material | Steel |
Average Power/sqm (watts) | 129 | Max Power/(watts) | 430 |
Parameter | Value | ||
Brightness | 3500 cd/sqm + | ||
Viewing Angle | Horizontal 140 deg. Vertical 120 deg. | ||
Minimum Viewing Distance | 6-150 meters | ||
Brightness Control | 256 levels | ||
Gray Scale | 16 bit | ||
Refresh Rate | >1920Hz | ||
Driving Mode | 1/8 Scan | ||
Input Power Frequency | 50 or 60 Hertz | ||
Input Voltage | 96-242 Volt | ||
Blind Spot Rate | <1/10,000 | ||
Lifetime at 50% Brightness | 100,000 hours | ||
IP Rating | IP65 | ||
Operating Temperature | -20 ~ +50 OC | ||
Operating Humidity | 10% ~ 90% | ||
Control way | 3G/4G | ||
GPS location | Support |
Installation Drawing
TAXI DISPLAY DATA CABLE @ POWER CABLE

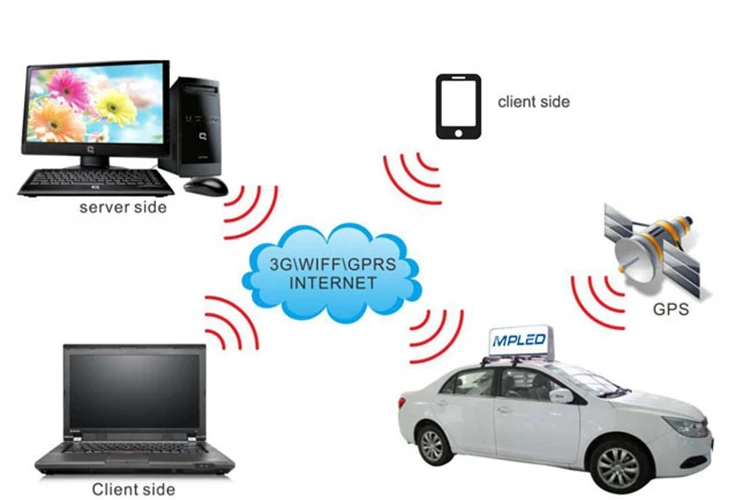

Communication Way
We also provide controller that with geo-targeting function, which means, you can design GPS-based advertising map zones, and send specific ads to taxi top LED displays running in your target areas. This function is welcomed by the advertising companies and the investors.
Plywooden package:
One wooden package one taxi LED Display 1125x282x660mm,Gross weight is 36kg
One wooden package two taxi led display 1130x520x660mm Gross weight is 70Kg
MOQ for outdoor taxi top led display is 1 pieces.
2.How about Taxi TOP LED Display payment?
As rule, T/T payment or Western Union payment is both ok. 40% payment first for our production, and the balance before our delivery.
3. What power supply for taxi top led display?
We have specially customized power supply for the taxi, the voltage in the taxi is 12v/24v then the power can transform the 12v/24v into 5v and supply power to the LED module.
4.How about Taxi TOP LED Display warranty?
We provide 2 years free warranty and lifespan maintain service/lifespan technical support.

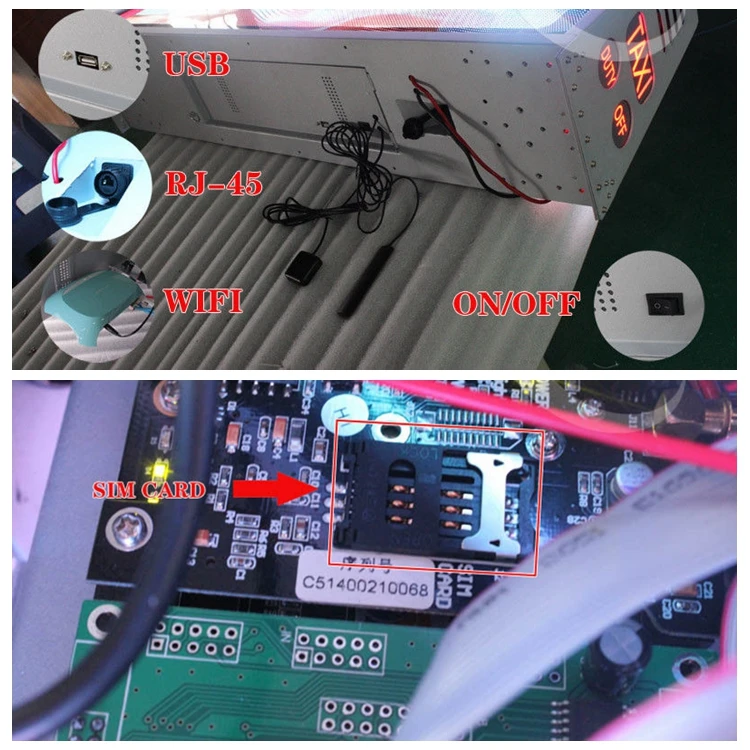

5. How to control all the taxi led display?
If the quantity of the sign within 10pcs, we recommend you to control the sign via USB, SD card, net cable or WIFI. While if your signs are more than 10pcs, 3G centralized control will be a good choice for you.
6.Apart from P5 taxi top led display,do you have another type can choice?
P2.5 with 3000nits+ or P3,P4 and P6 for your options.
