Max stroke: | 2500 | Showroom location: | not any |
Straightness: | <= 0.2/1000 | length: | up to 13m |
in stock: | normal size | weight: | 10 |
type: | Hard Chrome Plated Rod | Outer tube diameter: | 6-700mm |
Certificate: | ISO,CE,BV | Warranty: | 1.5 years |
Packaging Preview: | | pressure: | 16Mpa-70Mpa (2250 PSI - 10150 PSI) |
port: | Shanghai Qingdao Tianjin | type: | Accessories |
place of origin; place of origin: | Jiangsu, China | strength: | Hydraulic and Pneumatic |
Roughness: | Ra <= 0.2u | Supply capacity: | 100,000 tons/month |
payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Diameter Tolerance: | ISO f7 |
Material: | CK45, 4140, 20MnV6, 42CrMo, Duplex2205, stainless steel | Dimensions (L*W*H): | depends on customer |
Chrome Thickness: | Accessories | Inner tube diameter: | 3-500mm |
structure: | Piston cylinder | Rod diameter: | 6-700mm |
brand: | XYT | | |

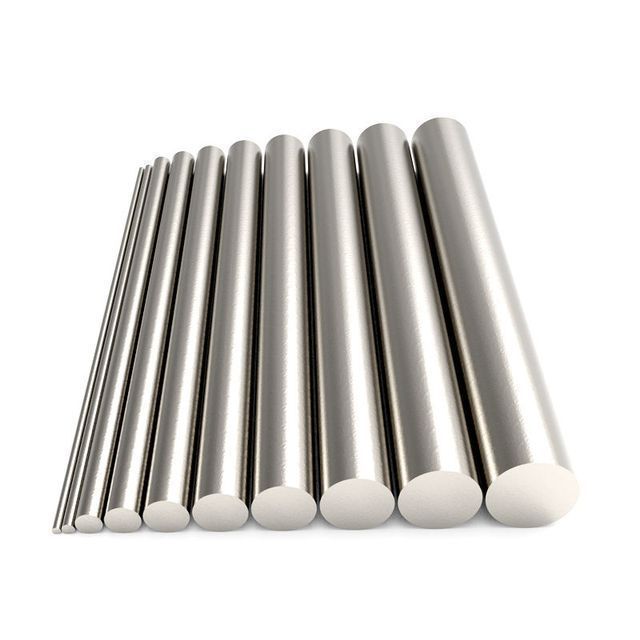

product description:Smooth surface, uniform color and texture, no cracks and bubbles
After special grinding and polishing, friction and corrosion resistance
High density, high stability, guaranteed quality

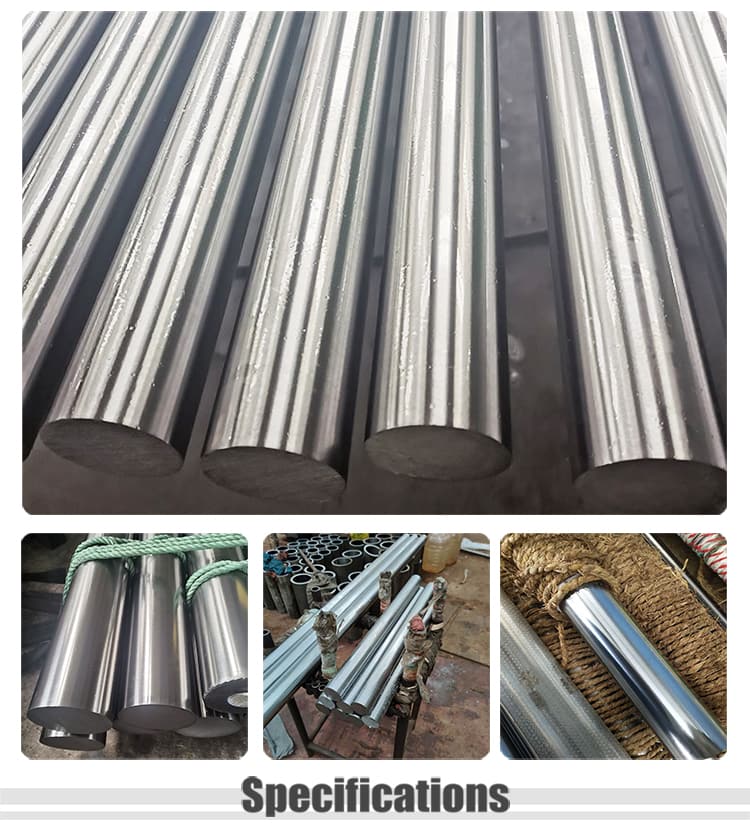

CK45 Hard Chrome Rod Chrome Piston Rod | |
steel grade | C45E (EN 10083) |
tolerant | ISO f7 |
length | 4000mm, 5800mm, 6000mm, 7500mm optional |
roughness | maximum. Ra0.20m (statistical average: 0.05 - 0.15m) |
hardness | HRC 15-25, HRC 20-30 (according to different heat treatment) |
Chrome thickness | 20-50m optional |
Chromium hardness | minute. 900 high pressure (0.1) |
Straightness | <=16 mm: max. 0.3mm: 1000mm |
| > 16 mm: max. 0.2mm: 1000mm |
Mechanical behavior | According to EN 10083-2 |
chemical composition | | | | | | | | |
| | | | | | | | |
Material | C% | manganese% | silicon% | % | % | % | chromium% | chromium% |
CK45 | 0.42-0.50 | 0.50-0.80 | 0.17-0.37 | ≤0.035 | ≤0.035 | | ≤0.25 | ≤0.25 |
ST52 | ≤0.22 | ≤1.6 | ≤0.55 | ≤0.04 | ≤0.04 | 0.02-0.15 | | |
20MnV6 | 0.17-0.24 | 1.30-1.70 | 0.10-0.50 | ≤0.035 | ≤0.035 | 0.10-0.20 | ≤0.30 | ≤0.30 |
42CrMo4 | 0.38-0.45 | 0.50-0.80 | 0.17-0.37 | ≤0.035 | ≤0.035 | 0.07-0.12 | 0.90-1.20 | 0.90-1.20 |
40Cr | 0.37-0.45 | 0.50-0.80 | 0.17-0.37 | ≤0.035 | ≤0.035 | | 0.80-1.10 | 0.80-1.10 |
Mechanical behavior | | | | | |
Material | TS N/MM2 | is N/MM2 | E% (minimum) | Charpy | Health status |
CK45 | 610 | 355 | 15 | >41J | standardization |
CK45 | 800 | 630 | 20 | >41J | Q+T |
ST52 | 500 | 355 | twenty two | | standardization |
20MnV6 | 750 | 590 | 12 | >40J | standardization |
42CrMo4 | 980 | 850 | 14 | >47J | Q+T |
40Cr | 1000 | 800 | 10 | | Q+T |

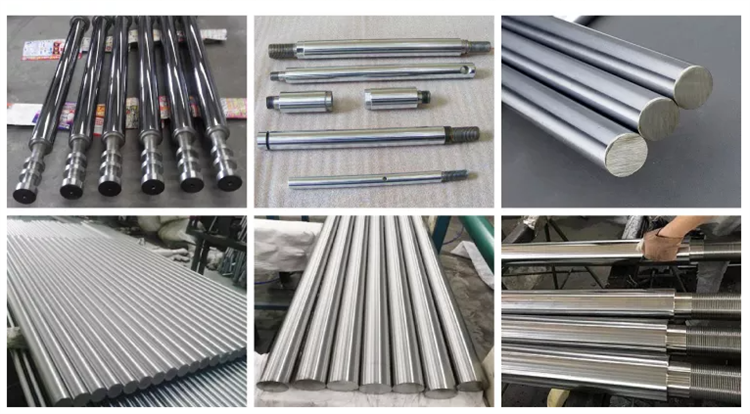

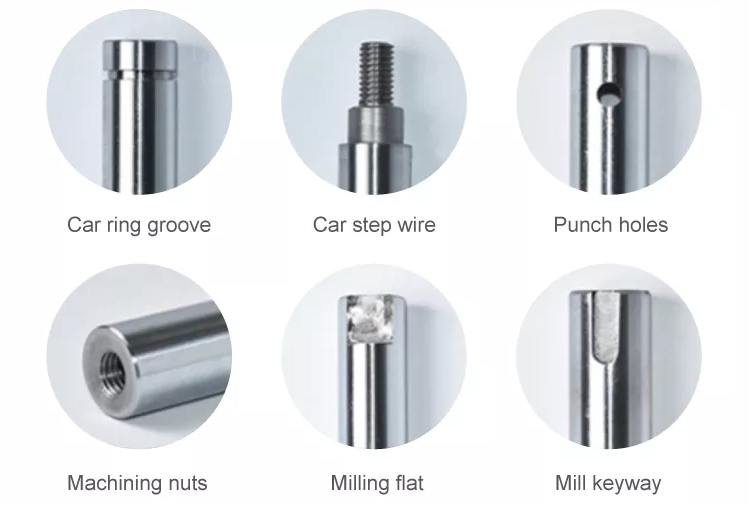

custom madeOptions

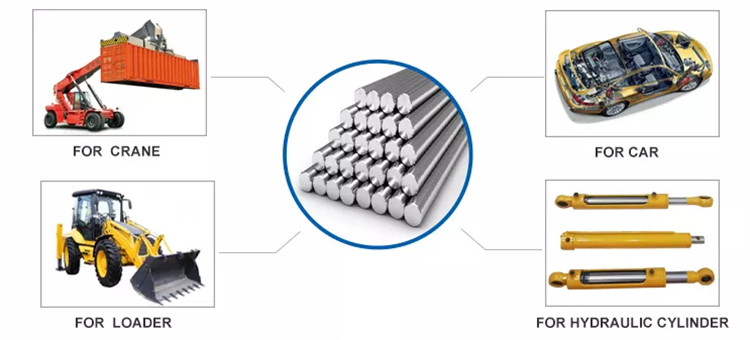

application

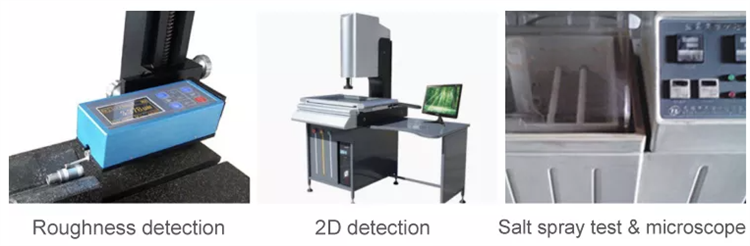

Quality inspection
Wuxi XYT Steel is a group company of steel manufacturing and trading, with more than 500 employees, 20,000+ m2 dust-free workshops, 15+ large factories and partners in China, with an annual production of 3000,000+ tons under ISO CE management, 35, 000+ domestic and foreign customers, annual turnover of 10 billion US dollars, 5+ subsidiaries all over the country, among the top 100 private enterprises in China, 1 hour to Shanghai/Tianjin/Guangzhou port, we maintain high quality, competitive price, annual warehouse
Reserve 60,000+ tons of inventory for global valued customers, the most efficient delivery and reliable cooperation. We have been in the steel industry for more than 10 years, the best service and the most competitive price are one of the biggest advantages of what we are today!
Our headquarters in Wuxi, Jiangsu Province, provides products and services to multiple industries in more than 50 countries around the world. There are no limits to our reach as we continue to grow in growing markets and geographies.
Our products support a variety of industries, including oil and gas, automotive, chemical and construction. We continually seek to innovate with a broad range of suppliers to provide products and solutions that are not only uniquely designed, but also competitively priced.
We are proud to work closely with industry and academic partners to continuously improve our products and services, so we have patented products designed to save you time and money.
Our products are rigorously inspected to ensure they are within the tolerances of our customers' specifications, and we work with
Accredited laboratory for specialized materials testing and chemical analysis. Additionally, we use X-ray fluorescence technology to meet our high inspection standards and ensure our customers receive the highest quality products.
