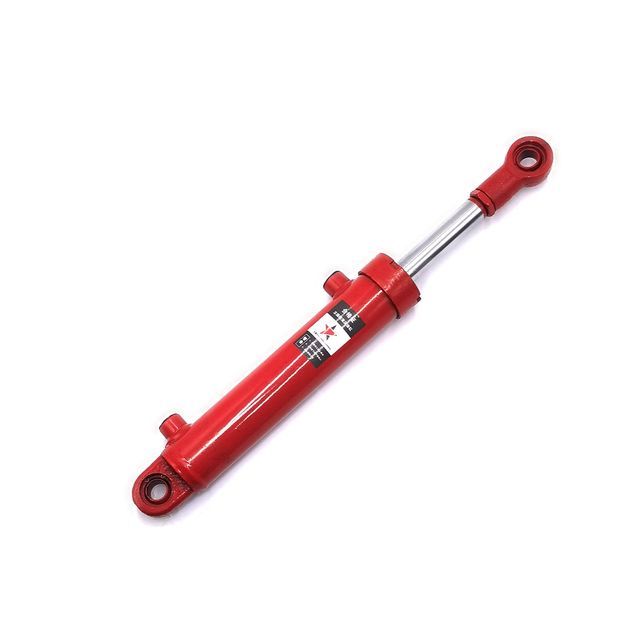

Factory custom engineered hydraulic cylinder manufacturer single acting and HSG double acting hydraulic cylinder

Supplier: Hebei Gaokuang Machinery Equipment Co., Ltd
Region: Hebei, China
Price: $15.00 / 1 - 99 pieces
$14.00 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

Outer tube diameter:	60mm	Maximum stroke:	custom made
strength:	depends on model	Supply capacity:	600 pieces per day
Surface treatment:	painting	Inner Tube Diameter:	50mm
Package preview:		Dimensions (LWH):	custom made
Rod diameter:	28/30mm	Origin:	China
interface:	custom made	Material:	iron
Showroom location:	not any	structure:	depends on model
weight:	4.5	payment terms:	Western Union, T/T
brand:	Li Yang	port:	Tianjin, Shanghai, Guangzhou, Ningbo, Qingdao
Packaging Details:	1. Standard export carton packing 2. Wooden pallet packing carton 3. According to customized specifications, such as logo or others	pressure:	depends on model
Warranty:	1 year

Model	Cylinder bore (mm)	Pole Diameter (mm)	running distance (mm)	positioning distance (mm)	weight
HSG40/25-100-330	40	25	100	330	3.5KG
HSG40/25-200-430	40	25	200	430	4KG
HSG40/25-300-530	40	25	300	530	5KG
HSG40/25-400-630	40	25	400	630	6KG
HSG40/25-500-730	40	25	500	730	7KG
HSG40/25-600-830	40	25	600	830	8KG

Model	Cylinder bore (mm)	Pole Diameter (mm)	running distance (mm)	positioning distance (mm)	weight
HSG50/30-100-340	50	30	100	340	4.5KG
HSG50/30-200-440	50	30	200	440	5.5KG
HSG50/30-300-540	50	30	300	540	6.5KG
HSG50/30-400-640	50	30	400	640	8KG
HSG50/30-500-740	50	30	500	740	9KG
HSG50/30-600-840	50	30	600	840	10.5KG

Model	Cylinder bore (mm)	Pole Diameter (mm)	running distance (mm)	positioning distance (mm)	weight
HSG63/35-100-340	63	35	100	370	7KG
HSG63/35-200-440	63	35	200	470	8KG
HSG63/35-300-540	63	35	300	570	10KG
HSG63/35-400-640	63	35	400	670	11.5KG
HSG63/35-500-740	63	35	500	770	13KG
HSG63/35-600-840	63	35	600	870	15KG

Model	Cylinder bore (mm)	Pole Diameter (mm)	running distance (mm)	positioning distance (mm)	weight
HSG80/50-100-340	80	50	100	400	13KG
HSG80/50-200-440	80	50	200	500	15.5KG
HSG80/50-300-540	80	50	300	600	18KG
HSG80/50-400-640	80	50	400	700	20KG
HSG80/50-500-740	80	50	500	800	23KG
HSG80/50-600-840	80	50	600	900	26KG

Model	Cylinder bore (mm)	Pole Diameter (mm)	running distance (mm)	positioning distance (mm)	weight
HSG100/63-100-340	100	63	100	500	25KG
HSG100/63-200-440	100	63	200	600	28KG
HSG100/63-300-540	100	63	300	700	31KG
HSG100/63-400-640	100	63	400	800	34KG
HSG100/63-500-740	100	63	500	900	37KG
HSG100/63-600-840	100	63	600	1000	40KG

Model	Aperture (mm)	Number of pitches	running distance (mm)	total length (mm)	weight
2TGI-71-500	71	2	500	400	8KG
3TGI-71-750	71	3	750	410	10KG
3TGI-71-900	71	3	900	455	12KG
3TGI-86-750	86	3	750	410	15KG
3TGI-86-900	86	3	900	460	18KG
3TGI-86-1050	86	3	1050	510	19KG
3TGI-86-1200	86	3	1200	570	21KG
4TGI-127-1200	127	4	1200	460	25.5KG
4TGI-127-1500	127	4	1500	550	30KG
4TGI-127-1800	127	4	1800	620	35KG

FAQ
Q1: Are you trading company or manufacturer?
A1: We are a manufacturer.

Q2: What is our main application?
A2: 1. Hydraulic system 2. Agricultural machinery 3. Construction machinery 4. Auto 5. Local distributors, etc.

Q3: Can I mark my own brand on the product?
A3: Yes. Full order shold mark your brand and code.

Q4: How long is your delivery time?
A4: Generally it is 5-10 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock, it is based on
quantity.

Q5: Do you provide samples? Is it free or extra?
A5: We can provide paid samples.

Q6: What is your payment terms?
A6: Full order: 30% as deposit, the balance before shipment; Small order/sample order: full payment in advance. -valve.

Q7: How to pay?
A7: T/T, Western Union, Cash, others can be negotiated.

Q8: How to ship?
A8: By sea, by land or by air. If you choose to ship by air, it is faster as if you buy from the local market.
