Packaging Preview: | Highest microstep: | 60000ppr | |
control method: | pulse + direction | Certification: | Chief Executive |
weight: | 1.7kg | model: | DVS3722B |
Output phase: | three phase | Material: | aluminum |
port: | Shenzhen Port | Packaging Details: | Standard Exhibition Package |
Warranty: | 3 months - 1 year | brand: | Digital Television |
Segmentation settings: | 16 channels | Input voltage: | 90V-270VAC |
product name: | stepper driver | Output current: | 1.3A-7.0A |
payment terms: | L/C,T/T,Western Union,Paypel | Supply capacity: | 10,000 stepper drives per month |
Response frequency: | 200Kpps | place of origin; place of origin: | Guangdong, China |

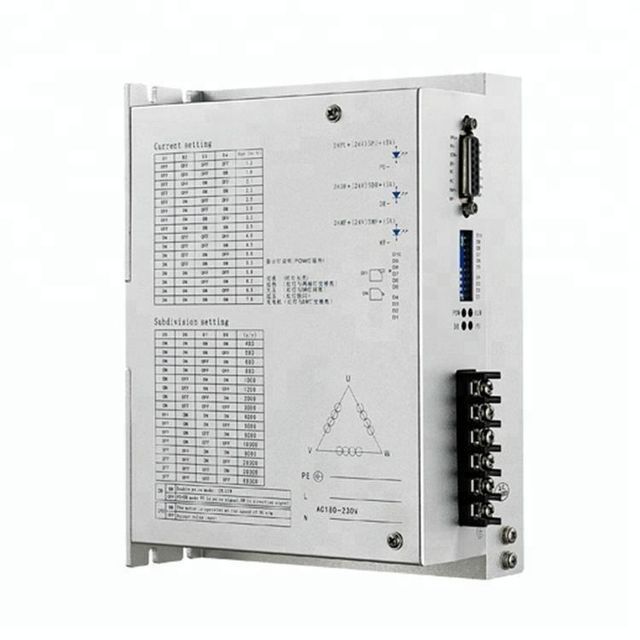

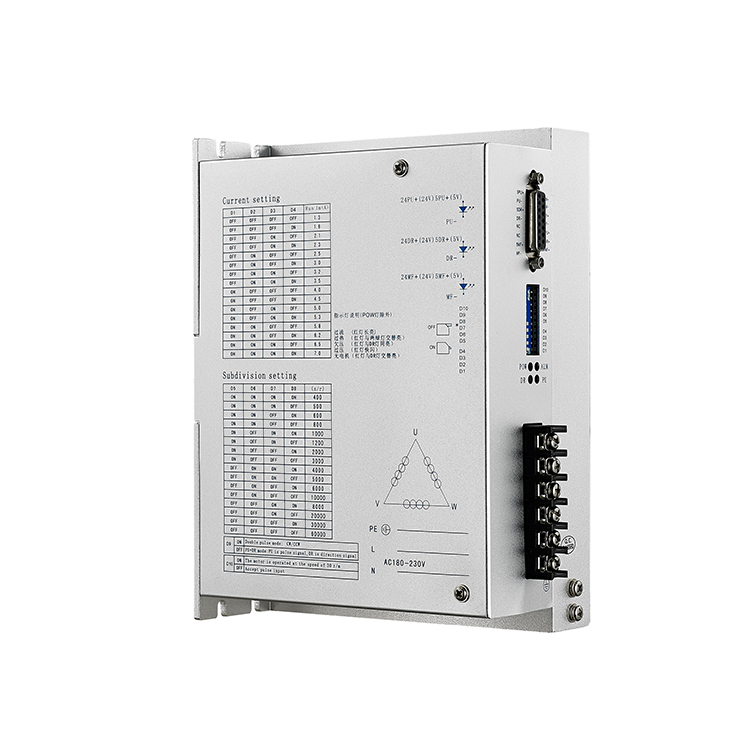

DVS3722B 3 Phase 220vac 7A High Performance Stepper Driver
stepper driver
odescribe
The DVS3722B is a fully digital three-phase stepper driver based on DSP control with a voltage range of 80V to 290VAC. It is designed for all kinds of three-phase hybrid stepping motors with an outer diameter of 57mm to 130mm and a regulated phase current of 1.3A to 7.0A. The circuit it adopts is similar to the servo control circuit, which makes the motor run smoothly without noise and vibration. Also, its torque is much greater than 2-phase and 5-phase hybrid stepper motors.
oapplication
Widely used in bending machines, processing equipment, packaging machines, electronic machinery, etc.
ofeature
l 16-channel equiangular, constant torque micro-step, the highest micro-step: 60000ppr
l Maximum response frequency: 200Kpps
l 1.5 seconds without step pulse command, the winding current is reduced by about 50%
l Optically isolated signal I/O
l The drive current is adjustable from 16 channels 1.3A/phase to 7.0A/phase
l Single power supply from Single power supply from 160V to 270VAC
l Better overcome the low frequency vibration problem
lSize: 202×78×147mm3; Net weight: 1.7Kg
oCcurrentsmallset up
The stepper driver operating current is set by DIP switches D1 to D4.
Working current (A) |
1.3 |
1.6 |
2.1 |
2.3 |
2.5 |
3.0 |
3.2 |
3.5 |
D1 |
leave |
leave |
leave |
leave |
leave |
leave |
leave |
leave |
D2 |
leave |
leave |
leave |
leave |
superior |
superior |
superior |
superior |
D3 |
leave |
leave |
superior |
superior |
leave |
leave |
superior |
superior |
D4 |
leave |
superior |
leave |
superior |
leave |
superior |
leave |
superior |
Working current (A) |
4.0 |
4.5 |
5.0 |
5.3 |
5.8 |
6.2 |
6.5 |
7.0 |
D1 |
superior |
superior |
superior |
superior |
superior |
superior |
superior |
superior |
D2 |
leave |
leave |
leave |
leave |
superior |
superior |
superior |
superior |
D3 |
leave |
leave |
superior |
superior |
leave |
leave |
superior |
superior |
D4 |
leave |
superior |
leave |
superior |
leave |
superior |
leave |
superior |
osubdivision(microstep)smallset up
The subdivision (microstep) is set by DIP switches D5 to D8 for a total of 16 channels. D9 and D10 are used to set the drive function.
subdivision (microstepping) ppr |
400 |
500 |
600 |
800 |
1000 |
1200 |
2000 |
3000 |
D5 |
superior |
superior |
superior |
superior |
superior |
superior |
superior |
superior |
D6 |
superior |
superior |
superior |
superior |
leave |
leave |
leave |
leave |
D7 |
superior |
superior |
leave |
leave |
superior |
superior |
leave |
leave |
D8 |
superior |
leave |
superior |
leave |
superior |
leave |
superior |
leave |
subdivision (microstepping) ppr |
4000 |
5000 |
6000 |
10000 |
8000 |
20000 |
30000 |
60000 |
D5 |
leave |
leave |
leave |
leave |
leave |
leave |
leave |
leave |
D6 |
superior |
superior |
superior |
superior |
leave |
leave |
leave |
leave |
D7 |
superior |
superior |
leave |
leave |
superior |
superior |
leave |
leave |
D8 |
superior |
leave |
superior |
leave |
superior |
leave |
superior |
leave |
D9 |
ON, double pulse: PU is positive pulse signal, DR is negative pulse signal |
|||||||
OFF, single pulse: PU is pulse signal, DR is direction signal |
||||||||
D10 |
Self-check switch (OFF: accept external pulse, ON: drive sends pulse to make the motor work at 30r/m) |
owarn
1. The driver has self-protection function when the input voltage is lower than 80V or higher than 290V.
2. The input control signal is 5V. When it exceeds 5V, the current limiting resistor should be connected. The driver is designed with a 24V signal interface.
3. The input pulse signal is valid on the falling edge.
4. The drive fan only operates when the drive temperature reaches 48ºC.
5. Alarm indicator lightALMWhen the temperature of the driver exceeds 80℃, the light will be on and the driver will stop working. It started working again until the temperature dropped to 50°C. A heat sink is required when overheating occurs.
6. When there are more than two drives in a cabinet running at the same time, the distance between each drive should be less than 5cm.
7. Alarm indicator lightALMLights up when an overcurrent (load short-circuit) occurs. Please check the motor wiring and other short-circuit conditions, and then turn on the power after troubleshooting.
8. Alarm indicator lightALMLights up when the motor is not connected or the connection is poor. Please check the wiring of the motor and turn on the power after troubleshooting.
oInput signal common anode connection
oInput signal common cathode connection

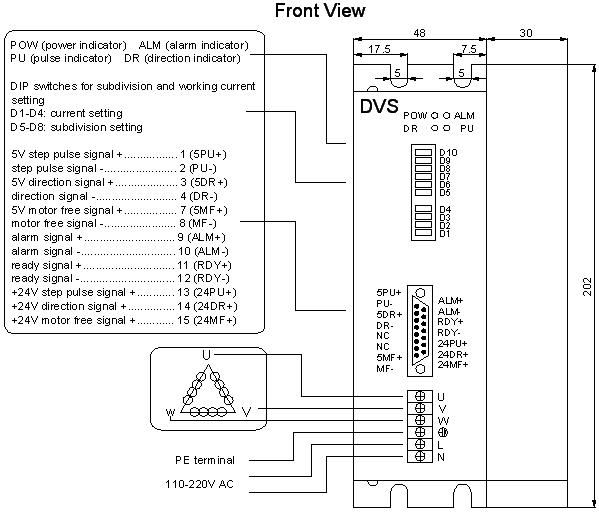

oDimensions
oTerminal function
port |
Connector pin size |
symbol |
Function/Application |
definition |
DB15 |
1 |
5PU+ |
Optically isolated input signal positive |
Connect to +5V power supply, the driving voltage range is 5V to +24V. A current limiting resistor is required above 5V. |
2 |
Polyurethane- |
DP9=OFF, PU is the step pulse signal |
With the falling edge of signal PU, the motor performs an angular step. The input resistance is 220Ω. Low voltage 0-0.5V, high voltage 4-5V, pulse width>2.5μS. |
|
DP9=ON, PU is a positive step pulse signal |
||||
3 |
5DR+ |
Optically isolated input signal positive |
Connect to +5V power supply, the driving voltage range is 5V to +24V. A current limiting resistor is required above 5V. |
|
4 |
PhD- |
DP9=OFF, DR is the direction signal |
Change the direction of rotation of the motor. The input resistance is 220Ω. Low voltage 0-0.5V, high voltage 4-5V, pulse width>2.5μS |
|
DP9=ON, DR is negative step pulse signal |
||||
7 |
5MF+ |
Optically isolated input signal positive |
Connect to +5V power supply, the driving voltage range is 5V to +24V. A current limiting resistor is required above 5V. |
|
8 |
MF- |
Motor idle signal |
When it is valid, the motor current is cut off and the drive stops working. |
|
9 |
ALM+ |
Photoelectric isolation alarm signal positive |
The signal is valid (low voltage) when the driver is overcurrent or overheated. |
|
10 |
ALM- |
Photoelectric isolation alarm signal negative pole |
||
11 |
RDY+ |
Opto-isolated ready signal positive |
Active (low voltage) when the driver is ready to receive a controller signal. |
|
12 |
RDY- |
Negative side of opto-isolated ready signal |
||
13 |
24PU+ |
Optically isolated input signal positive |
Driving voltage: +24V |
|
14 |
24DR+ |
|||
15 |
24MF+ |
|||
Motors and Power |
1,2 |
L,N |
power supply |
80V-290VAC |
3 |
physical education |
ground |
ground terminal |
|
4 |
u |
connect |
||
5 |
five |
|||
6 | W |
