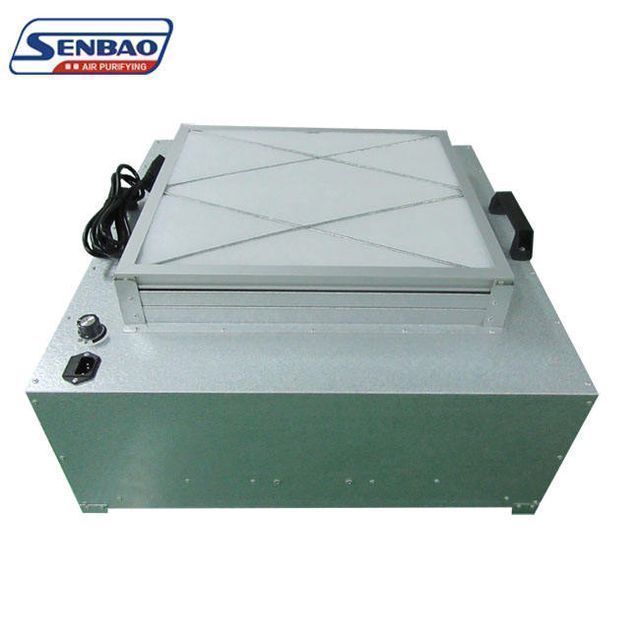

FFU Fan Filter Unit

Click here to contact

Product details

port:	Shenzhen	Certification:	ISO9001
put up:	box filter	Supply capacity:	100000 pieces/month
application:	Tidy up the room	usage:	Widely used dust filter
weight:	30~50KG	Health status:	new
product name:	FFU fan filter unit	efficiency:	High-efficiency particulate air, ≥99.99%
brand:	Sambo	Showroom location:	not any
Local service location:	not any	Packaging Details:	1.FFU can be packed inside the carton. 2. Wooden case protection package.
After Warranty Service:	Video technical support	payment terms:	L/C,T/T,Western Union
place of origin; place of origin:	Guangdong, China	After-sales service provided:	Does not provide overseas services
Warranty:	Not a quality issue, not available	Porosity:	0.3 microns
frame:	aluminum	Dimensions (LWH):	customizable
size:	custom size	Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Stores, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies

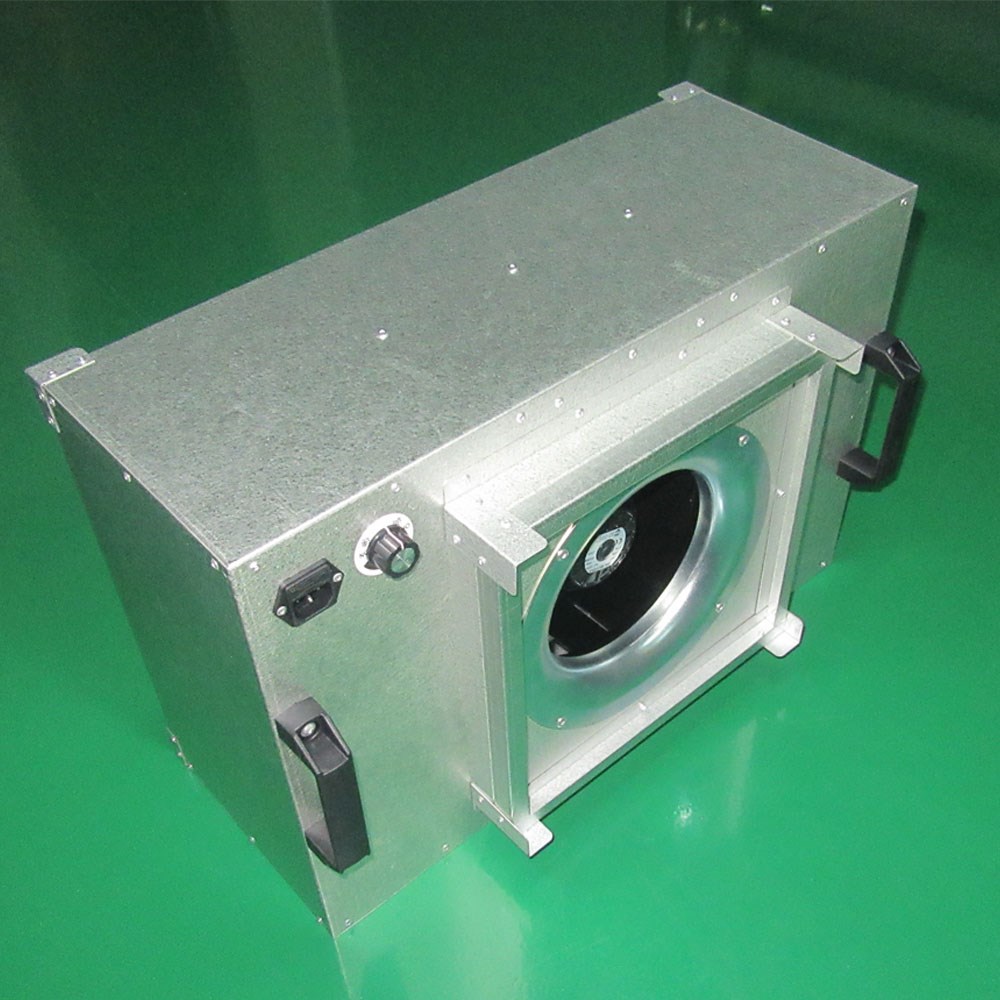

FFU fan filter unit

Product Description

feature

1. Low consumption.

2. Low operating cost.

3. Low noise.

4. The wind speed is uniform.

5. The highest total net pressure value can be achieved under the maximum air volume.

6. Easy to install on the ceiling frame of the clean room.

Performance parameters

Specifications and technical parameters

model.	FFU-1175	FFU-1220	FFU-575	FFU-615
FFU size	*5751175350(mm)*	*6101220350(mm)*	*575575300(mm)*	*610610300(mm)*
filter size	*570117069(mm)*	*605121569(mm)*	*57057069(mm)*	*60560569(mm)*
Air volume	1100-1800	1200-1900	500-900	600-950
speed control	3 speed controller or stepless speed controller to choose
Voltage and current	AC, 1P, 220V- 50/60Hz, 110V-50Hz/60Hz. 1P (phase)
Output Power	100-200W
Filtration efficiency	HEPA0.3μm≥99.99%
Ontology data	SUS304 stainless steel or galvanized iron frame
Options	HEPA(99.9995%d 0.3um) primary filter
