RJ45 DMX Terminated Plug and Modular RJ45 Resistor Terminated Plug for CPI Bus

Product details
application:DMX stage lights, DMX stage lightscolor:black, black
Card:OEMPackaging Details:PE bag
Supply capacity:1000 pieces per weekMaterial:ABS
Bale:sports bagInterface Type:RJ45
120 Ohm RJ45 Terminator:Modbus terminator 150 ohm for RJ45 connectortype:RJ45, terminal connector, contact connector
port:ShenzhenRJ45 connector 120 Ohm:Modular RJ45 Resistor Terminated Plug for CPI Bus
model:Chinaplace of origin; place of origin:Guangdong, China
describe:rj45 adapterproduct name:DMX512 terminator RJ45 connector
payment terms:wire transferSupplier Type:Original Manufacturer, ODM
DMX terminator RJ45:CAN open line terminator for use with RJ45 connectors

RJ45 DMX Terminated Plug and Modular RJ45 Resistor Terminated Plug for CPI Bus



describe

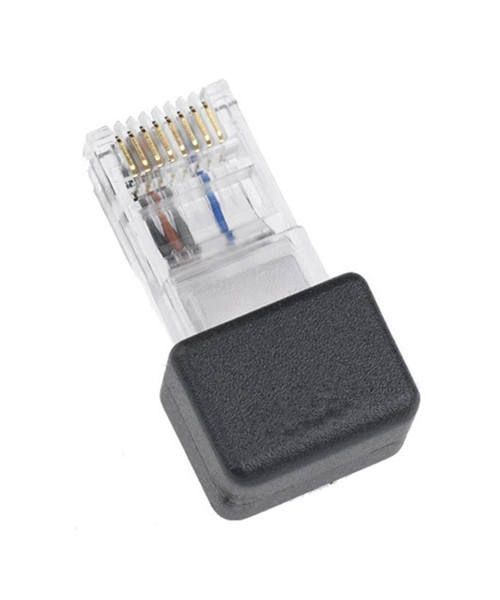

RJ45 connector plug with 120 ohm resistor

DMX512 terminator RJ45 connector

RJ45 Connector 120 Ohm & 120 Ohm RJ45 Terminator


The RJ45 connector is pre-assembled with a 120 ohm resistor (pair 3, pins 3 and 6).

Therefore, participants in ST-Bus networks with RJ45 sockets (eg connection boxes or ST-Boxes) can easily be equipped with a terminating resistor.


The DMXterminator 120 is an RJ45 connector plug with a 120 ohm resistor inside that connects to the data line. Plug it into the last DMX unit and the DMX source sees the cable as endless. Otherwise, reflections will occur at the end of the cable, causing hard-to-find problems. Avoid this by terminating the end of the cable.
