RJ45 distribution board 8P8C 9-way bus board DIN rail installation interface module

Supplier: Shenzhen Hualian Kechuang Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Chen Frank
Price: $20.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Origin:	Guangdong, China	gender:	female
application:	circuit board	installation method:	DIN rail installation
Gross weight per piece:	0.100 kg	Single package size:	12X12X5 cm
model:	RJ45 9 way bus board	Shipping Details:	2 days after payment
type:	RJ45	socket:	RJ45
Sales unit:	single product	brand:	Hualian

Product Description

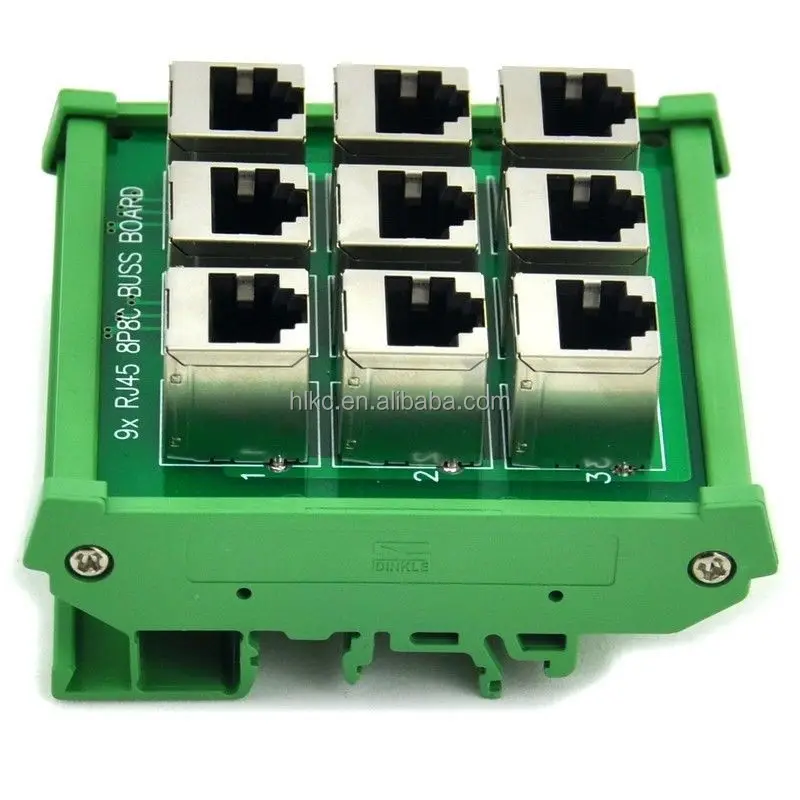

RJ45 9-way bus board interface module with simple DIN rail mounting feet.

RJ45 vertical shielded 8P8C jack.
Simple DIN adapter (feet): for DIN rails with a width of 35 / 32 / 15mm.
FR-4 fiberglass PCB with double copper layers.
External dimensions: 72.5 x 83 x 42 mm (W x L x H).
PCB Dimensions: 72.5 x 80 (W x L).
100% brand new, never used.

Rated voltage: 100V.
Rated current: 500mA/pin.
Operating temperature: -20ºC to 50ºC

RJ45 distribution board 8P8C 9-way bus board DIN rail installation interface module
