River Sand Dredger for Dredging with Multifunctional Cutter Head

Supplier: Relong Technology Co., Ltd
Region: China
Contact: Mr Emily Wang
Price:
Min. Order: 1 piece

Click here to contact

Product details

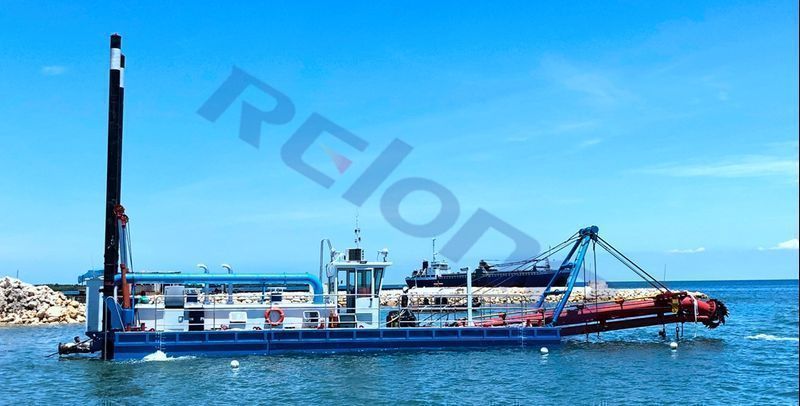

Relong Cutter Suction Dredger-CSD200

Product Description
Relong cutter suction dredger is a hydraulic dredger that uses centrifugal pumps with a rotating cutter head to loosen, lift and transport dredged material. Dredging machines are non-propelled dredgers.
Working method: The cutter will be moored with spuds or anchors while at work so that in essence the dredging operation takes place with the cutter in a stationary position.
Project applications: Cutter suction dredgers are used wherever the seabed is hard rock. They are used for larger dredging projects such as navigation channels and port development and maintenance and land reclamation and in major projects such as the Panama Canal and the Suez Canal.
Types of dredging materials: Cutters are powerful and are capable of dredging all kinds of material in water including hard rock.
They are able to effectively dredge: silts, clays, sand, gravel, cobbles, fractured rocks and sound (unfractured) rocks.

Advantage
* Heavy-duty, high concentration ratio, excellent particle allowance, and long discharge distance
* Optimal configuration of power and hydraulic unit (less operating costs)
* Dismountable structure, easy to disassemble, and transportation.
* Double powerful auger drive (infinitely for- and backward)
* High working range of the outrigger arm
* Equipped with a self-propulsion system that can be moved to a different work site or drag by tugboat
* Cutter suction head can be changed for different situation
* Easy access to all parts, especially the dredge pump wearing parts.
* Freshwater cooling system.
* Safe and easy to operate
*Can be designed and fabricated according to your requirements

Mode

Model	Dredging Capacity	Dredging Depth	Suction/Discharge Pipe Dia.	Engine(s) Power
RLCSD-200	500 m 3 /hr	1-5 m	200/200 mm	160-300 kw
RLCSD-250	800 m 3 /hr	1-8 m	250/250 mm	200-400 kw
RLCSD-300	1200 m 3 /hr	1-12 m	300/300 mm	400-600 kw
RLCSD-400	2200 m 3 /hr	1.5-14 m	400/400 mm	700-1200 kw
RLCSD-500	3500 m 3 /hr	1.5-15 m	600/500 mm	1100-1600 kw
RLCSD-650	5000 m 3 /hr	1.5-18 m	650/650 mm	2200-2500 kw
RLCSD-700	7000 m 3 /hr	1.5-20m	750/700 mm	2800-3500 kw
