Product details

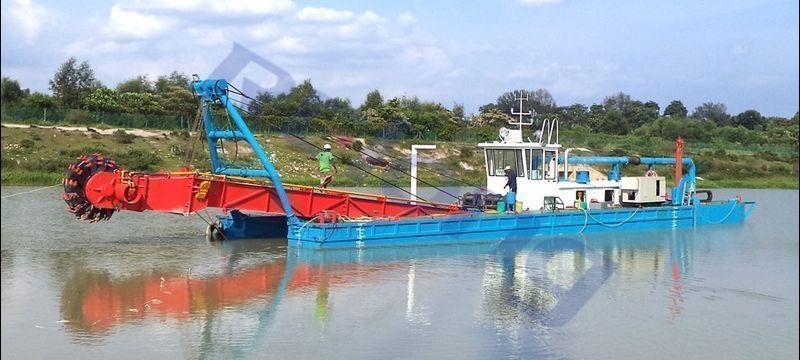

Bucket wheel dredger

The bucket wheel suction dredger is ordered by client to do the river dredging work. Coz the clay layer is hard, a bucket wheel type cutter head is more suitable in this working situation.

The bucket wheel dredger is developed from general cutter suction dredger.It is a new type of hydraulic dredger.The dredger is a combination of land excavating bucket wheel and cutter suction dredger ,which improves the cutting and dredging ability of the dredger,and increases the productivity while reduces the energy consumption of dredging and winch swing.It is ability to dredge and cut the soil layer is very strong,which is suitable for dredging hard soil,cohesive soil and sand ,ore and other materials.

Bucket wheel dredger

In order to improve the dredging efficiency, the spud carrier is equipped at the stern of the dredger.

The ability to dredge sand, gravel and clay combinations render them most suitable for alluvial dredging in river beds where the valuable minerals are likely to appear.

The ability to handle submerged vegetation such as tree trunks, and the like, open a large area of opportunity in other mining leases.

Bucket wheel suction dredger	Dredging Capacity(m3/h)	Dredging Depth(m)	Total installed power(kw)	Pipe diameter(mm)	Max discharge distance(m)
Bucket wheel suction dredger BWD650	6000	15	2273	650	2000
Bucket wheel suction dredger BWD550	4500	14	1690	550	2000
Bucket wheel suction dredger BWD500	3500	14	1231	500	2000
Bucket wheel suction dredger BWD450	3000	13	1000	450	2000
Bucket wheel suction dredger BWD400	2200	14	859	400	2000
Bucket wheel suction dredger BWD300	1200	12	559	300	1500
Bucket wheel suction dredger BWD250	800	10	336	250	1000
Bucket wheel suction dredger BWD200	500	6	224	200	500
