AFS60 220V tangential fan blade 60mm diameter

  • Supplier: ACTIVA INC.
  • Region: Taiwan, China
  • Contact: Mr Michael WANG
  • Price: $1.00 /piece
  • Min. Order: 1 piece
Product details
payment terms:Letter of Credit, Wire Transfer, Credit Card, PaypalWarranty:1 year
size:60x429mmport:Kaohsiung
place of origin; place of origin:Taiwan, Chinamodel:AFS60
brand:XinbangInstall:Industrial equipment
Packaging Details:standard packagingVoltage:120/230 volts
Blade material:aluminumAfter-sales service provided:No overseas service, online support
Supply capacity:100000 pieces/monthApplicable industries:Manufacturing plants, machinery repair shops, other
Current type:alternating currentCertification:ce
type:cross flow fan



Product Description

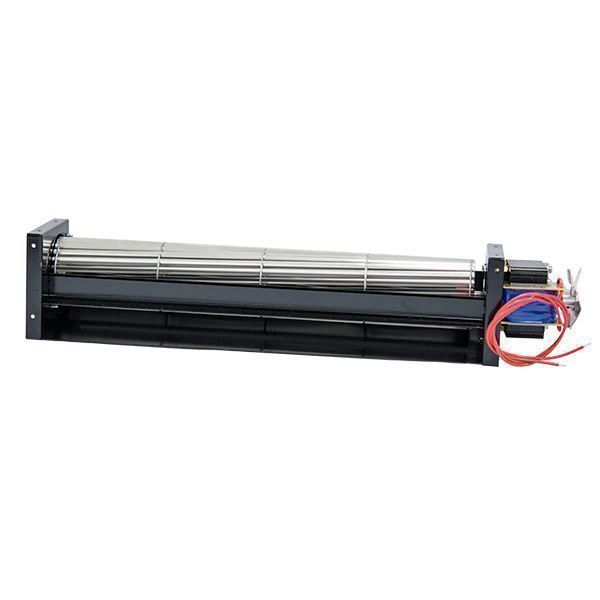

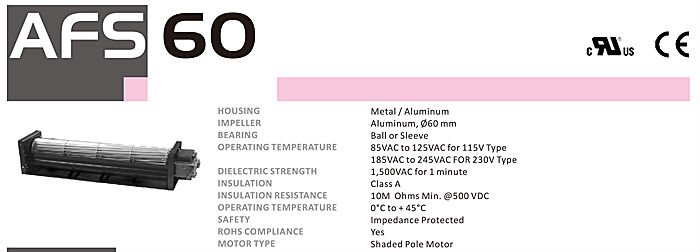

AFS60 220V Tangential Fan 60mm Diameter Fan Blade



housing Metal/Aluminum
impeller Aluminum Ø60
bearing ball or sleeve
Operating Voltage 85VAC to 125VAC for 115V type
185VAC to 245VAC for 230V type
Dielectric strength 1500VAC for 1 minute
insulation Class A
Insulation resistance 10M ohms minimum @ 500 VDC
Operating temperature 0°C to +45°C
Safety Impedance protection
ROHS compliance Yes
Motor type Shaded Pole Motor







application:



1. Power supply unit



2. Measuring instruments



3. Electronic switch system



4. Vending machines



5. Heating and cooling air conditioning



6. Computer (CPU, peripheral and terminal equipment)



7. Medical Equipment



8. Acoustic equipment



9. Flight Instruments



10. Numerical Control (NC) Unit



11. Data communication terminal equipment



12. Office machinery and copiers
