brand: | rooted | Rated current: | Up to 6300A |
port: | Ningbo, Shanghai | model: | HD 11 |
Card: | USUNE | product name: | Knife switch |
Number of poles: | 3 | Packaging Preview: | |
Packaging Details: | carton | payment terms: | wire transfer |
Warranty: | 12 months | Rated voltage: | 380v |
type: | switch | Rated current: | 6300A |
place of origin; place of origin: | Zhejiang, China | | |
product name | Low voltage isolating switch (knife switch) | | | |
type | HD 13 | | | |
Card | USUNE | | | |
Rated voltage | 380v 690v 1000v | | | |
Rated current | Up to 4000A | | | |
number of poles | 3P 4P | | | |
describe

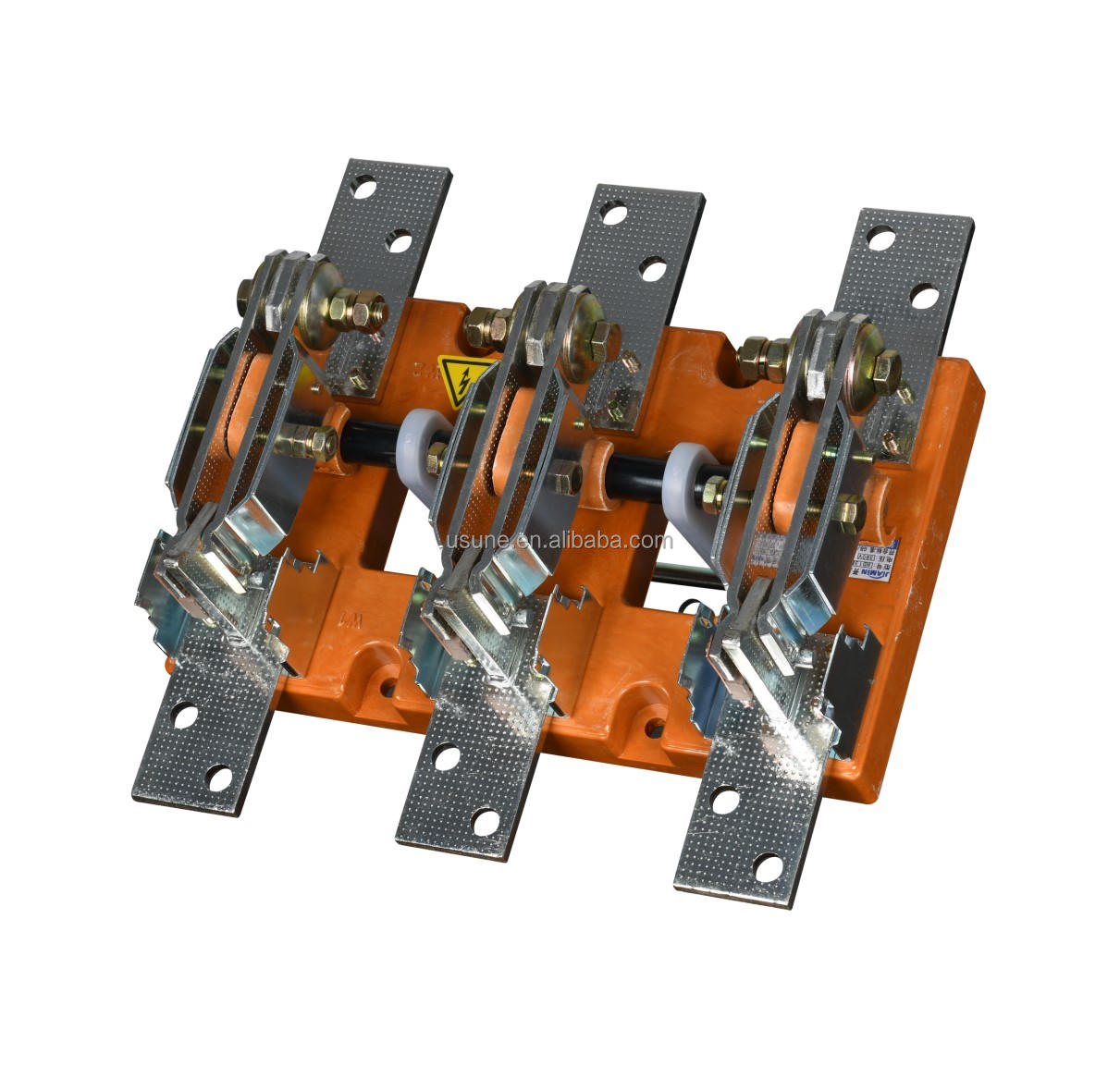

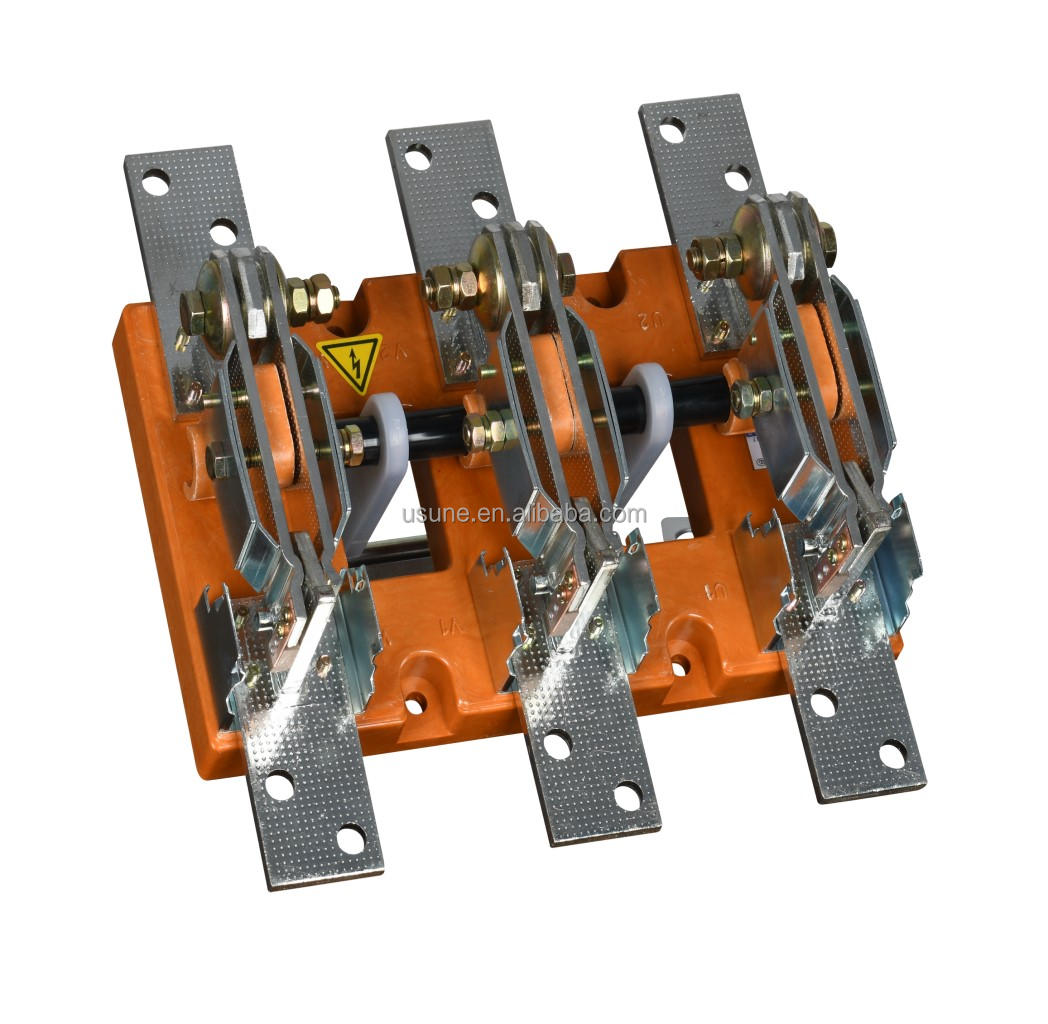

HD, HS series knife switches and knife changeover switches (hereinafter referred to as switches) are suitable for combined power distribution equipment with AC 50Hz, rated voltage up to 380V, or DC to 220V, rated current up to 3000A. AC or DC circuit or act as a disconnect switch.
application

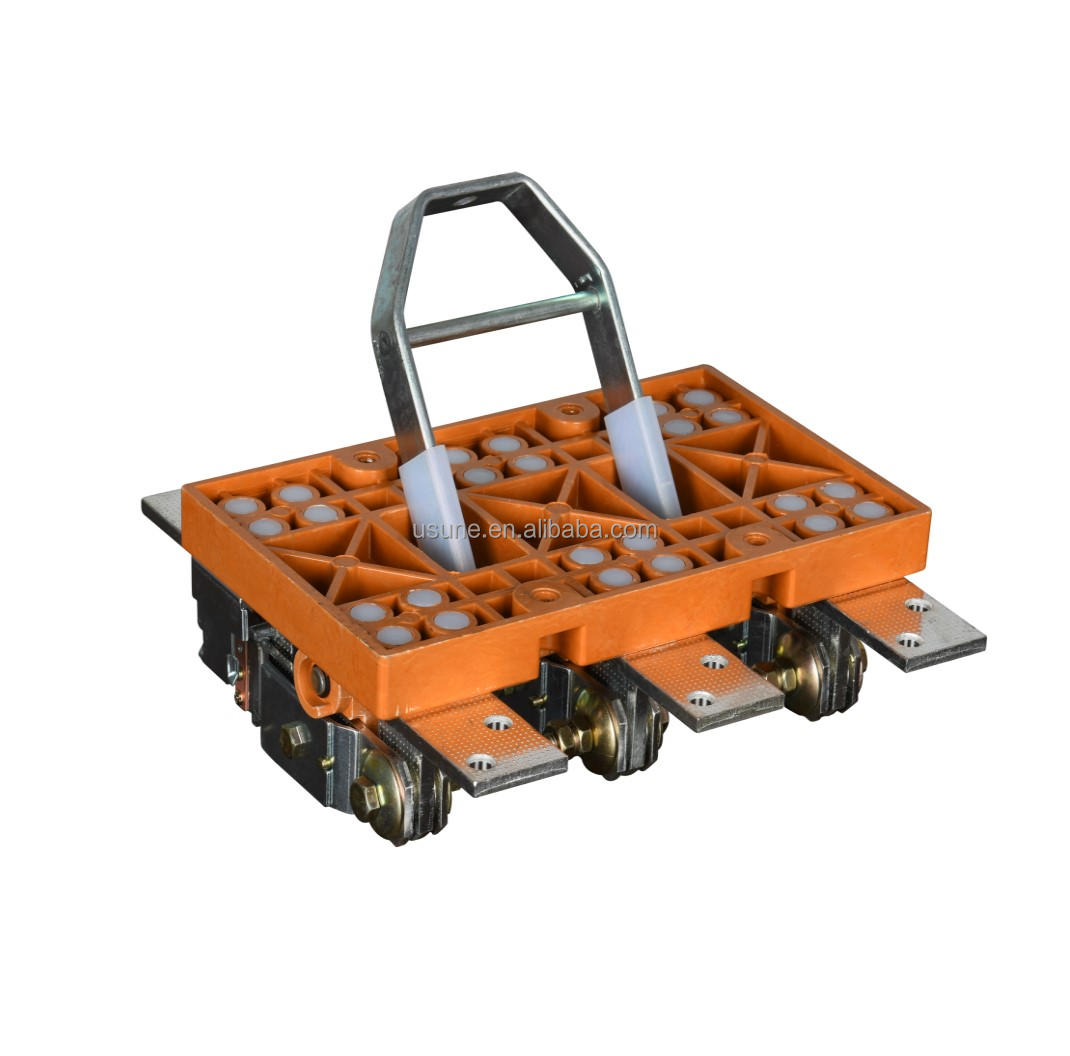

1. The central handle switch is mainly used in power stations and acts as an isolation switch, not suitable for circuit breakers with current.
2. Side-grip switches are mainly used in power boxes.
3. The central front lever operating mechanism switch is mainly used for the front side operation and rear maintenance switch cabinet, and the operating mechanism is fixed in front of the cabinet.
4. The side-front lever operating mechanism switch is mainly used for front-side operation and front-maintenance switch cabinets, and the operating mechanism can be fixed on both sides of the cabinet.
5. The knife switch equipped with the arc extinguishing cover can cut off the current load, and the other series of knife switches only function as isolation switches.
6. The product complies with GB14048.3 (idtIEC60947-3) standard.
Specification
HS11-1000/48 HD13-600/41 HS11-1500/48 HD13-1000/41 HS12-200/31 HD13-1500/40 HS12-400/31
HD13-1500/41 HS12-600/31 HD13-2000/40 HS12-1000/31 HD13-3000/40 HS12-1500/31
HS13-200/31 HS12-200/41 HS13-400/31 HS12-400/41 HS13-600/31 HS12-600/41 HS11000/31
HS12-1000/41 HS13-1500/30 HD14-200/31 HS13-1500/31 HD14-400/31 HS13-2000/30
HD14-600/31 HS13-3000/30 HD14-1000/31 HS13-200/41 HD14-1500/31 HS13-400/41
HD14-200/41 HS13-600/41 HD14-400/41 HS13-1000/41 HD14-600/41 HS13-1500/40
HD14-1000/41 HS13-1500/41 HD14-1500/41 HS13-2000/40 HS13-3000/40
