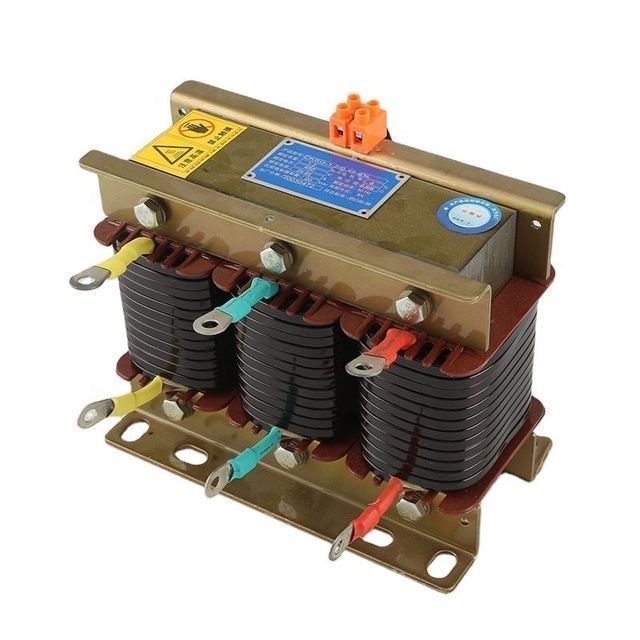

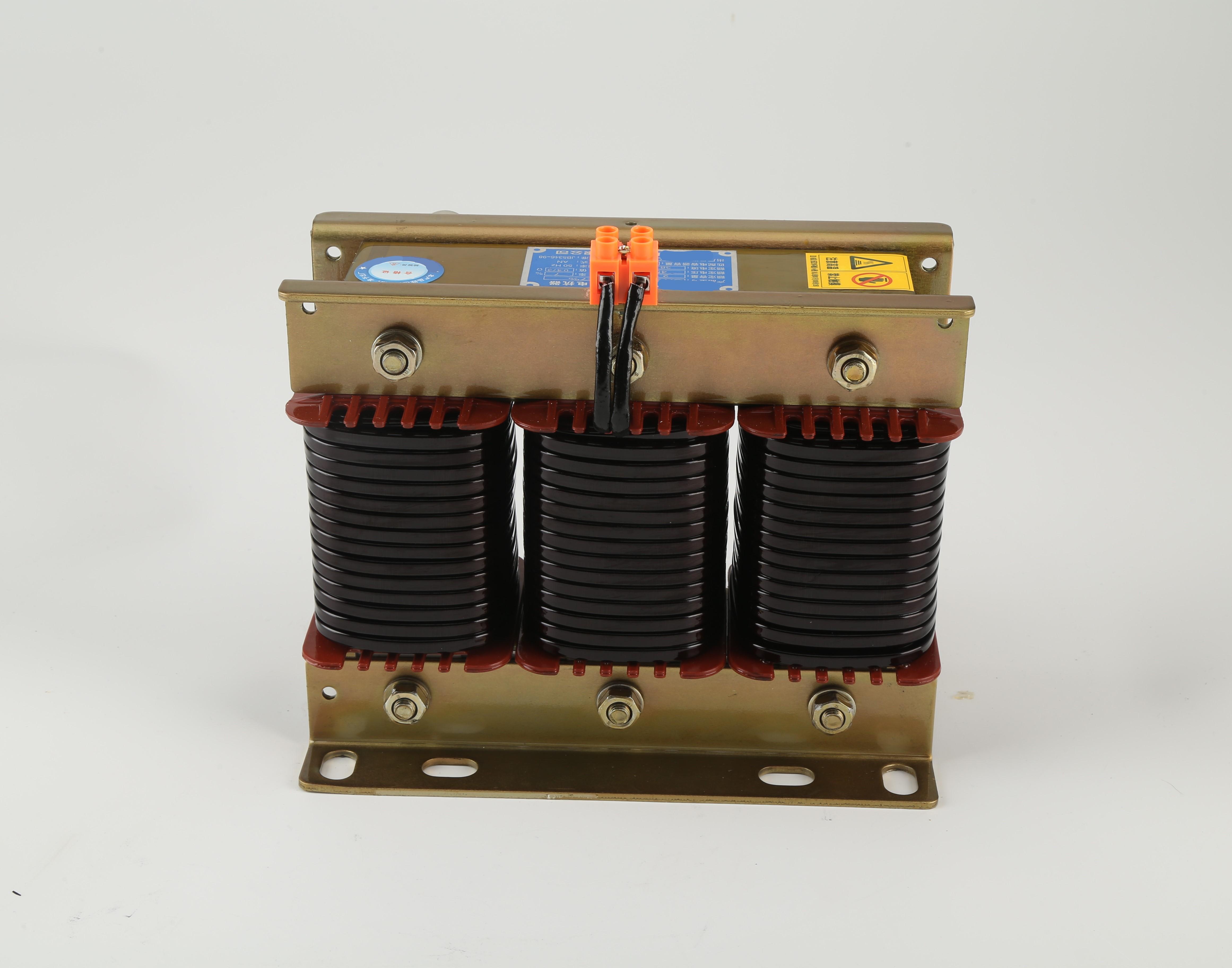

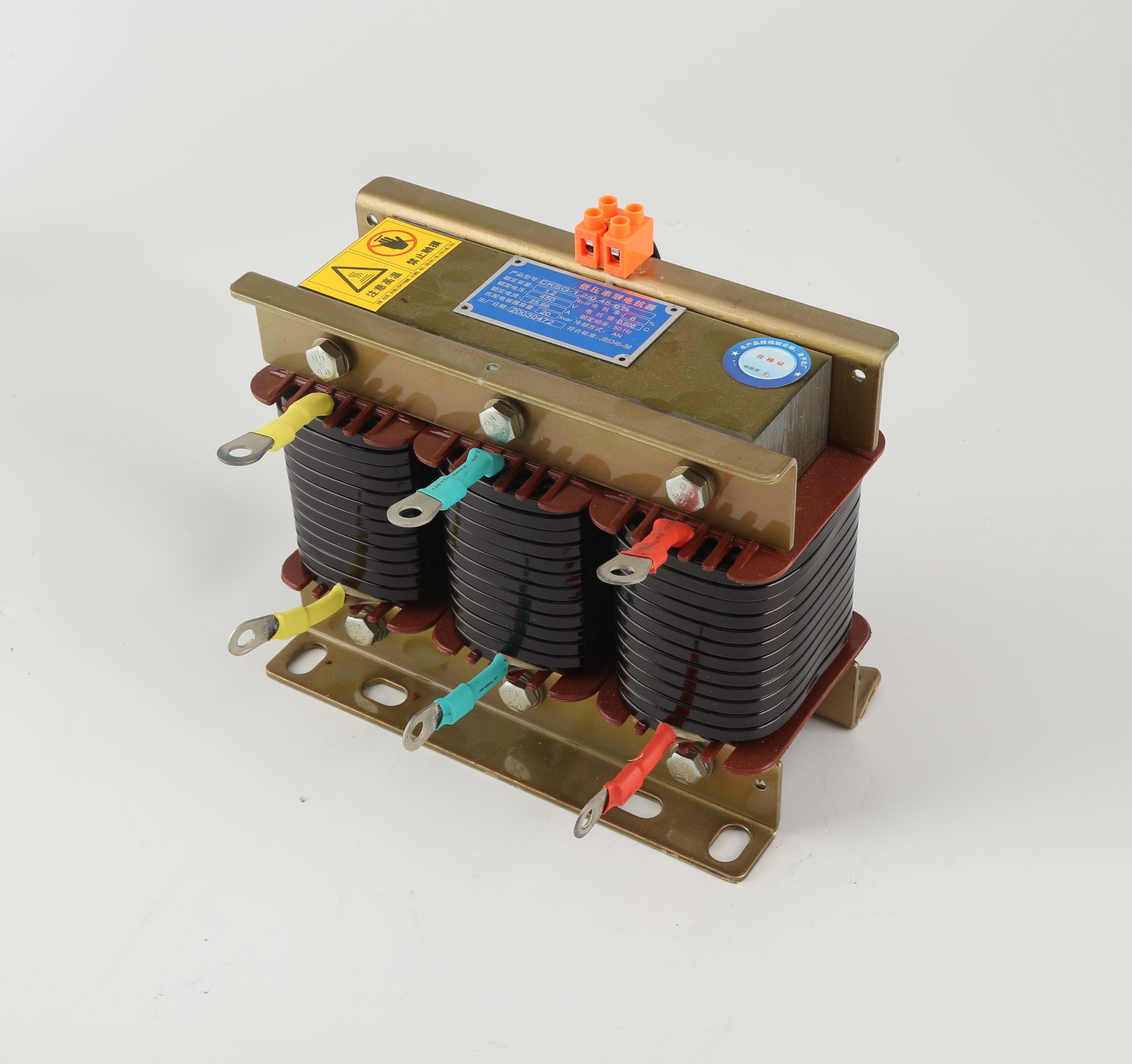

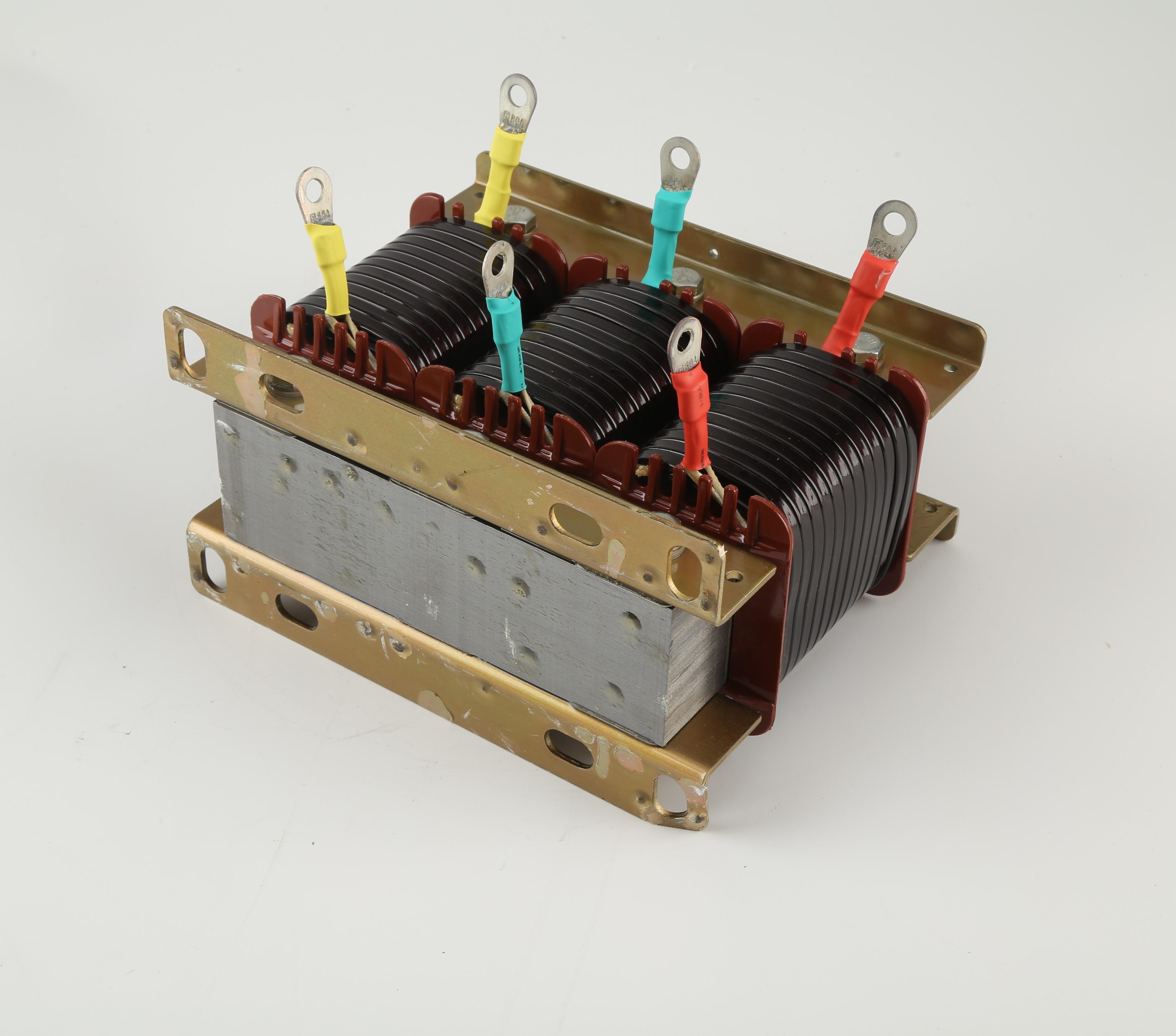

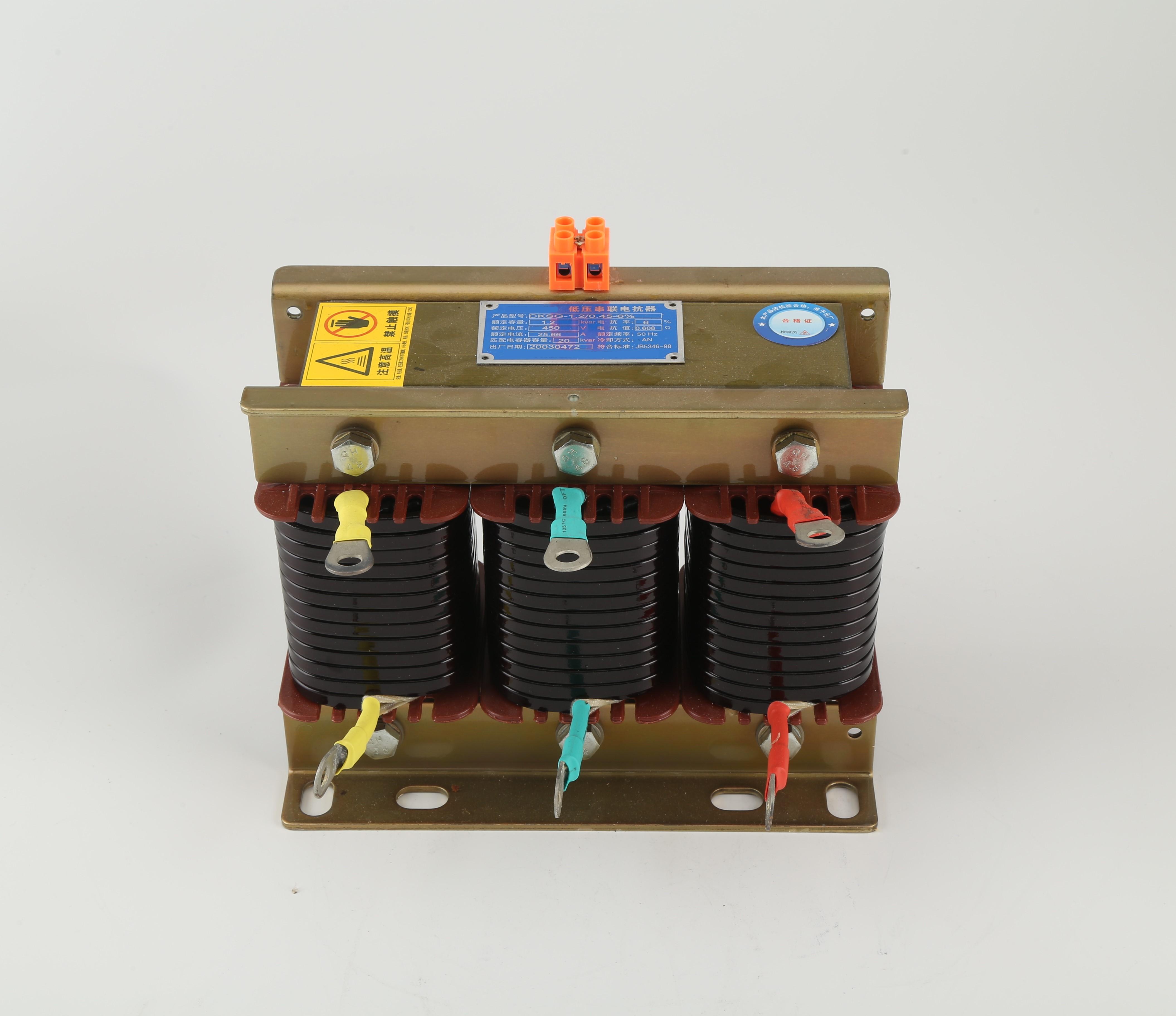

Usune Electric Three-phase series capacitor shunt reactor CKSG series reactor LKSG filter power reactor

Supplier: Zhejiang Usune Electric Co., Ltd.
Region: Zhejiang, China
Contact: Ms Liz Chen
Price: $12.00 /set
Min. Order: 1 set

Click here to contact

Product details

Package preview:		Winding material:	copper, aluminum.
Card:	Ukine	Rated voltage:	400V or 660V or customized
Packaging Details:	carton	place of origin; place of origin:	Zhejiang, China
Item code:	CKSG series reactor	capacity:	25
Fit capacitor volume:	10/15/20/25/30/35/40/45/50/55/60Kvar	model:	CKSG-1.5/0.45-6%
brand:	Ukine	Rated voltage:	400V, 450V, 480V, 525V, 660V/690V
Reactance rate:	6%, 7%, 12%, 14%, etc.	Supply capacity:	1000 sets per day
port:	Ningbo, Shanghai	payment terms:	wire transfer
Reactor capacity:	0.6-8.4Kvar	Rated current:	32.08A

product name	CKSG series reactor
Fit capacitor volume	10/15/20/25/30/35/40/45/50/55/60Kvar
Reactor capacity	0.6-8.4Kvar
Reactance	6%, 7%, 12%, 14%, etc.
Winding material	copper, aluminum.
Rated voltage	400 volts, 660 volts

Recommended Products

project reference

Yunnan Fuxian Lake International Health Garden Phase I (Emerald Bay)

Zhoushan Shipping Company

China Railway 14th Bureau Group Third Engineering Co., Ltd.

National Highway 318

Yunnan Fuxian Lake Happy World

Wuhan University of Technology

Packaging and Shipping

Our advantage

1. Research and development capabilities

We have been focusing on this field for more than 10 years, and have an experienced R&D team to undertake the design and development of each project according to the special needs of customers.

2. Quality inspection team

From parts to finished products, we have extremely strict quality control procedures.

3. Production capacity

The stable production period is within 15 days.

4. High-quality products

We have a full set of product test reports, supplying the world's largest utility companies——State Grid Corporation of China (SGCC)andChina Railway Construction Group.
