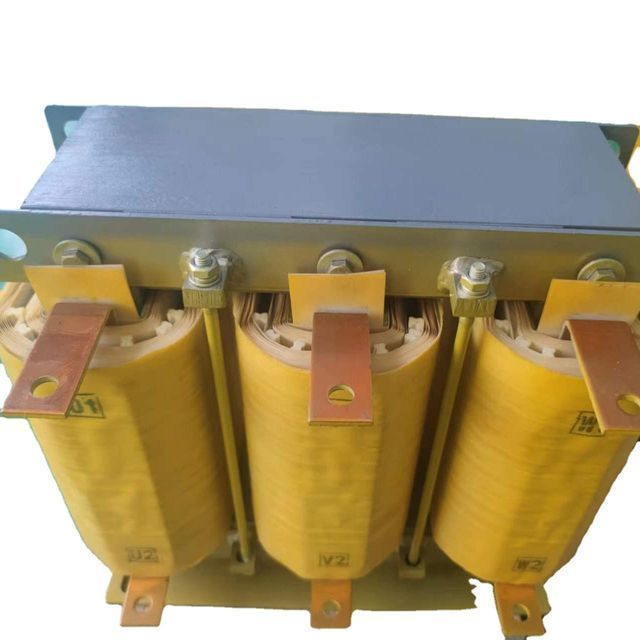

Copper Foil High/Low Voltage Industrial AC Line Reactors for Rectifiers

Click here to contact

Product details

model:	AC reactor	stage:	triple/single
capacity:	10Kvar-1000Kvar, 100	brand:	Guardian
Package preview:		Material:	copper
Packaging Details:	wooden box	Insulation class:	Class H
cooling method:	auto focus	Supply capacity:	100 sets per day
payment terms:	L/C, T/T	RETRD voltage:	110-10KV
Rated current:	10A-5000A	place of origin; place of origin:	Jiangsu, China
Warranty:	1 year	Rated voltage:	110v-10kv
application:	Power Systems	port:	Shanghai Port Ningbo Port
frequency:	low/medium/high frequency	Temperature rise:	45-250K

Product Description

Card	Guardian
place of origin; place of origin	Wuxi, China
inductance	0.01-1000mH ±(5%-10%)
rated current	10A-5000A
stage	triple/single
RETRD voltage	110-10KV
capacity	10Kvar-1000Kvar
frequency	low/medium/high frequency
cool down	auto focus
temperature rise	45-250K
insulation level	Class H
twine	Copper wire, copper foil, aluminum wire, aluminum foil
application	Inverter, Inverter
		New energy: photovoltaic power generation, wind power generation
		Transportation: electric vehicles, rail transit, charging stations
		smart grid
sample	consult
certified	SGS, CE, ISO
OEM production	accept
Dipping method	Vacuum Dip Plating
custom made	Yes

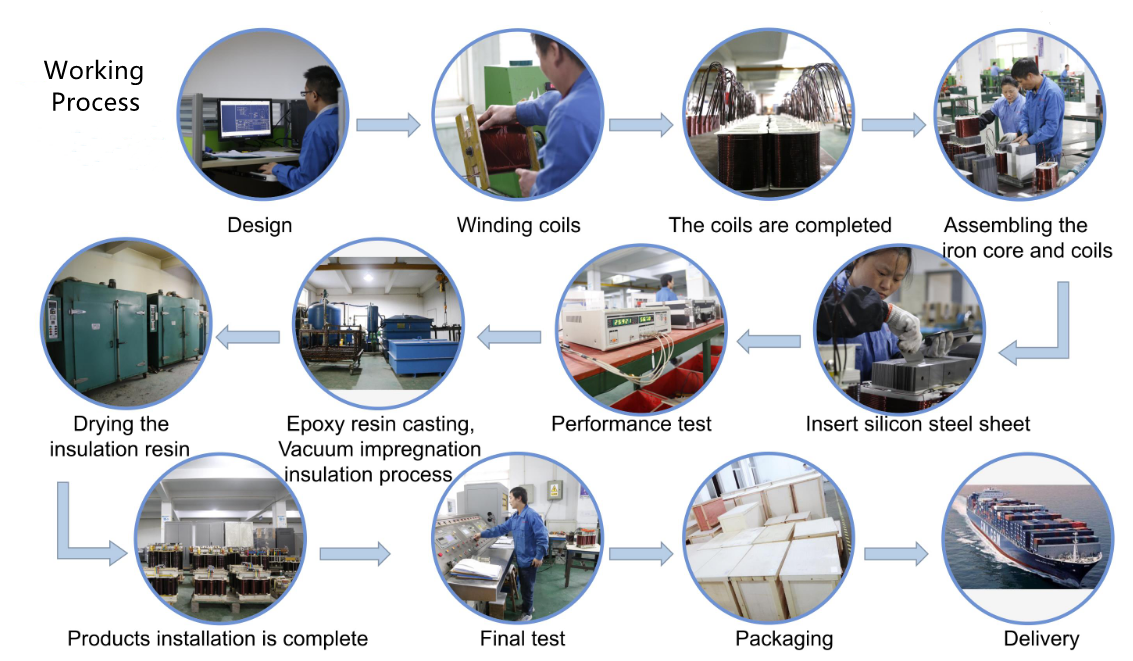

production process
