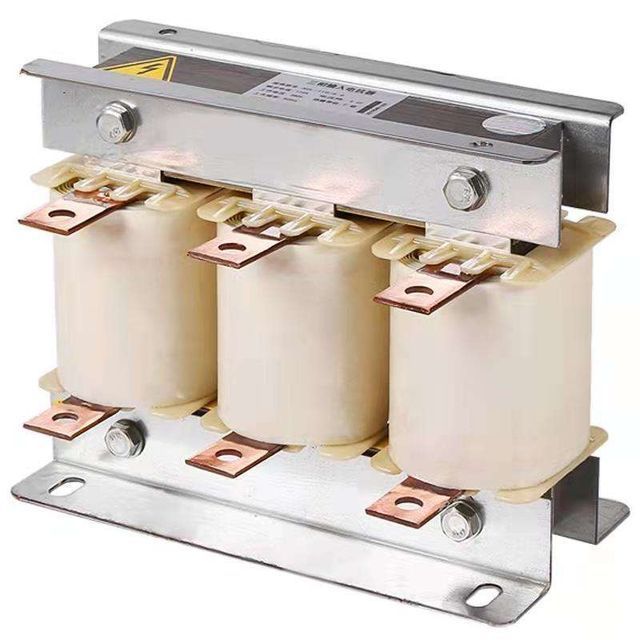

0.75kw to 600kw high quality AC input/output reactor
-
Supplier: Foshan Shunlianfa Electric Group Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Co Co -
Price: $15.00 / >=5 pieces -
Min. Order: 5 pieces
Product details
| Rated voltage: | 220v 380v | product name: | AC reactor |
| frequency: | 50/60 Hz | capacity: | 5 |
| Certification: | International Organization for Standardization | communicate: | RS485/232 |
| other service: | OEM production | Supply capacity: | 9999 pieces per day |
| Rated current: | 8A~1600A | port: | Guangzhou |
| payment terms: | L/C, Western Union, D/P, D/A, T/T | Package preview: | |
| model: | ACL output reactor | Origin: | Guangzhou City, Guangdong Province, China |
| brand: | Shun Lianfa | Packaging Details: | Foam + carton can also be customized according to buyer's requirements |
Product Description
product name | ACL/DCL/OCL reactor |
Material | copper iron |
Product scope | Inverter/power equipment/industrial control equipment/high-speed rail/urban construction |
feature | The input AC reactor is a current limiting device, which is mainly used on the input side of the inverter to protect the AC inverter Effects of transient overpressure. It also reduces inrush and peak current and improves active power factor , suppress the harmonics in the power grid, and improve the effect of the input current waveform. High-performance foil winding structure, low DC resistance, strong short-circuit resistance, and good overload performance Capability to characterize this input AC reactor in a short time. Composite insulating materials for the above classes are used to maintain Products perform reliably under harsh operating conditions, and the facility is designed with low magnetic Magnetic flux density, excellent linearity and strong overload capacity, moreover, design and vacuum pressure coordination The impregnation process reduces the noise of the reactor, and at the same time has the advantages of low consumption and high efficiency The temperature rise is low, and the iron core is made of cold-rolled grain-oriented silicon steel sheet. |

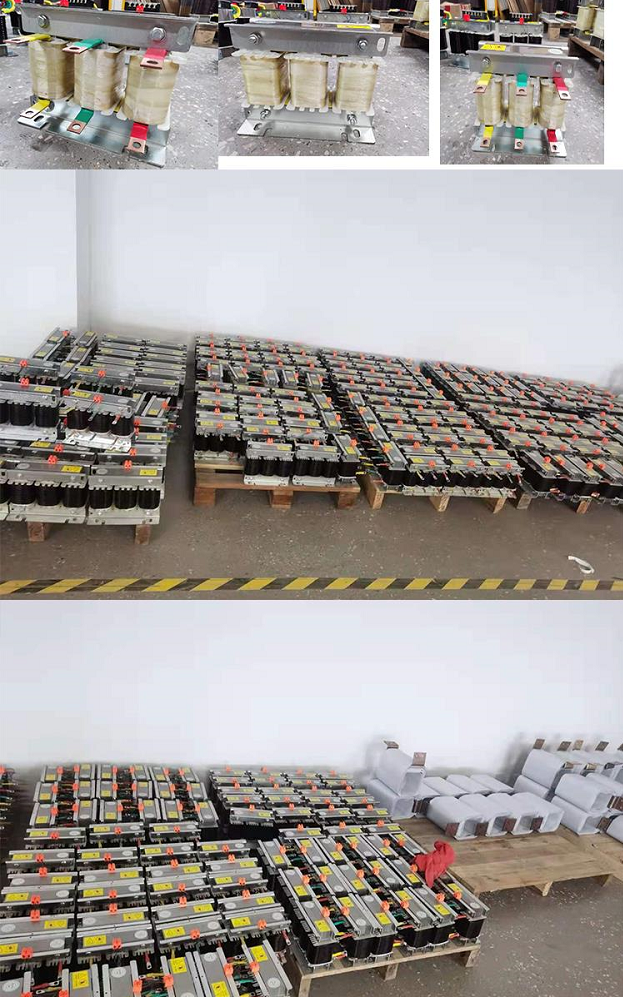

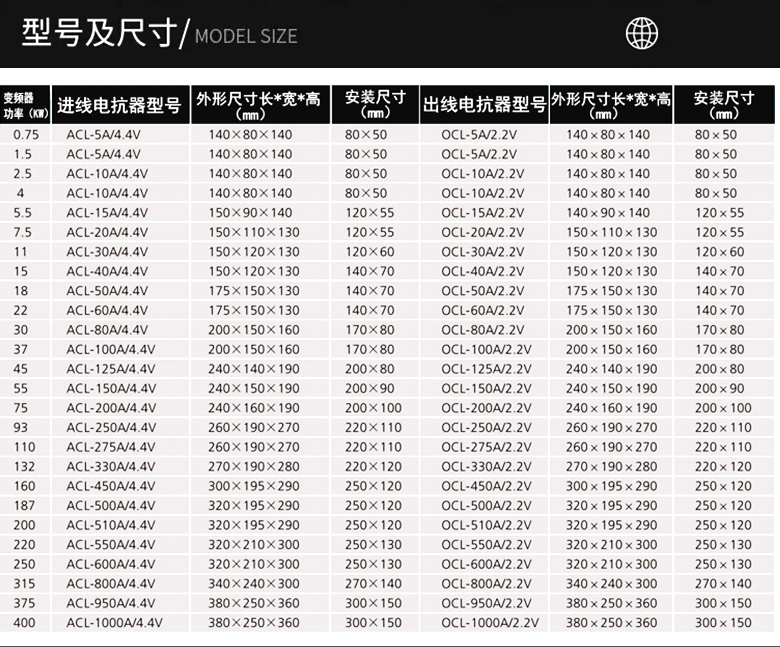

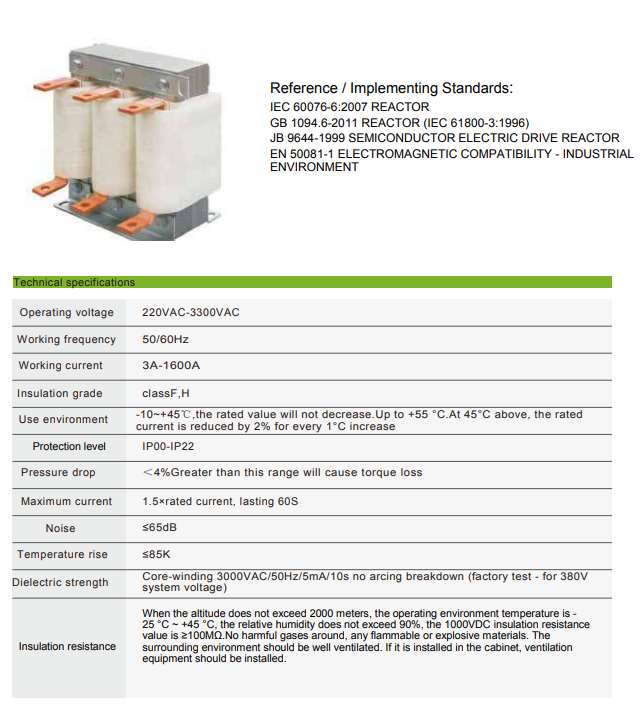

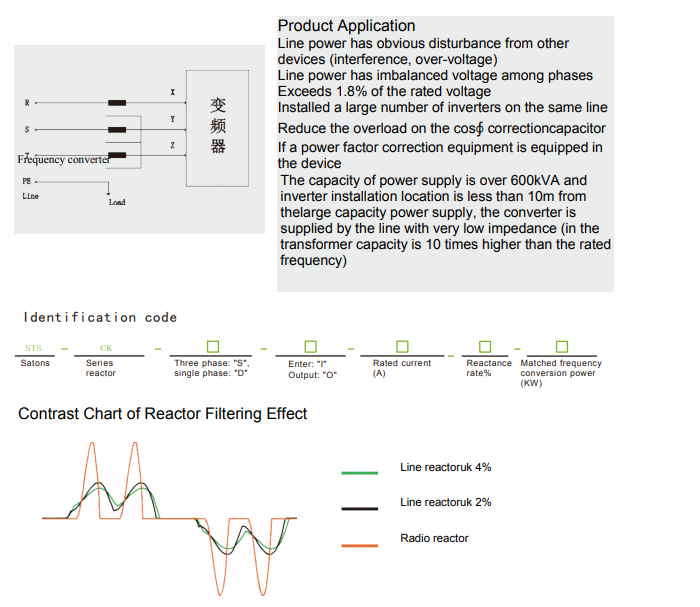

detailed drawing
