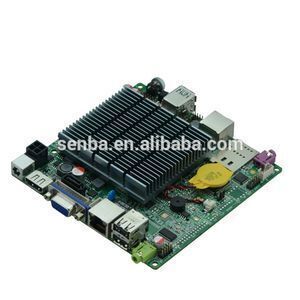

low cost celeron j1900 nano itx x86 single board computer wi

Supplier: Shenzhen Senba Innovation Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Aaron Tsao
Price: $1.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

O/S:	Windows 7/8.1/10;Linux;	LAN:	1* RJ45 Gigabit Ethernet;
Expansion Slot:	1* Mini-PCIE (Support Wifi/3G);	Brand Name:	SENBA;
Warranty:	3 Years;	Delivery Detail:	within 2 workig days(Sample);
Storage:	1SATA/1mSATA SSD;	Display:	VGA+HDMI;
CPU:	Integrated Intel J1900 quad core processor;	Model Number:	STX-N29 (06);

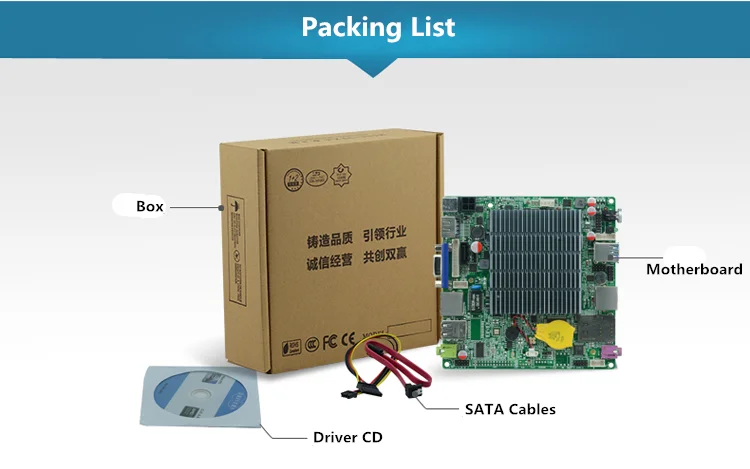

Type:	Embedded Industrial Motherboard;	Packaging Detail:	Carton Box Accessory:1CD driver;1SATA cable;1*SATA power cable;
Products Status:	Stock;	Port:	Shenzhen;
Power Supply:	DC 12V_3A;	Supply Ability:	3000 Piece/Pieces per Month;
Place of Origin:	Guangdong China (Mainland);	USB:	5USB 2.0/1USB 3.0;
Payment Terms:	T/T,Western Union,MoneyGram,Paypal;	RAM:	DDR3L 1.35v up to 8GB;

low cost celeron j1900 nano itx x86 single board computer with sim card slot fanless

Product Description

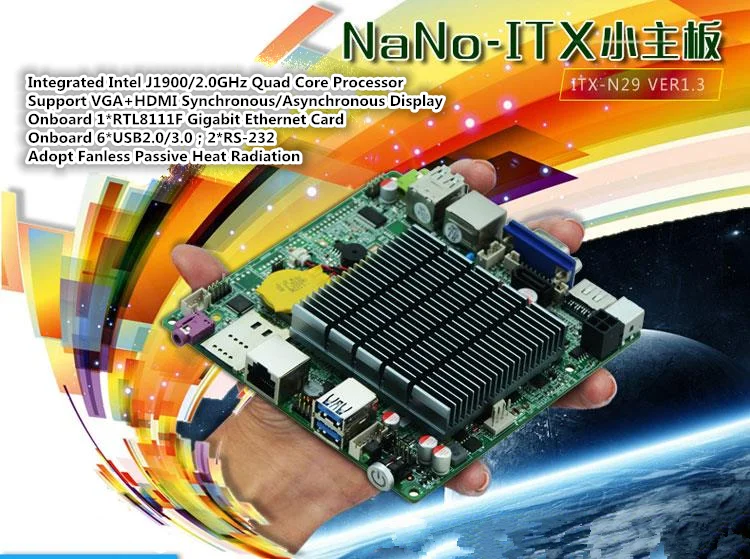

Model No.	STX-N29 VER:1.5

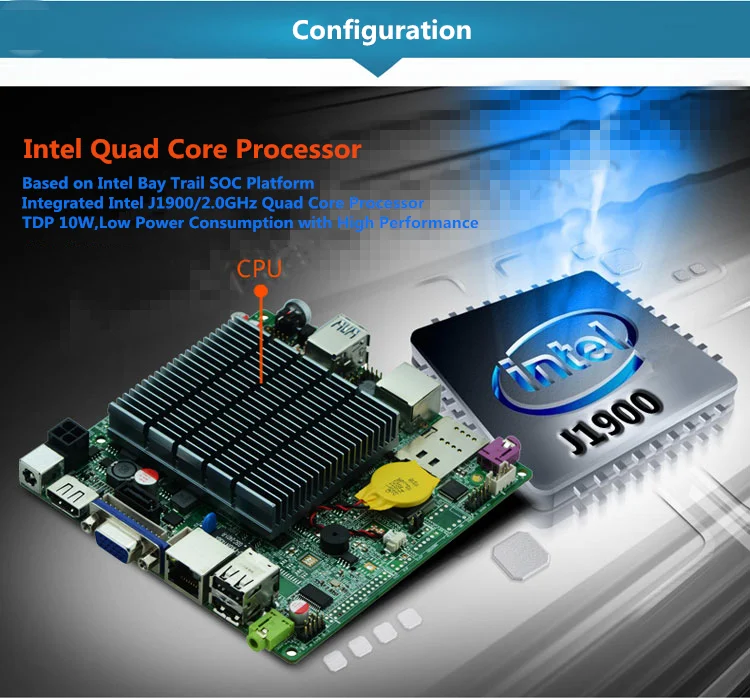

CPU	Integrated Intel J1900/2.00GHz Quad core processor,TDP10W
Chipset	Based on Intel Bay trail SOC platform

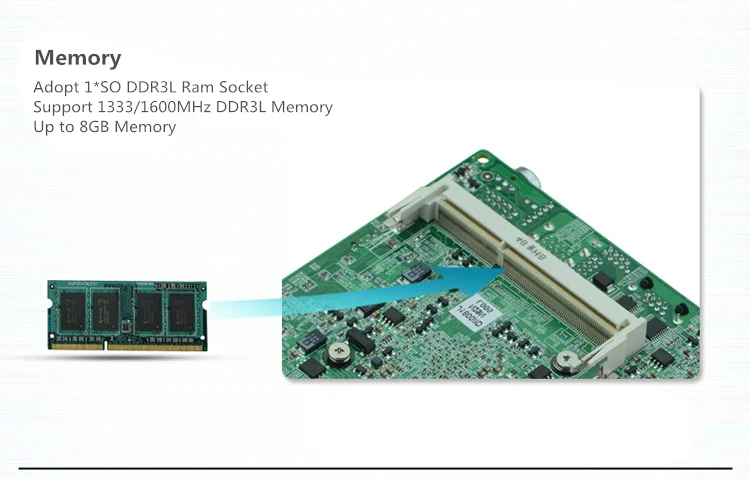

Memory	1*DDR3 SODIMM,Support 1600/1333MHz DDR3L/1.35V Memory,up to 8GB
Graphics	Integrated Intel HD Graphics

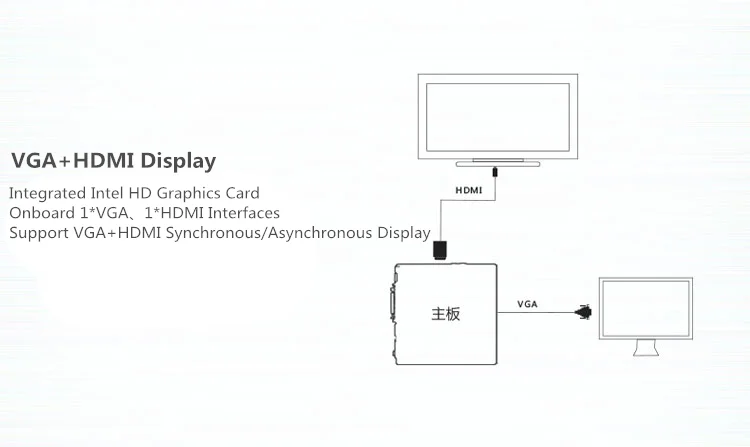

	Provide 1VGA,1HDMI (LVDS optional)
	Supprot VGA+HDMI Synchronous/asynchronous display
LAN	1* RTL8111F Gigabit Ethernet support wake on LAN/PXE
Storage	1* SATA;1*mSATA
Audio	Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out,amplifier
Audio	Advise 2Ω 5W speaker

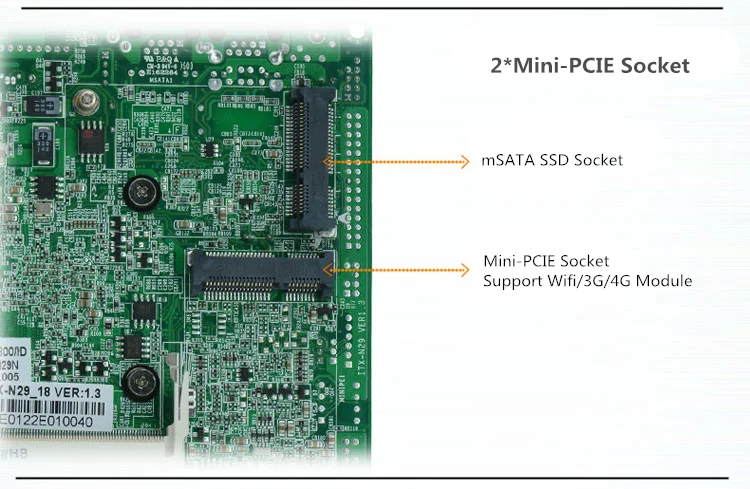

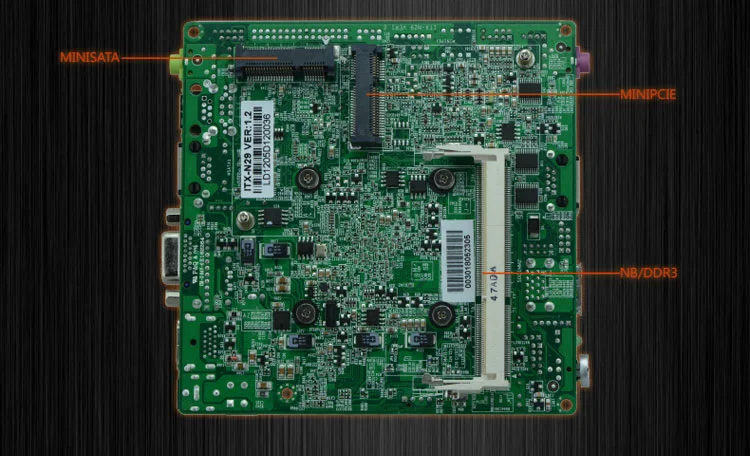

Expansion Slots	1* Mini-PCIE slot support 3G/WIFI module
Expansion Slots	1* MSATA slot support SSD/WIFI.SSD transfer rate up to 3Gbps

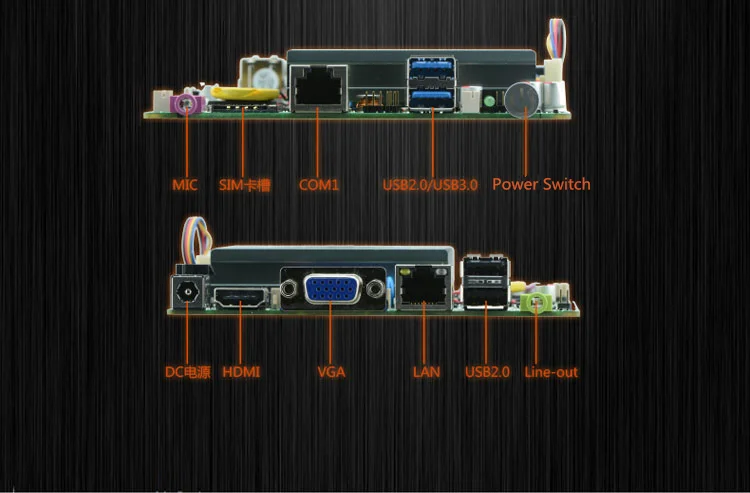

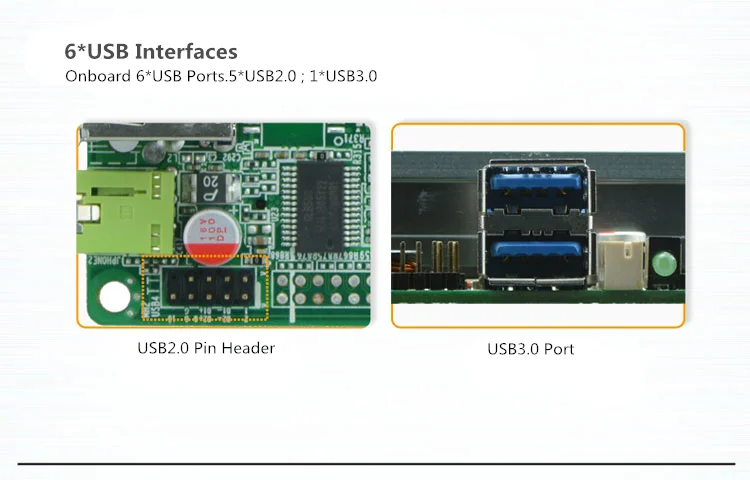

Rear I/O	3USB2.0,1USB3.0
	1* HDMI
	1* VGA
	1* RJ-45 Gigabit Ethernet connector
	1* Line out(Green),1* MIC(Violet)
	1* COM
	1* Power switch
	1* 12V DC_JACK power input

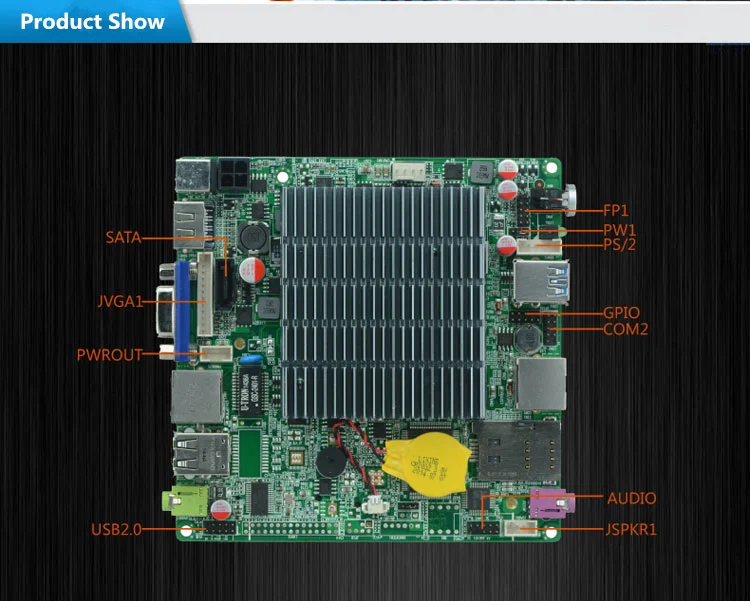

Internal I/O	1* JVGA1(1*12pin) same signal with DB15

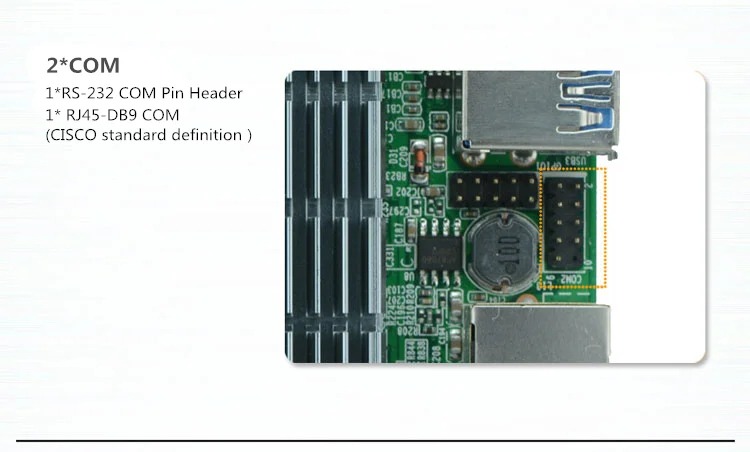

	1* RS232 serial port
	2* USB2.0(2*5pin)
	1* PS/2 KB/MS Connector(1*6Pin)
	1Front panel audio connector 25pin
	1* SIM card socket
	1* PWROUT (HDD power supply connector) 1*4pin
	1* front panel function buttons and indicator connector 2*5Pin
	1* 4pin ATX 12V power input
	1* Power amplifier interface(1*4pin)
FAN interface	1*4pin CPU FAN

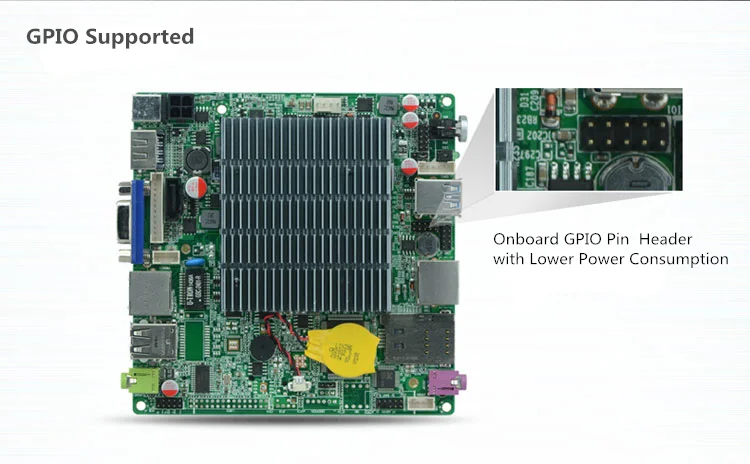

GPIO	Support 4 way input and output GPIO
BIOS	64Mb Flash ROM

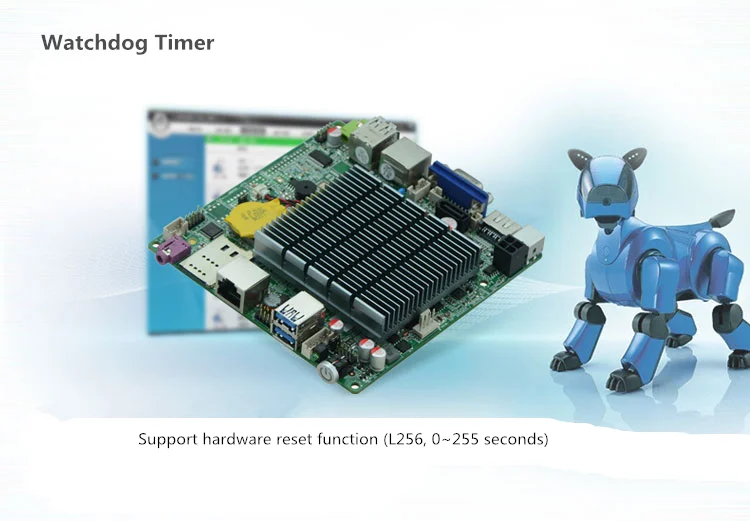

Watchdog	Support hardware reset function (L256, 0~255 seconds)
Power Input	DC_12V single power supply
Operating Temp.	-10℃~60℃
Storage Temp.	-20℃~70℃
Humidity	5%-95% (relative humidity; non-condensing)

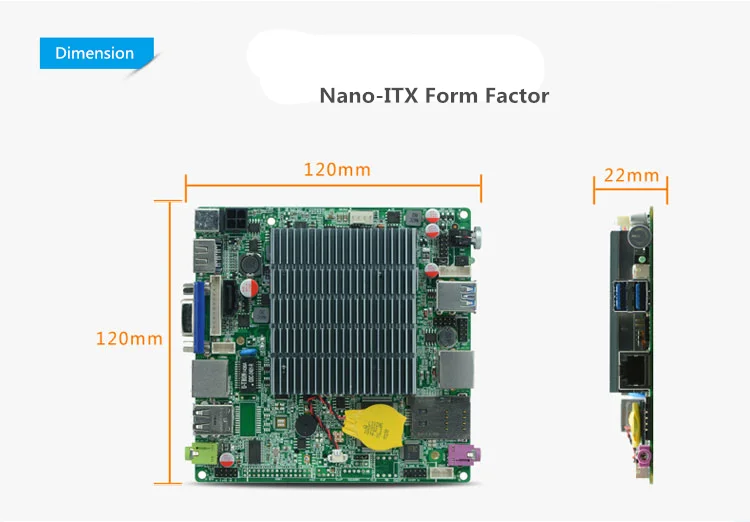

Dimension	120mm x 120mm
