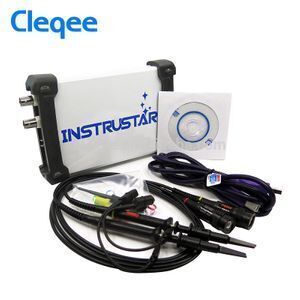

Cleqee ISDS205A spectrum analyzer 3 IN 1 oscilloscope 20M data recorder virtual oscilloscope

Product details
Model5:oscilloscope manufacturers;Model3:oscilloscopes;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Model4:osciloscopio digital;
Channels:2 Channels;Brand Name:Cleqee;
Sample Rate:48MSa/s;Vertical mode:CH1, CH2, ADD, SUB, MUL;
Bandwidth:20MHz;Supply Ability:1000 Set/Sets per Month;
Packaging Detail:1. Delivery will be arranged by DHL/UPS/Fedex/TNT/EMS,normally it will take 3-15working days to arrive in most countries. 2.We can also help you ship the goods by air line,then you need to go to Air port totake it ,it takes about 15-60 days to arrive ; 3.If goods are large quantity and you not need the goods so urgently ,you can choose by sea to save some freight cost which takes about one month to arrive.;Model:pc based oscilloscope;
Delivery Detail:3~10;Model Number:ISDS205A;
Port:Shanghai;Model2:oscilloscope automotive;
Multifunctional:analyzer spectrum;Place of Origin:Jiangsu China (Mainland);

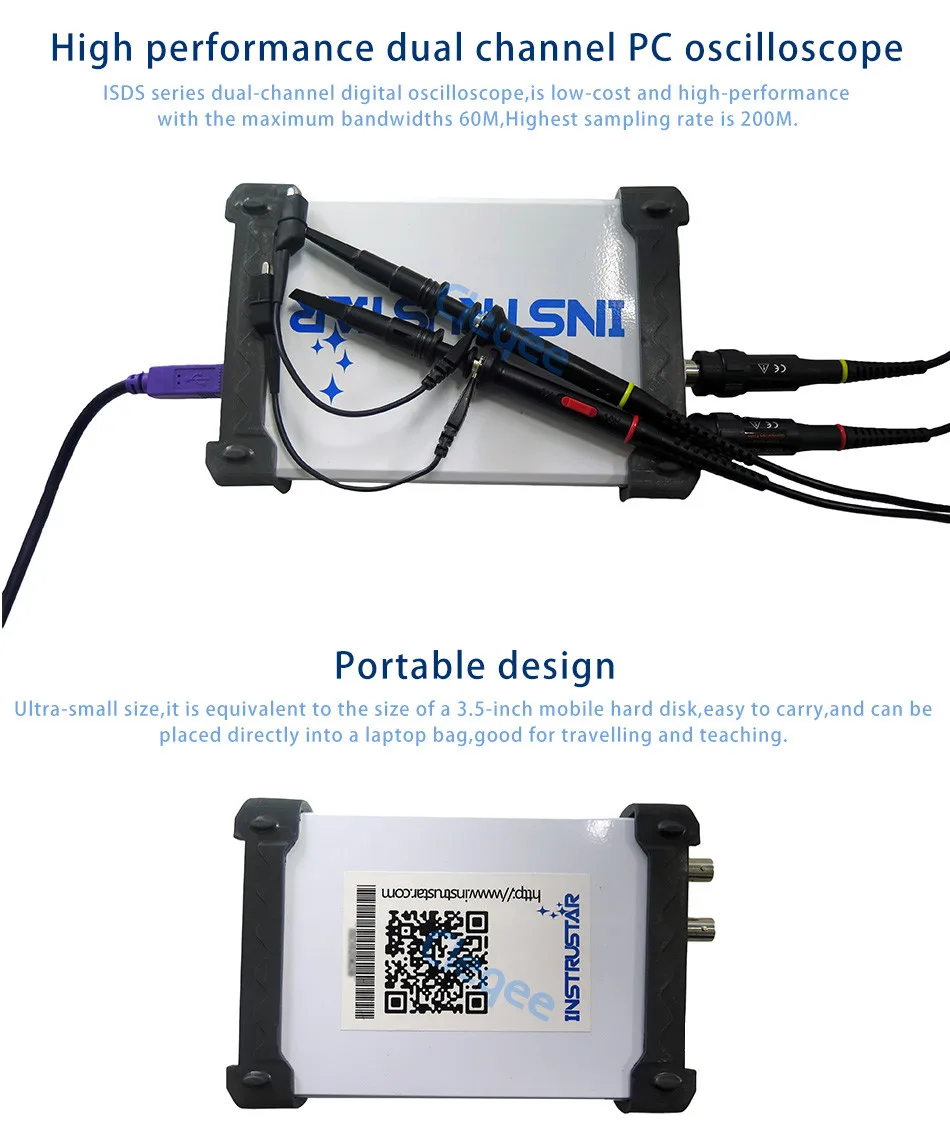

Cleqee ISDS205A spectrum analyzer 3 IN 1 oscilloscope 20M data recorder virtual oscilloscope

Product Description

Channels       2
Impedance    1MΩ 25pF
Coupling       AC/DC
Vertical resolution     8Bit
Gain range          -6V ~ 6V(probe X1)
                          -60V ~ 60V(probe X10)
Vertical accuracy     ±3%
Timebase range       1ns-20s
Input Protection     Diode,50Vpk
Autoset                  Yes(10Hz to 20MHz)
Trigger Mode         Auto,Normal and Signal
Trigger Type         No,Rising edge,Falling edge,
                            Rising edge or Falling edge
Trigger level        Yes
Trigger Source     CH1, CH2
Buffer Size         1MB/CH
Bandwidth            20MHz
Max sample         48MS/s
Vertical mode      CH1, CH2, ADD, SUB, MUL
Display Mode      X,Y-T and X-Y
Measurements      Yes
Wave save           Osc(Private),Excel and Bmp

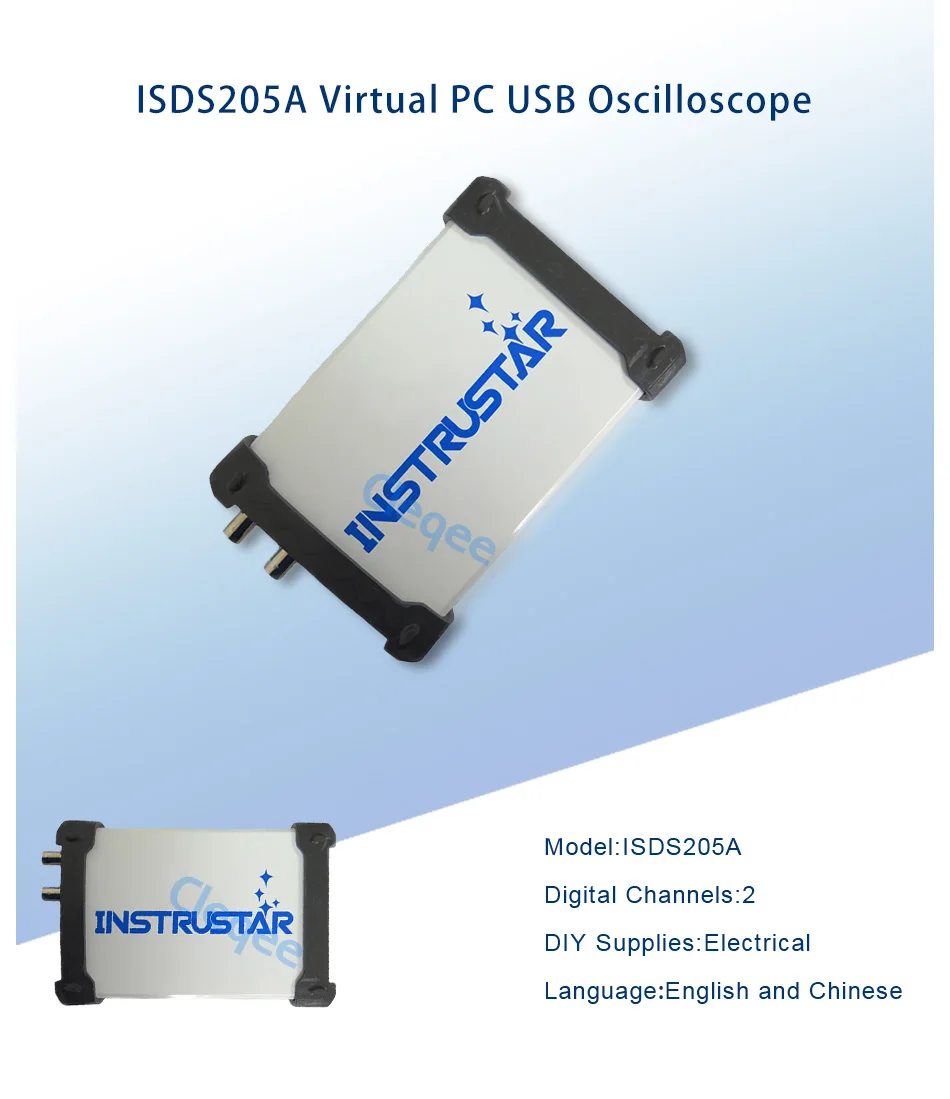

Digital Oscilloscope ISDS205A
Channels2
Impedance1MΩ 25pF
CouplingAC/DC
Vertical resolution8Bit
Gain range-6V ~ 6V(probe X1)
-60V ~ 60V(probe X10)
Vertical accuracy±3%
Timebase range1ns-20s
Input ProtectionDiode,50Vpk
AutosetYes(10Hz to 20MHz)
Trigger ModeAuto,Normal and Signal
Trigger TypeNo,Rising edge,Falling edge,
Rising edge or Falling edge
Trigger levelYes
Trigger SourceCH1, CH2
Buffer Size1MB/CH
Bandwidth20MHz
Max sample48MS/s
Vertical modeCH1, CH2, ADD, SUB, MUL
Display ModeX,Y-T and X-Y
MeasurementsYes
Wave saveOsc(Private),Excel and Bmp
Spectrum Analyzers
Channels2
Bandwidth20MHz
AlgorithmFFT(18 windows),Correlation
FFT points8-1048576/CHN
FFT measureHarmonic(1-7),SNR,SINAD,ENOB,THD,SFDR
Filter processing

FIR filter supports arbitrary range of frequency sampling method ,

and Rectangle, bartlett, triangular, cosine, hanning, bartlett_hanning,

 hamming, blackman, blackman_Harris, tukey, Nuttall, FlatTop, Bohman,

Parzen, Lanczos, kaiser, gaussand dolph_chebyshev, window method design.
    IIR filter support "Butterworth", "Chebyshev I", "Chebyshev II",

"Elliptic" type of filter design.

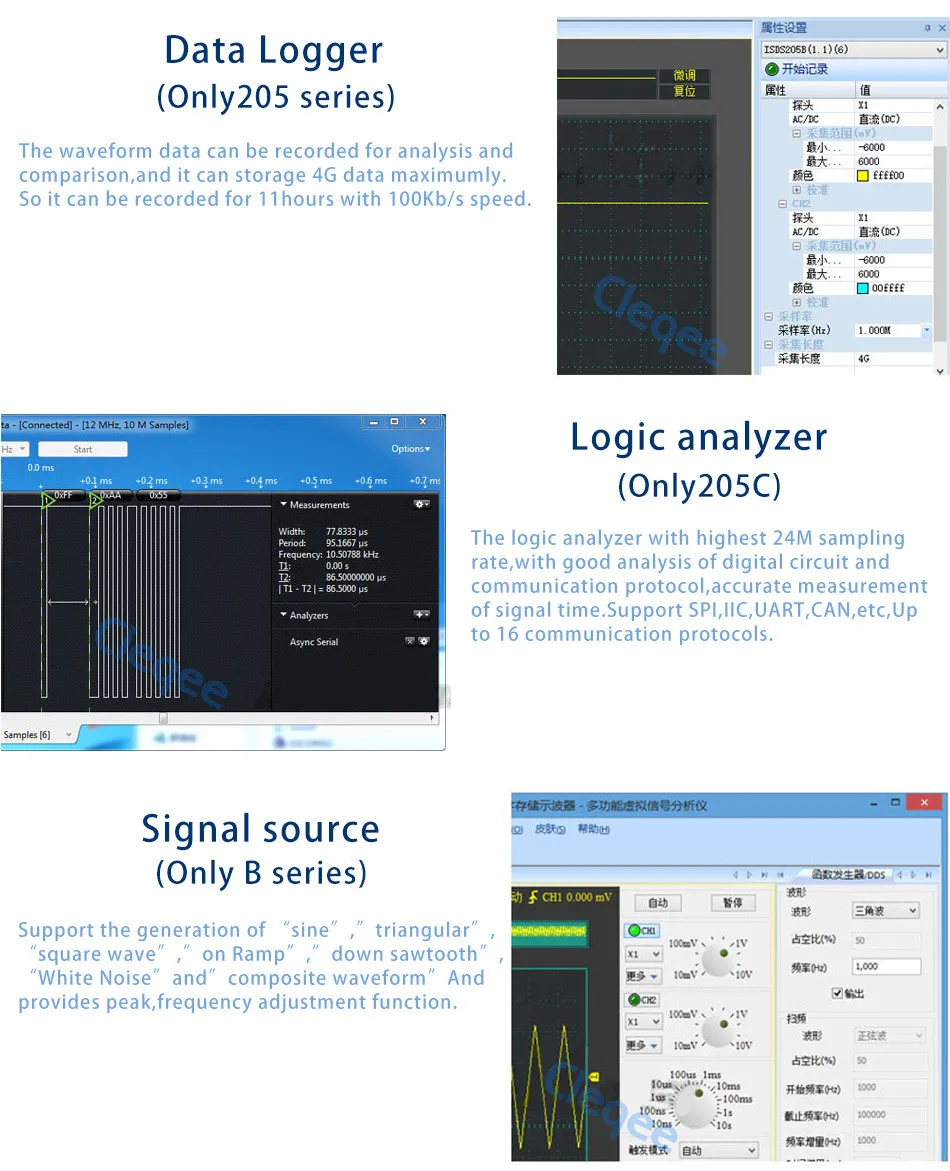

Data Recorder
Channel 2
Impedance1MΩ 25pF
CouplingAC/DC
Vertical resolution8Bit
Gain range-6V ~ 6V(probe X1)
-60V ~ 60V(probe X10)
Sample1 channel : 1K~24M Hz
2 channel : 1K~16M Hz
Save FileThe maximum 4G, recording time associated with the sampling rate
Packaging & Shipping







1. Delivery will be arranged by DHL/UPS/Fedex/TNT/EMS,normally it will take 3~15 working days to arrive in most countries.

2.We can also help you ship  the goods by air line,then you need to go to Air port totake it ,it      takes about 15-60 days to arrive ;

3.If goods are large quantity and you not need the goods so urgently ,you can choose by sea to      save some freight cost which takes about one month to arrive.
