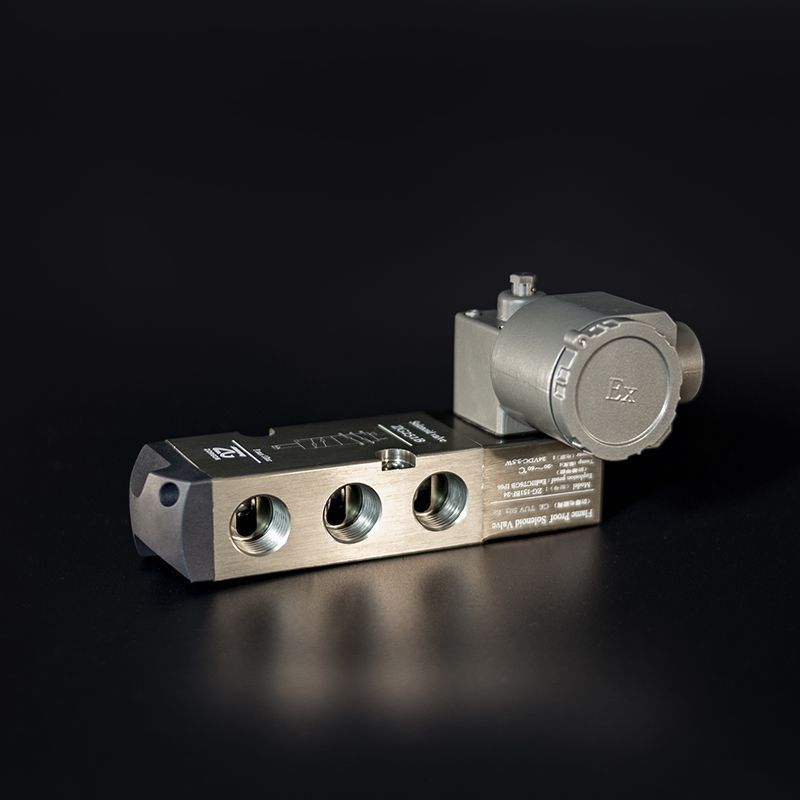

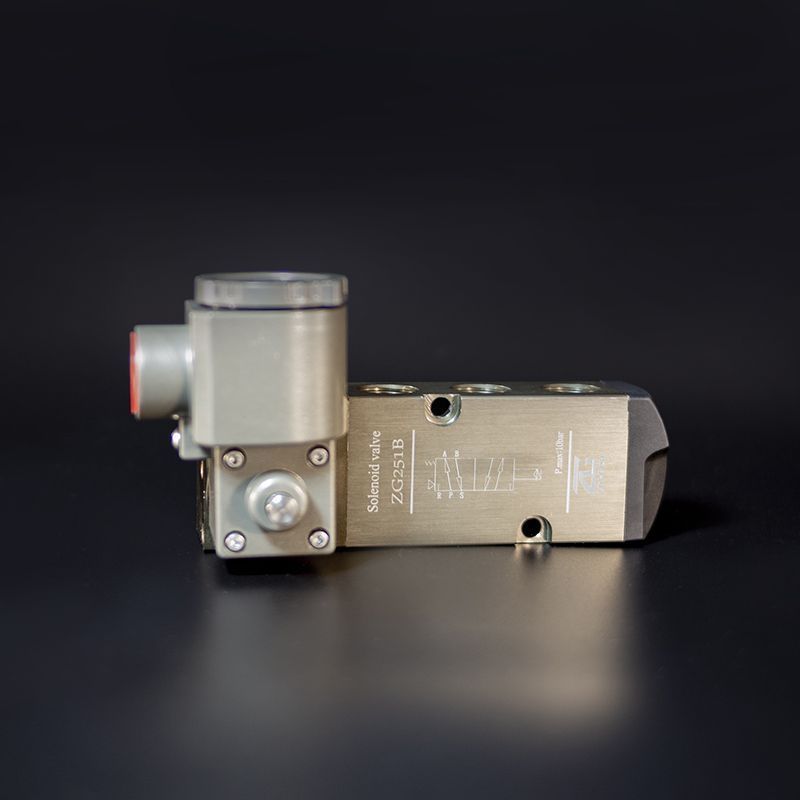

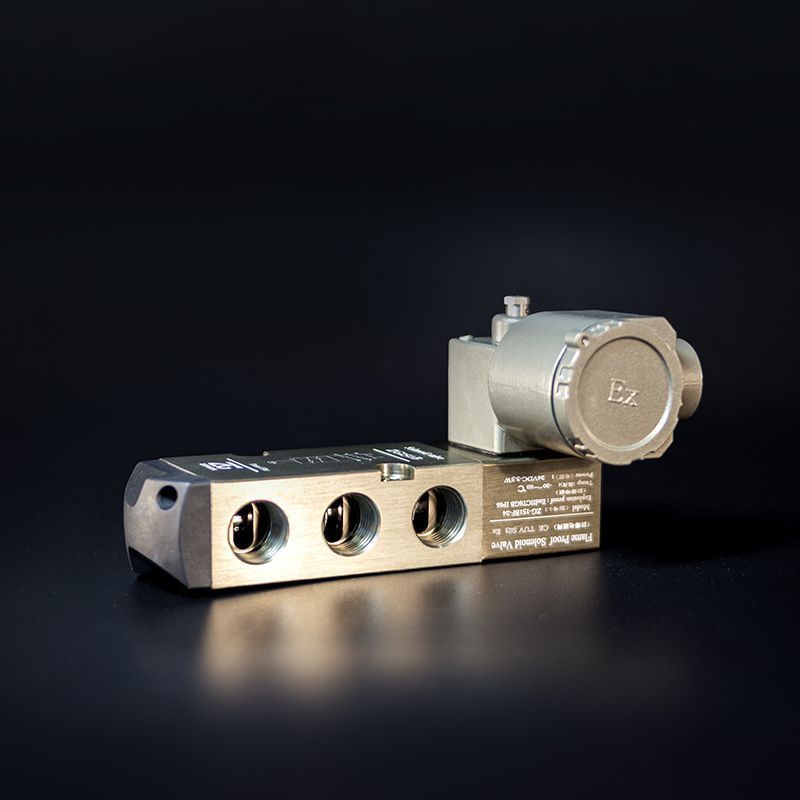

151 Series Solenoid Valve Explosion-proof type

Brand: Zorgon.
Body Material: Aluminum alloy or 316L Stainless steel.
Seal: Nitrile O-ring.
Type: Namur
Working pressure:1-8 Bar(Aluminum alloy)/1.5-8 Bar(SS316L)
Voltage:DC12V;DC24V;AC24V 50HZ/60HZ;AC220V 50HZ/60HZ;AC380V 50HZ/60HZ
Insulation Class: F Grade(Optional H Grade)
Explosion-proof Grade: Ex d II CT6/ DIP A20 TA,T6
Voltage:DC12V;DC24V;AC24V 50HZ/60HZ;AC220V 50HZ/60HZ;AC380V 50HZ/60HZ

Brand: Zorgon. 151 Series Solenoid Valve Explosion-proof type

Solenoid valve is the core control element in a valve automation control system. Selecting a high-quality solenoid valve is a reliable and safety guarantee for whole project. Ambient temperature of the product should meet the limited temperature of the working environment.
According to the corrosion and temperature of the working environment, we should select the product with the corresponding material. The protective solenoid valve and explosion-proof solenoid valve produced by our company can meet the two installation methods of NAMUR board connection and pipe connection. It has two types which is two-position five-way or three-position five-way. It can directly control single-acting and double-acting pneumatic actuators without any adapter plate assistance and is equipped with a safe and reliable manual device on the pilot. This is a real multi-function solenoid valve.
