SV08-Z1N Two normally open hydraulic solenoid valves

Supplier: Hydrabase Tech. (zhejiang) Co., Ltd.
Region: Zhejiang, China
Contact: Ms Jiaoyun Lu
Price: $19.80 / 1 - 29 pieces
$16.50 / 30 - 99 pieces
$15.20 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

Material:	steel	Warranty:	1 year
Types of:	hydraulic valve	strength:	Not applicable
brand:	base	port:	Beilun Port, Ningbo City, Zhejiang Province
weight:	112	Valve Type:	other
Maximum flow:	30 l/min	structure:	Not applicable
product name:	The electromagnetic valve	Showroom location:	not any
Packaging Details:	Box	payment terms:	wire transfer
place of origin; place of origin:	Zhejiang, China	brand:	base
pressure:	Not applicable	Package preview:

Product overview

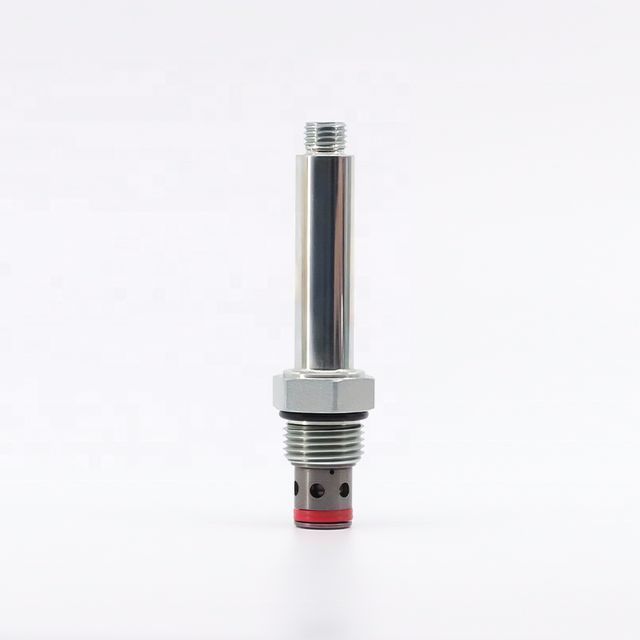

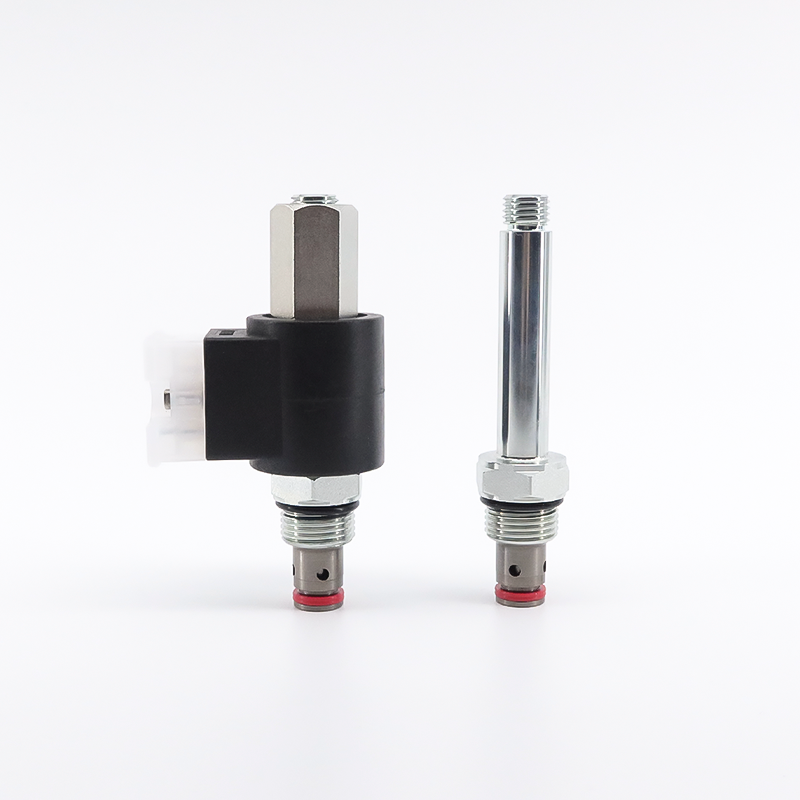

SV08-Z1N, 2 way, normally open, cartridge type, solenoid valve

Solenoid operated, 2-way, normally open, poppet style, screw-in cartridge valve designed for low leakage in load holding or blocking applications.

The valve can be used in engineering construction, agriculture, mining, aerial work platforms,
Petrochemical industry, shipbuilding industry, automation equipment, thermal power generation and wind power generation equipment, etc.

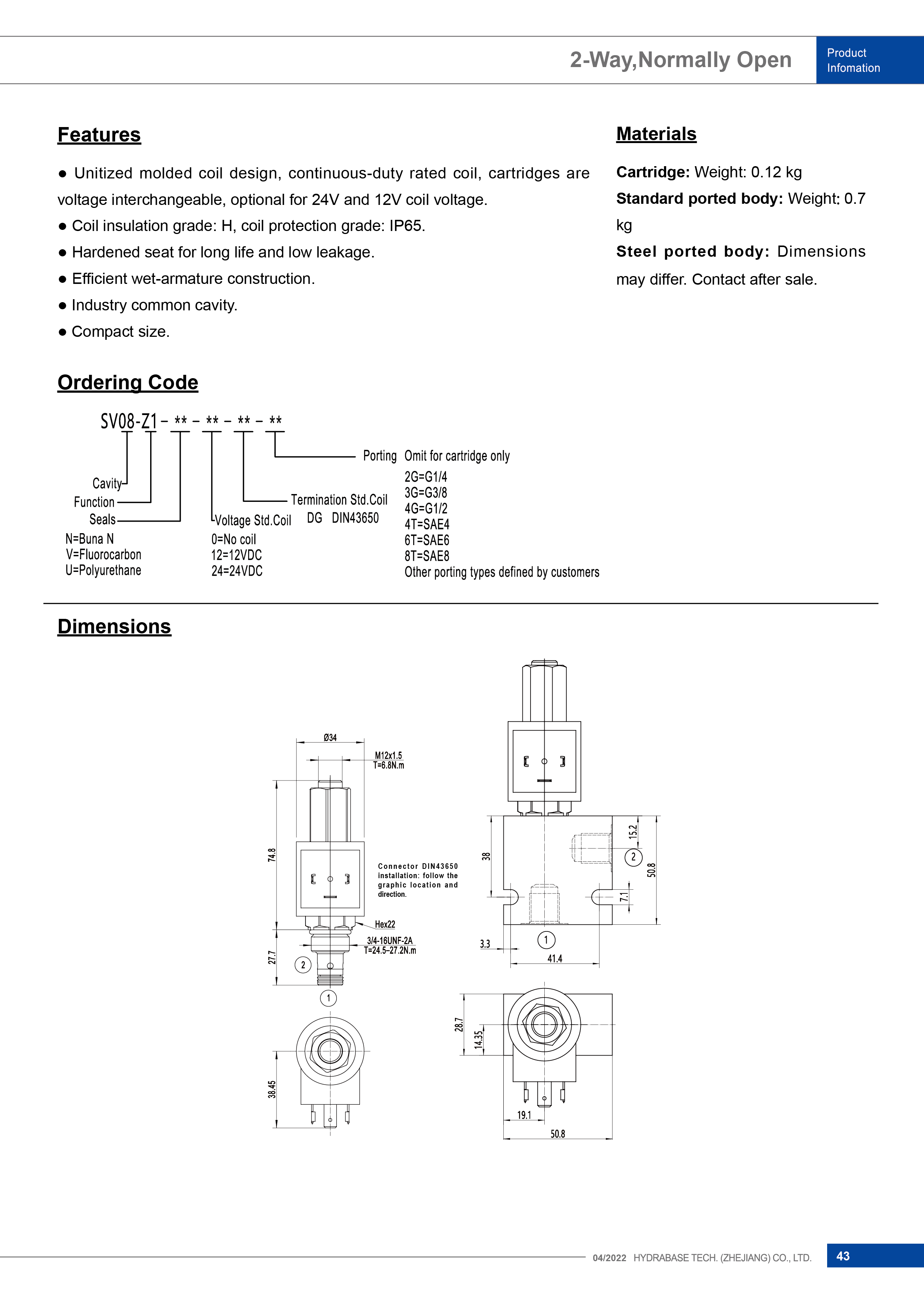

List of functions

* Co-molded coil design, continuous duty rated coil.

* Voltage interchangeable, optional 12V and 24V

* Hardened poppet and cage for long life.

* Efficient wet armature structure

* Fast response, flexible choice of springs with different back pressures.

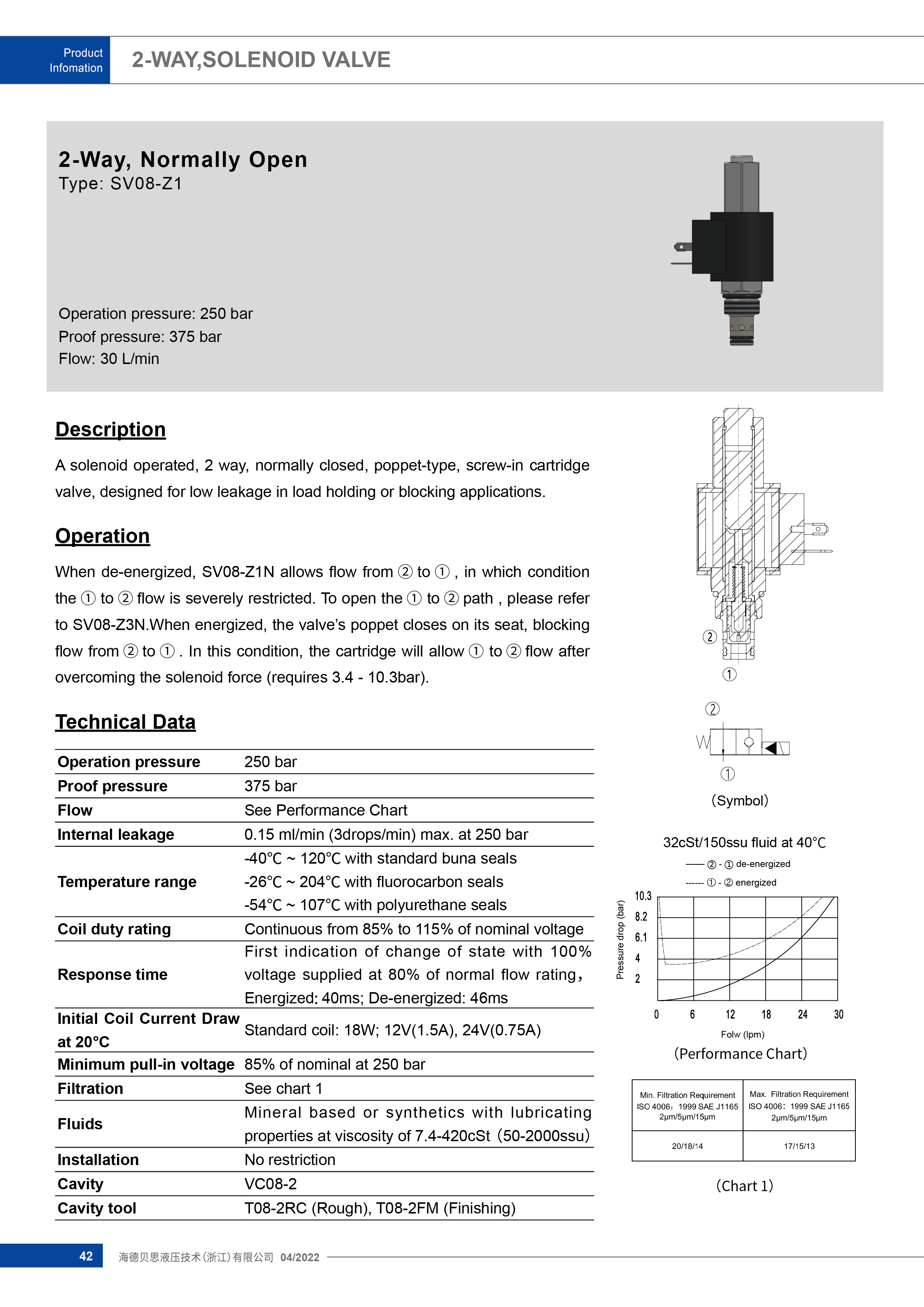

product specification

Do not	thing	data
1	operating pressure	250 bar
2	withstand voltage	375 bar
3	internal leak	max. 0.15 ml/min (3 drops/min) at 250 bar
4	temperature range	-40℃～120℃
5	body fluid	Mineral base or synthetic oil with lubricating properties with a viscosity of 7.4 to 420 cSt (50 to 2000 ssu).
6	Install	no limit.
7	cavity	VC08-2
8	cavity tool	CT08-2XX
9	seat kit	SK08-2N-B
