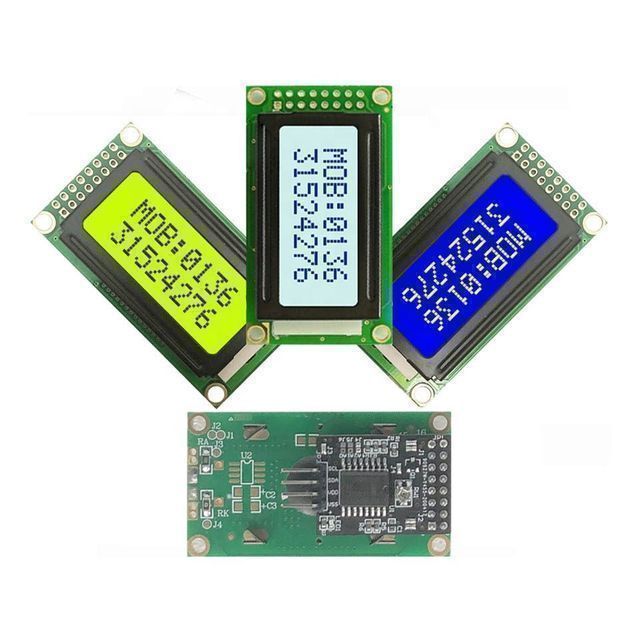

802 0802 8X2 Serial I2C IIC STN AIP31066 Yellow Green Blue Negative LCM Display LCM with LED Backlight

Supplier: Shenzhen Surenoo Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Potter Hao
Price: $4.98 /piece
Min. Order: 1 piece

Click here to contact

Product details

type:	IIC characters	Resolution:	8*2 characters
Packaging Details:	paper packaging box.	Controller:	SPLC780D or equivalent
Sales unit:	single product	place of origin; place of origin:	Shenzhen, China (Mainland)
interface:	Serial I2C	Dimensions:	58*32MM
Single package size:	1X1X1 cm	Model Type:	character display
Display size:	0802	brand:	Ability
Gross weight per piece:	0.060 kg

Related Products

describe

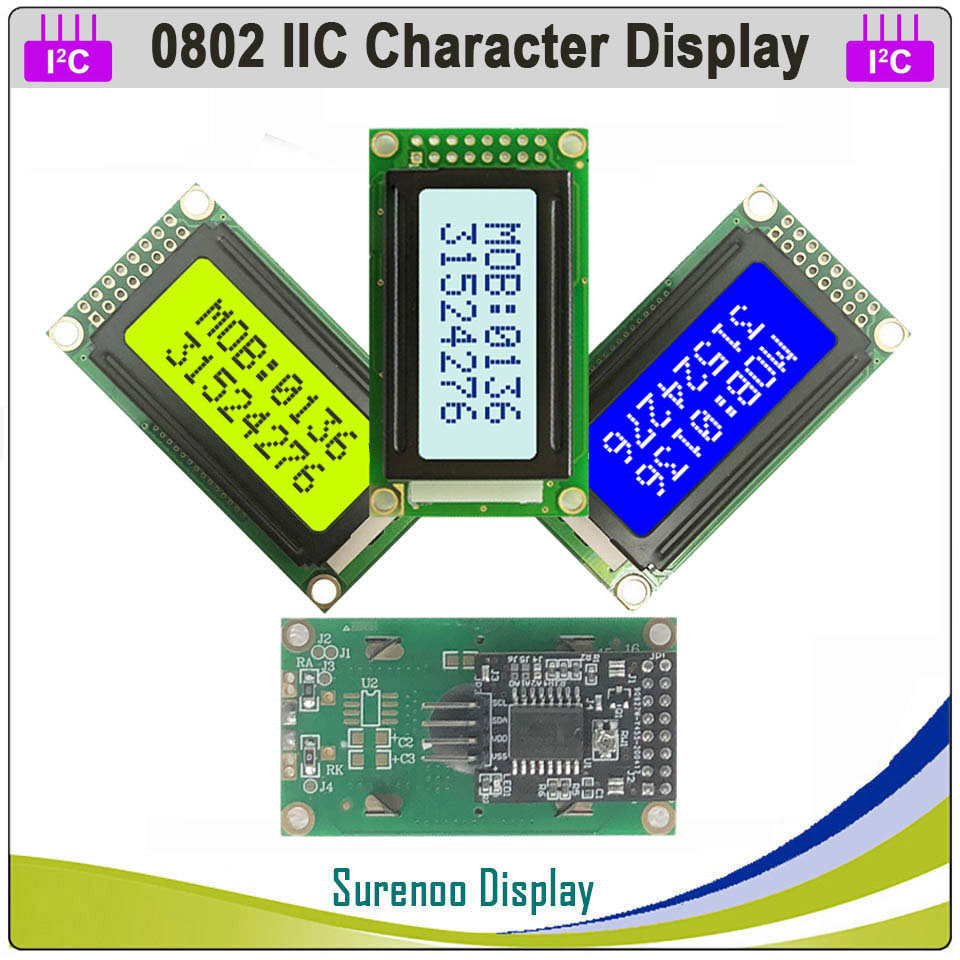

SIC0802B 8*2 I²C-shaped LCD module

Technical Support

How to download technical data sheets?

1. Please visit the "Surenoo Technolgy" technical support website;

www.surenoo.tech

2.Select "MONO-Chrome LCD Series";

3. Click "Serial SPI/IIC Display" to download the selection guide;

4. Search for "SIC0802B" to download directly, and then download the datasheet.

Technical Support:info@surenoo.com

I. Overview

model.	SIC0802B
result	8X2 characters
Operating Voltage	5.0V	type
interface	I²C/4P/2.54MM
controller	LCD: AIP31066 or equivalent; i²C-Module: PCF8574T (NXP)
font	English and Japanese
perspective	6:00 am
Module size	58.00 X 32.00	mm
viewing area	39.00 X 16.00	mm
activity area	27.81 X 11.50	mm
character size	5.56 x 2.96	mm
character spacing	5.94 x 3.55	mm
Operating temperature	-20~ +70	°C
Storage temperature	-30~ +80	°C

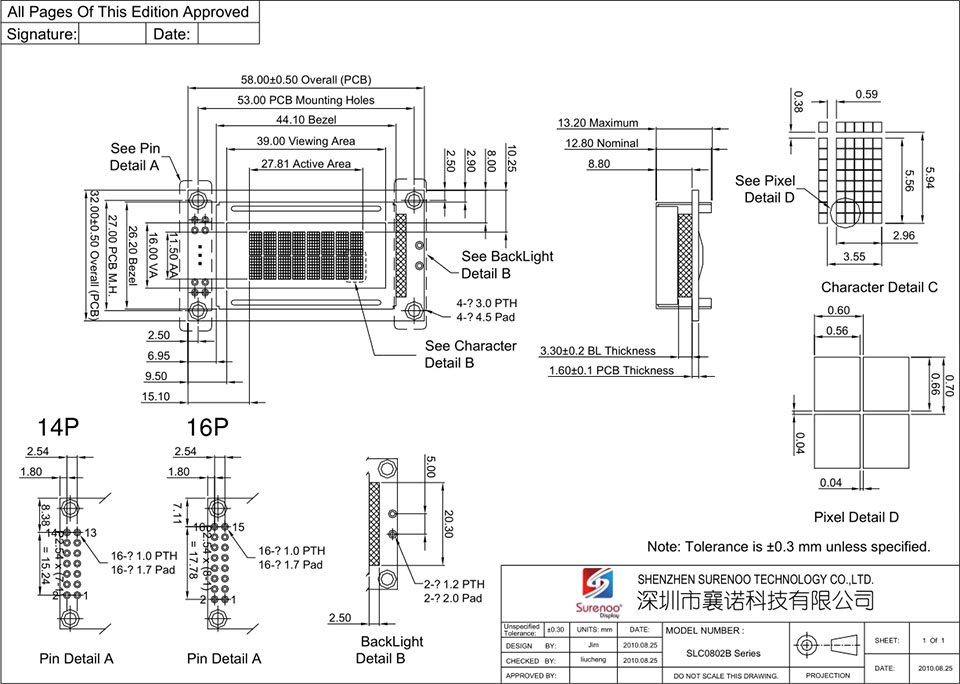

2. Outline drawing

2.1 0802 LCM

2.2 I²C module
