Custom VATN Display Alphanumeric Segment Motorcycle Speedometer Odo Meter Front Screen LCD Display Free Tool Fee

Supplier: Shenzhen Saef Technology Ltd.
Region: Guangdong, China
Contact: Mr Cologne Ke
Price: $0.50 / 3 - 999 pieces
$0.40 / 1000 - 99999 pieces
$0.20 / >=100000 pieces
Min. Order: 3 pieces

Click here to contact

Product details

brand:	SAIF Technology	Driving conditions:	1/4 Duty, 1/3 Bias
Packaging Details:	Standard international export packaging	Glass:	VATN, negative pole, transmission
port:	Shenzhen	Dimensions:	96.0 X 71.0 X 2.80 mm
type:	Custom LCD Display Panel	Package preview:
life:	100,000 hours	Origin:	Guangdong, China
obey:	Reach and RoHS Compliant	Storage temperature:	-40°C to +90°C
Viewing area:	93.0 x 64.0 mm	Operating temperature:	-30°C to +80°C
Display size:	3.5 inches	optics:	all perspectives
Supply capacity:	3,000,000 pieces per month	product:	Speedometer LCD, ODO Instrument LCD
payment terms:	L/C, Western Union, T/T

Product Description

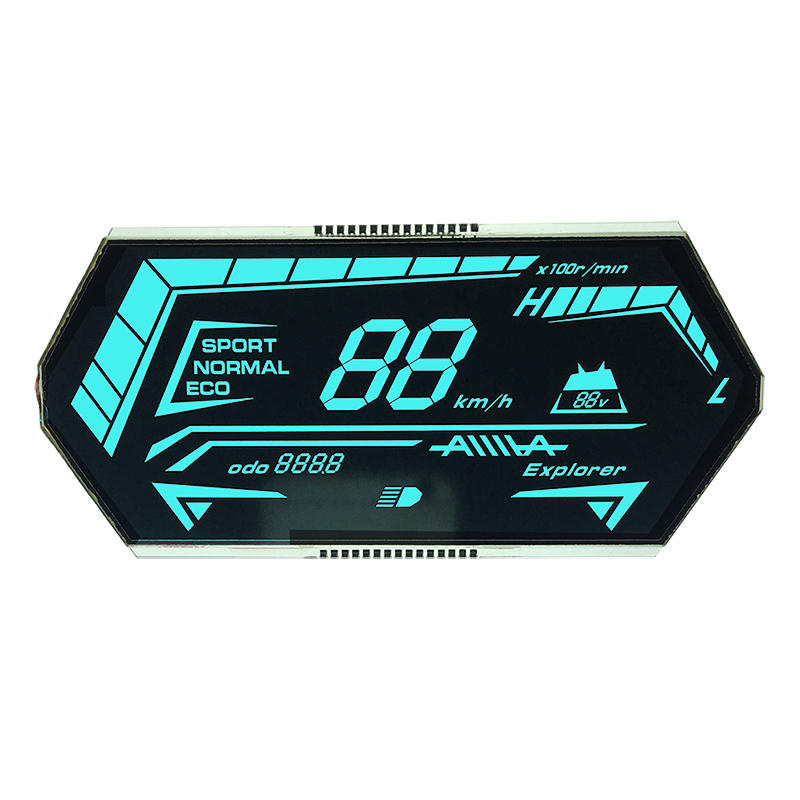

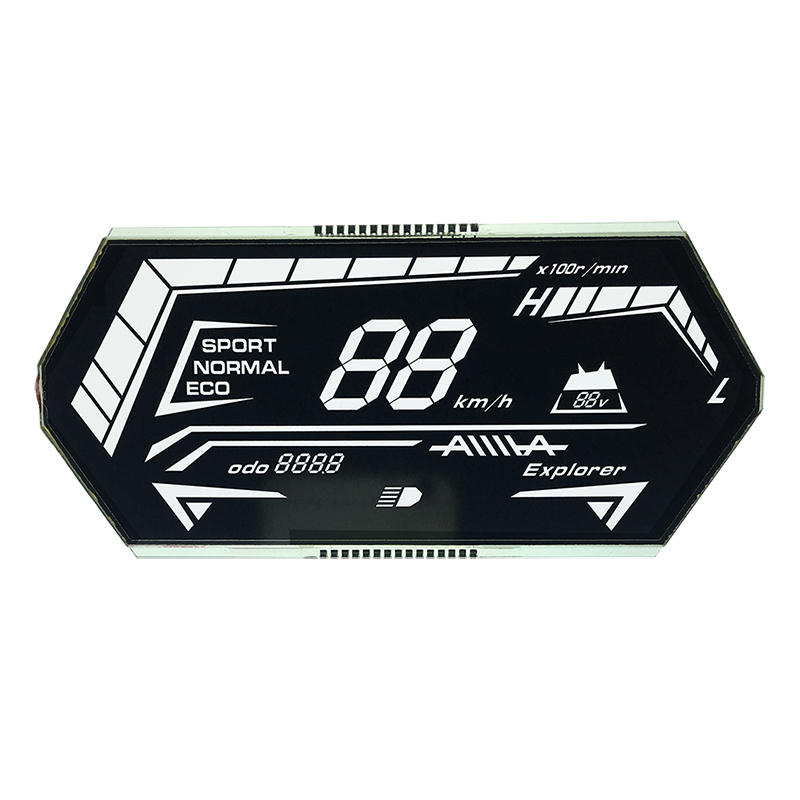

Custom VATN Display Alphanumeric Segment Motorcycle Speedometer Odo Meter Front Screen LCD Display Free Tool Fee

Speedometer LCD, Customized LCD Free processing fee

TN LCD (Twisted Nametic LCD) consists of two pieces of ITO (Indium Tin Oxide) glass with twisted nematic fluid
caught in the middle. These displays are still one of the most popular technologies, and most of them are custom. Here are the main reasons people keep designing these LCD displays into new products:

- Minimum unit price
- Lowest tooling cost
- Lowest power consumption
- Sunlight readable
- Ultra-wide operating temperature
- Custom differential profile shapes
- Continuous supply for more than 10 years

VATN display LCD is characterized by high contrast, wide viewing angle, and high brightness. It is suitable for security control, white goods, audio, medical equipment, POS, dashboard applications.
JY3201V has the key advantages of VATN Display-

- Ultra-high contrast ratio: up to 120:1
- Wide viewing angle: about 170(H) 110(V)
- mode: negative mode only
- Available backlights: White/Green/Yellow Green/Red/Blue
- High backlight brightness
- Four-color silk ink custom design optional

In addition to the standard LCD/TFT/OLED display products available, SAEF Technology also offers tailor-made displays. The broad product portfolio enables customers to create tailor-made solutions for their applications. We have advanced display technology available for your design, if you want to make any changes to one of our existing LCD/TFT/OLED displays we can make it happen. With over 10 years of experience, our sales and engineering teams will be with you throughout the development process and will ensure semi-custom or fully custom successful displays tailored to individual applications.

Our LCD/TFT/OLED custom design solutions are available in different options according to customer requirements. SAEF can be supplied in terms of backlight type, pins and connectors, cables, resistive touchscreen (RTP) and projected capacitive (PCAP) touchscreens or anti-reflective or anti-glare coatings, or custom covers, ZIF PPC or custom PCB boards Multiple options or fully customized solutions for your product application, as well as system integration solutions.
