lcd 1602 dot matrix COB blue/black/red/green screen i2c 16X2 alphanumeric FSTN/FTN monochrome MPU tft lcd module

Supplier: MICROTECH TECHNOLOGY COMPANY LIMITED
Region: Hong Kong S.A.R., China
Contact: Mr Edward Chu
Price: $1.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Supply capacity:	200000 pieces per month	place of origin; place of origin:	Guangdong, China
port:	Shenzhen	brand:	micro technology
Packaging Details:	in a carton	payment terms:	wire transfer
type:	character, COB	Display size:	16*2
LCD Display Type:	16x2 points	Display mode:	STN blue
Backlight:	Yellow-green backlight	interface:	I2C interface

1602A dot matrix COB screen character 16X2 digital FSTN/FTN monochrome LCD MPU photovoltaic inverter display module

Specification

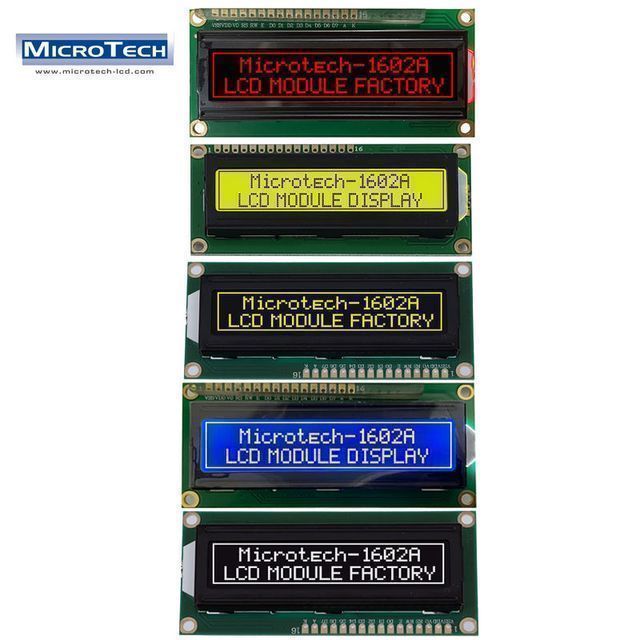

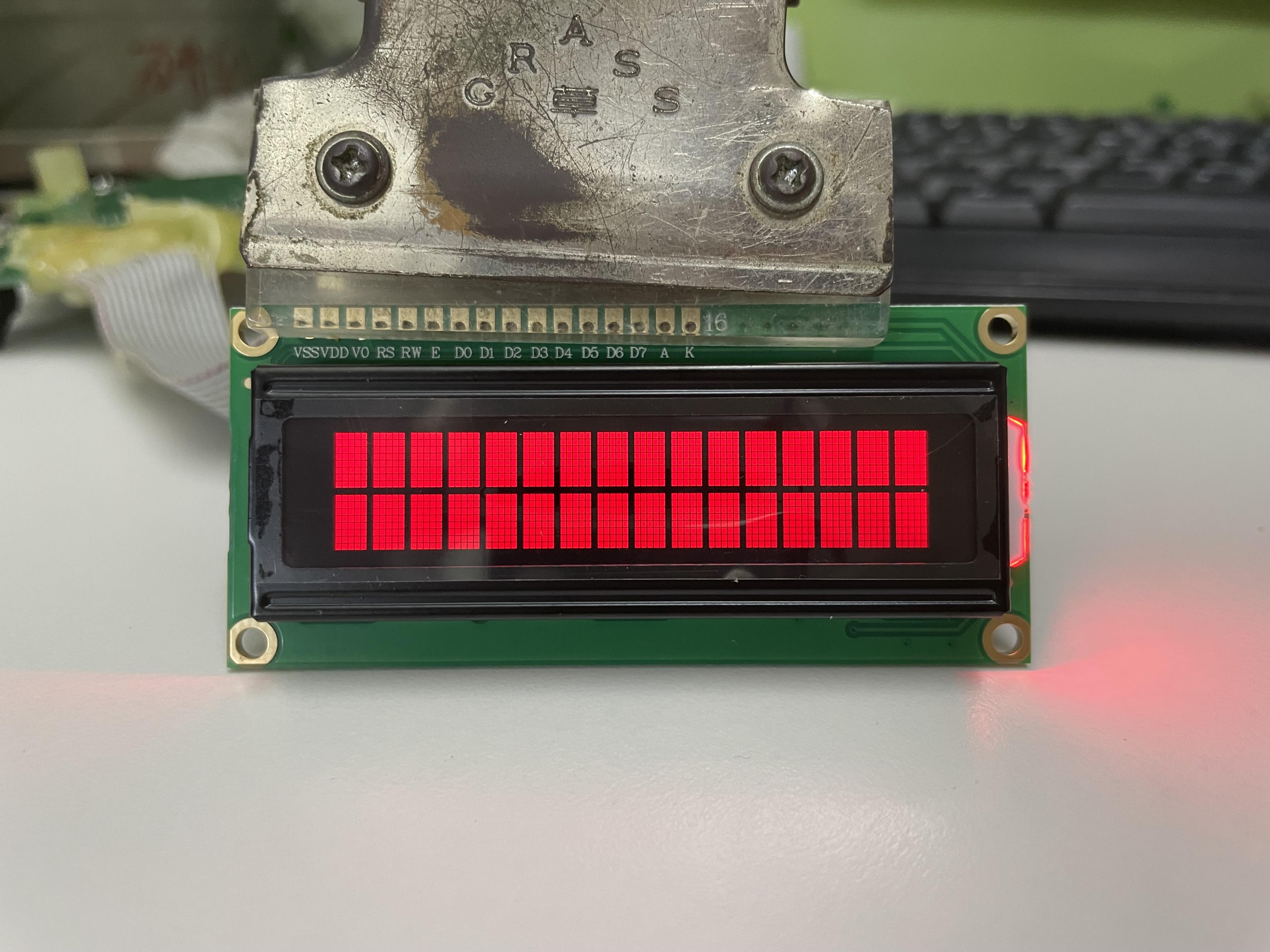

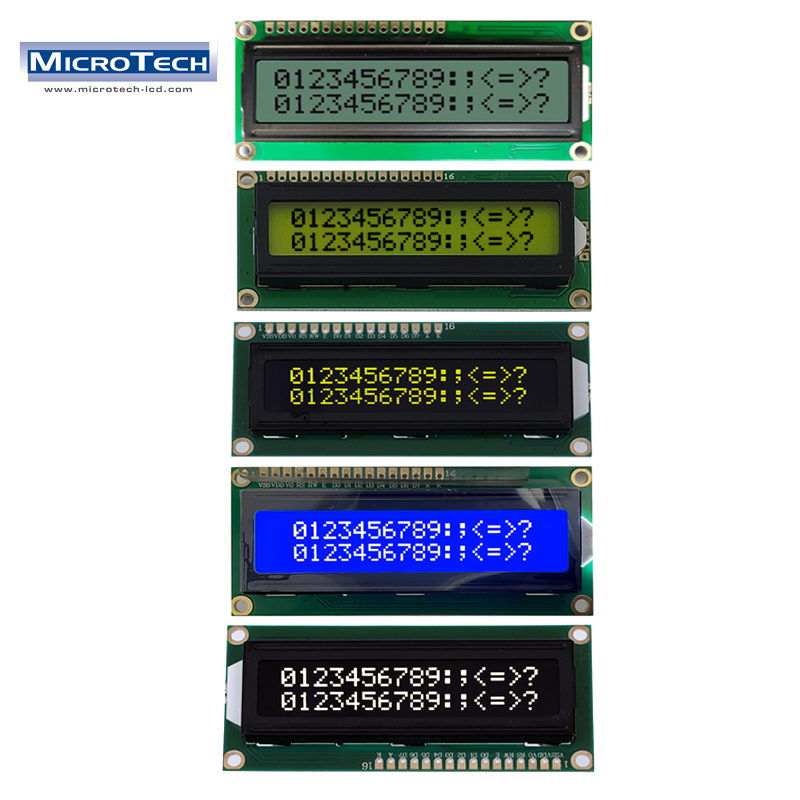

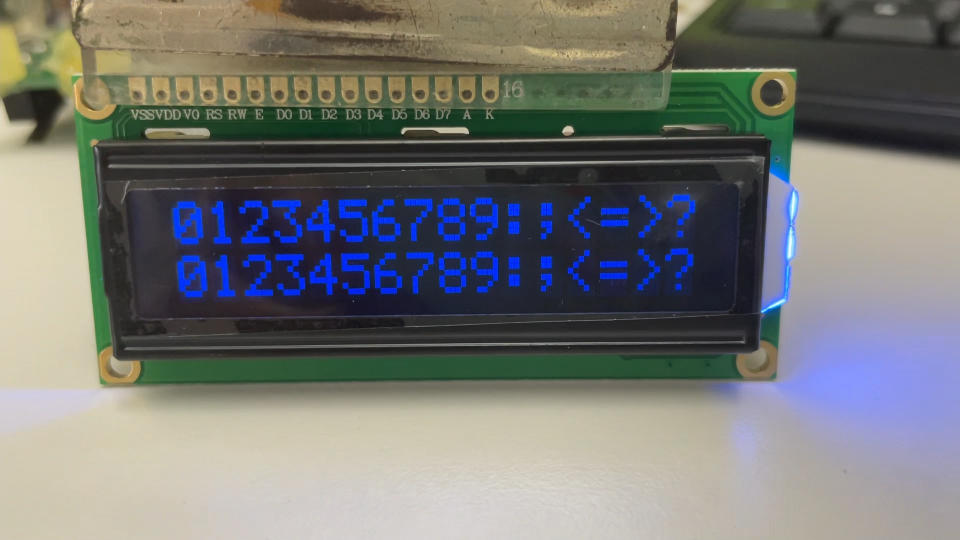

Blue/Black/Red/Green background color

General Specifications
4-bit or 8-bit main control board interface (directly connected to the M6800 serial port main control board)
display specifications

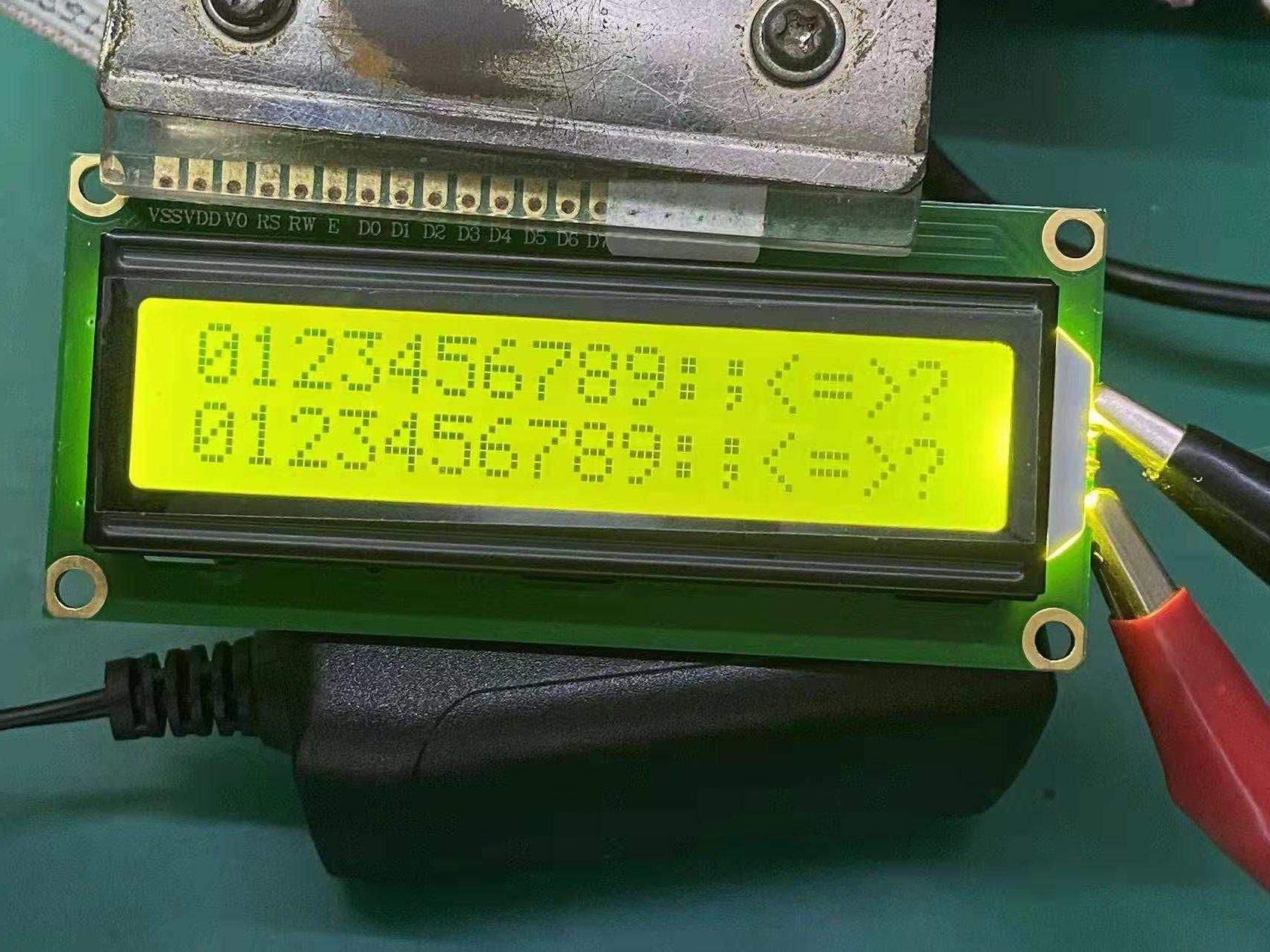

Display characters: 16 characters X 2 lines of characters Font: 5X8dors+cursor

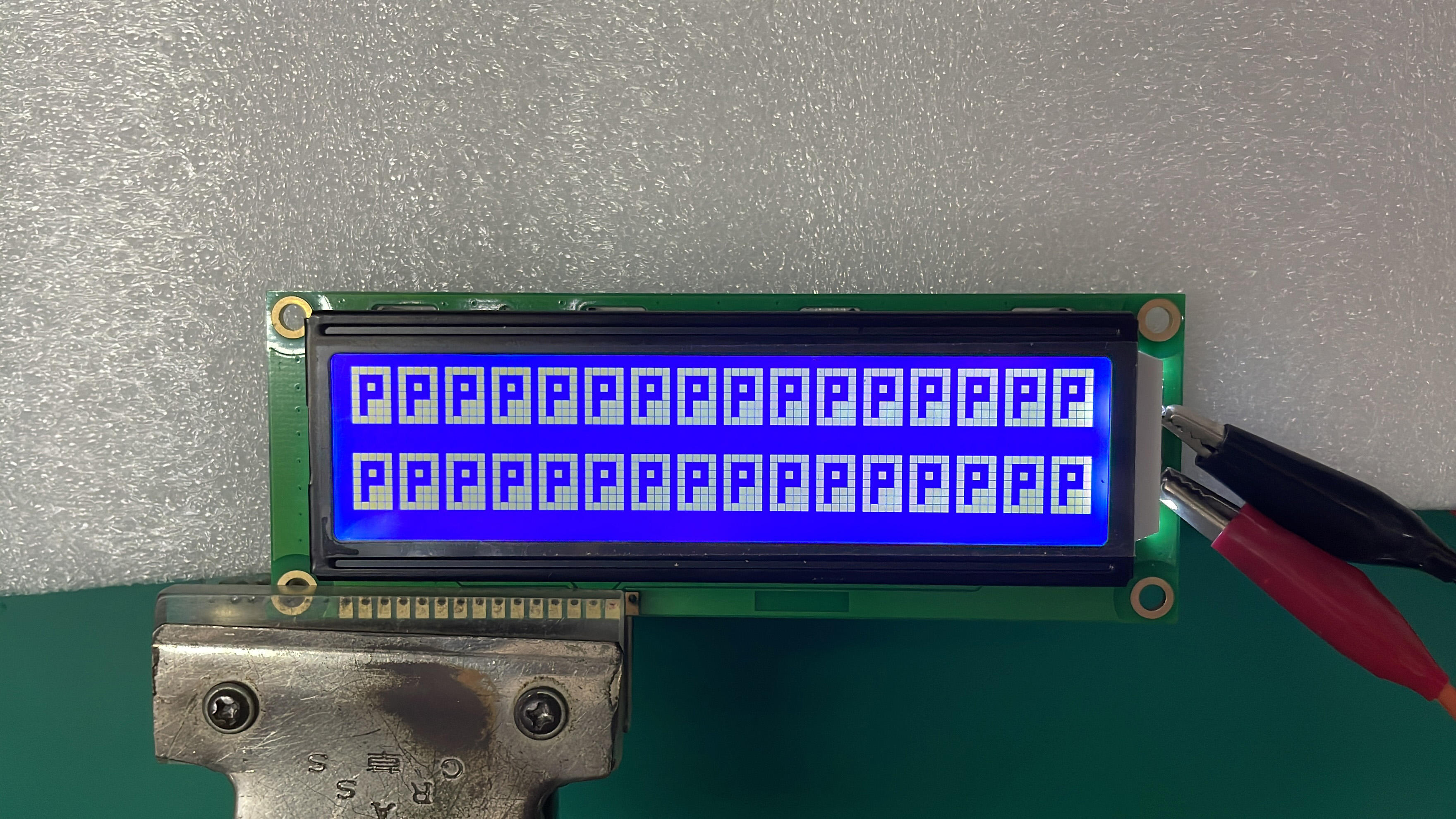

Display Color - Display background color: STN Blue / FSTN

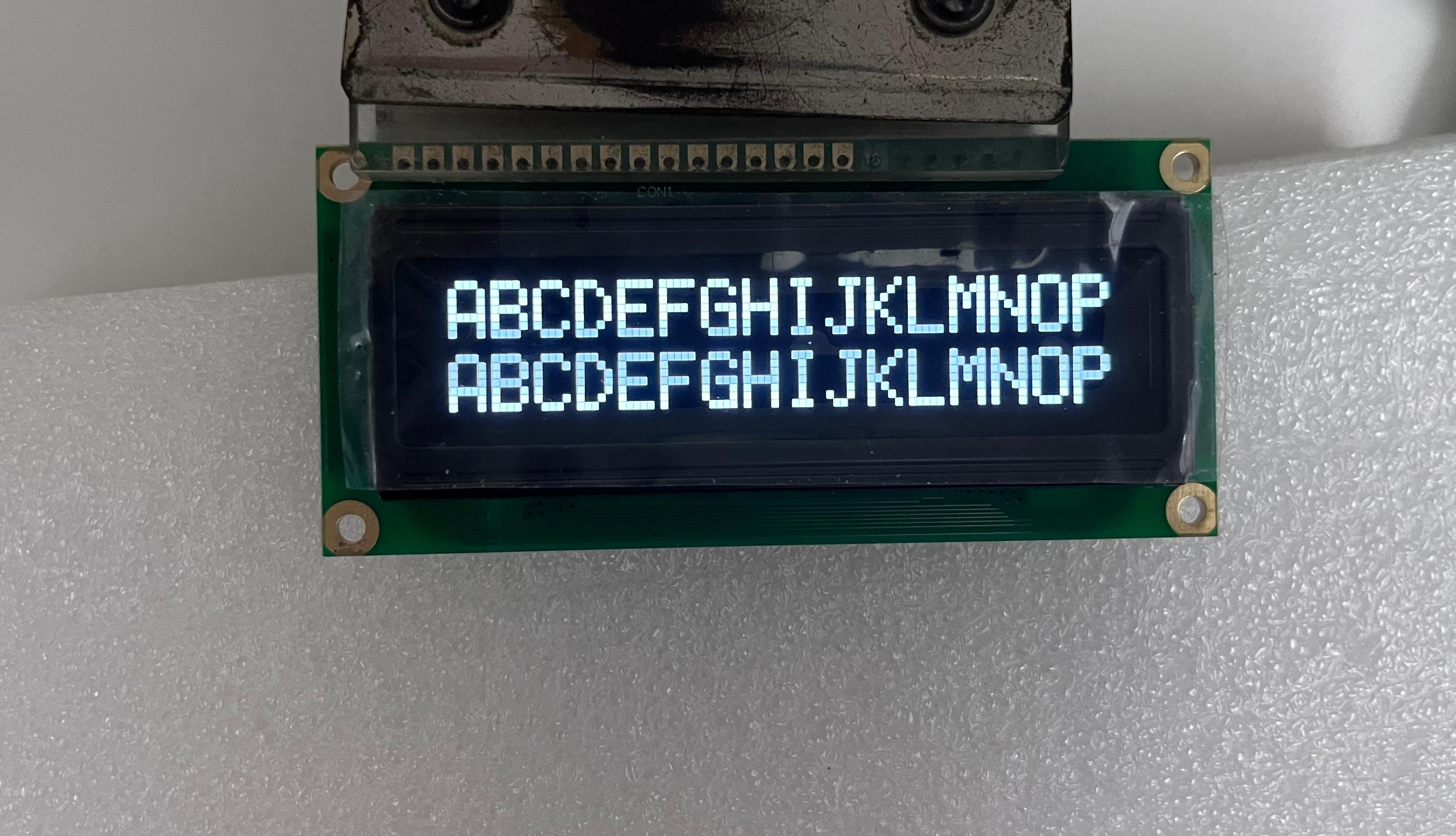

Polarization mode: Negative, Transmissive/positive, Transmissive, Gray
Angle of view: 6:00
Display duty cycle: 1/16 Drive deviation: 1/5
Character Generator ROM (CGROM): 8320 bits (192 characterX5X8 dots) &(32
character X5X10 dots)
Character generator RAM (CGRAM): 64X8 bits (8 characters X5X8 points)
Display Data RAM (DDRAM): 40X8 bits (up to 80 characters)

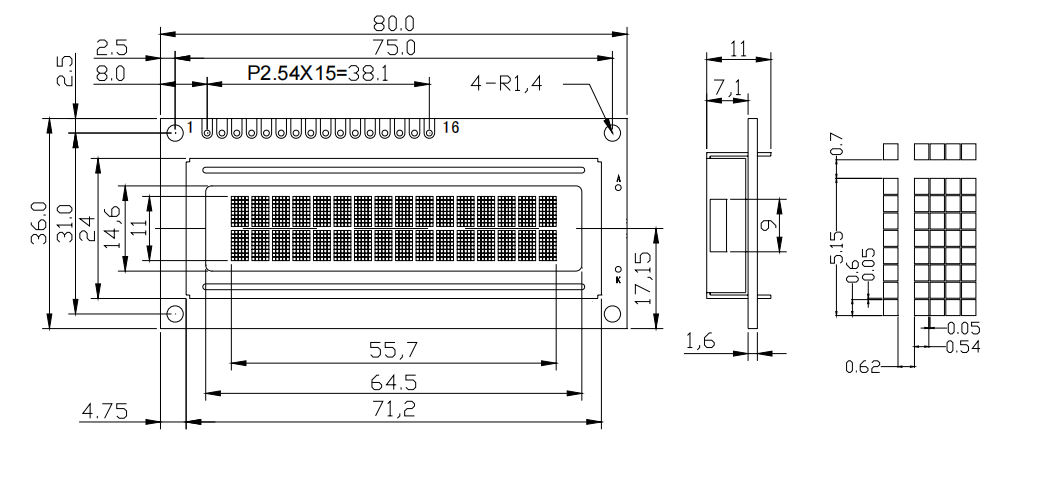

Mechanical properties (unit: mm)
Dimensions: 80X36X11
Display area: 64.5X14.6 Font: 5X8 points + cursor
Character size: 2.9X5.15 Point size: 0.54X0.6
Character spacing: 3.52X5.85
Power supply: +5V

Product Description

our service

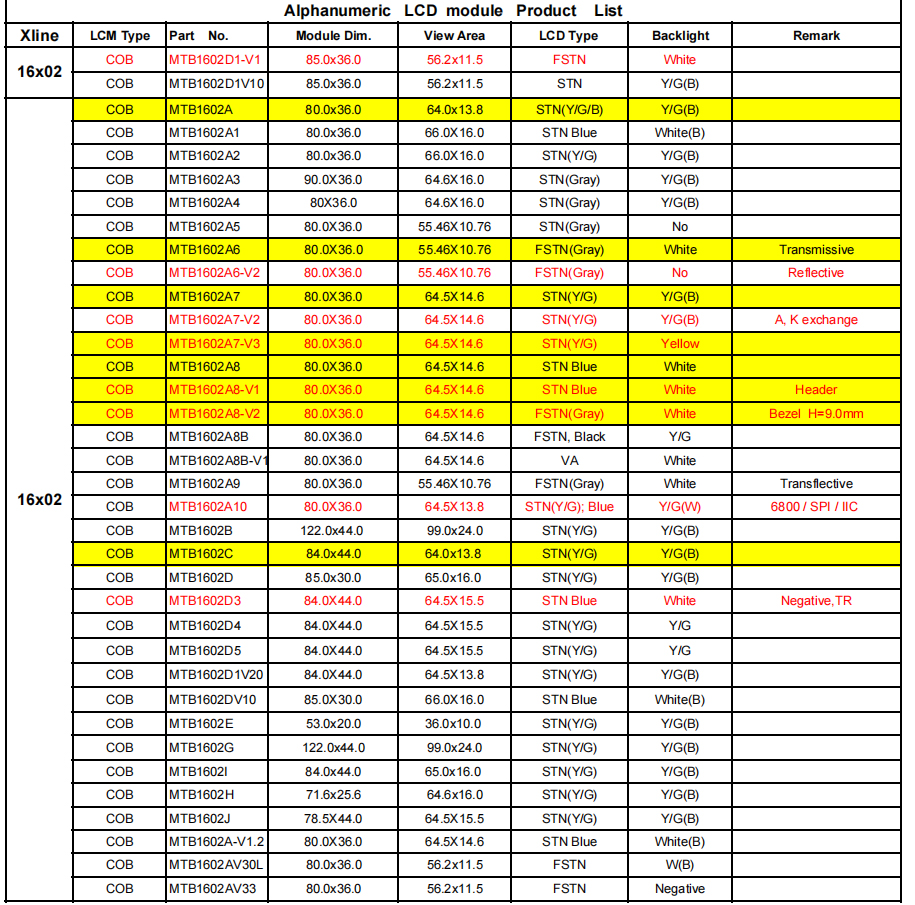

Related types and custom services

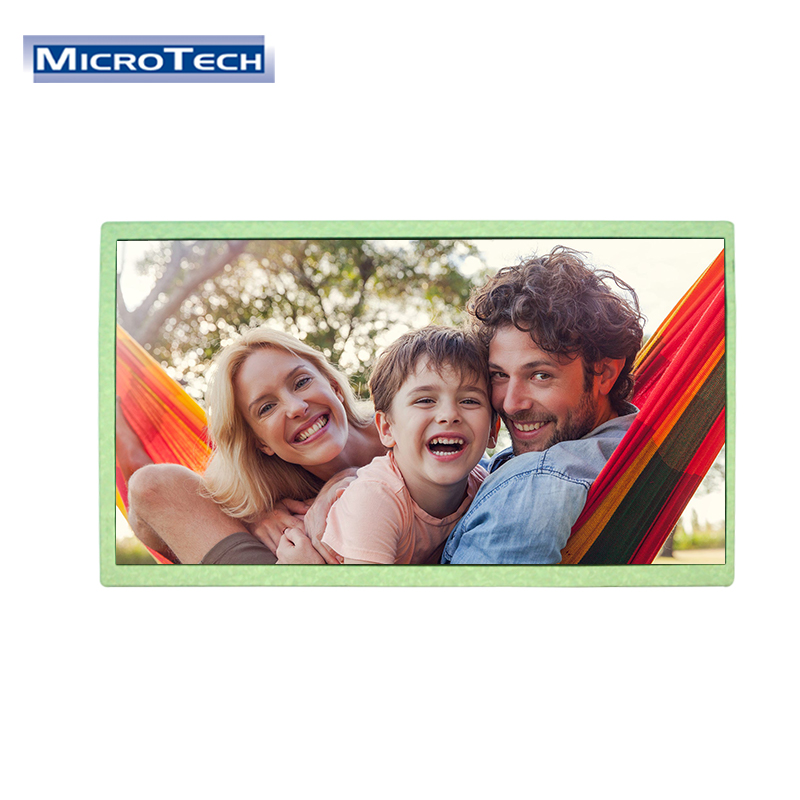

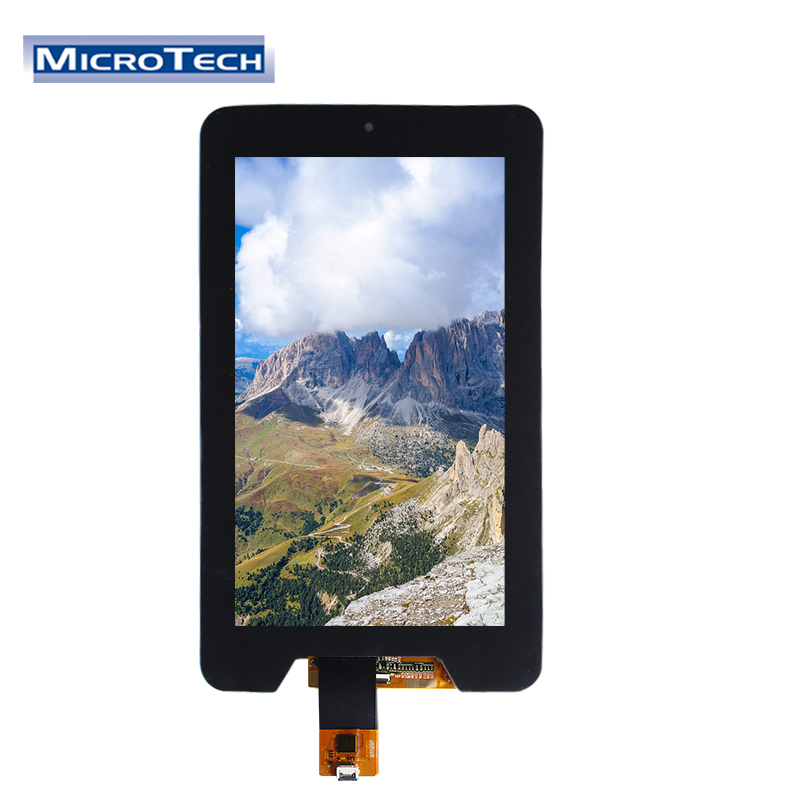

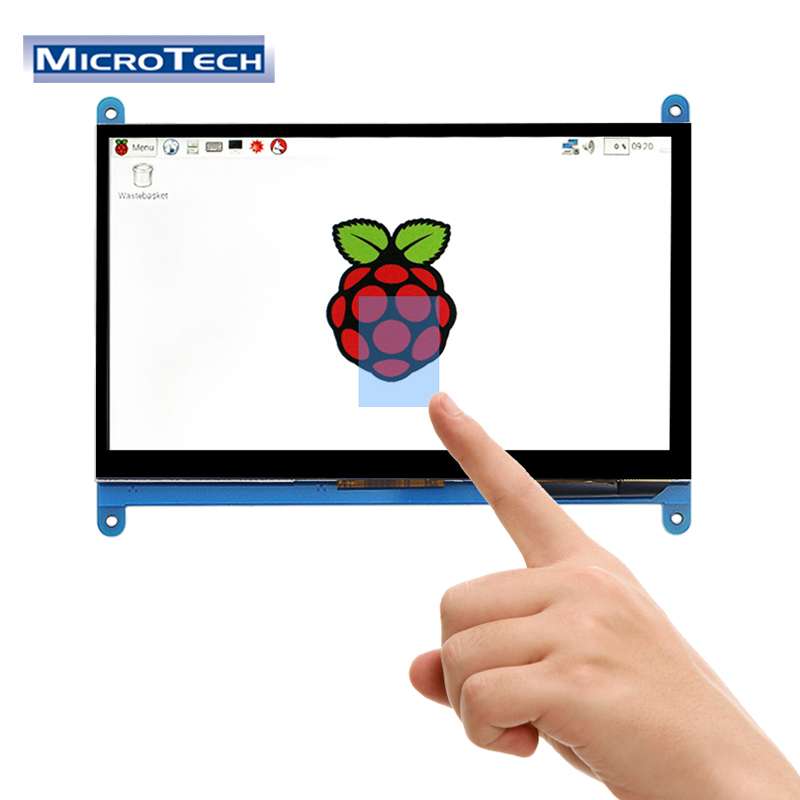

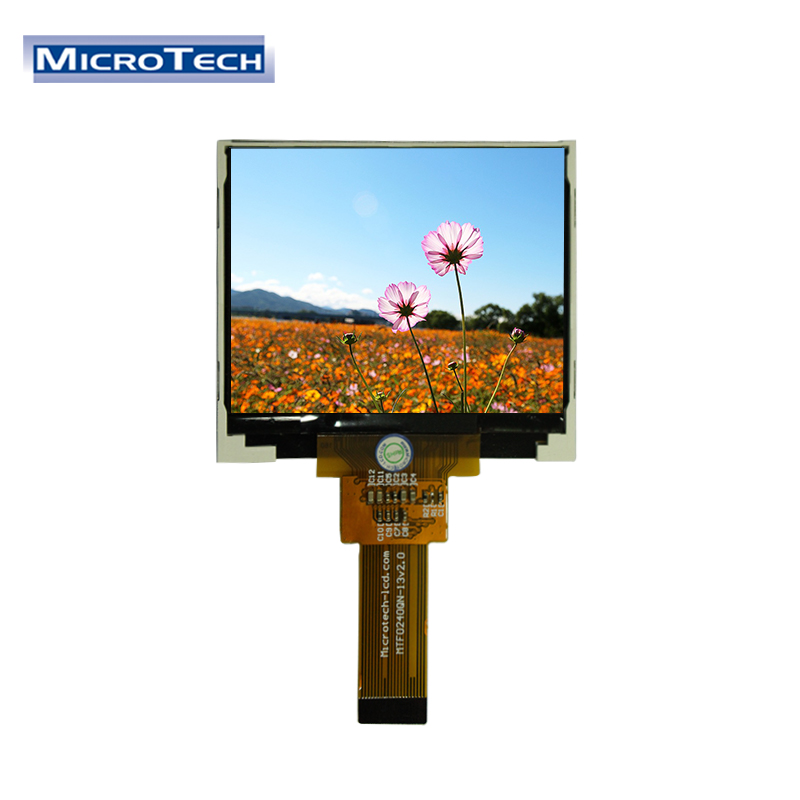

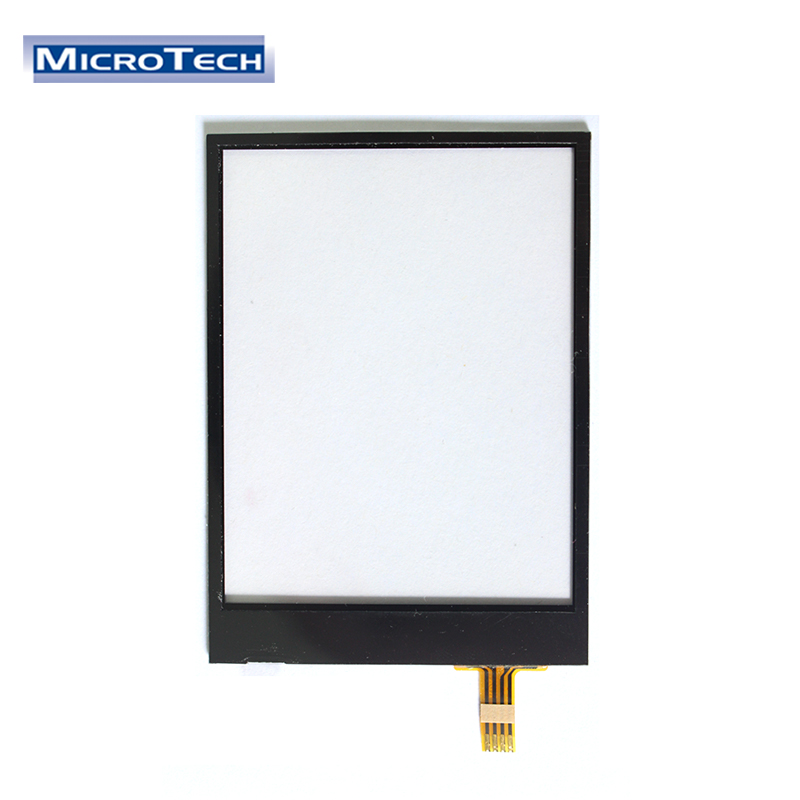

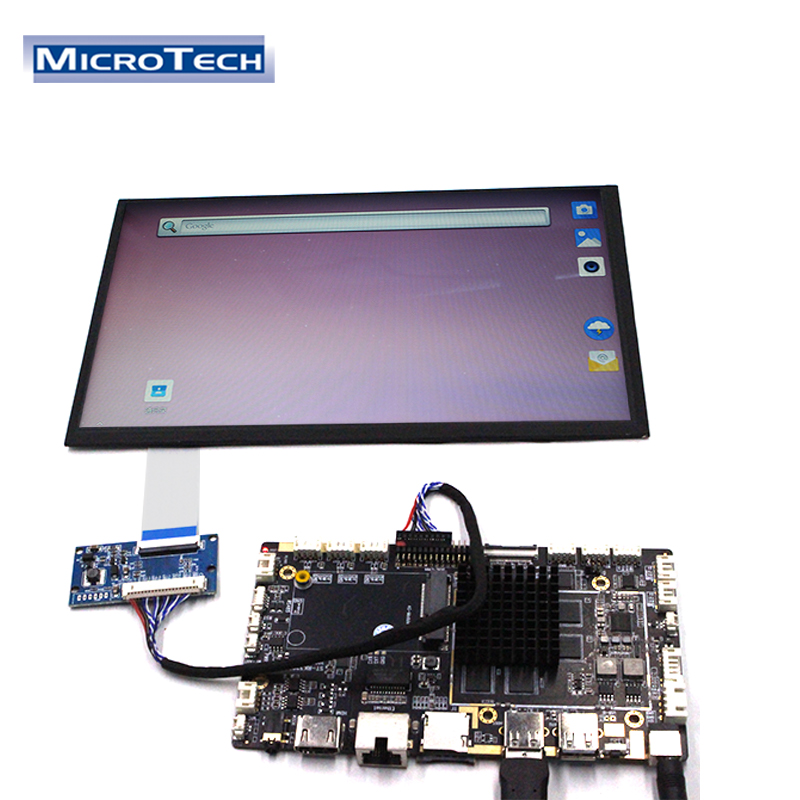

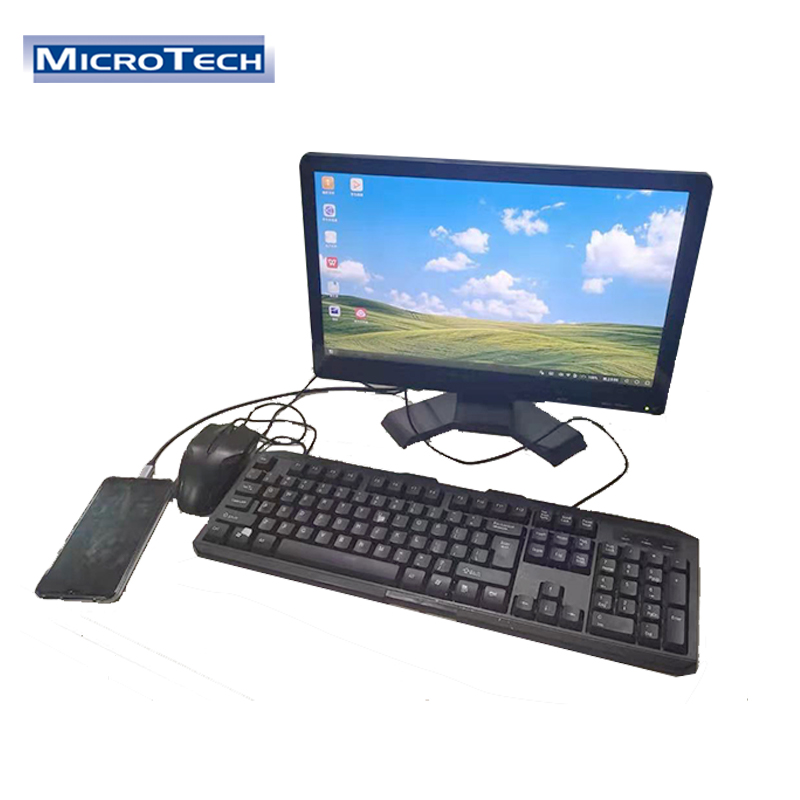

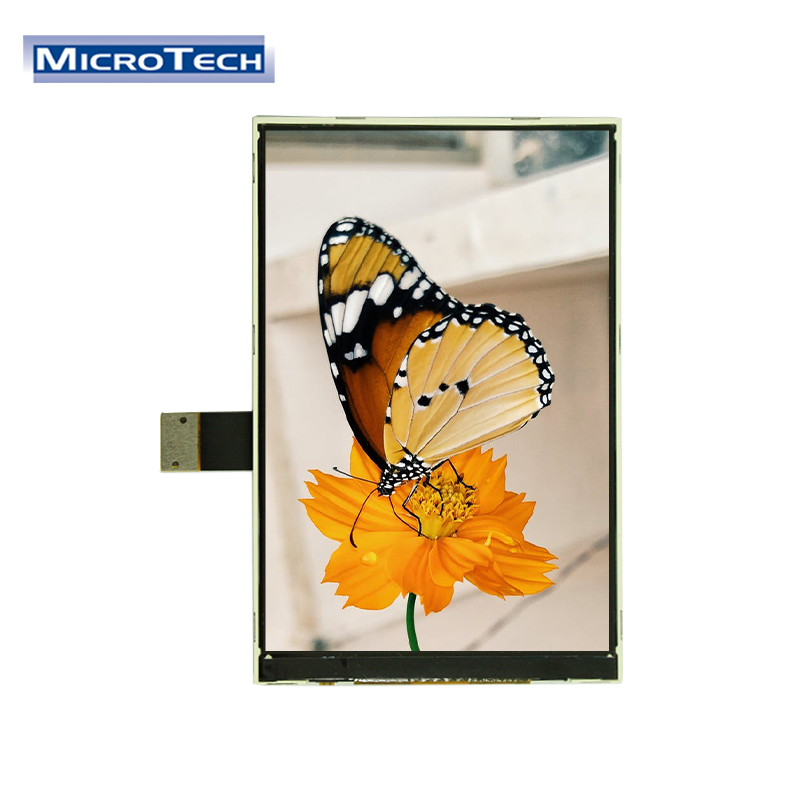

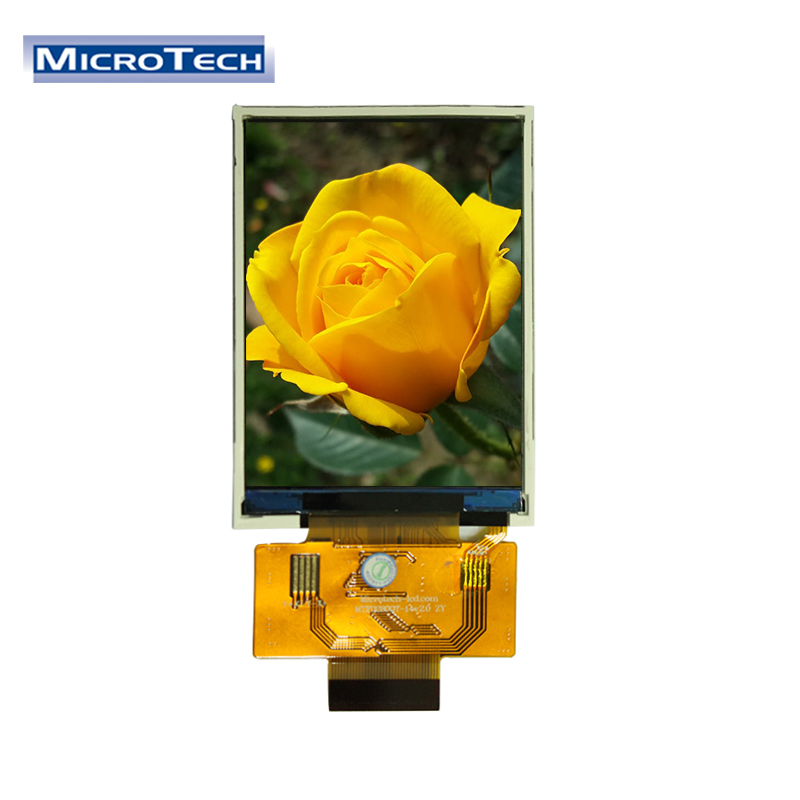

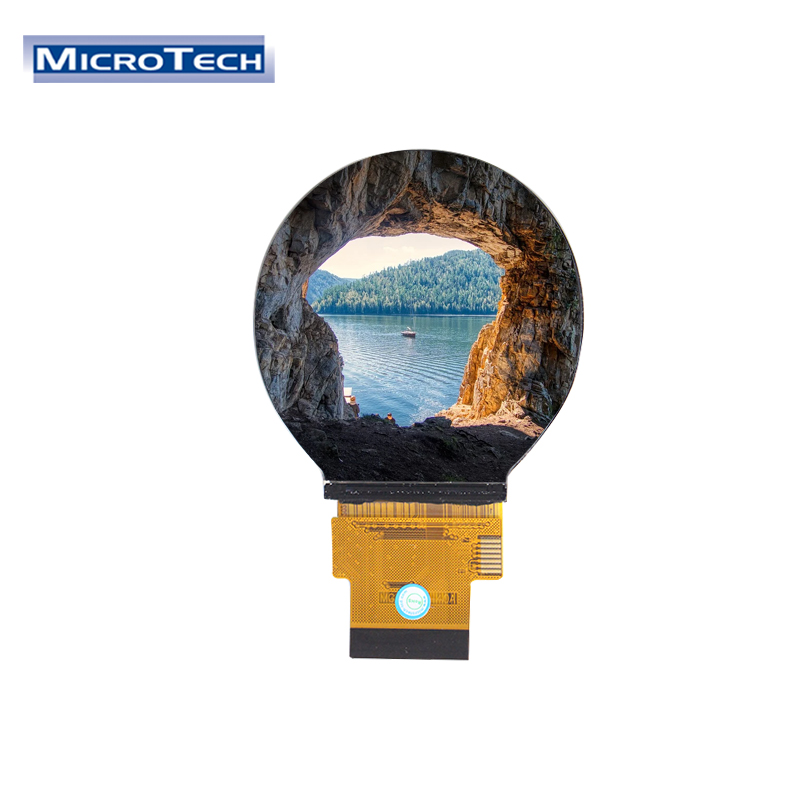

TFT liquid crystal moduleStandard and Custom from 0.95" TFT to 27.0" TFTResistive touch panel and capacitive touch panelStandard and custom designed resistive and capacitive touch screens from 1.44" to 65.0"TFT module with capacitive touch componentsStandard and custom designed capacitive touch CTP+TFT modules from 1.44" to 19.0"TFT control boardStandard and custom TFT driver boards from 2.4" to 13.3"Raspberry Pi 4B and TFT Display KitEmbedded system development PCBA board, support Android, Linux, Windows operating systemTFT Display for iPhone, iPad, Samsung 3G Android Smartphone, TabletCustomize resistive and capacitive touch screens Customize AG, AR, AF, AS, Cover lens Add NTSC, PAL, VGA, HDMI conversion boards and T-Con boards Customize specific models of LED backlight brightness, FPC length, readable under sunlight Please contact us to send your engineering request
