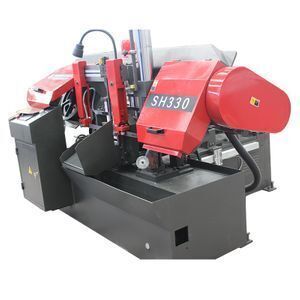

CNC metal cutting band saw column steel pipe machine with feeder price

Click here to contact
Product details
belt line speed(m/min):40/60/80;Voltage:220V/380V;
Packaging Detail:CNC metal cutting band saw column steel pipe machine with feeder price will be wrapped with Plywood Case; Pallet packing; Polyfoam Filling; Bolt Secured Suitable for sea transport;After-sales Service Provided:Field installation, commissioning and training;
Power (kW):2.2kw;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Loading style:Extra roller;Saw belt tighten style:Hand;
Main trasmit structure:Turbine;Cooling generator power (kw):0.09;
Brand Name:SH;Warranty:2 Years;
Supply Ability:20000 Set/Sets per Year;Working clamp style:Hydraulic;
Port:Xingang,Qingdao,Shanghai;Max single feeding (mm):500;
Place of Origin:Hebei China (Mainland);Dimension(L*W*H):1900*2300*1500;
Hydraulic generator power(kw):0.75;
Product Description



The main performance characteristics:

-- International famous brand components get precise measurement of tolerance
Length error < 0.15 mm
Feeding speed error < 0.10 mm
-- More working efficiency:
Automatic band sawing machine is suitable for sawing with large quantities of the same specifications, stable performance and high efficiency. It is 3 times replacement than ordinary sawing machine ‘s working efficiency.
-- Alternative operation mode
Button type control panel, sawing mode change flexible, manual and automatic combination;
-- PLC control
PLC controller, complete automatic sawing process,
- Double upright column structure, high stability;
- Stepless regulation speed adjustment

Specifications
Type
SH-260
SH-300
SH-330
SH-360
Cut capcity W*H (mm)
round 260
round 300
round 330
round 360
square 260*260
square 300*300
square 330*330
square 360*360
Bundle cutting W*H (mm)
Max.200*90
Max.280*100
Max.280*100
Max.300*160
Min.100*20
Min.200*20
Min.200*20
Min.200*20
Saw belt size(mm)
3505*27*0.9
4115*34*1.1
4115*34*1.1
4115*34*1.1
belt line speed(m/min)
40/60/80
40/60/80
40/60/80
40/60/80
Main generator power(kw)
2.2
3
3
3
Hydraulic generator power(kw)
0.75
1.5
1.5
1.5
Cooling generator power (kw)
0.09
0.09
0.09
0.09
Working clamp style
Hydraulic
Hydraulic
Hydraulic
Hydraulic
Saw belt tighten style
Hand
Hand
Hand
Hand
Main trasmit structure
Turbine
Turbine
Turbine
Turbine
Loading style
Extra roller
Extra roller
Extra roller
Extra roller
Volume of oil case (L)
60
80
80
80
Volume of water case (L)
40
50
50
50
Max single feeding (mm)
500
500
500
500
Working table height (mm)
650
650
650
650
Weights of machine (kgs)
1600
1800
1960
2200
Packing dimensions(mm) L*M*H
1750*2200*1450
1900*2200*1500
1900*2300*1500
2100*2550*1850
Detailed Images

How to work of our CNC type Band Saw Machine?

Horizontal CNC type band saw machine hold the workpiece stationary while the blade swings down through the cut. This configuration is used to cut long materials such as pipe or bar stock to length.
CNC Horizontal band saw machine can work automatically after user set the length and pieces into PLC system.High efficiency and accuracy.it can offer a user experience like no other.
This automatic cnc band saw machine is fully guarded and is fitted with automatic shut down in the event of a blade breakage. The blade tensioning system has a tension indication gauge for accurate tensioning.

still have problems,CLICK HERE, our special team will answer you within 24 hours!

Our Service

What can we offer customers?

Professional pre-sales guidance
Rich quality resources
Accurate program manufacturing
Improve the pre-sale service system

Application

For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, usage is extensively.

Our Company

Shean is specialized in designing,manufacturing,selling,exporting since 2011.
Our main products:
Induction pipe bending machine,
Elbow forming machine,
Tee machine,
Hydraulic press machine,
Saw banded machine,
Pipe Bevel machine,
Laser marking machine,
Press fittings M and V type
Shean is keeping updating on its technology and management. By years improvement, We have 80 technicians and 300 workers in the group.
We have more than 80 self design products and molds for you to choose from. We release at least 3 types of new products per month to meet market trends .With our rich experience and considerable service,we have been recognized as a reliable supplier in from many international buyers.
For ensure quality ,we have 150+ QC members to carry out strict inspection at each storage. Including in-coming QC, in process QC and final inspectors.

FAQ

1.What is your payment terms for bandsaw cutting machine :
T/T, L/C, WEST UNION, D/P,O/A, Trade Assurance are also acceptable after negotiation.

2. What is your delivery time of automatic saw cutting machine?
For standard model, the delivery usually is about 10-15 working days after receiving deposit.
If in OEM, will be about 20-25 working days

3. What is your voltage and rated power supply for the hydraulic bandsaw for metal?
This is done as per client’s request

4. What is your Min Order Quantity(MOQ) cnc hot sale horizontal cutting bandsaw ?
1 set . Our customers can be end users, retailers and wholesalers.
