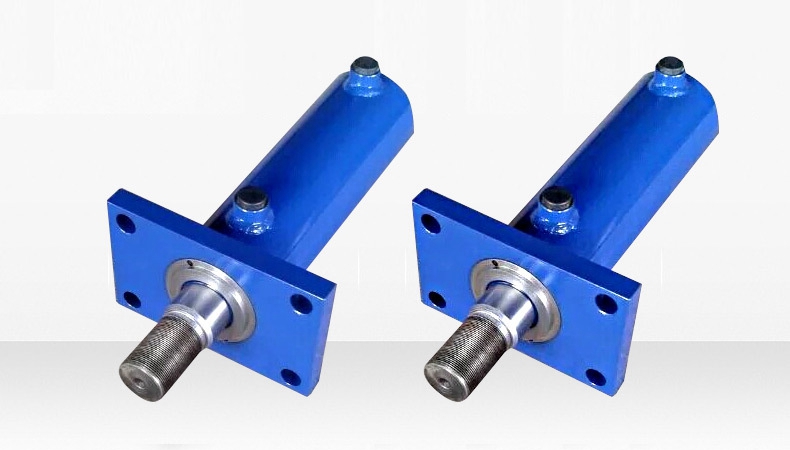

Hot selling flange series large tonnage double acting high pressure hydraulic cylinder

Product details
Cylinder height:1800mmStroke:50-1000mm
weight:17-599 kghigh:162-1132mm
tonnage:50-500TPackaging Details:Carton; Neutral Packing Hot Sale Flange Series Large Tonnage Double Acting High Pressure Hydraulic Cylinder
place of origin; place of origin:Shandong ChinaKey words:Double acting hydraulic cylinder price piston rod
Stretch height:212-2132mmSupply capacity:1000 sets per week
Outer diameter:100-600mmCylinder area:77-730.6 square meters
payment terms:L/C,T/T,Western Unionport:Qingdao, Tianjin
Installation form:front flange

Hot selling flange series large tonnage double acting high pressure hydraulic cylinder



Production details



Hydraulic cylinders convert hydraulic energy into mechanical energy.
This double-acting hydraulic cylinder tractor loader hydraulic cylinder is a hydraulic actuator that performs linear reciprocating or swinging motion.

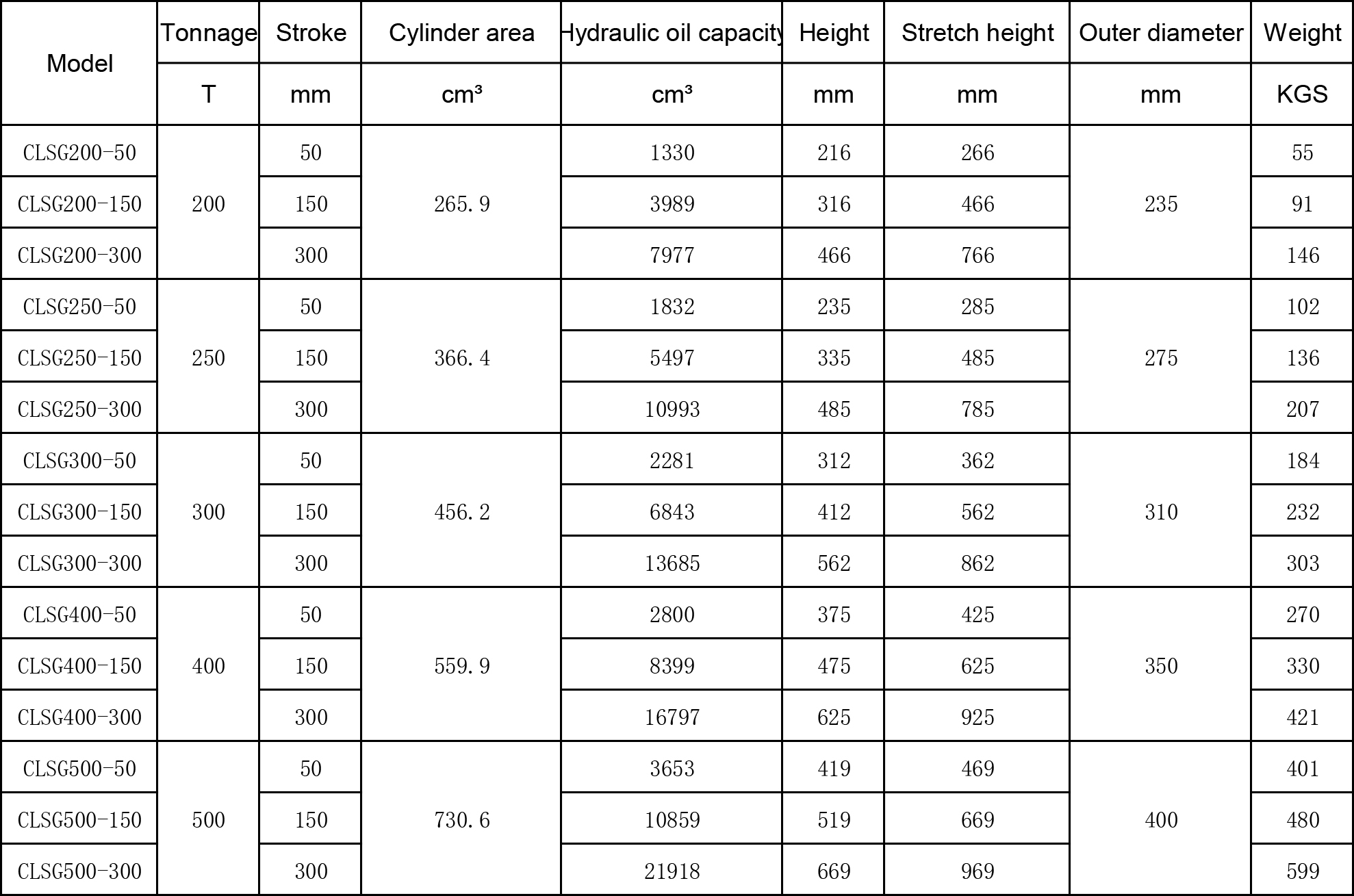

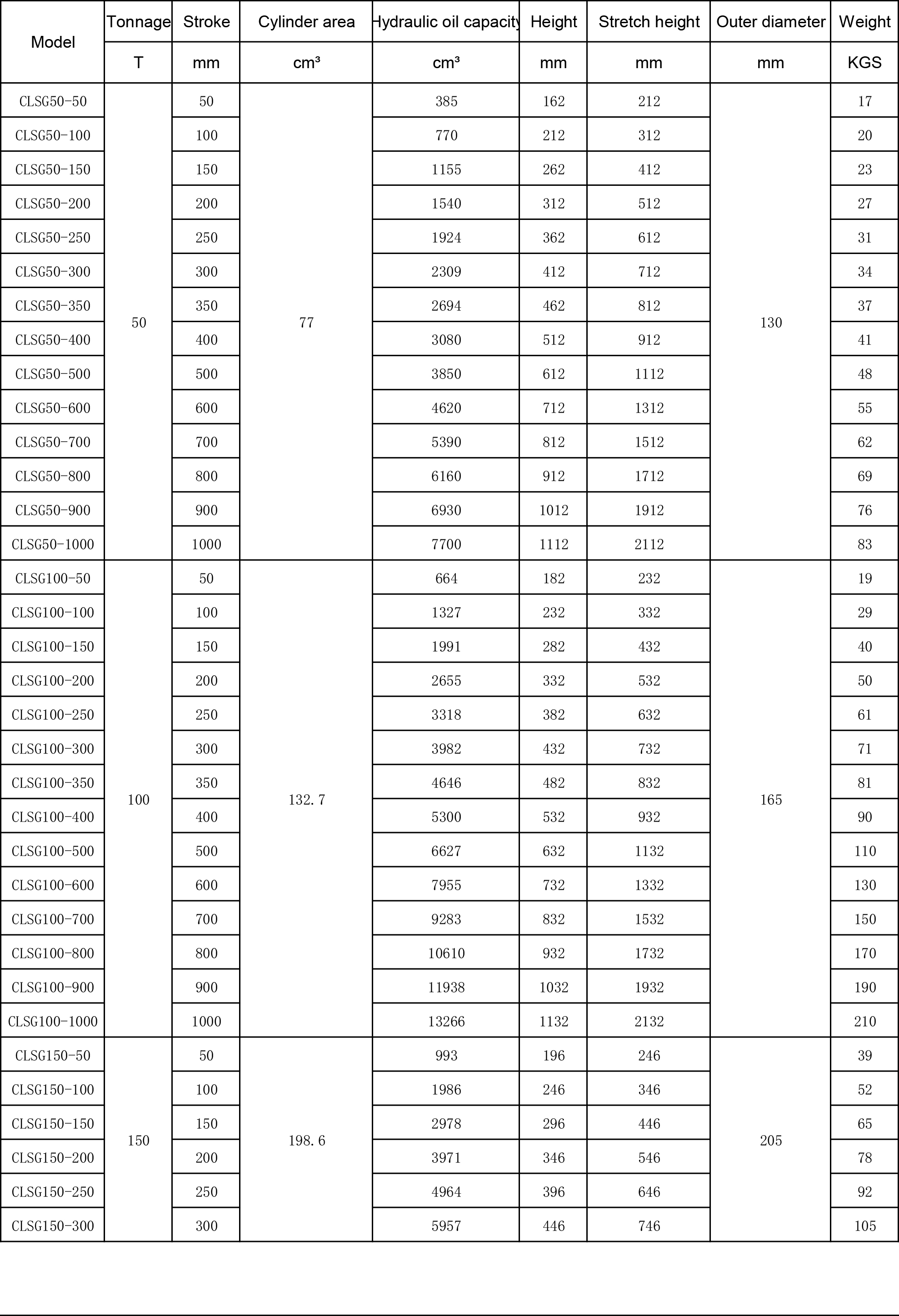

Modelfront flangeMaximum stroke300mm
speed range50 m/sCylinder height1800mm
speed ratio2pressure range0-63MPa
available oil500LRod diameter100 mm
Aperture380mmmaximum working pressure220 bar

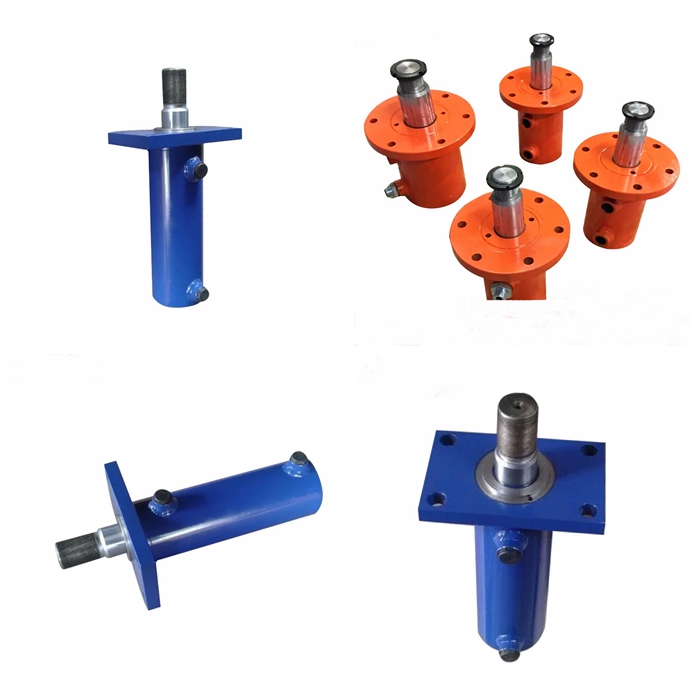

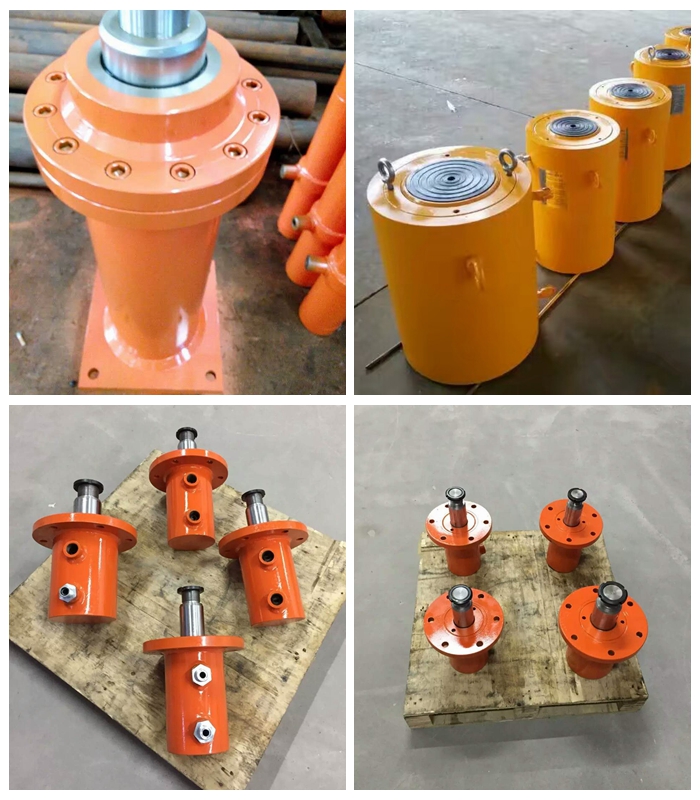

Product display

1. The hot-selling flange series large-tonnage double-acting high-pressure hydraulic cylinder has a simple structure and reliable operation; when the machine is reciprocating, the reducer can be omitted.
2. The hot-selling flange series large-tonnage double-acting high-pressure hydraulic cylinder has no transmission gap and moves smoothly, which can be widely used in various mechanical hydraulic systems.
3. The output force of the hot-selling flange series large-tonnage double-acting high-pressure hydraulic cylinder is proportional to the effective area of ​​the piston and the pressure difference on both sides.
4. The hydraulic cylinder is basically composed of a cylinder and a cylinder head, a piston and a piston rod, a sealing device, a buffer device and an exhaust device.







Applications

Our hand-held rebar bending machines rebar straightening machines work well in the metallurgical industry, power industry, machinery industry, aviation industry, mining industry and chemical industry.

about us

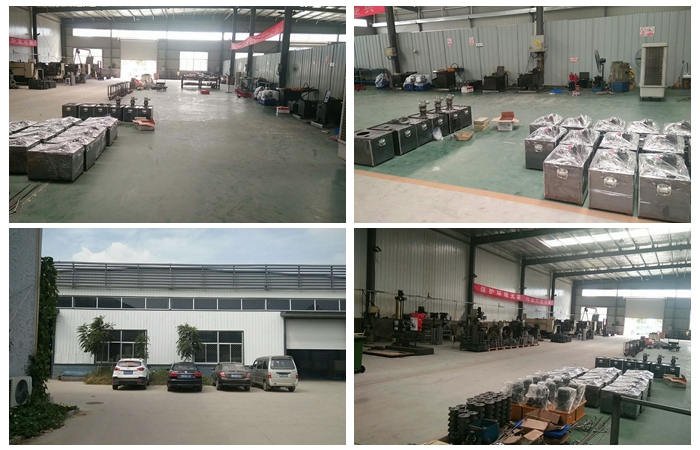

Shandong Saiya Hydraulic Equipment Co., Ltd. is mainly engaged in the research and development and sales of hydraulic pump stations, hydraulic cylinders, jacks, hydraulic electric pumps, hydraulic hand pumps and accessories.

The company has strong technical force, advanced equipment and reliable quality. The main products are pumping unit pumping station, ultra-high pressure hydraulic pumping station, hydraulic tools, hydraulic jacks and other ultra-high pressure hydraulic products, ultra-high pressure manual oil pump series, ultra-high pressure electric oil pump series and loader hydraulic cylinders, excavator hydraulic cylinders, construction Four types of engineering hydraulic cylinder products, such as mechanical hydraulic cylinders and special hydraulic cylinders, undertake the design and production of various hydraulic systems. We can also develop various hydraulic systems and hydraulic tools according to customer requirements.



Contact information
