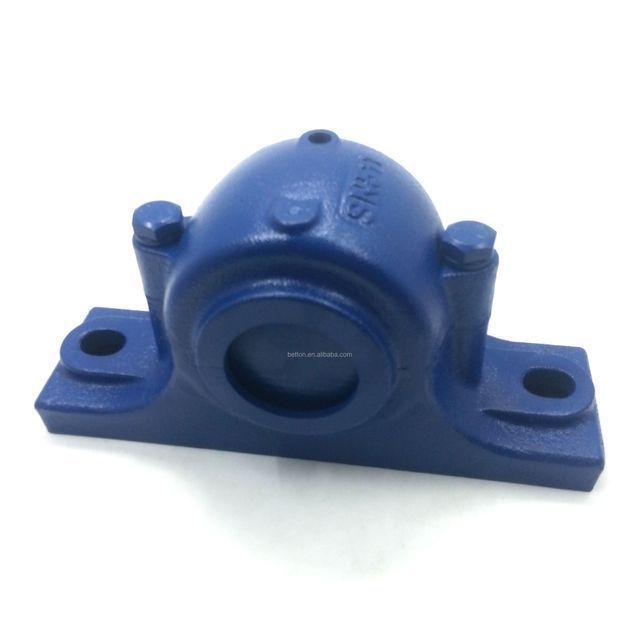

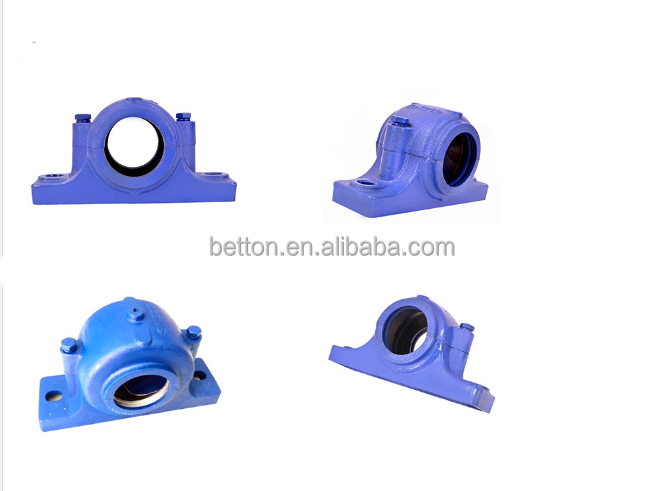

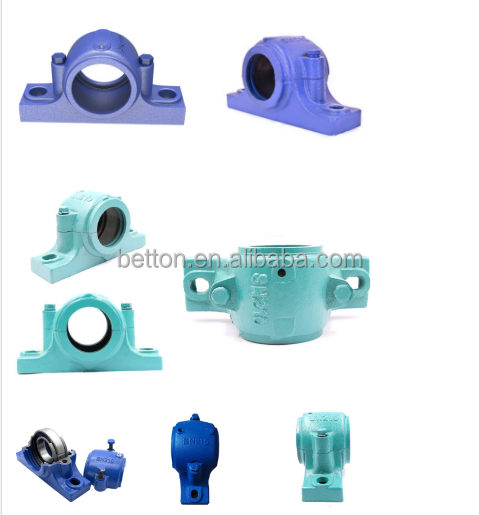

SN cast iron material split plummer block SNV100

1. Model: UC series, UCF series, UCFL series, UCT series, UCP series, etc.

2. Application: mining, metallurgy, textile, etc.

3. Description: A housed bearing is a bearing unit that combines a rolling bearing and a housing. most inserts
Bearings make the outer diameter a sphere. Various structural forms and convenient installation. This bearing also has
Good versatility and interchangeability. It can work easily in harsh environments.

The bearing seat simplifies the external structure of the machine, making the assembly and maintenance more reasonable, in addition,
Self-aligning to protect against torsional loads due to assembly errors. Also, because it is easier to become
Assembled on the machine and side walls, can be used anywhere on the frame or machine Due to the above features,
Plug-in bearings with housings as well as the different types of bearings themselves are widely used.
The housed bearing consists of a wide inner ring deep groove ball bearing and a bearing seat. The bearing is compact
unit, centering function and sealing facility for easy assembly and maintenance, suitable for hostile
surroundings. Widely used in agricultural machinery, construction machinery, textile machinery, food processing
machinery and transport systems, etc.

Housings can be made from a variety of materials - cast iron, thermoplastic, extruded steel or stainless steel. Bearings can be
Made of 52100 chrome steel or 440 stainless steel. Multiple options for locking the bearing to the shaft including set screws
Lock ring, eccentric lock ring or squeeze lock ring. For normal applications, Nitrile seals with metal shrouds
Provide shielding. For harsh environment applications, triple lip seals are available. Bearings can be equipped with a
Anti-rotation pin. This will further reduce the rotation of the bearing outside diameter.
