2019 Agricultural Sprinkler Irrigation System Lateral Move Irrigation System From China

Supplier: China Yulin Irrigation Equipment Co., Ltd.
Region: Liaoning, China
Contact: Ms Lara Yu
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Material:	Metal;	Brand Name:	huaxingyulin;
After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Warranty:	1 Year;
Place of Origin:	Liaoning China (Mainland);	Condition:	New;
Sprinkler:	American brand;	Type:	Irrigation System;
Feature:	Automatic Running;	Packaging Detail:	Most of Irrigation components are packaged by the standard exporting wooden box,and loaded on the container and ready to ship to all over the world.;
Payment Terms:	T/T;	color:	silvery;
Supply Ability:	90 Set/Sets per Year;	After-sales Service Provided:	Engineers available to service machinery overseas;
Diameter:	16.8 cm;	Surface:	Hot Dip Galvanization;
Certification:	ISO9001:2008;	Type:	lateral move irrigation system;
Brand Name:	HUAXINGYULIN;	Usage:	Agriculture;
Use:	irrigation;	Condition:	New;
Port:	Dalian,china;	Span Length Choice:	41m/48m/54.5m/61.3m;

Product Description

Linear Irrigation System Allocation Standard

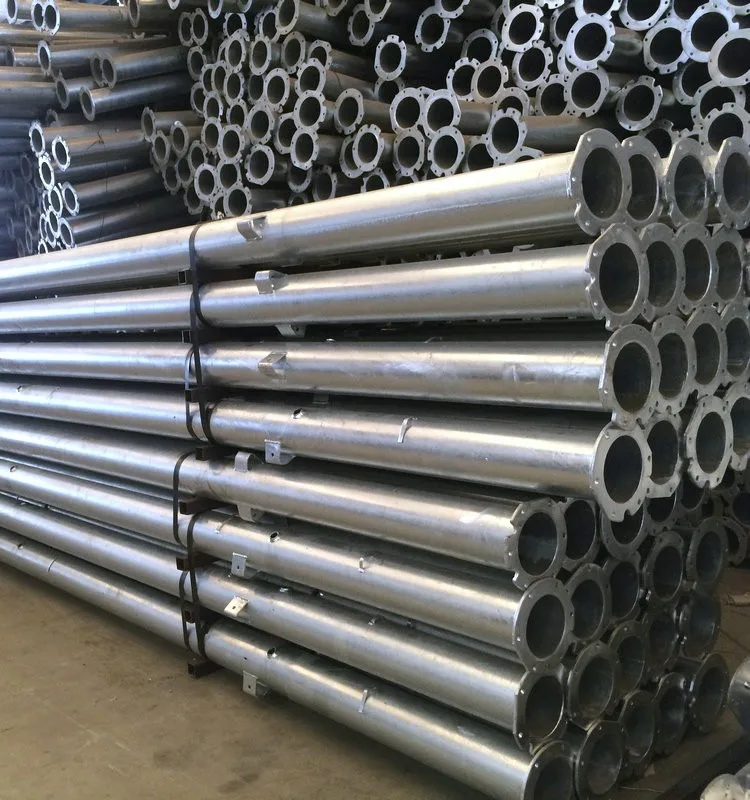

Main pipe diameter	6-5/8''
Cantilever pipe diameter	5-9/16''
Pipe length	22 feet/one, (6.7m)
Standard span	54.5m (8 pipes) and 48m (7 pipes)
Main Pipe Flange thickness	10mm,Flange and pipe adopt double welded technology
Working voltage	460--380V/50--60HZ
Power supply mode	diesel generator and the local power company provide

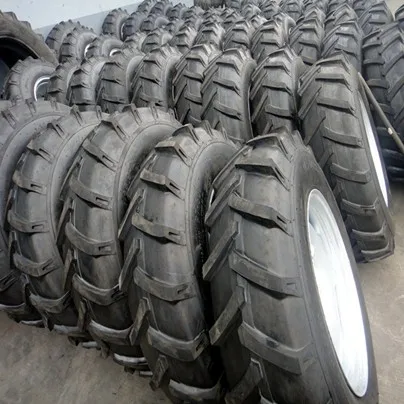

Tire type	14.9x24,vacuum irrigation tire
Motor power	0.75~1.5 horse power
Motor speed reducer	output speed of electric transmission gearbox:28--86RPM
Tire speed reducer	the drive ratio is 50:1(American UMC)
Irrigation intensity	5-50mm(within the range is adjustable)
Irrigation uniformity	≥90%
Climbing capacity	≤25%
Span body tower structure	"V" model tower
Sprayer	USA Nelson D3000; selective configuration: USA Nelson R3000
Irrigation intake pressure	0.20--0.35mpa
Truss height	3.2m
Sprayer spacing	2.2-4m( the quantity :2-3 sprayer/water pipe)
Main cable	44mm²+61.5mm²(resist ultra violet and aging)
The end	LED working status instruction light
Main pipe of water supply	Adopt ground buried,standard is more than 6 inches
Irrigation intake	2 water inlet in the center of the machine head, quick pipe joint structure

Two Wheels Linear Irrigation System

This machine allows a "back and forth" irrigation via a linear of five spans maximum. This type is idea for small to medium sized rectangular land.
Tower with axle and two motorized wheels
Water supply via a ﬂexible pipe or a PEHD connected to a rotative elbow.
Can accommodate an electricity generator
Possibility to add a cantilever scythe in order to increase the irrigated surface area
Furrow guidance guidance or steel cable guidance
Moveable version available

Four Wheels Linear Irrigation System

"Back and forth" irrigation via a linear of 10 spans maximum
Water supply via a ﬂexible pipe or a PEHD connected to a articulated elbow.
Tower on a chassis with 4 motorized wheels
2 jointed axles for a better adaptation to the terrain
Can accommodate an electricity generator and a diesel tank
Possibility to add an overhang at each end of the spans
Furrow guidance or steel cable guidance

Detailed Images

Standard Control Panel

1. Work status indication and real-time monitoring
2. Failure alarm
3. Span synchronization protecting function
4. Auto-stop of irrigation machine and water pump
if water pressure is too low or if irrigation machine
encounters some problem
5. Auto-start of water pump with the start of the
machine
6. Digital display percentage table that allows to
adjust the working rate
7. Indication of possible reasons for breakdown
8. Auto-stop if voltage is low/high
9. Auto-reverse function
10.Equipped with lighting arrester to prevent lighting stroke
11.Extreme temperature protection switch (≤4°C)

PLC Intelligent Control Panel

1. All functions of standard control panel
2. Chinese or English LCD interface, diaphragm
keyboard input
3. Memory functions for irrigation rate, rain capacity,
number of turns, irrigation time etc
4. Possibility of small agriculture meteorology station
installation
5. Wind speed, rain capacity, soil dryness and
humidity sensors
6. Possibility of sending alarm SMS to your mobile phone in case of breakdown
7. Diesel generator, fertilizer and drug metering pump control
8. Angle control for sectors with the accuracy up to 0.1 degree
9. Irrigation rate, overhang, sprayer, end gun and electric valve contro

Our Company

Certifications

Our Service

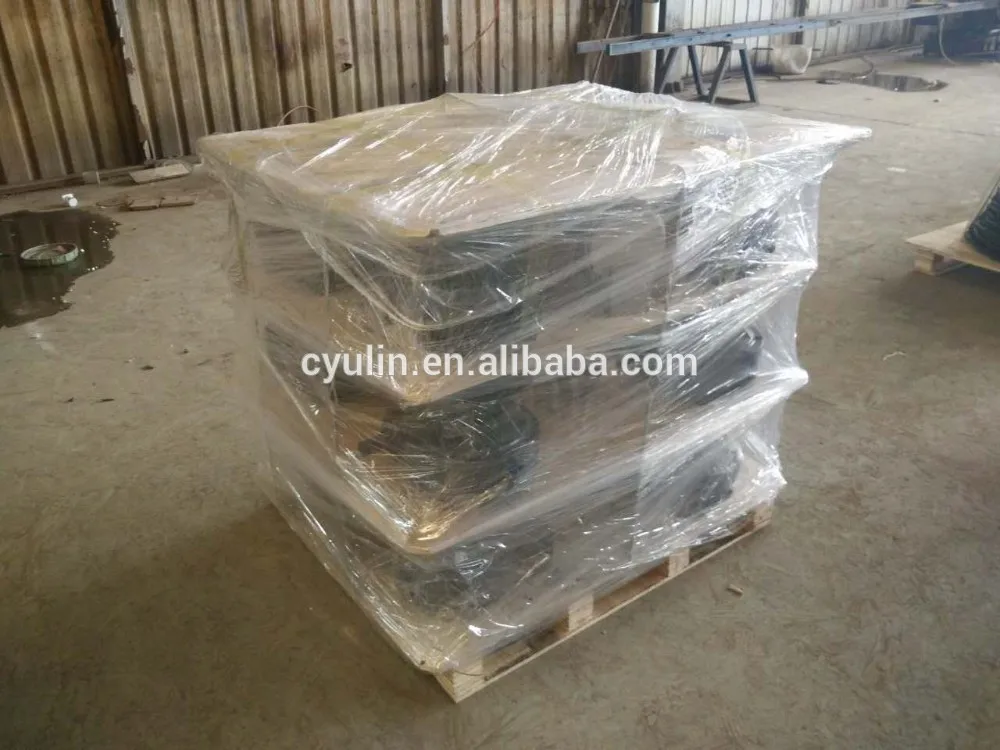

We have a standard and efficent packing and loading process based on years of experience. We use the high-quality exporting wooden box and tailor-made iron pallet and choose the 40'OT or HQ container to load the equipment accessories. And we have a team of skilled packers and loaders. Also we choose the famous freight forwarders such as COSCO,ZIM,CMA or the appointed shipping agent by foreigner clients.
