application: | automated industry | Measurement principle: | Bias, Electrochemical |
Pressure range: | 0.5-2Bar | place of origin; place of origin: | U.K. |
model: | MOX-3 MOX-4 MOX-1 MOX-2 | Packaging Details: | Standard package |
scope: | 0-1500mBar O2 | Card: | Oxygen Sensor |
Output function: | over temperature, under temperature | output: | 9-13mV |
Response time: | <15s | brand: | YJJ |
Cross reference: | MOX-3 MOX-4 MOX-1 MOX-2, MOX-3 MOX-4 MOX-1 MOX-2 | port: | Hongkong |
scope | 0-1500mBar O2 |
Response time | <15s |
pressure range | 0.5-2Bar |
output | 9-13mV |
Measurement principle | Bias, Electrochemical |

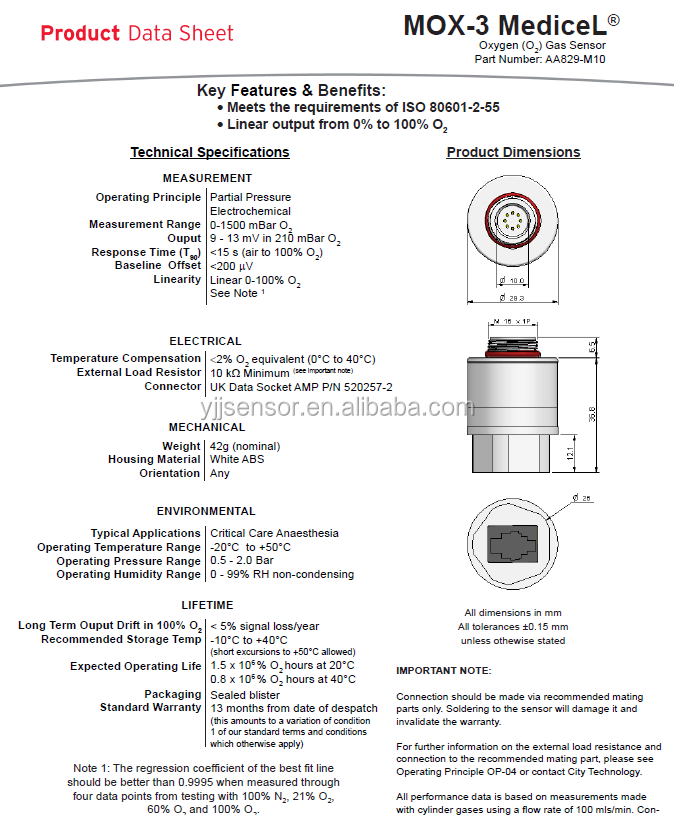

Oxygen sensor MOX-3 technical specification
Measurement principle: bias voltage, electrochemical
Measuring range: 0-1500 mbar O2
Output: 9-13mV 210mBar O2
Response time: <15s
Baseline: < 200uV
Linearity: 0-100%
Electrical parameters
Temperature compensation: < 2% O2(0-40℃)
Additional load resistance: min. 10 kΩ
Mechanical parameters
Weight: 42 grams
Shell material: white ABS
Use environment
Typical application: intensive anesthesia care
Temperature range: -20-50℃
Pressure range: 0.5-2.0Bar
Relative humidity: 0-99% non-condensing
service life
Long term output drift: < 5%/year
Storage temperature: -10-40℃
Packaging: Bubble Seal
Warranty period: 13 months after sale
