YJJ MPX5010DP Electrical pressure transducer design manufacturer

Supplier: Shenzhen Yijiajie Electronic Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Sofin Xu
Price: $6.28 /piece
Min. Order: 1 piece

Click here to contact

Product details

Selling Units:	Single item;	Model Number:	MPX5010DP;
Warm Up Time:	20 ms;	Response Time:	1.0 ms;
Maximum Pressure:	Pmax 75 kPa;	Accuracy:	+-5.0 %VFSS;
Single gross weight:	0.5 KG;	Storage/Operating Temperature:	Tstg -40 to +125;
Supply Voltage:	VS 4.75 5.0 5.25 Vdc;	Supply Current:	5.0 10 mAdc;
Pressure Range:	0 - 10 kPa;	Sensitivity:	450 mV/kPa;
Minimum Pressure Offset:	0 to 85;	Single package size:	5X6X5 cm;
Place of Origin:	China;	Brand Name:	YIJIAJIE;

Product Description

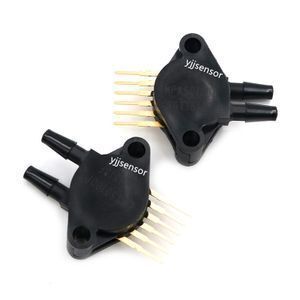

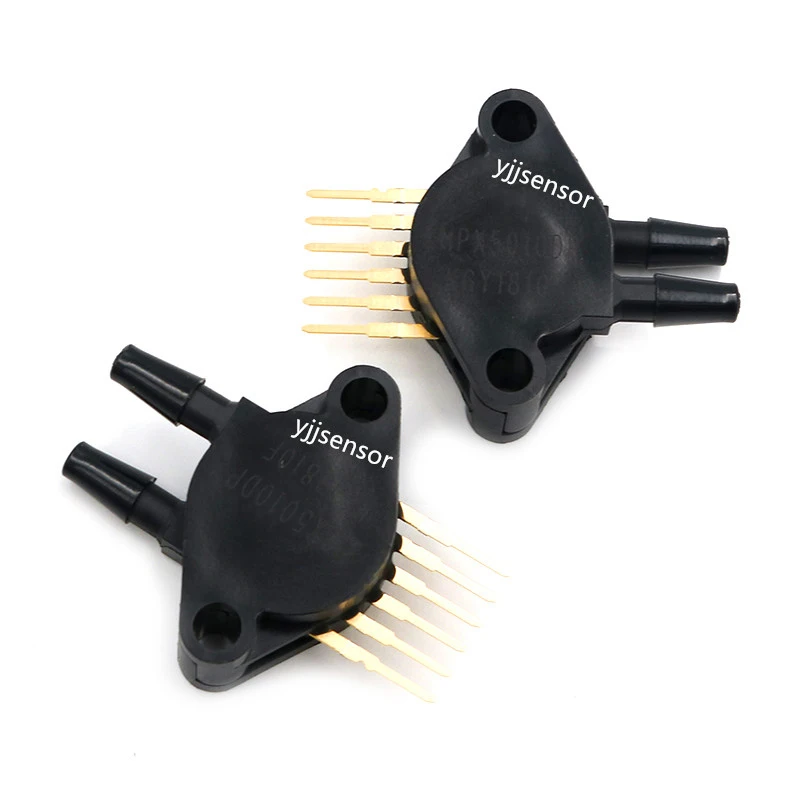

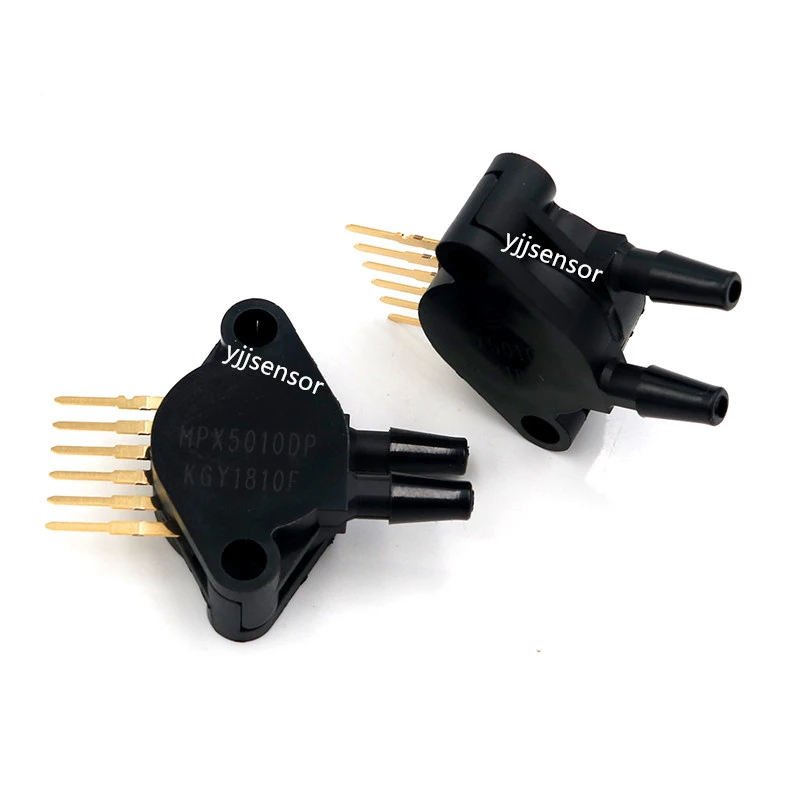

Pressure sensor transmitter MPX5010DP

MAXIMUM RATINGS(NOTE)

Parametrics Symbol Value Unit

Maximum Pressure (P1 > P2) Pmax 75 kPa

Storage Temperature Tstg –40 to +125 °C

Operating Temperature TA –40 to +125 °C

NOTE: Exposure beyond the specified limits may cause permanent damage or degradation to the device.

OPERATING CHARACTERISTICS (VS = 5.0 Vdc, TA = 25°C unless otherwise noted, P1 > P2. Decoupling circuit shown in Figure 3

required to meet specification.)

Characteristic Symbol Min Typ Max Unit

Pressure Range(1) POP 0 — 10 kPa

Supply Voltage(2) VS 4.75 5.0 5.25 Vdc

Supply Current Io — 5.0 10 mAdc

Minimum Pressure Offset(3) (0 to 85°C)

@ VS = 5.0 Volts

Voff 0 0.2 0.425 Vdc

Full Scale Output(4) (0 to 85°C)

@ VS = 5.0 Volts

VFSO 4.475 4.7 4.925 Vdc

Full Scale Span(5) (0 to 85°C)

@ VS = 5.0 Volts

VFSS 4.275 4.5 4.725 Vdc

Accuracy(6) (0 to 85°C) — — — ±5.0 %VFSS

Sensitivity V/P — 450 — mV/kPa

Response Time(7) tR — 1.0 — ms

Output Source Current at Full Scale Output IO+ — 0.1 — mAdc

Warm–Up Time(8) — — 20 — ms

Offset Stability(9) — — ±0.5 — %VFSS
