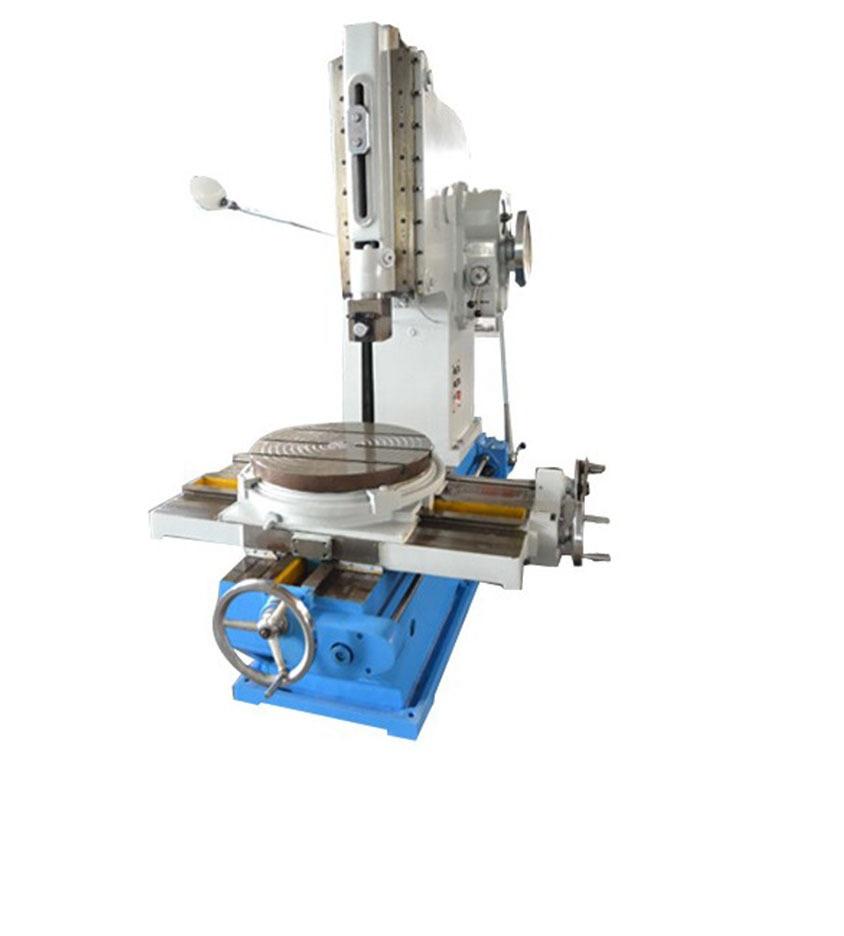

High Quality Metal Vertical Grooving Machine B5020

Supplier: Xinfuwang Electrical Machinery Equipment (Dalian) Co., Ltd.
Region: Liaoning, China
Contact: Mr luis liu
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales service provided:	Online support, video technical support	Main selling point:	automatic
Video external inspection:	if	After Warranty Service:	Video technical support, online support
Warranty:	1 year	Core components:	Bearings, Gears
Local service location:	not any	Core Components Warranty:	1 year
Marketing Type:	normal product	payment terms:	L/C,D/P,D/A,T/T
Mechanical test report:	if	Power (kW):	3
Applicable industries:	other	Weight (kg):	2200kg
Showroom location:	not any	Health status:	new
place of origin; place of origin:	Liaoning, China

Specification

Product parameters B5020
The pursuit of details stems from the insistence on quality

Due to different equipment configurations, the price is subject to our actual quotation.
Ram maximum stroke mm 220
Ram maximum bolt length MM 200
Number of plunger movements/min. 32,50,80125
Ram inclination angle 0 - 8

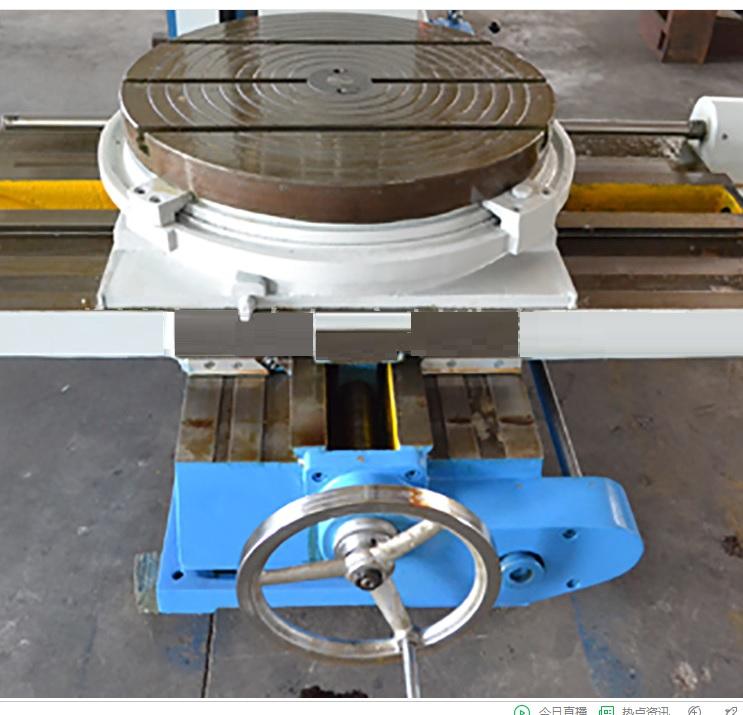

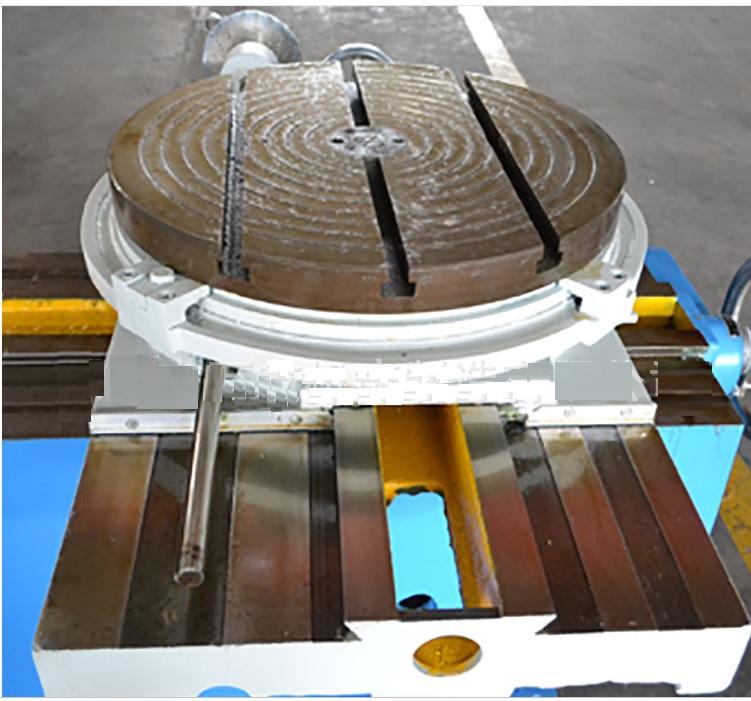

Table diameter 500 mm
Ram vertical adjustment distance 230 mm
The distance between the support surface of the cutter head and the front wall of the bed is 485mm
The distance between the table and the lower end of the carriage is 320mm
The maximum longitudinal movement distance of the table is 500 mm
The maximum horizontal movement distance of the table is mm 500
The maximum rotation angle of the worktable is 360 degrees
Table horizontal and vertical feed speed mm 0.08 - 1.21
Table rotary feed range mm 0.052 - 0.783
Motor power in kilowatts. 3
Motor speed r/min 1430
Net weight of the machine in kg. 2200
Dimensions mm 1916x1305x1995

Product Description
