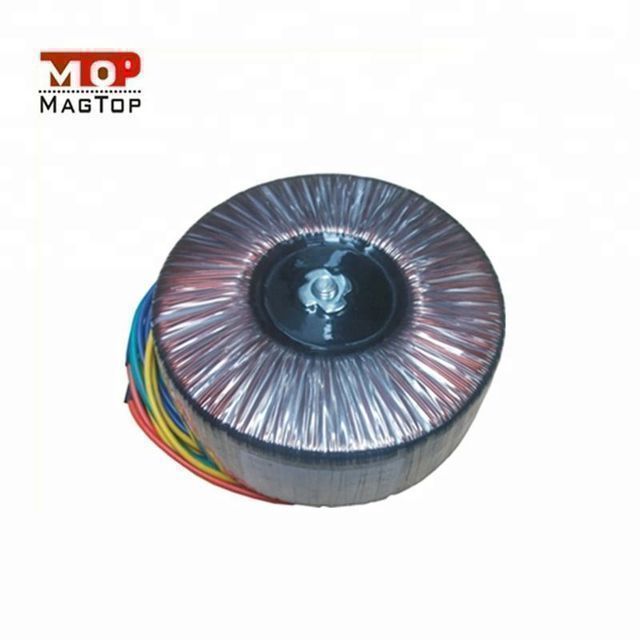

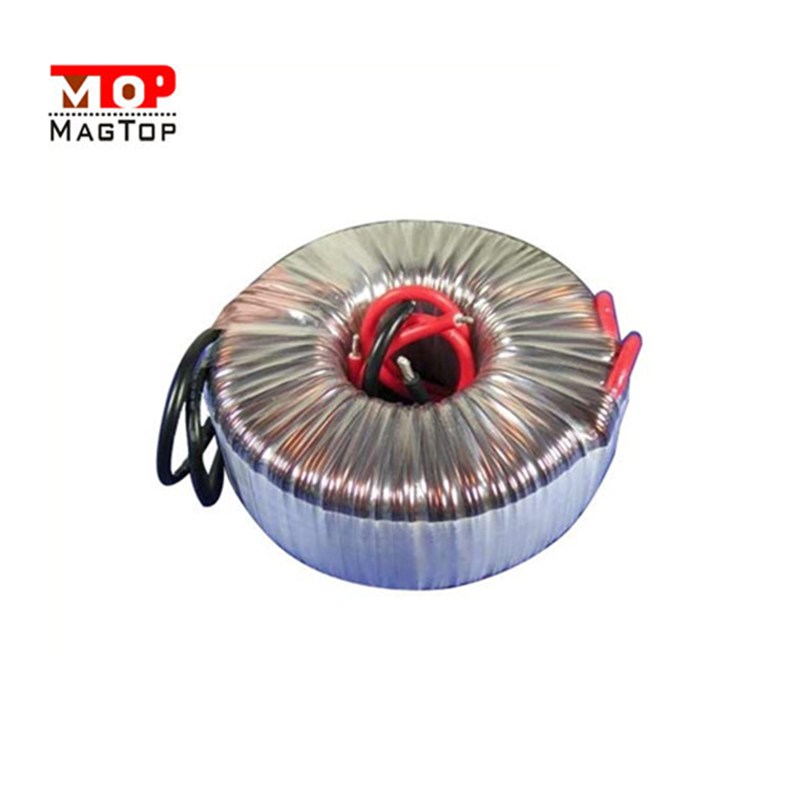

120V 12V High Voltage Toroidal Transformer Manufacturer

Product details
Packaging Details:Cartonusage:strength
brand:MAGTOPmodel:Toroidal Transformer
application:Audio equipmentCoil number:Autotransformer
Original Equipment Manufacturer:Support customizationfrequency:50Hz/60Hz
Homepage:http://www.magtop.com.cn/enpayment terms:Letter of Credit, T/T, Western Union, Paypal, Escrow
Coil structure:ringplace of origin; place of origin:Guangdong, China
stage:singleAdvantage:Factory direct price and fast delivery
Supply capacity:2000 toroidal transformers manufactured per weekport:Huizhou
Input voltage:100/110/115/120/200/220/240Vshape:ring
Certification:ISO9001:2008, Rohsproduct name:Toroidal Transformer Manufacturing
Material:Copper wire + ferrite core
Product Description
 feature:
1. Provide custom design
2. Ultra-high efficiency
95%
3. High-power electronic transformer
4. High isolation strength
5. Reduced form factor and weight
6. High power density
7. High temperature resistance
8. Working temperature:
-40°C to +125°C
9. Power Range
10w-10kw

 application:
1. Video recorders, copiers, audio equipment, game consoles
2. TV sets, computer equipment, printers, terminals
3. Communication control equipment
4. Switching power supply, charger, alarm system
5. UPS, VCD/DVD player, audio and video equipment
6. OA machine, inverter, charger, alarm system

Exterior:
1. Product Description
Using 0.27mm, 0.30mm high-quality cold-rolled oriented silicon material, low iron loss, high magnetic properties, the product has the advantages of small size, low temperature, low magnetic leakage, and easy installation.
2. Data parameters
strength
30VA-5KVA
Input voltage
Technical drawings
frequency
47Hz-63Hz
stage
Simplex
core shape
torus
core structure
torus
winding
Technical drawings
Insulation level
Class B
Dielectric
4kv/3mA/3S
Operating temperature
50°C
shield
optional
terminal
optional
3. Product material
Name
Specification
feature
Cold-rolled oriented high-quality ferrosilicon
0.27mm or 0.30mm
Low iron loss
High magnetic
Enameled round copper wire
QZ-150,QZ-180
Anaerobic copper
high strength
low loss
BOPET film
0.05mm-0.08mm
Reduction: 150°C in 30 minutes
PV soft copper wire
Technical drawings
450V/750V
