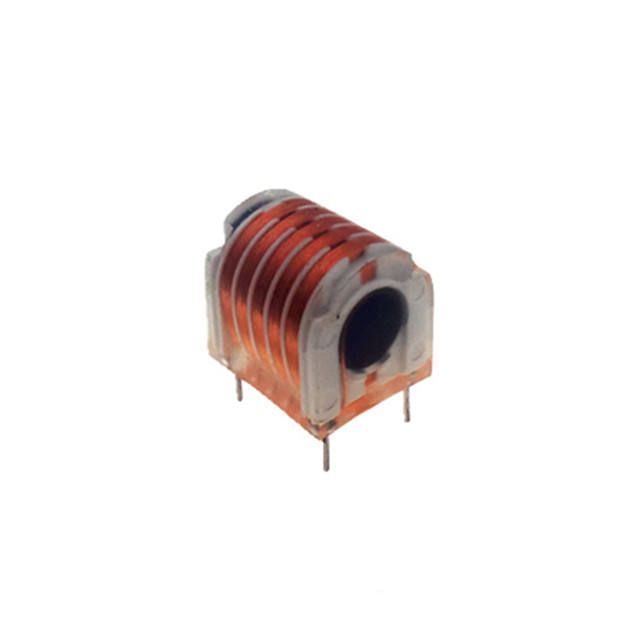

High-frequency transformer with a flashed core ferrite
-
Supplier: Shaanxi Fullstar Electronics Co., Ltd. -
Region: Shaanxi, China -
Contact: Ms Sophie Xu -
Price: $0.20 /piece -
Min. Order: 1 piece
Product details
| Supply capacity: | 500,000 pieces per day | payment terms: | Western Union, L/C, D/P, D/A, T/T, MoneyGram |
| application: | Ozone generator | model: | FHT series |
| Rated primary voltage: | 12 | Rated secondary voltage: | 5000 |
| installation method: | PCB, leads | Place of origin: | China |
| usage: | light | Packaging details: | Products will be individually packed in cartons with plastic foam |
| The output voltage: | Maximum 20KV | stage: | single,single |
| Input voltage: | 3 to 220V | Material: | Plastic winding, copper winding |
| product name: | Electronic ignition transformer | Number of coils: | Autotransformer |
Product Description
product name | Ozone generator high voltage ignition coil transformer |
Input voltage | 12V, 24V, 110V, 230V |
The output voltage | 1KV-20KV |
Transformer power supply | 10W-100W |
aspect | Customization |
Material | Ferrite core, bobbin, copper wire, epoxy resin |
application | trigger transformer, Ozone generator, gas burner, negative ion generator |
turns ratio | Available in various turns ratios |

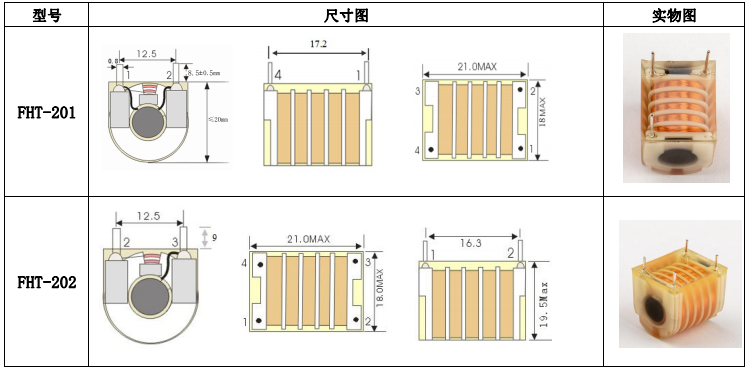

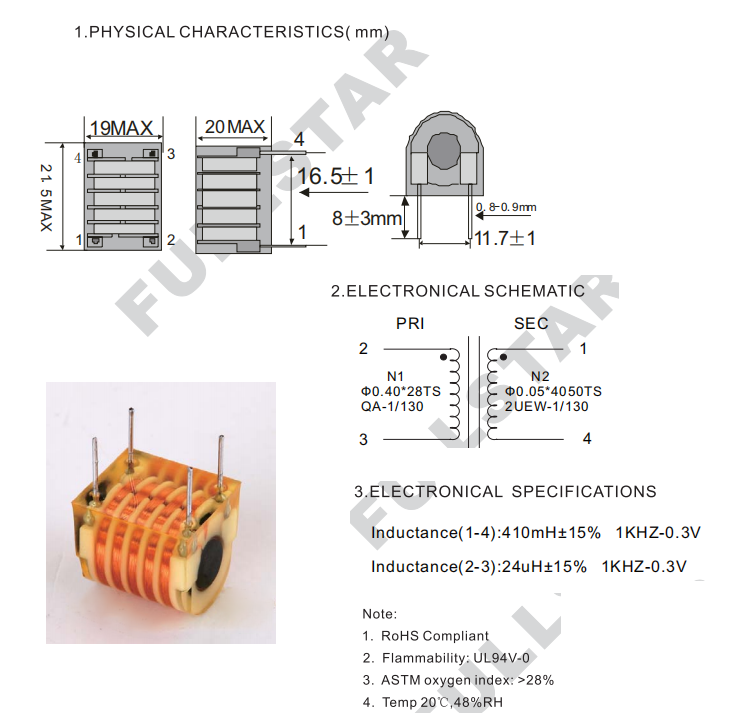

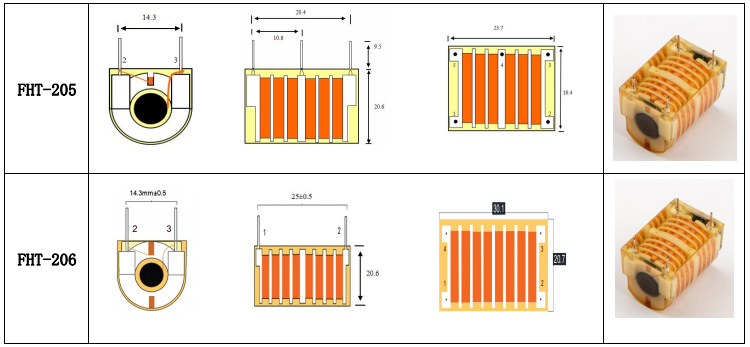

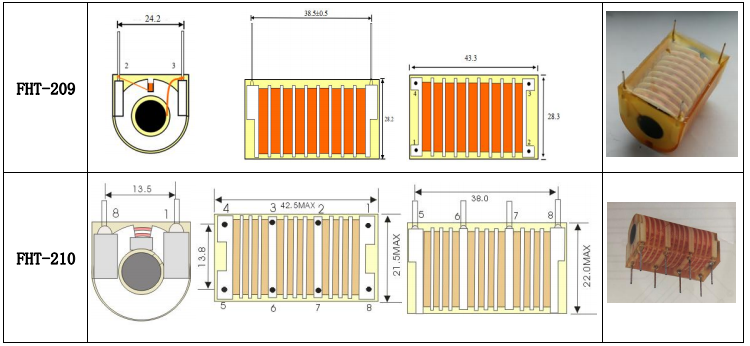

type | FHT201, 202, 203, 204, 205, 206, 207, 208, 209, 210. EE16/EE19/EE25 series R8*18.5/ R6*16.5 series R10*20 series |
Please contact us when you need other sizes..

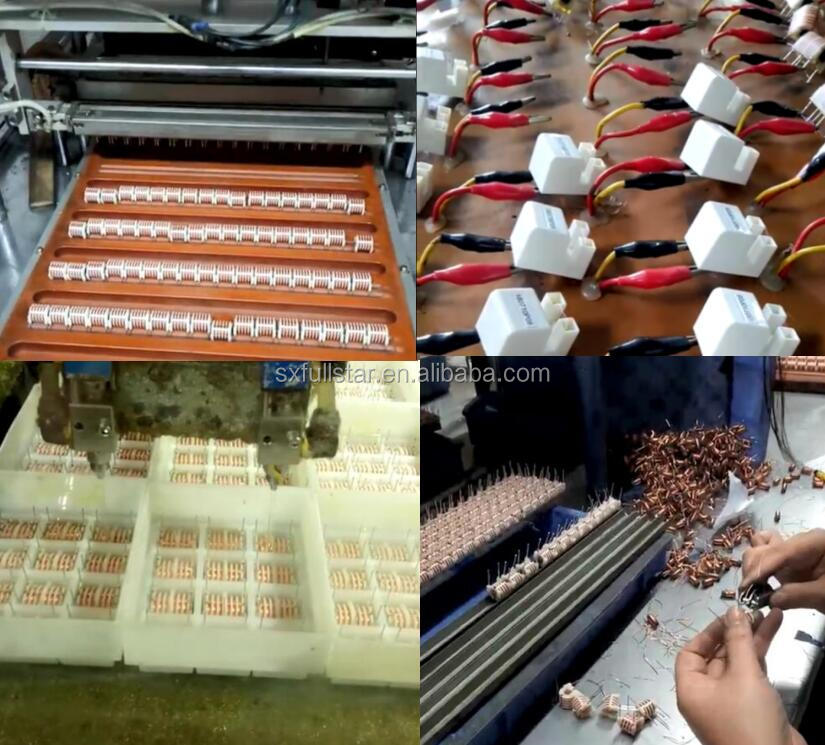

Production and testing process.
