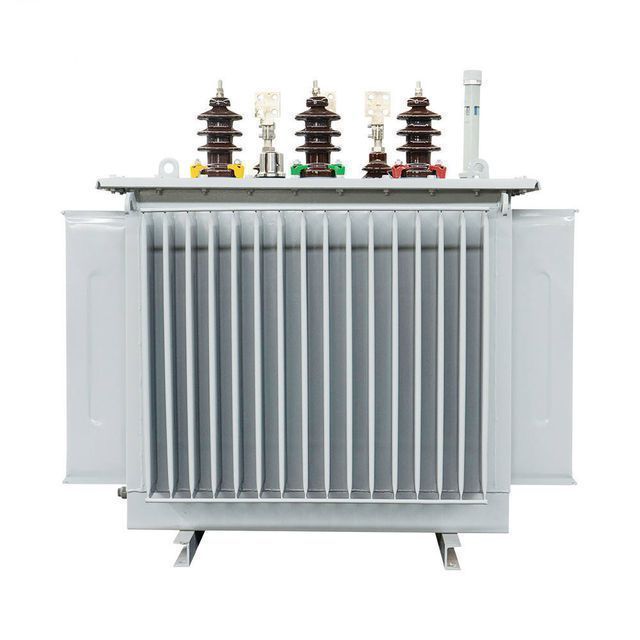

50kva 100kva 380v three phase transformer oil immersed transformer

The performance of S9-M, S10-M, S11-M 10kv-35KV series fully sealed oil-immersed distribution transformers complies with IEC IEEE standards. The iron core is made of high-quality cold-rolled silicon wafer, fully mitered without perforation structure, and the coil is made of high-quality oxygen-free copper.
Main functions and features
Use corrugated panels or expansion radiator tanks. Since no oil conservator is required, the height
Transformer capacity reduction, because the transformer oil does not shrink with the air, the aging of the oil is delayed, thereby prolonging the service life of the transformer. The no-load loss of S10-M type is 20% lower than that of S9-M type, and that of S11-M type is 30% lower than that of S9-M type.

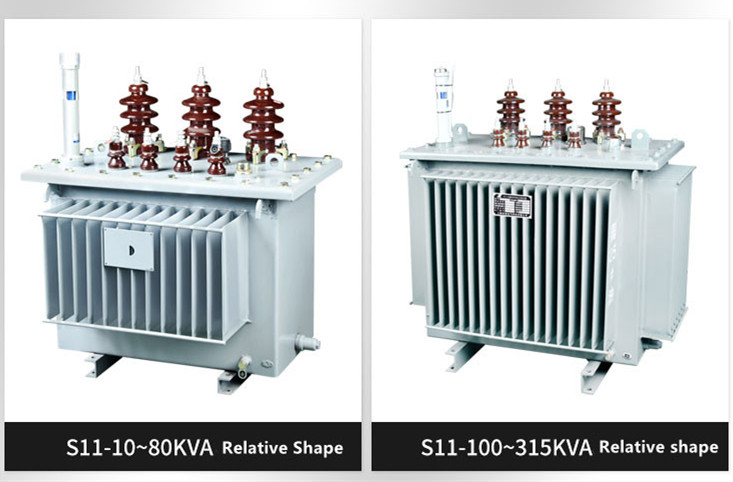

product structure

Other specifications
