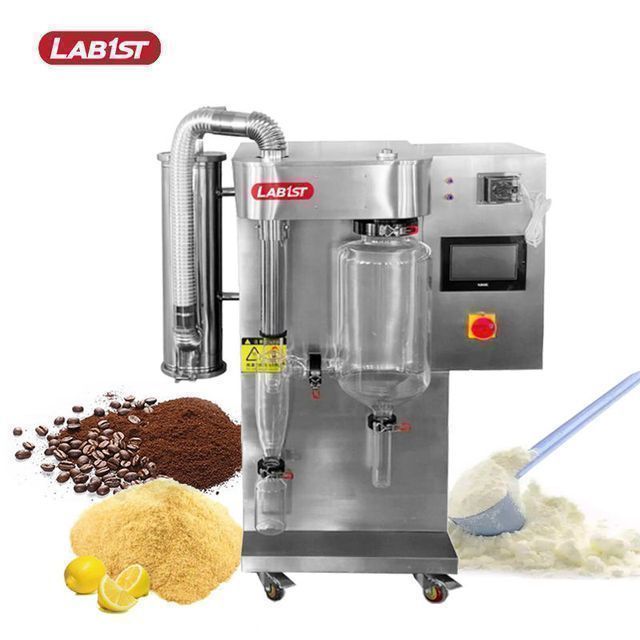

Laboratory Laboratory Glass Mini Small Centrifugal Dryer Spray Dryer Equipment Dry Milk Powder Vanilla Juice

Product details
Applicable industries:Hotel, Food and Beverage Factory, Restaurant, Home Use, Food Store, Printing Store, Food and Beverage Store, Other, Chemical IndustryCard:first laboratory
Evaporation:1500mL/H~2500ml/hCore components:Other, PLC
port:Shanghaiheating method:electro-thermal
Nozzle Tip Diameter:0.75mm//1.5mm optionalapplication:Pharmaceutical processing, chemical processing, food processing
Marketing Type:Hot Products 2022Voltage:220V
Showroom location:U.S.Inlet temperature control range:30℃~300℃
Video external inspection:ifbrand:LAB1ST
Material:SUS304LPackage:vertical wooden box
Dimensions (L*W*H):650*500mm*1300mmPackaging Details:Standard wooden box. We also offer custom packaging.
Packaging Preview:Main selling point:Sustainable
strength:3KWSupply capacity:100 sets per month
Feeding method:peristaltic pumpproduct name:Glass spray dryer
Outlet temperature control range:30℃~140℃payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal
Core Components Warranty:1 yearWeight (kg):135
type:spray drying equipmentEvaporation (kg/h):1.5~2.5
Health status:newMechanical test report:if
Average drying time:1.0~1.5SWarranty:1 year
Feeding capacity:30~2500ml/h (adjustable)place of origin; place of origin:China Shanghai

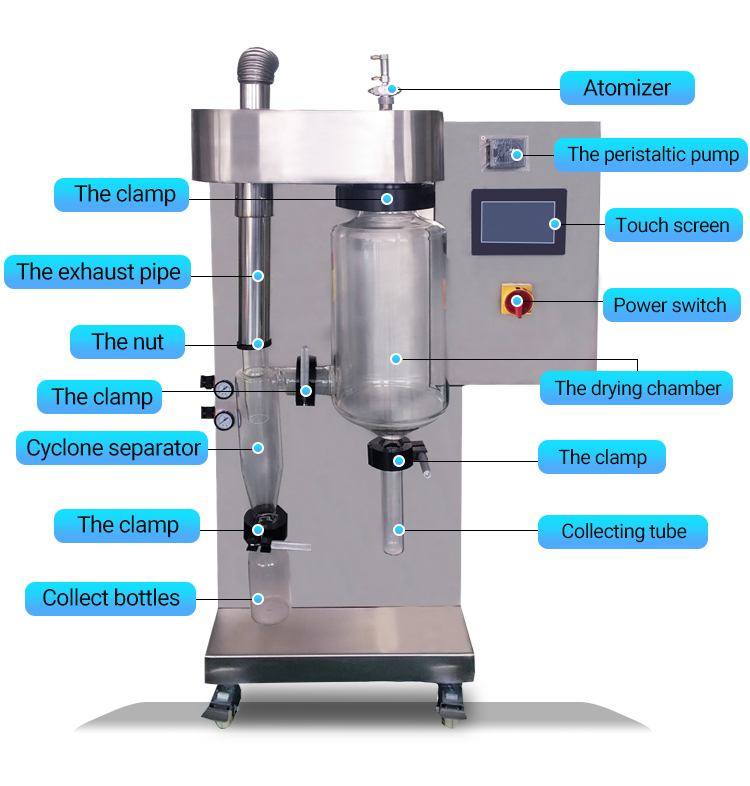

product structure
Product parameters
Air compressor:
Built-in silent temperature control range: ±1℃
Inlet temperature control range
Average drying time at 30℃~300℃: 1.0~1.5S
Outlet temperature control range
Average drying time at 30℃~300℃: 1.0~1.5S
Evaporation:
1500mL/H~2500ml/h Power: 3KW /220V
Feeding capacity:
30~2500ml/h (adjustable)
Feeding method
peristaltic pump
detail

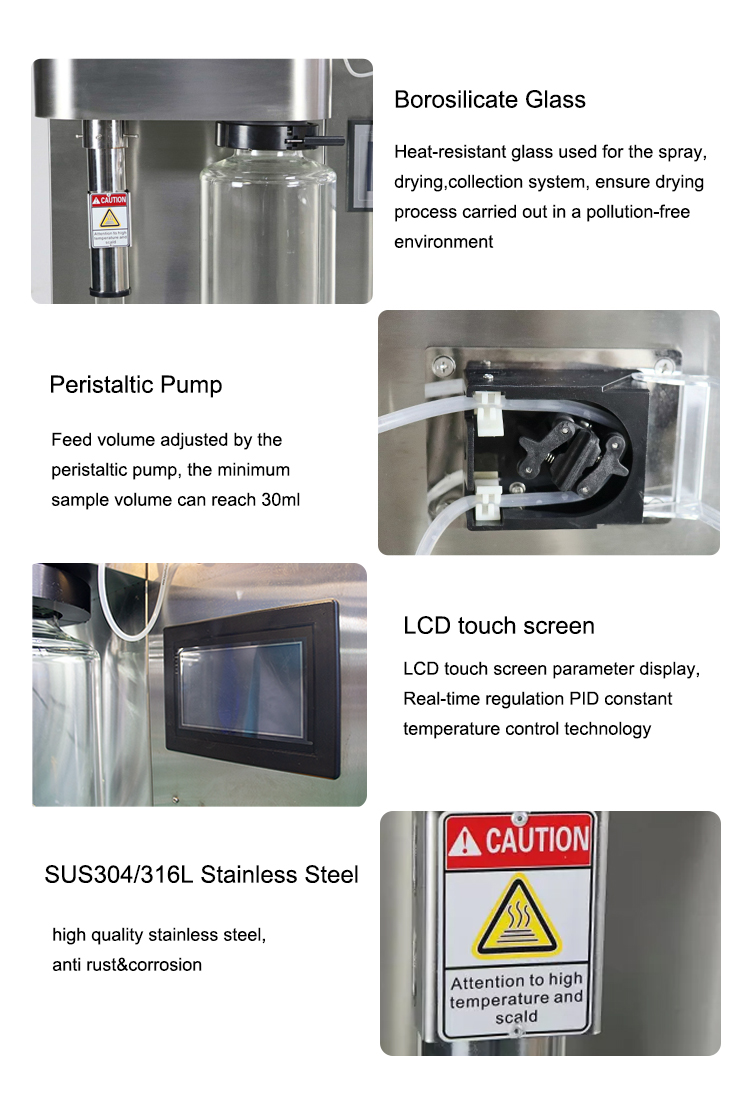

feature
●The spraying, drying and collecting system adopts high-quality borosilicate heat-resistant glass to ensure that the drying process is carried out in a pollution-free environment.
● The software operating system with independent intellectual property rights (software copyright number: 2019SR1071014) is powerful, and 485 communication is optional.

●Stainless steel nozzle, two-fluid spray structure, high efficiency and good atomization effect.

● LCD touch screen parameter display.

●Real-time adjustment of PID constant temperature control technology.

●Equipped with an air inlet filter to maintain sample purity.

●The feeding volume is adjusted by peristaltic pump, and the minimum injection volume can reach 30ml.

●The particle size of the finished dry powder is uniform, and >95% of the dry powder is within the same particle size range.

●Equipped with a nozzle cleaner (via needle), which automatically clears when the nozzle is clogged.
application
