Load power (W): | 1KW 3KW 5KW 10KW | place of origin; place of origin: | Guangdong, China |
application: | Family | type of battery: | lithium ion |
Output voltage (V): | 110V/120V/220V/230V/240V | System efficiency: | >90% |
payment terms: | wire transfer | life: | 25 years |
brand: | luna | port: | China |

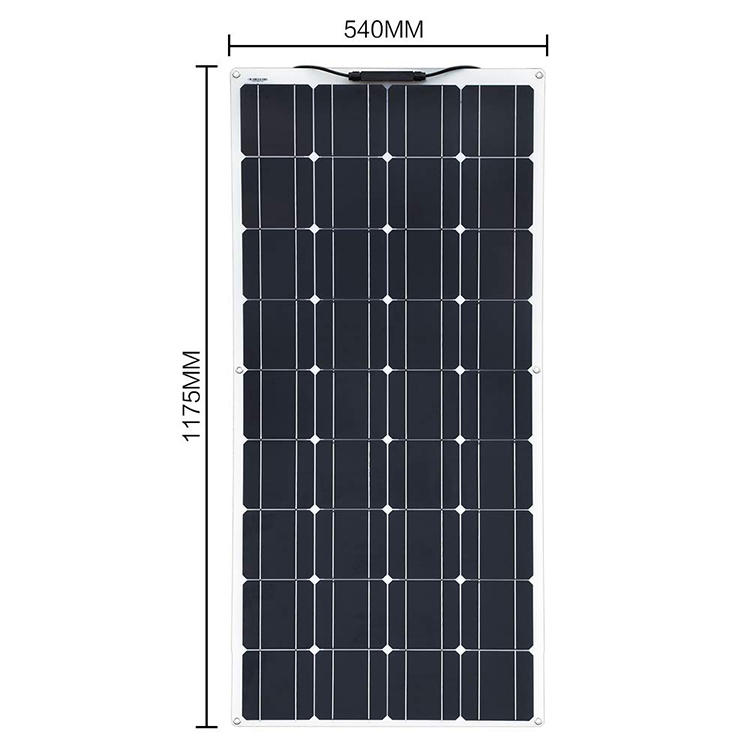

Controller type: | Maximum Power Tracking, Pulse Width Modulation | Solar Panel Type: | Monocrystalline silicon, polycrystalline silicon |
Installation type: | Ground installation | Output frequency: | 50/60 Hz |
Output voltage (V): | 48V | Supply capacity: | 2500 sets per month |

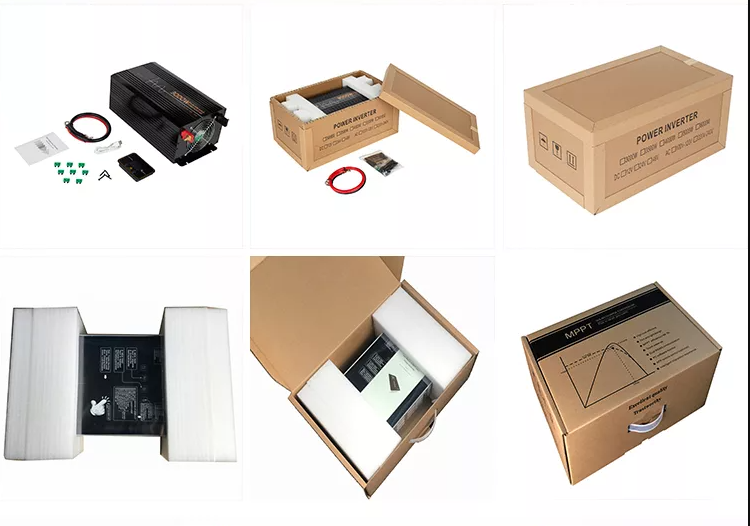

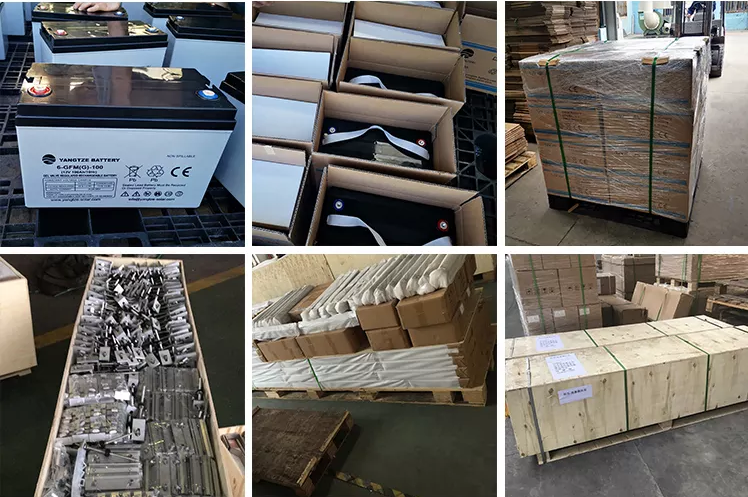

Packaging Details: | Cartons, Wooden Boxes and Wooden Pallets | Working hours (hours): | 24 hours |
type of battery: | lead acid, lithium ion | model: | Luna 0356 |
Model | LN-1000 | LN-2000 | LN-3000 | LN-5000 | LN-10kw | ||||
rated power | 1000w | 2000w | 3000w | 5000w | 10 kW | ||||
Maximum power | 1200w | 2500w | 3500w | 5500w | 12kw | ||||
Rated voltage | 24v/48v | 96v-220v | 220v-380v | 220v-380v | 300v-380v | ||||
start wind speed | 2.5m/s | 2.5m/s | 3 m/s | 3 m/s | 3 m/s | ||||
Rated wind speed | 10 m/s | 10 m/s | 10 m/s | 10 m/s | 10 m/s | ||||
Rated speed | 300 | 260 | 300 | 350 | 200 | ||||
wheel diameter | 1.6m | 2 meters | 2 | 2.4m | 5 meters | ||||
blade height | 2 meters | 2.8m | 3.2 | 3.6m | 6 meters | ||||
number of blades | 3 | 3 | 3 | 3 | 3 | ||||
Blade material | aluminum alloy | ||||||||
Survival wind speed | 45 m/s | ||||||||
generator type | Three-phase permanent magnet AC synchronous generator | ||||||||
Yaw mode | electromagnet | ||||||||
Operating temperature | -40°C-80°C |
inverter | Model | ES-3000 |
rated power | 3000W | |
Power input range | 145VAC-280VAC | |
DC input | 35A-45A | |
DC input | 24V/48V | |
Input frequency range | 50/60 Hz | |
stable pressure output | 220V±5% | |
Inverter output voltage | 110V/220V | |
Inverter output frequency | 60Hz/50Hz | |
output sine wave | pure sine wave | |
Distortion factor | ≤3% | |
conversion time | Automatically change within 4ms | |
Inverter efficiency | 85% | |
overload capacity | 120% for 10 minutes 150% for 1 minute | |
cooling model | forced cooling | |
use height | ≤1000M (the altitude above 1000M can be dropped and used) | |
Relative humidity | 30%-90% | |
operating temperature | 0-40℃ | |
Product Size | 390*170*290mm | |
net weight | 29 kg | |
Noise (decibel) | 40-60 | |
Battery overvoltage protection, battery undervoltage protection, overload protection, short circuit protection, over temperature protection protection etc. |

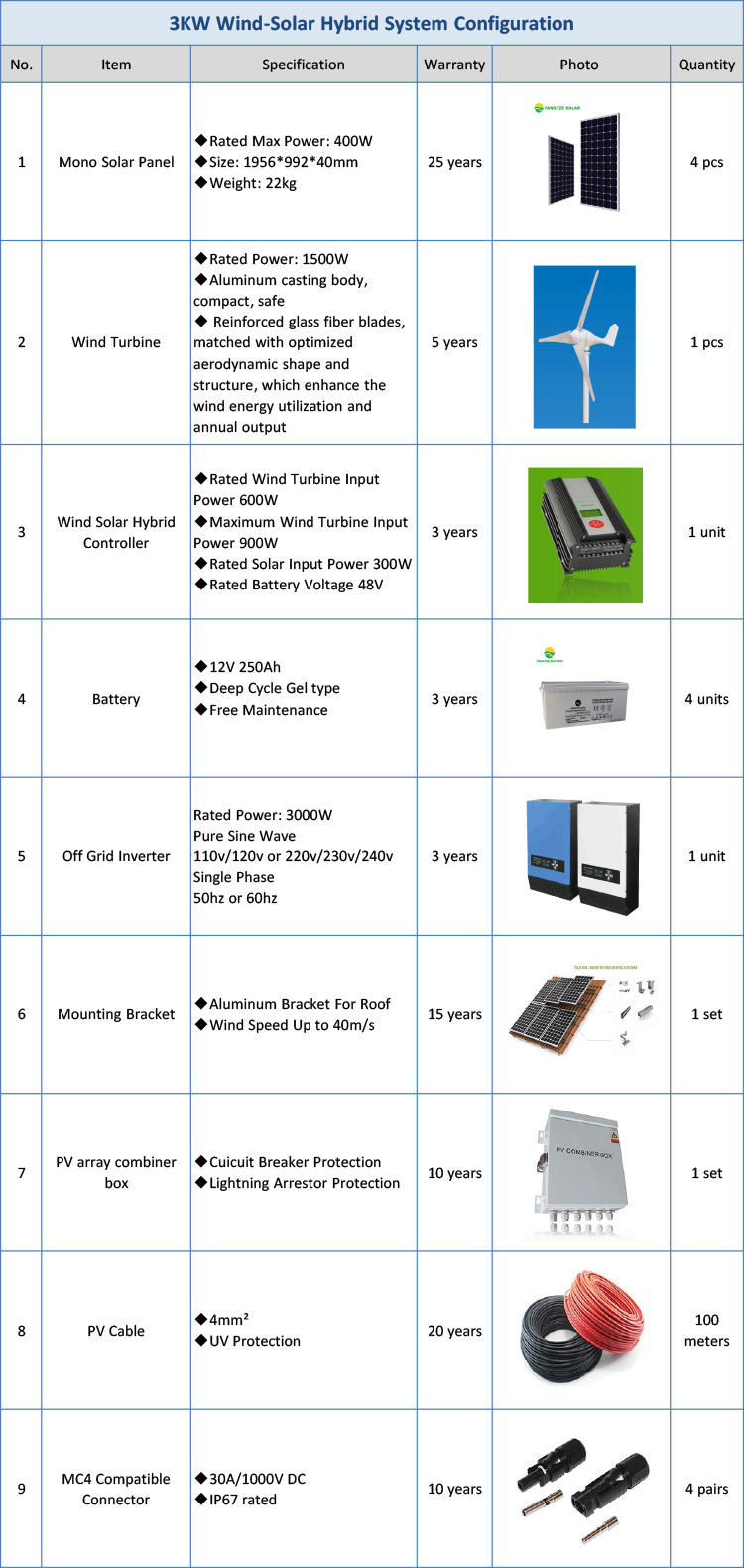

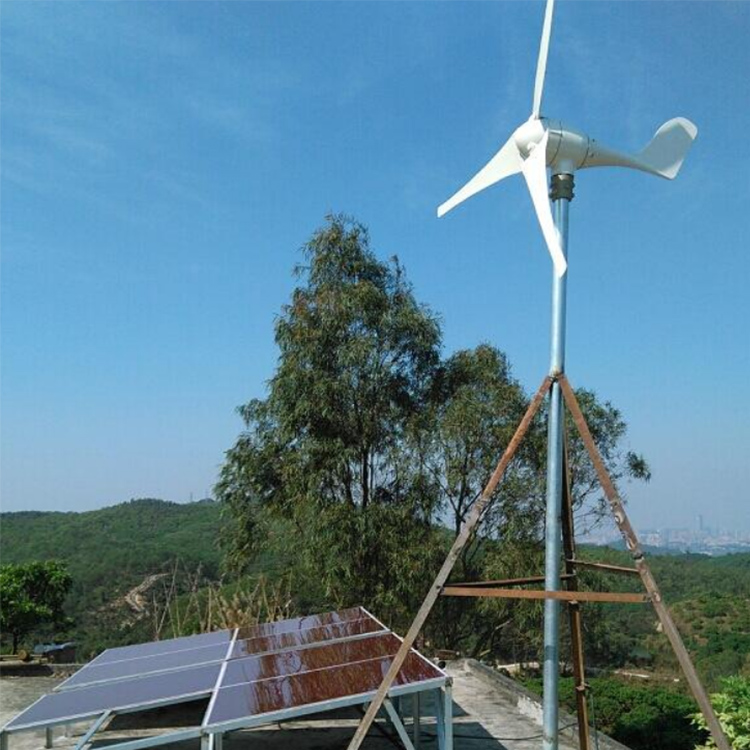

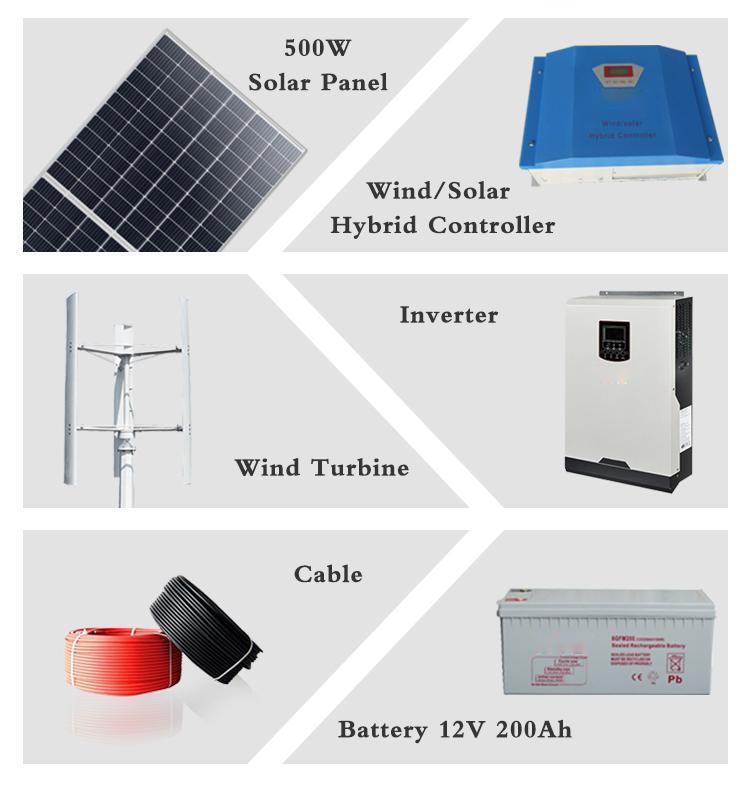

wind turbine fuselage | DC48V | |
Towers & Accessories | Guyed Tower, 9M | |

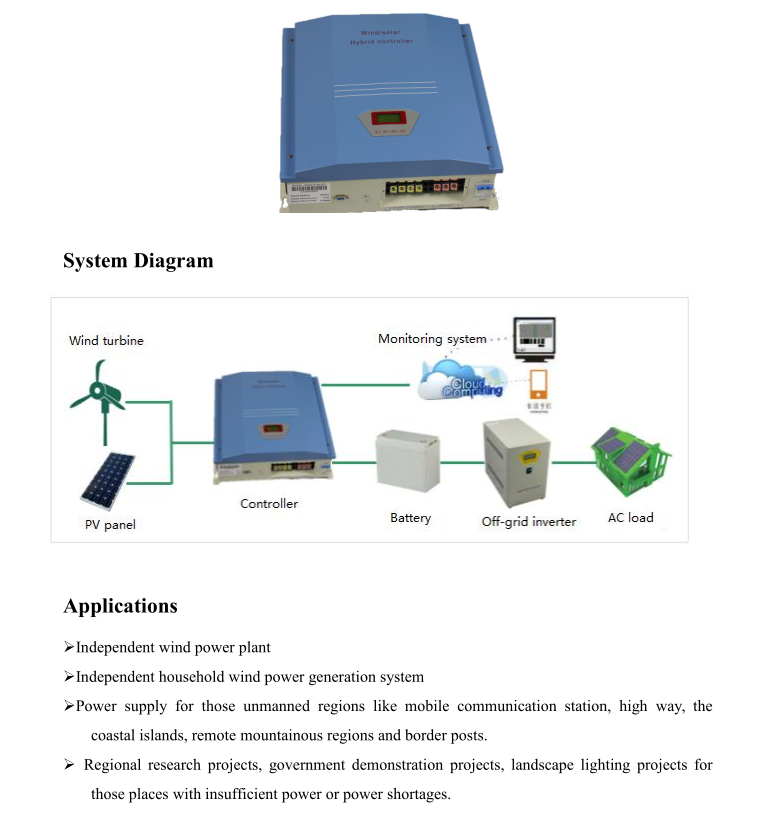

controller | DC48V | |
inverter | 2KVA, DC48/AC220V | |
Battery | 12v, 200ah |
