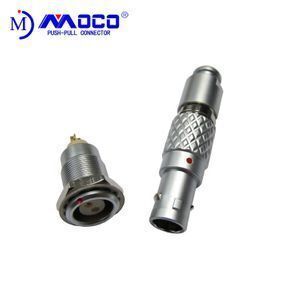

MOCO connector FGG.00/0B/1B/2B/3B 2 to 30 pin 6 pin 9 pin 12 pin circular self locking push pull connector

Supplier: Shenzhen MOCO Interconnect Co., Ltd.
Region: Guangdong, China
Contact: Mr Eric Wu
Price: $5.00 / >=10 sets
Min. Order: 10 sets

Click here to contact

Product details

Temperature Range:	-40° - 220°;	Original number:	FGG;
Model Number:	FGG.00/0B/1B/2B/3B;	MOQ:	10 PCS;
Certificate:	U L/ CE/RoHS/ISO9001;	Payment Terms:	L/C,T/T,Western Union,MoneyGram,Paypal;
Supply Ability:	10000 Set/Sets per Month;	Port:	Shenzhen;
Application:	Audio & Video;	Brand Name:	MOCO;
Product name:	circular push pull connector;	Surface treatment:	mat chrome or black chrome;
Gender:	Male;	Packaging Detail:	Each connector in a PE bag, every 50 or 100 pcs of connectors in a small box (size:20cm15cm6cm), every 6 small boxes in a carton(size:30cm20cm20cm);
No. of contacts:	2 to 26 pin;	Contact Type:	Solder;
Type:	MOCO;	Brand:	MOCO;
Place of Origin:	Guangdong China (Mainland);	Material:	Brass;

MOCO connector FGG.00/0B/1B/2B/3B 2 to 30 pin 6 pin 9 pin 12 pin circular self locking push pull connector

Product Description

B Series Connectors

Low voltage push-pull connectors for data, signal, electrical and power use!

MOCO connectors are used in instrumentation, medical devices, and anywhere a high density, high reliability, quick mating connector is needed.

These high precision connectors. With a life span greater than 5000 insertions, complete EMC shielding, shock resistance,
vibration resitance, and corrosion resistance this is the highest quality connector on the market.

Main features:
-Security of the push-pull self-latching system;

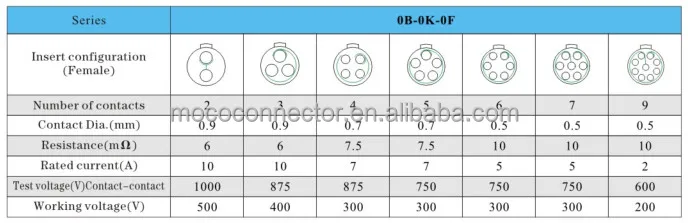

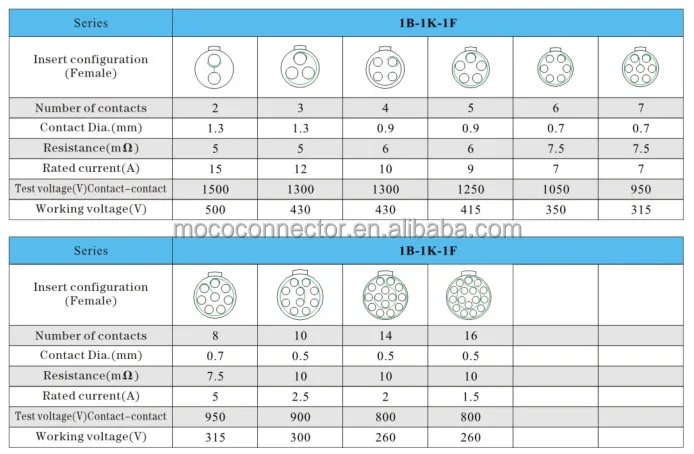

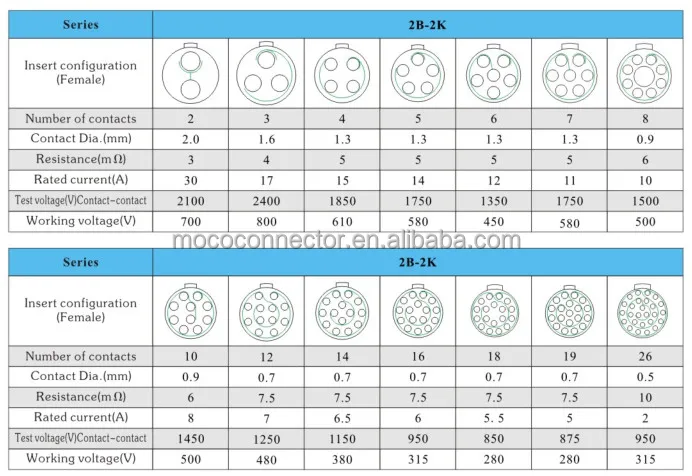

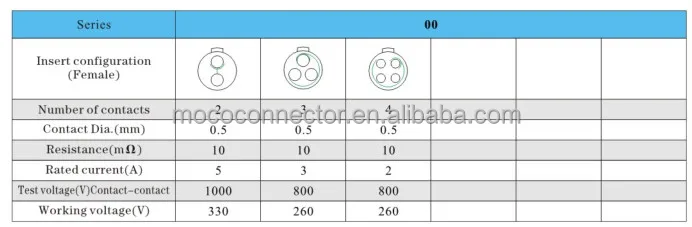

-Multipole types 2 to 26 contacts;
-Solder or print contacts(straight or elbow);
-High packing density for space savings;
-Multiple key options to avoid cross mating of similar connectors;
-Keying system for connector alignment;
-360°screening for full EMC shielding;
-Pull-away plugs with lanyards available.

Main Parameters:

Humidity (max)	<=95% [at 60 deg C /140 F]
Vibration	Vibration
Shock Resistance	100 g [ 6 ms]
Salt Spray Corrosion	>144 hr
Climatical Category	50/175/21
Shielding (min)	75 dB (10 MHz)
Shielding (min)	40 dB (1 GHz)
IP Rating	IP50
