Factory Price 430mm Rear Axle Heavy Truck Brake Disc For Scania 1402272 1852817

  • Supplier: Wuhan Daniel Technology Co., Ltd.
  • Region: Hubei, China
  • Contact: Mr Daniel Luo
  • Price: $36.20 / 50 - 199 pieces
    $36.00 / 200 - 499 pieces
    $35.80 / 500 - 999 pieces
    $35.60 / >=1000 pieces
  • Min. Order: 50 pieces
Product details
Certificate:ISO 9001/TS16949/ECE R90weight:34 kg
port:Qingdao, ShandongCar equipment:Scania
Material:Cast iron HT250, cast ironthickness:45mm
reference number. :1402272Solid or Vented:vent
diameter:430mmOriginal serial number:1402272
Model:4-series, P, G, R, T-serieshigh:131mm
place of origin; place of origin:Shandong Chinasize:430mm
product name:scania brake discPackage:Neutral packing
Supply capacity:20,000 pieces per yearPackaging Details:per retail pack
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramWarranty:1 year/50,000 km, 1 year or 50,000 km
brand:OEM productionyear:1995-,2003-
car model:Apply to Scania
Factory price 430mm rear axle heavy duty truck brake disc for Scania 1402272 1852817
Product parameters
Product parameters:
* Installation position: Rear axle
* Ø : 430 mm
* Height: 131mm
* Centering diameter: 203mm
* minute. Thickness: 37mm
* Hole pitch/quantity: 10M16
* quantity. Number of holes: 10
* Weight: 35.5kg
* Thread size: 16

OE reference number.:
1386688
1386686
1402272
K000810
1852817
What is our material?
Technical indicators:
Brake disc and disc material parameters
standard
C
silicon
manganese
P
small
CE certification
G3000
3.1~3.4
1.9~2.3
0.6~0.9
≤0.15
≤0.15
3.90~4.15
Mechanical properties of brake discs and brake rotors
1) Stretch: ≥210Mpa
2) Hardness: 160~241 HBS
Microstructure of brake discs and brake rotors
Main graphite type: A, grade: 3~5.
Pearlite: ≥95% Ferrite: <5%

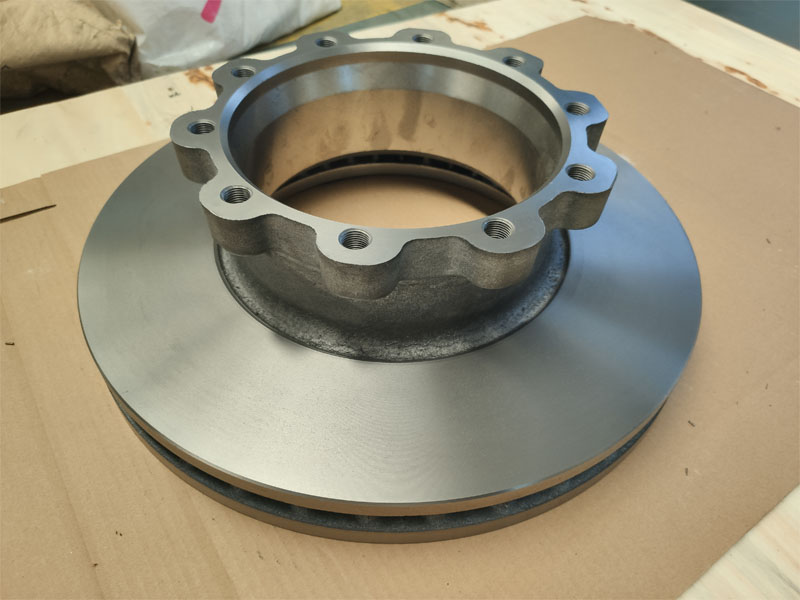

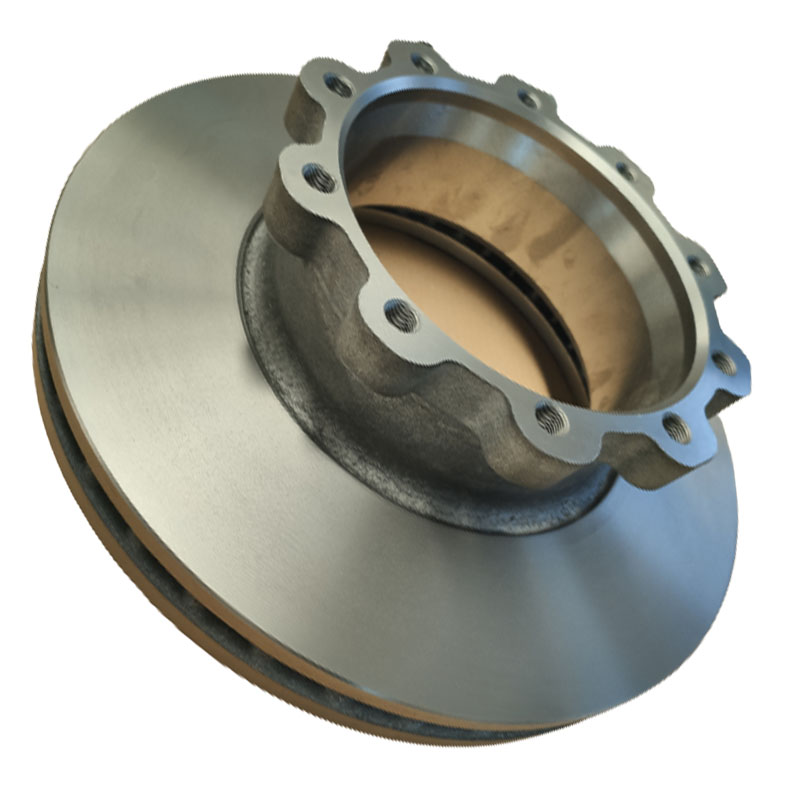

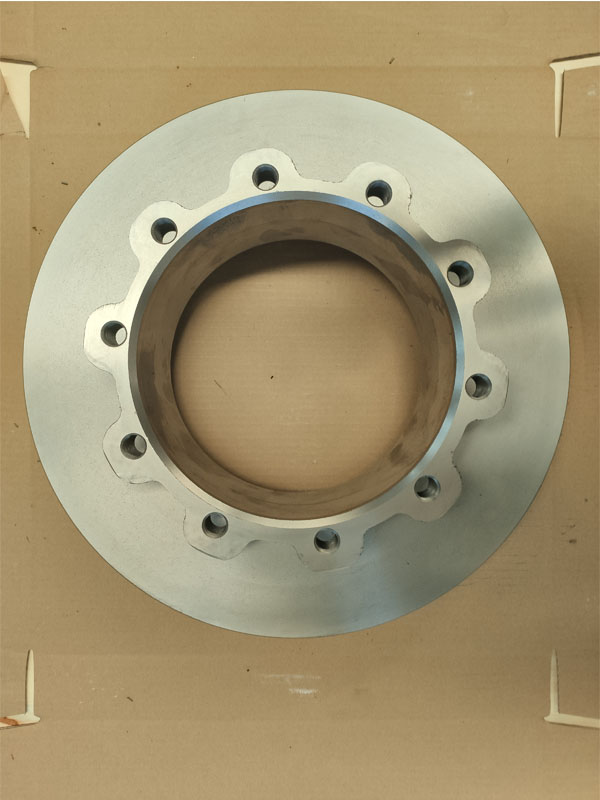

photo show
Product packaging
