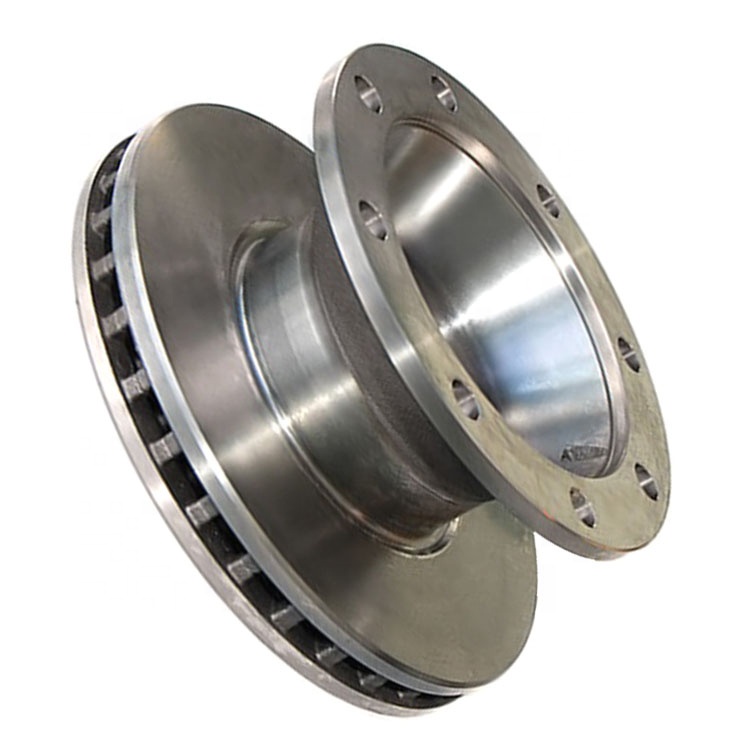

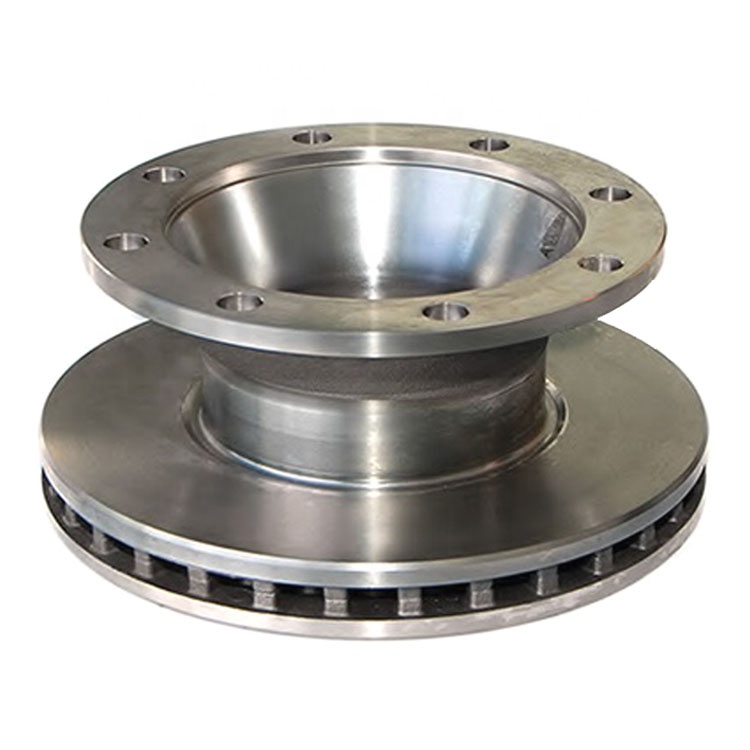

Brake disc BPW 0308834010 0308834017 ECE R90 approved

Supplier: Yantai Longton International Trading Co., Ltd.
Region: Shandong, China
Contact: Mr Guangping Lu
Price: $45.00 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Brake Disc Type:	vent	size:	377x160x45mm
Packaging Details:	Plastic bag+neutral box or printed box according to customer's design+pallet	Warranty:	1 year or 50000 km
MOQ:	100	Supply capacity:	20000 pieces per month
payment terms:	L/C, Western Union, T/T	brand:	dragon
payment terms:	T/T 30% deposit, the balance paid before shipment	Original serial number:	0308834010 0308834017
Material:	HT250 G3000	place of origin; place of origin:	Shandong China
port:	Qingdao	reference number. :	569123J, 046.375-00A, 10.14107, CVD586, BP103
car model:	BPW

Product Description

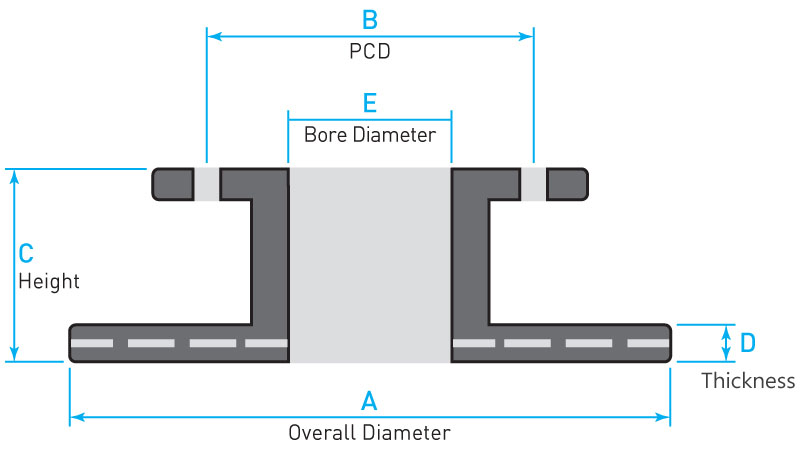

type

One

Second

Ding

Second

Hole

vent

377

275

160

230

vehicle application

BPW SB 3745 [96-03] - Trailer

BPW SKH Series[03-10] - Trailer

BPW SKH Series[10->] - Trailer

BPW SKH Series [96-03] - Trailer

BPW SKM Series[07-10] - Trailer

BPW SKM Series[10->] - Trailer

chemical composition

Material

silicon

manganese

small

chromium

HT250/G3000

3.10-3.55%

1.90-2.40%

0.50-0.90%

0.15% max

0.25% max

Microstructure
Graphite structure: mainly type A, sizes 3-5
Pearlite: at least 95%.

Ferrite: 5% max

Mechanical behavior
Hardness: 187 - 241 HB

Tensile strength: 220 Mpa (minimum)

Processing requirements
Runout: 0.05mm (maximum)

Digital TV: 0.127 mm (maximum)
Roughness: Ra 1.6μm (maximum)

Dynamic balance: 100% balanced

BPW brake disc

030 883 4010 030 883 4017 030 883 4157 030 883 4020 030 883 4060 030 883 4067 030 883 4030 030 883 4037 030 883 4040 030 883 4047 030 883 4060 030 883 4067 030 883 4020 030 883 4070 030 883 4080 030 883 4087 030 883 4100 030 883 4107 030 883 4147 030 883 5010 030 883 5017 030 883 5030 030 883 5037 030 883 5050 030 883 5057 030 883 5127

1) Full range -500+ commercial vehicle numbers&More than 2600 passenger car numbers
2) TS16949 quality system certification &ECE R90certified
3) Competitive factory price
4) 100% critical dimension inspection
5) Leading supplier in Europe, South America, North America and Middle East.

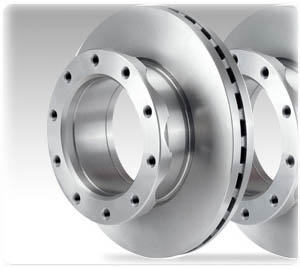

CV brake disc

- Over 500 part numbers
- Basic material, and high carbon
- use automatic production line

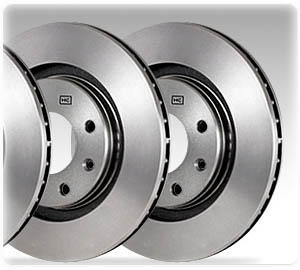

Automobile Brake Disc/Drum

- More than 2600 part numbers
- Quickly bring new products to market
- precise tolerances
- 100% balanced and edge marked
- Supplied with screw kit

High carbon brake disc

- Increased noise damping capability
- Improved heat dissipation
- Better resistance to thermal cracking and deformation

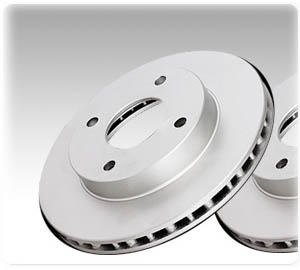

coated brake disc

- Environmental protection without hexavalent chromium

Anti-corrosion coating
- Disc mounts right out of the box, no cleaning required

- Provides a long-lasting clean look

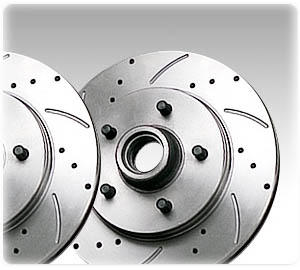

Drilled/Slotted Brake Discs

- Enhanced braking power
- Continuously cleans the surface of the brake pads
- lower operating temperature
- Slots can also be used as wear indicators

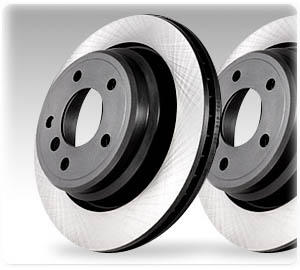

black hat brake disc

- black coating on the cap
- Enhanced anti-rust and clear appearance
- Suitable for passenger cars, light/medium duty trucks

casting completed
- Smooth
- even
- no air holes

Machining area
- sharp cutting tool

Vent configuration
- Correct design for OE design
or better

Material specification
- use the right ingredients
- cast iron performance correct
- Cools correctly at a constant rate
Control the temperature to
correct hardness
