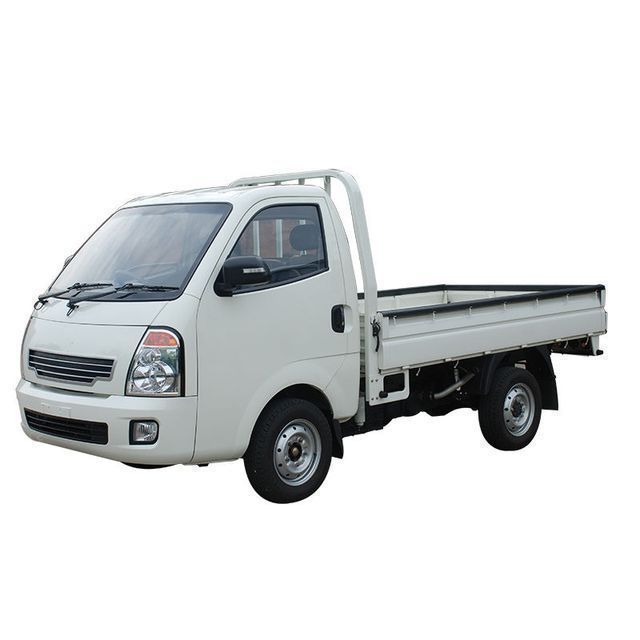

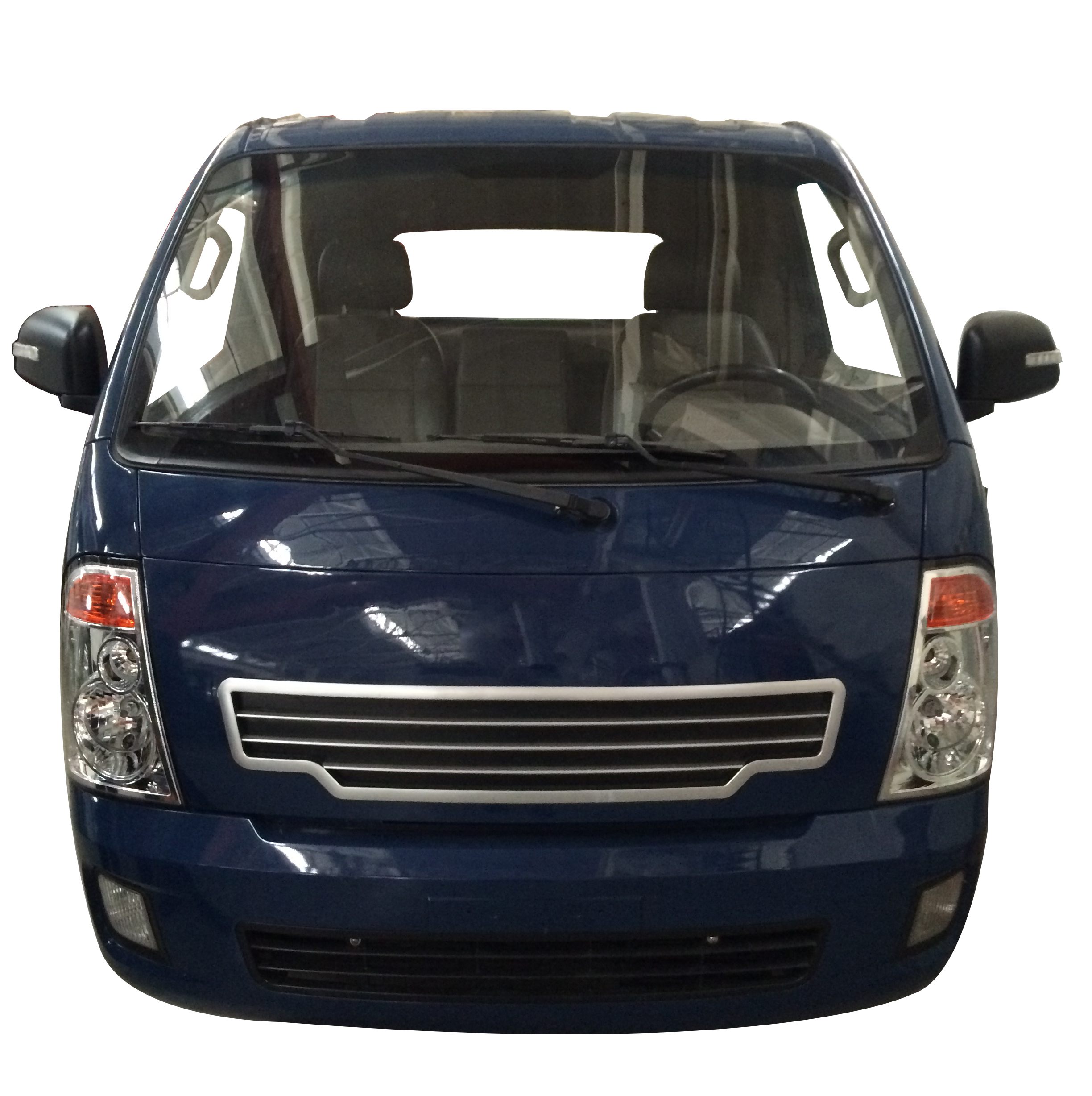

Light Commercial Cargo Trucks for RHD

Supplier: Hubei Qixing Truck Cabin Manufacturing Limited Company
Region: Hubei, China
Contact: Mr QI XING
Price: $3500.00 / 1 - 19 sets
$3450.00 / >=20 sets
Min. Order: 1 set

Click here to contact

Product details

Name:	Log Transporter	brand:	OEM production
Health status:	new	Certification:	Chief Executive. The British Virgin Islands. ISO9001. CCC certification
Packaging Details:	Standard packaging for loading into container or RORO	Emission Standards:	euro 3
place of origin; place of origin:	Hubei, China	type:	light truck
Drive wheel:	4*2 6 rounds	Gasoline type:	diesel engine
Dimensions (LxWxH) (mm):	610018002200 mm	Gross Vehicle Weight:	4500
Supply capacity:	10000 sets per year	Transmission type:	manual
payment terms:	L/C, D/P, T/T	Package preview:
port:	Shanghai, Wuhan or any port in China	After-sales service provided:	On-site installation, commissioning and training
color:	Require

Detailed specifications:

engine	Engine model: ISUZU tech JX493ZQ4A
	Maximum output according to DIN: 62KW/3600r/mm 85hp
	BoreStroke: 93102mm
	Displacement: 2.771L
	Compression ratio: 17.221
	Minimum fuel consumption: 240g/kwh
	Displacement standard: EUR II
	Idle speed: 760±25r/min
	Dimensions: 663705717 (without fan)
clutch	Model: Φ250 diaphragm clutch, single-plate dry clutch
	Type: Hydraulically Operated, Compressed Air Assisted
spread	Model:	5MTI210L (GETRAG, Germany)
	Operation Type: Flexible Cable Operator
	Type: Constant Mesh Gear Synchronizer
	Constant meshing: 5 forward and 1 reverse
	Ratio: 5.016 2.672 1.585 1.00 0.77 4.783(R)
	Dry weight: 65kg
wheel	Tires: 6.50-16LT
	Number of tires: 6+1
front axle	2000 kg
rear bridge	2720 kg
pause	Type: non-separate suspension
	Type: non-separate suspension
	Front suspension: parabolic longitudinal leaf spring, with telescopic cartridge shock absorber, number of steel springs: 3pcs
	Rear suspension: parabolic longitudinal leaf spring with anti-roll bar and telescopic cartridge shock absorber; number of steel springs: 4pcs
steering system	Model: 6401QF18-001
	Type: full power steering
	Ratio: 17.3:1
	Steering oil pump maximum pressure (Mpa): 9.5
Brake system	Service brake: dual circuit hydraulic brake, vacuum booster

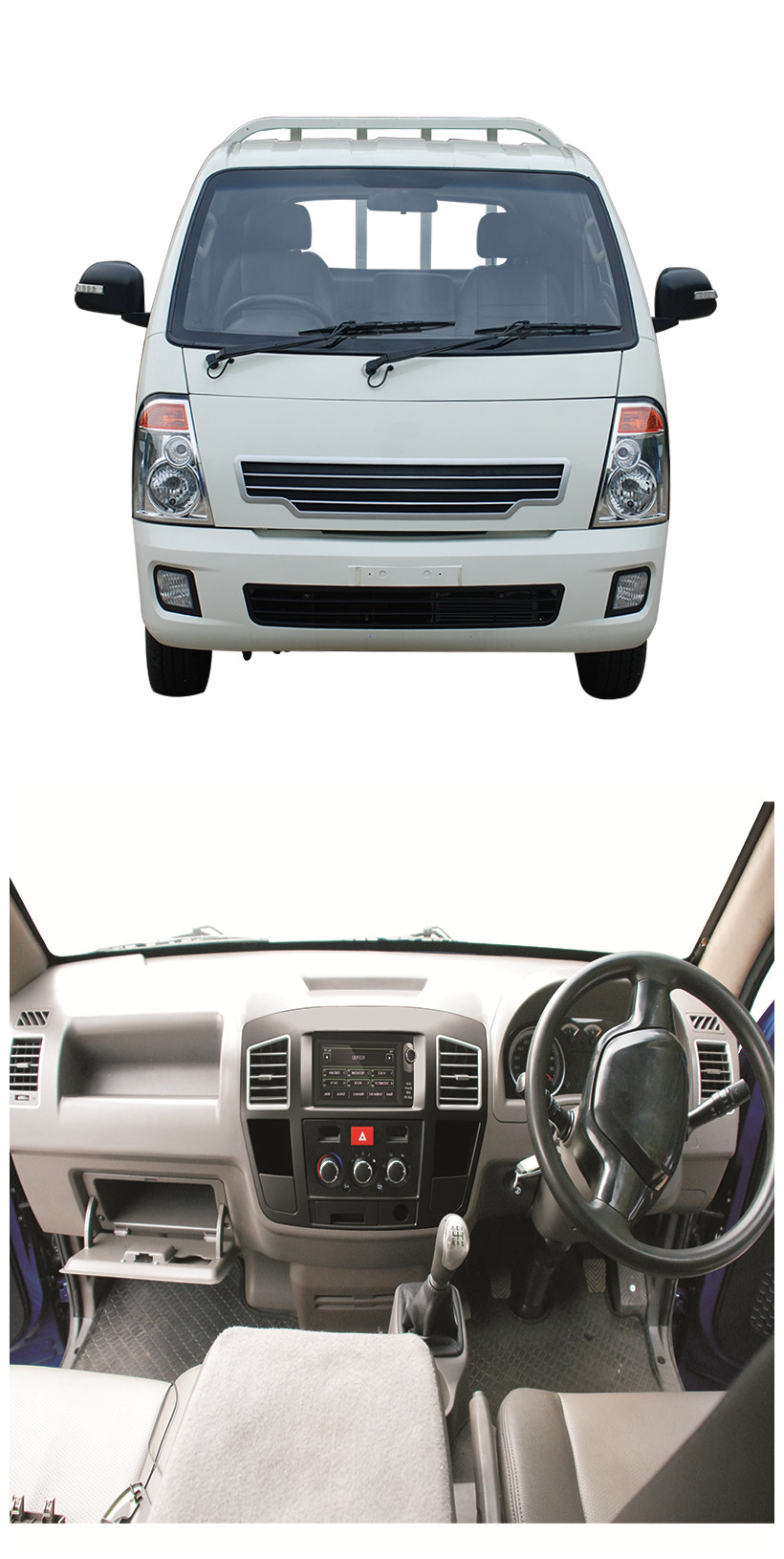

cab	Number of seats: 2+1
	Cab size (mm): LWH 1530x1780x1770
electrical appliance	Working voltage: 12V negative ground
	Starter: 12V 2.8kw
	Generator: 14V 80A
	Battery: 1*12V
aspect	wheelbase(mm)	2600
	Front track(mm)	1498
	Rear tread (mm)	1475
	Front suspension(mm)	1155
	Rear suspension (mm)	1155
	Approach angle (mm)	22°
	Departure angle(mm)	18°
	Overall length (mm)	4910
	Machine width(mm)	1780
	Overall height (mm)	2200
weight kg	Rated load	1500 kg
	Self-respect	2170 kg
	gross vehicle weight	3670 kg
	Front axle capacity	1795 kg
	rear axle capacity	2025 kg
Performance	Maximum driving speed (km/h)	Not less than 105km/h
	Fuel tank capacity	80L
	Maximum Level Ability (%)	Not less than 30%
	Minimum ground clearance (mm)	175mm
	Fuel consumption (L/100km)	no more than 12
	Minimum turning diameter (m)	Not more than 11.5
