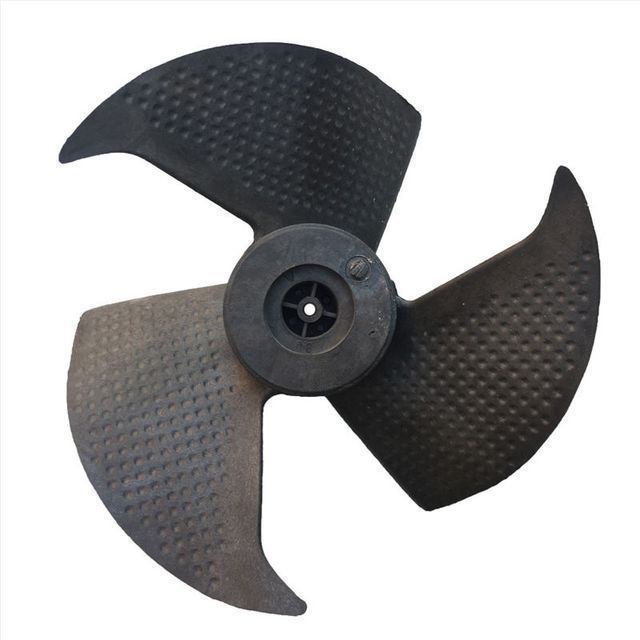

LW420-155 Model ABS Fan Blades Fan Spare Parts ABS Blades Plastic Fan Blades

Click here to contact

Product details

Certification:	CCC、RoHS	application:	split air conditioner, air curtain, refrigeration
Install:	wall fan	Shaft diameter:	6,8,10
strength:	As required	color:	Available in black, blue, natural or custom
After-sales service provided:	free spare parts	place of origin; place of origin:	Zhejiang, China
Air volume:	As required	Warranty:	1 year
Fan diameter:	398mm OD - 500mm OD	Packaging Details:	Standard export package with pallet
Leading time:	15-25 days	type:	cross flow fan
product name:	Axial Fan Blades	Voltage:	As required
application:	split air conditioner, air curtain, refrigeration	payment terms:	L/C, D/A, D/P, T/T, Western Union
Air conditioner brand:	Midea, Gree, LG, Chigo, TCL, Crown, Carrier, Trane, Galanz, York	brand:	Longway
Supply capacity:	100000 pieces per month	Blade material:	plastic
Material:	ASG30	port:	Ningbo/Shanghai
Bearing:	Ball bearings/sleeve bearings

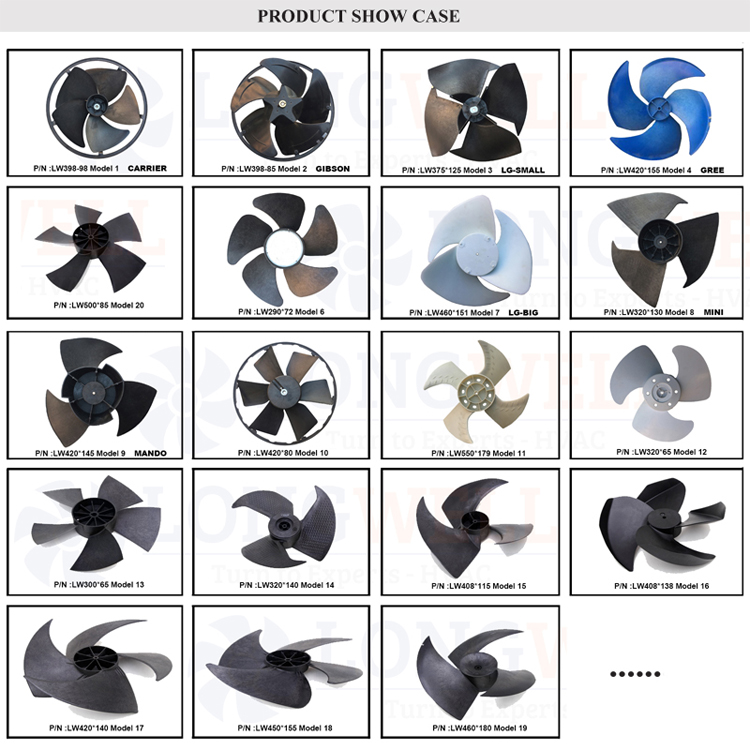

Part Number	Outer diameter (mm)-A	Height (mm)-L1	Shaft inner diameter (mm) -B	Number of blades	Flat D size	Rotate (CW/CCW)	Material	weight-g	color (custom)
Length and width 325x137	325	137	8-12mm	3	custom made	Counterclockwise & Counterclockwise	Reinforced AS,ABS,ABS,PP	430	custom made
Length and width 350x130	350	130	8-12mm	4				465
Length and width 385x116	385	116	8-12mm	5				565
Length and width 400x122	400	122	8-12mm	4				505
LW405*129	405	129	8-12mm	3				465
LW408*132	408	132	8-12mm	3				420
Length and width 415x125	415	125	8-12mm	4				800
Length and width 420x149	420	149	8-12mm	4				715
Length and width 440x150	440	150	8-12mm	4				815
Length and width 453*147	453	147	8-12mm	4				1010
Length and width 460*170	460	170	8-12mm	3				935
Length and width 482x150	482	482	8-12mm	3				990
Length and width 490x120	490	490	8-12mm	6				900
Length and width 556x170	556	556	8-12mm	4				1255

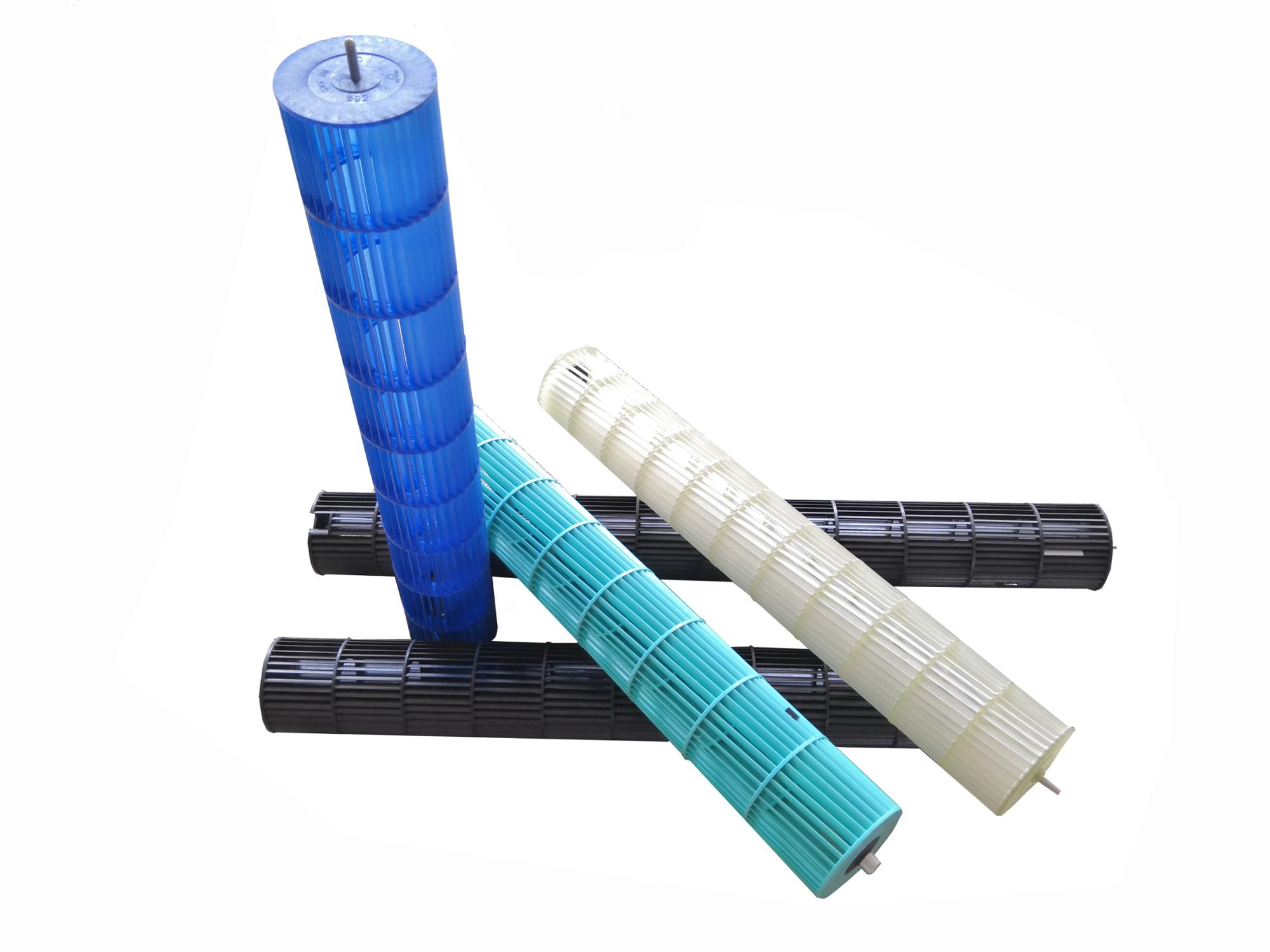

Diameter-A	Length-L1	axis		Bushing				turn around	set screw
mm	mm	Shaft diameter-C (mm)	Shaft length-L2 (mm)	Bushing ID -B (mm)	Shaft Length-D	color	Number of blades	from shaft end
Ø50	≤800	Ø4,6,8,10,12	≤50	Ø4,6,8,10,12	in. /outer diameter≤35mm	Customer customization is generally black, white, blue, green	25	CCW	M4,M5
Ø60							31	CCW
Ø71							35	CCW
Ø76							35	CCW
Ø81							35	CCW
Ø87							35	CCW
Ø90							28	CCW
Ø91							35	CCW
Ø93							35	CCW
Ø95							35	CCW
Ø97	≤1200						35	CCW
Ø101.5							35	CCW
Ø105							35	CCW
Ø108							28	CCW
Ø109							35	CCW
Ø112							28	CCW
Ø115							35	CCW
Ø120							26	CCW
Ø121							35	CCW
Ø125							35	CCW
Ø135							35	CCW
Ø150							twenty four	CCW
Ø160							32	CCW
Ø180							35	CCW

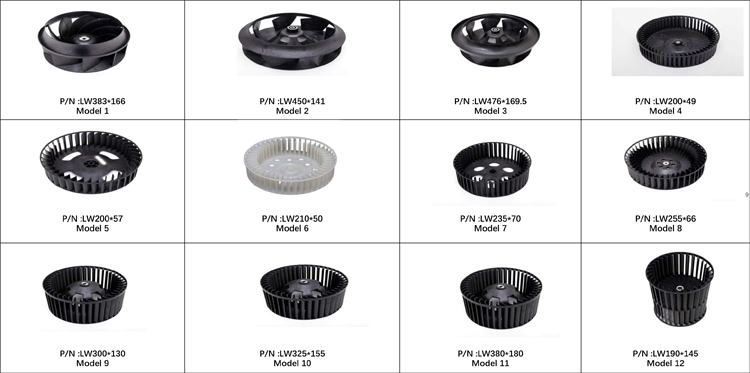

Part Number	Outer diameter (mm)-A	Height (mm)-L1	Shaft bore inner diameter(mm)	Flat D size	Rotate (CW/CCW)	Material	color
Length and width 283*166	283	166	10	custom made	clockwise and counterclockwise	Reinforced AS,ABS,ABS,PP	custom made
Length and width 450*141	450	141	12
LW476*169.5	476	169.5	12
Length and width 200*49	200	49	6
Length and width 200*57	200	57	8
Length and width 210*50	210	50	8
Length and width 235*70	235	70	8
Length and width 255*66	255	66	8
Length and width 300*130	300	130	12
Length and width 325*155	325	155	12
Length and width 380*180	380	180	12
Length and width 190*145	190	145	12
