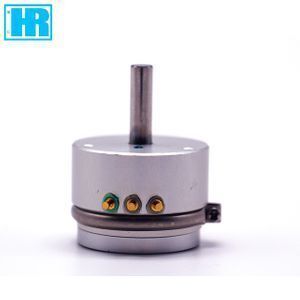

Electronic angular displacement sensor WDD35D8T

Product details
Single gross weight:0.06 KG;Single package size:4X4X6 cm;
Brand Name:HR;Delivery Detail:0 days after payment;
Selling Units:Single item;Resistance:1K,2K,3K,5K,10K;
Model Number:WDD35D8T;Technology:Carbon Film;
Package Type:carton;Operating Temperature:-55℃~+125℃;
Indepedent linear degress:0.3%, 0.5%, 1.0%;Place of Origin:Zhejiang China (Mainland);
Rated Power:2W;Type:Rotary Potentiometer;
Resistance Tolerance:±15%;Max. Operating Voltage:< 24 V;
Package Preview:https://sc01.alicdn.com/kf/HTB1OErxSrvpK1RjSZPiq6zmwXXaY.jpg_640x640.jpg;







Advantages



1. Substrate: Use the imported materials--DAP resin It has the good stability, water resistance, heat resistance, chemical resistance.

2. Electric brush and Collecting components: Use Alloy Which is made of six different Precious Metals. With the advantages of Hardness, heat resistance and corrosion resistance .

3. Lubricating oil: The lubricating oil used in the Our Products is aviation instrument lubricating oil. With Excellent high-temperature performance, mechanical stability and oxidation stability.









Electrical
 stabdard resistance1kΩ2kΩ3kΩ5kΩ10kΩ
 indenpendent linearity0.05%0.1%0.3%0.5%1%
 Electrical Travel320°±2°
 Power Rating2W (70℃)
 Res.Temperature ≤±0.04%/℃
 Coefficient Insulation≥1000MΩ(500VD.C)
 Dieletric stregth1000V(AC.RMS)1min
 Output Smoothness≤±0.01%
Mechanical
 Mechanical Travel360°(endless)
 Starting Torque≤10*0.0001N.M
Environmental
 Life Expectancy50*1000000cycle
 Opreating Temperature-55℃~+125℃
 Vibration15G 2000Hz
 Shock50G 11ms

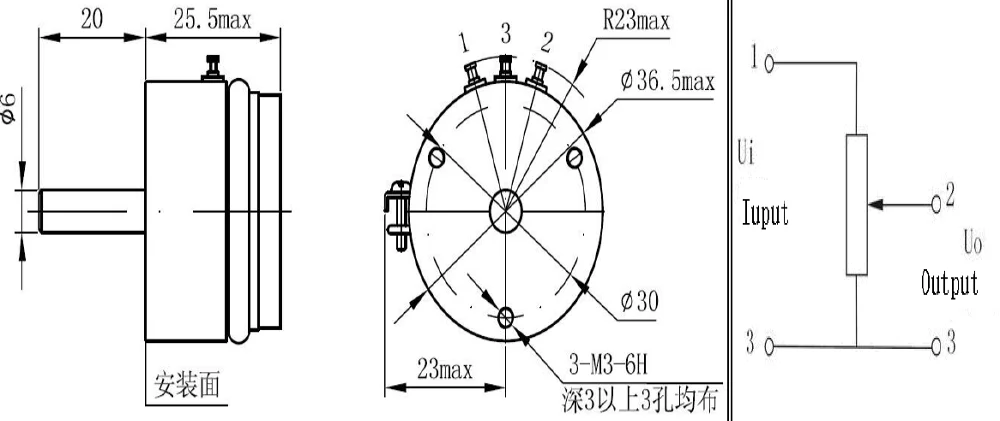

Installation & Wiring diagram







Application



Dimming, Automatic control system for Industry, Regulating voltage, Tower crane, crane, Actuator, Wind direction sensor, joystick, Wire drawing machine, Painting equipment, Embroidery machine, Auto-Refractor, aerospace, injection molding machine, Display instrument, Ball mill, Construction, machinery, Air compressor,  Lathe, Textile machinery, Plastic mould machine, Elevator drive, control, Robot control, Lifting









Our warranty

12 months free maintenance

Life-time technical support and maintenance service

Due to the quality problem, free replacement part will be offered.

Due to incorrect use, unauthorized repaire, fall etc, the maintenance cost will be charged.



Our services

1. Fedex/DHL/UPS/TNT for samples, door to door;

2. By air or by sea for batch goods for FCL, airport/port receving;

3. Delivery time: 5~7 days for samples, 5~25days for batch goods.
