Fully Automatic Spool Transformer Coil Winding Machine For Transformer Max Steel Motor Training Stainless Power Building Time

Product details
place of origin; place of origin:ChinaAfter warranty service:Video technical support
Shaft length (mm):1200mmMarketing Type:normal product
After-sales service:On-site maintenance and repair servicesHealth status:new
Center height (mm):740mmMain selling points:automatic
CNC or not:CNCSupply capacity:50 sets per month
Coil Type:circularSpeed ​​of work:0-200 rpm
Motor power (kW):3Motor Power:3 kW
Core component warranty:1 yearCore components:PLC, engine, bearing, motor, water pump
Packaging Details:in wooden boxDistance between main box and tail box:800-1500mm
Showroom location:not anyAfter-sales service provided:free spare parts
Applicable industries:Energy and Mining, Construction Engineering, Manufacturing PlantsMechanical test report:if
Local service location:not anymaximum. Load (kg):1000 kg
Warranty:1 yearDimensions (L*W*H):1300(L)x1300(W)x1600(H)
Weight (kg):790Maximum set laps:9999.99
Video shipment inspection:ifbrand:Meiheng or OEM
Maximum transformer capacity (kVA):3 kVAspeed mode:Frequency conversion stepless speed regulation
Technical Services:online supportWire diameter range (mm):800 - 1500 mm
port:Chongqing or Shanghai etc.payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal



Product Description

 application:

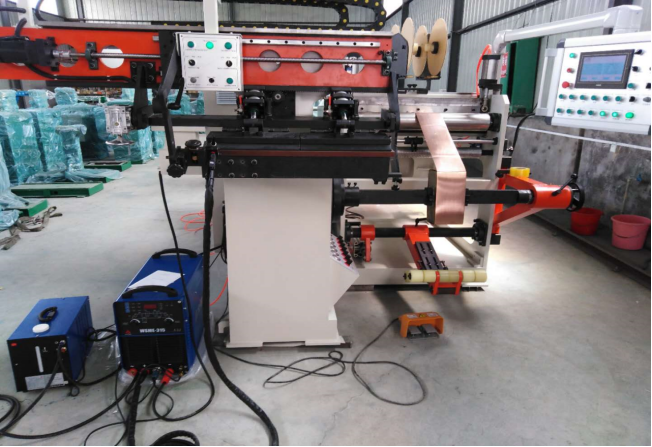

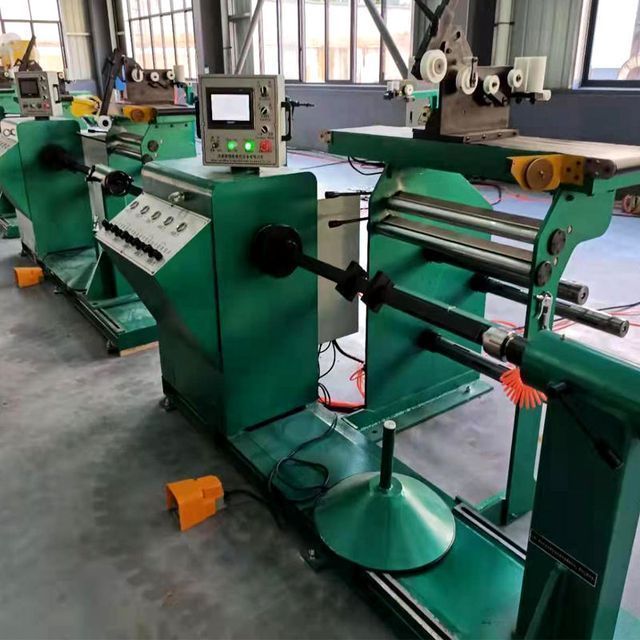

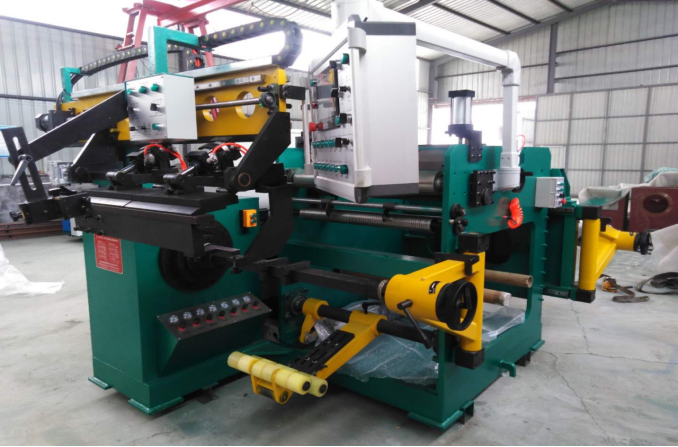

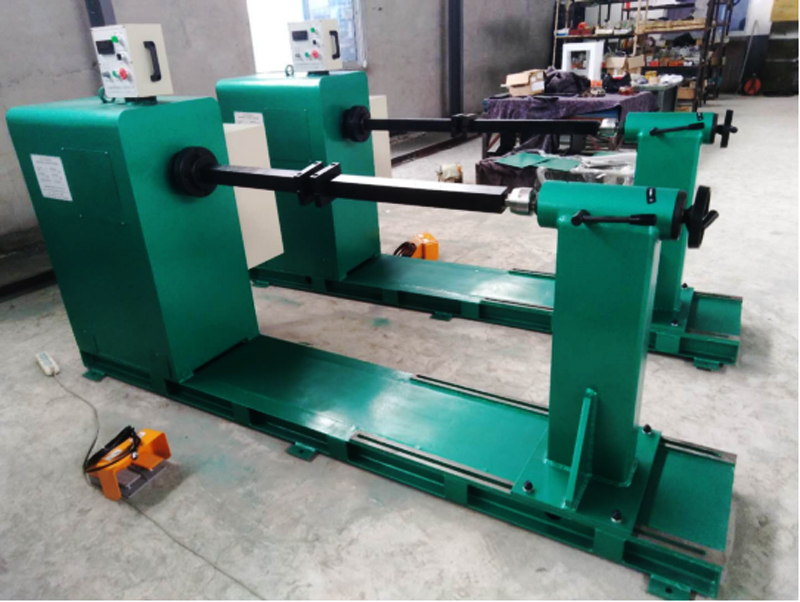

It is suitable for winding low-voltage coils of various small and medium-sized distribution transformers, transformers, reactors and similar processes. It consists of a winding host, a frequency converter and an electronic reversible counter. It has the characteristics of a certain degree of automation, complete functions and strong power.





technical parameter:



1.1 Spindle center height: 740 mm; maximum load: 1000KG
1.2 Distance between main box and tail box: 800-1500mm
1.3 Working speed: 0—200r/min
1.4 Speed ​​regulation mode: frequency conversion stepless speed regulation
1.5 motor power: 3kW
1.6 The maximum set number of turns of the counter: 9999.99
1.7 Counting mode and speed adjustment: the grating counter displays the number of turns, the encoder counter counts, the speed is adjustable, and it can realize forward/reverse rotation.
1.8 Power supply: 380V/50Hz three-phase five-wire or according to your choice
1.9 Connection method: square hole sleeve, 40X40mm square shaft, 1200mm long, with thimble holes at both ends of the square shaft.
1.10 Loosen the screws of the rear tailstock box and move it by hand to adjust the center distance of the winding machine. The tailstock box has a center point.
1.11 Telescopic range of the tail box thimble: 0-100mm.





Function:

  • This machine adopts hard cloth gear mechanical transmission system, which has the characteristics of high efficiency and low noise.
  • The motor has a braking function, which is sensitive and reliable.
  • The electrical adopts frequency conversion speed regulation, the frequency converter controls the braking, and the starting and braking slopes can be preset to adapt to the best winding state.
  • The frequency conversion speed regulation has a wide range, and the speed regulation is accurate and stable. Motor insulation class is F class.
  • High-definition digital display counter is used to display the running data, and the high-precision counting encoder counts to ensure the winding accuracy.
  • The desktop control box is placed above the chassis, which is easy to use and shows clearly.
  • The foot switch is made of high-quality products, which are fixed on the anti-skid plate as a whole, and there are warning signs in the picture.
our service



  1. Product quality guarantee for one year. (Charge for artificially damaged parts).
  2. Lifetime maintenance and spare parts supply.
  3. Fixtures can be designed free of charge according to customer requirements.
  4. Free machine installation and operation training for factory employees.
