Self-adhesive wire voice coil winding machine

Supplier: Sanshine (Xiamen) Industrial And Trading Co., Ltd.
Region: Fujian, China
Contact: Ms Ivy Zhuo
Price: $1149.00 / 1 - 19 sets
$719.00 / >=20 sets
Min. Order: 1 set

Click here to contact

Product details

Supply capacity:	Annual output of 8000 SS600V self-adhesive wire voice coil winding machines	Local service location:	U.S.
How to make the voice coil:	Using SANSHINE's SS600V self-adhesive wire voice coil winding machine	Maximum transformer capacity (kVA):	10 kVA
Showroom location:	U.S.	Core components:	PLC, gearbox, motor
Core component warranty:	1 year	Weight (kg):	37
Wire Size:	0.08~1.0mm	After-sales service:	free spare parts
Packaging Details:	SS600V Self Adhesive Wire Voice Coil Winding Machine Customs Approved Wooden Box or Carton	Video shipment inspection:	if
Main selling points:	high productivity	Coil Type:	ring
Propagation distance:	0～9.999mm	Warranty:	1 year
port:	Xiamen Port	brand:	Sanshin
payment terms:	Western Union, T/T	Shaft length (mm):	100mm
Spread Width:	100mm (maximum)	Package preview:
After warranty service:	online support	Coil Diameter:	110mm (maximum)
Health status:	new	Marketing Type:	2019 Hot Products
Wire diameter range (mm):	0.08 - 1mm	Dimensions (LWH):	76x68x72
Origin:	Fujian China	Mechanical test report:	if
Center height (mm):	200mm	After-sales service provided:	Video technical support
maximum. Load (kg):	10 kg	Applicable industries:	Machinery repair shop, manufacturing plant
CNC or not:	CNC

Product Description

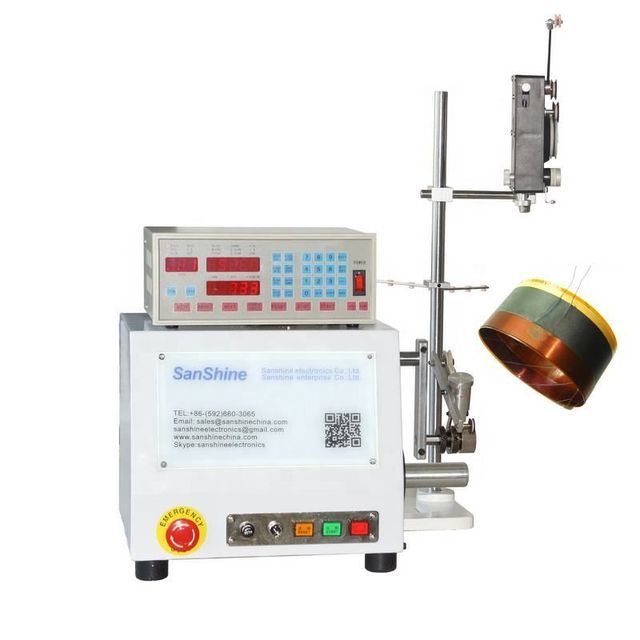

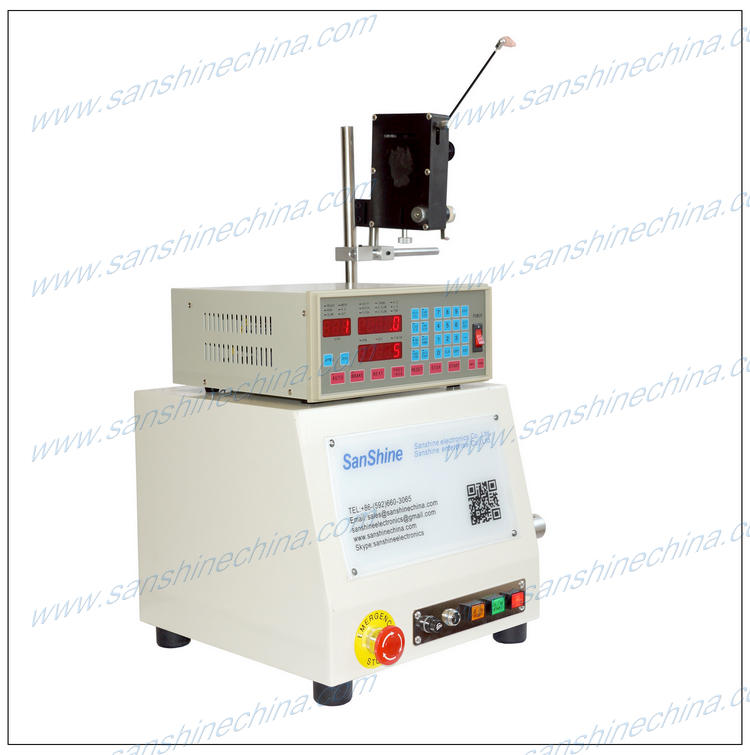

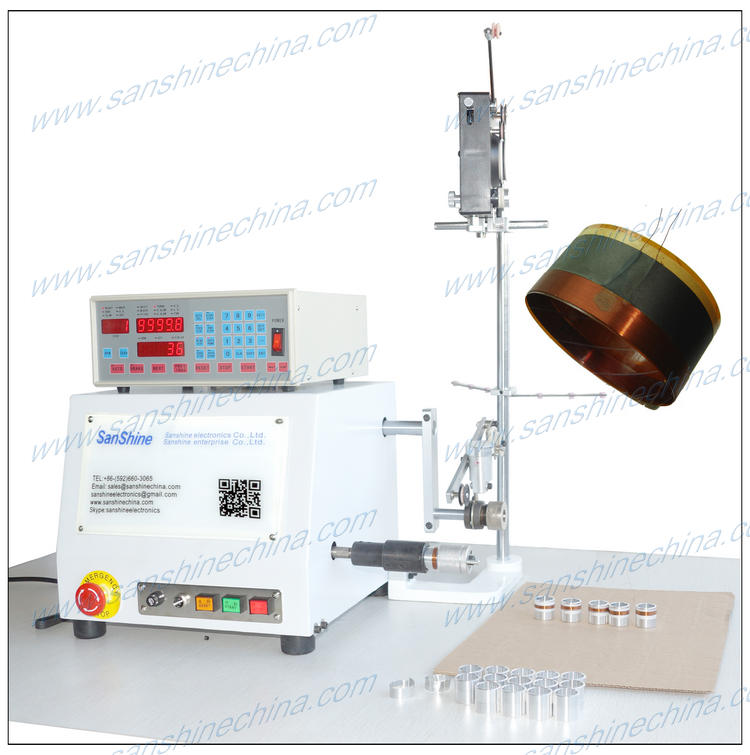

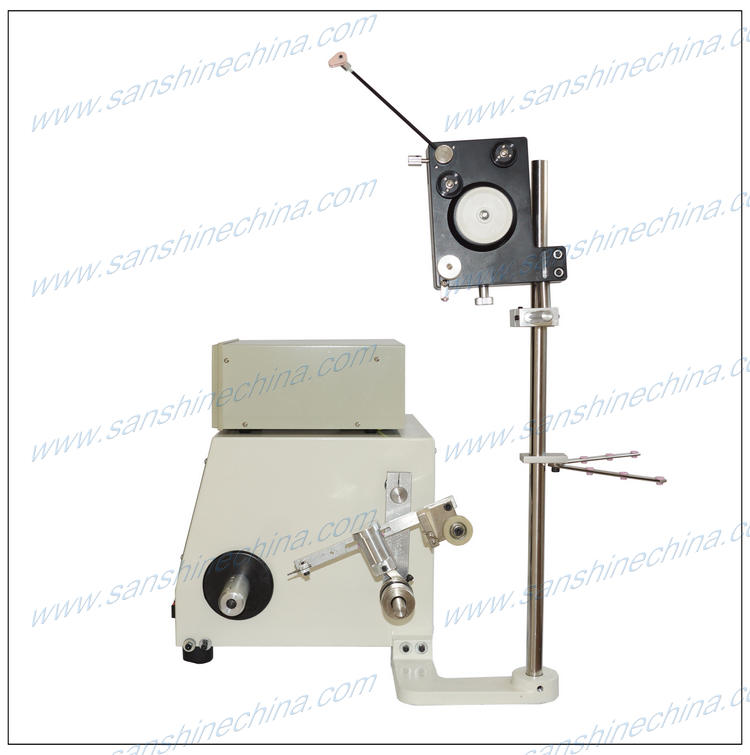

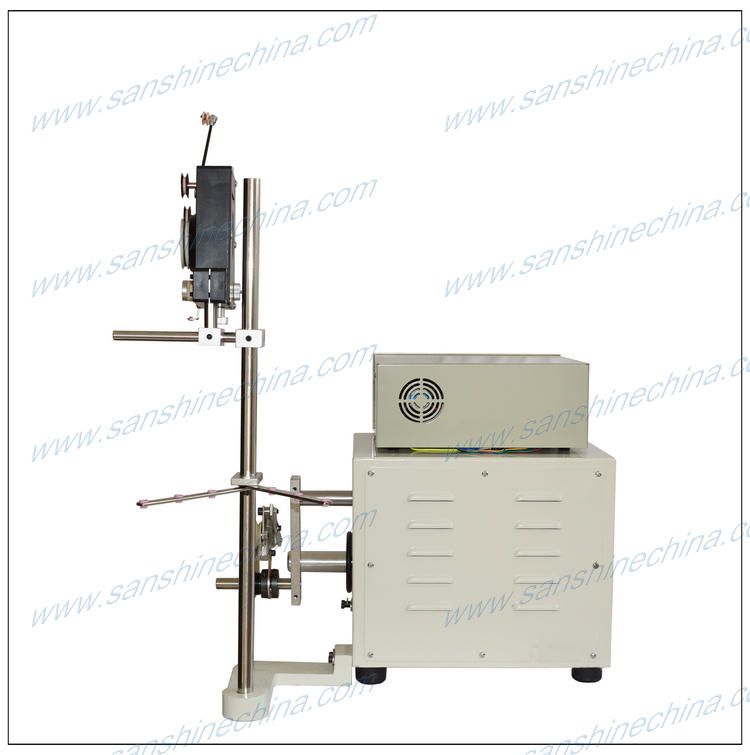

SS600V self-adhesive wire voice coil winding machine description:

SS600V self-adhesive wire voice coil winding machine is a digital programmable coil winding machine, with insulating tape device (optional) and edge tape device (optional), winding tensioner (optional), alcohol bath, pay-off heads, lead frames and machines. It is the best choice for winding large speaker voice coils.

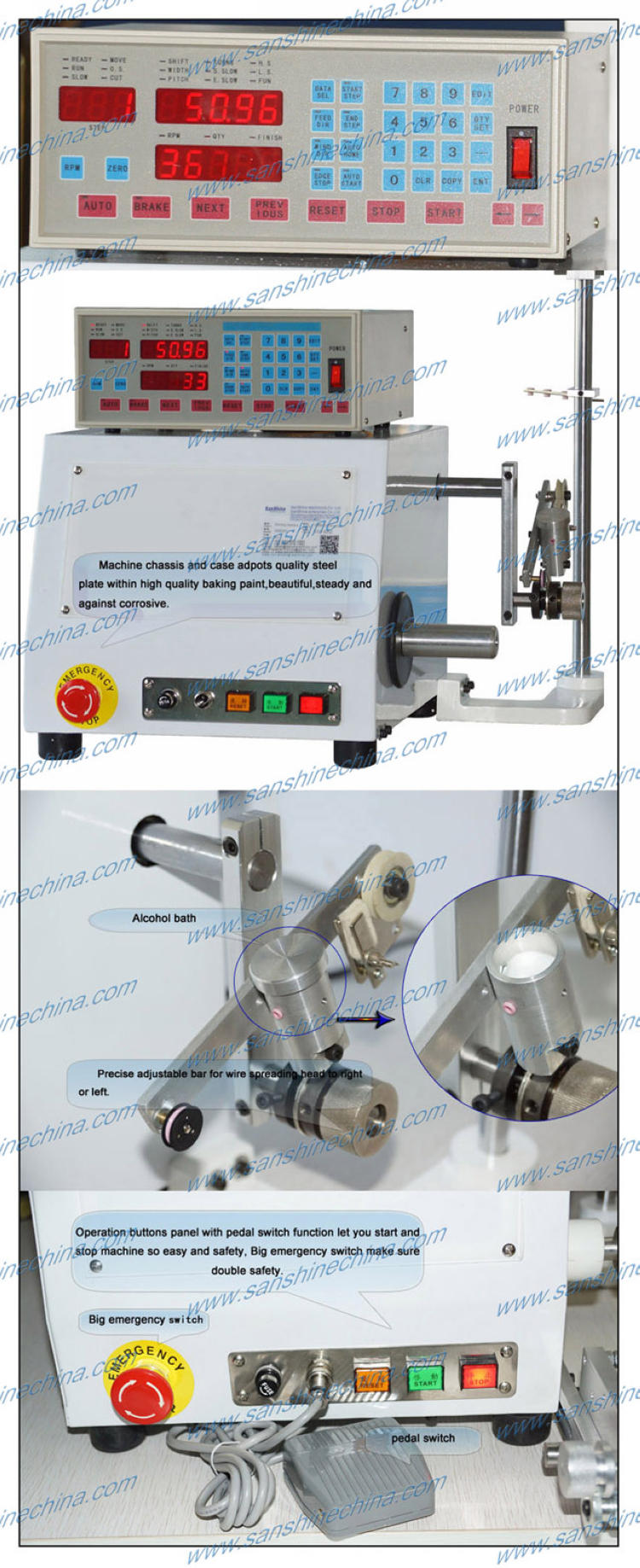

SS600V self-adhesive wire voice coil winding machine features:

1. Alcohol self-adhesive copper wire is put on the wire end with an alcohol bath.
2. The constant current power supply drives the stepping motor, high-speed and precise winding.
3. "Starting point" can be set through the keyboard or has a teaching function. The display will show the position of the expansion head while
environment.
4. The wire passes through the ceramic roller to prevent the enamel from high temperature.
5. Foot switch connection, more efficient.
6. Winding parameters and options for each step can be set independently.
7. The memory capacity can accommodate 999 steps of parameters, and has the function of power-off memory.

Specifications of SS600V self-adhesive wire voice coil winding machine:

Model	SS600V
Spindle	1
wire size	0.08~1.0mm
propagation distance	0～9.999mm
spread width	100mm (maximum)
Coil diameter	110mm (maximum)
main motor	Brushless Motor
propagating motor	two phase stepper motor
maximum. speed	6000 rpm
memory	999 steps
energy source	AC220V/110V ±10%, 50/60 Hz
Size (CM)	76x68x72
net weight/kg)	37
