AF01 air volume air volume collection hood barometer

Product details
payment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGramPackaging Details:Bag
model:AF610place of origin; place of origin:Beijing China
brand:ivanPackage preview:
port:TianjinSupply capacity:100 units per week
output:4-20mADC/Hart
Product Description

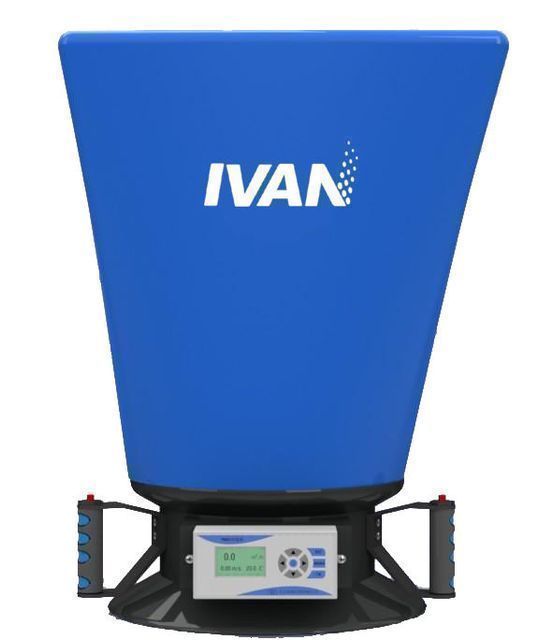

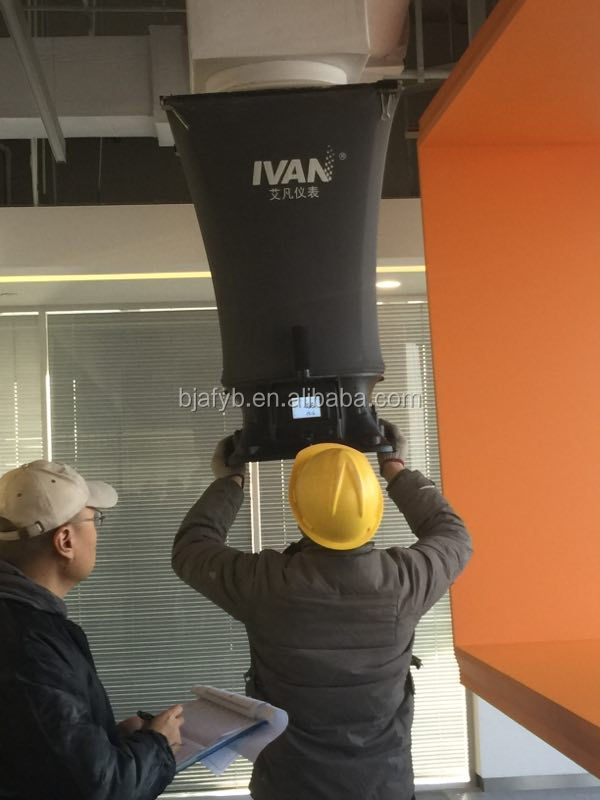

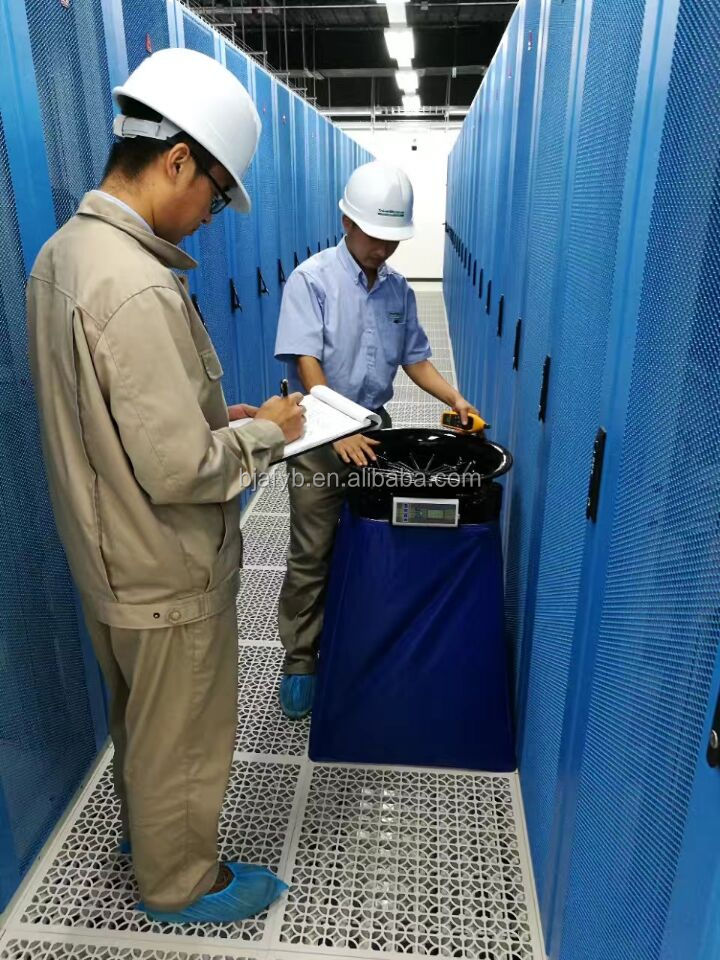

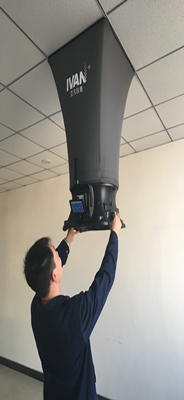

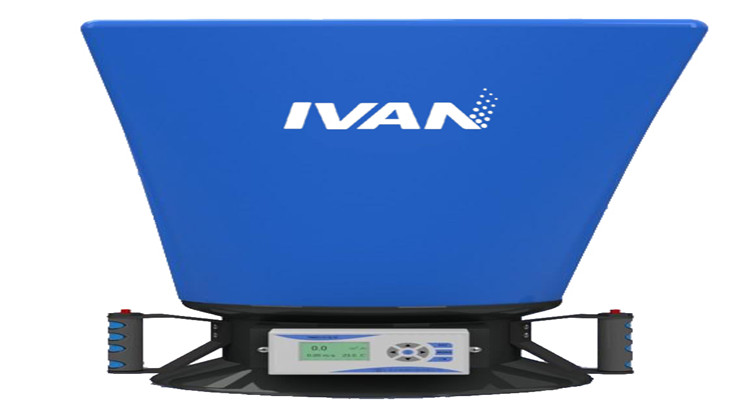

AF01 electronic air volume hood adopts hot wire matrix wind speed sensor to accurately measure the gas flow and temperature of various air outlets and pipes of different specifications of the hood. It is used to measure the ventilation and exhaust air volume in the exhaust duct of HVAC system. This product was developed, tested and calibrated by the joint
Relevant experts with China Metrology Institute. Tested and approved by experts from the National Air Conditioning Research Institute, the product accuracy and performance meet the international standards for similar products.
Air Velocity:
80-3500 cubic meters per hour (50-2050cfm)
Wind speed range
0.2-7.8m/s (0.65-25.6f/s)
temperature range:
14-176f (-10-80℃)
Intake flow accuracy:
±(3% reading ±12m3/h), ±(3% reading ±7cfm)
Exhaust flow accuracy:
±(4% reading ±12m3/h), ±(4% reading ±7cfm)
Temperature Accuracy:
± 0.5% of reading ± 1 ℉ (± 0.5% of reading ± 0.5 ℃)
Air volume resolution:
0.1 cubic meters per hour (80-3500 cubic meters per hour)
Temperature Resolution:
0.1 ℉ or ℃
Battery Life:
* Small size can be used continuously for 10 hours
UI:
128×64 dot matrix LCD display
power supply:
Three 1.5V AA

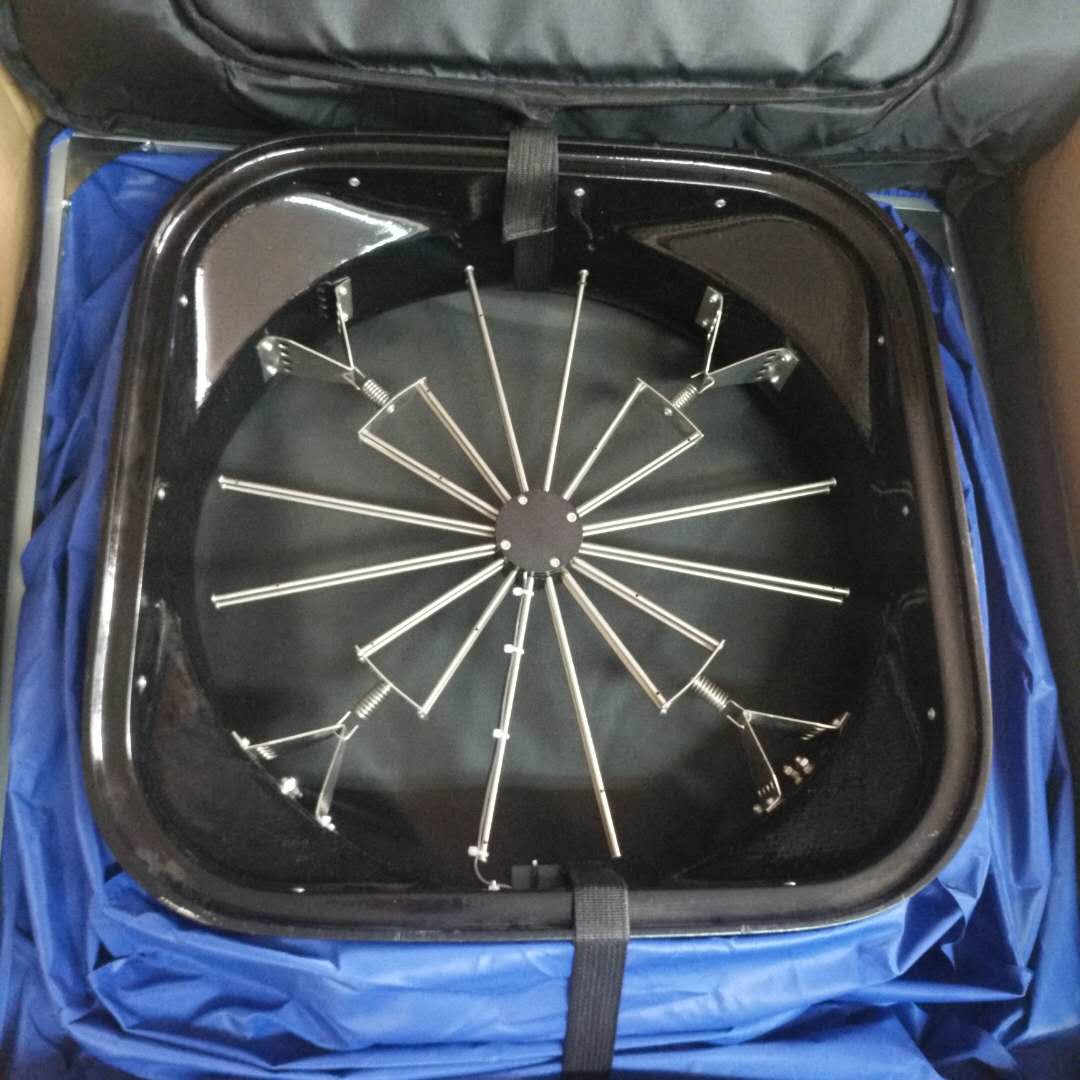

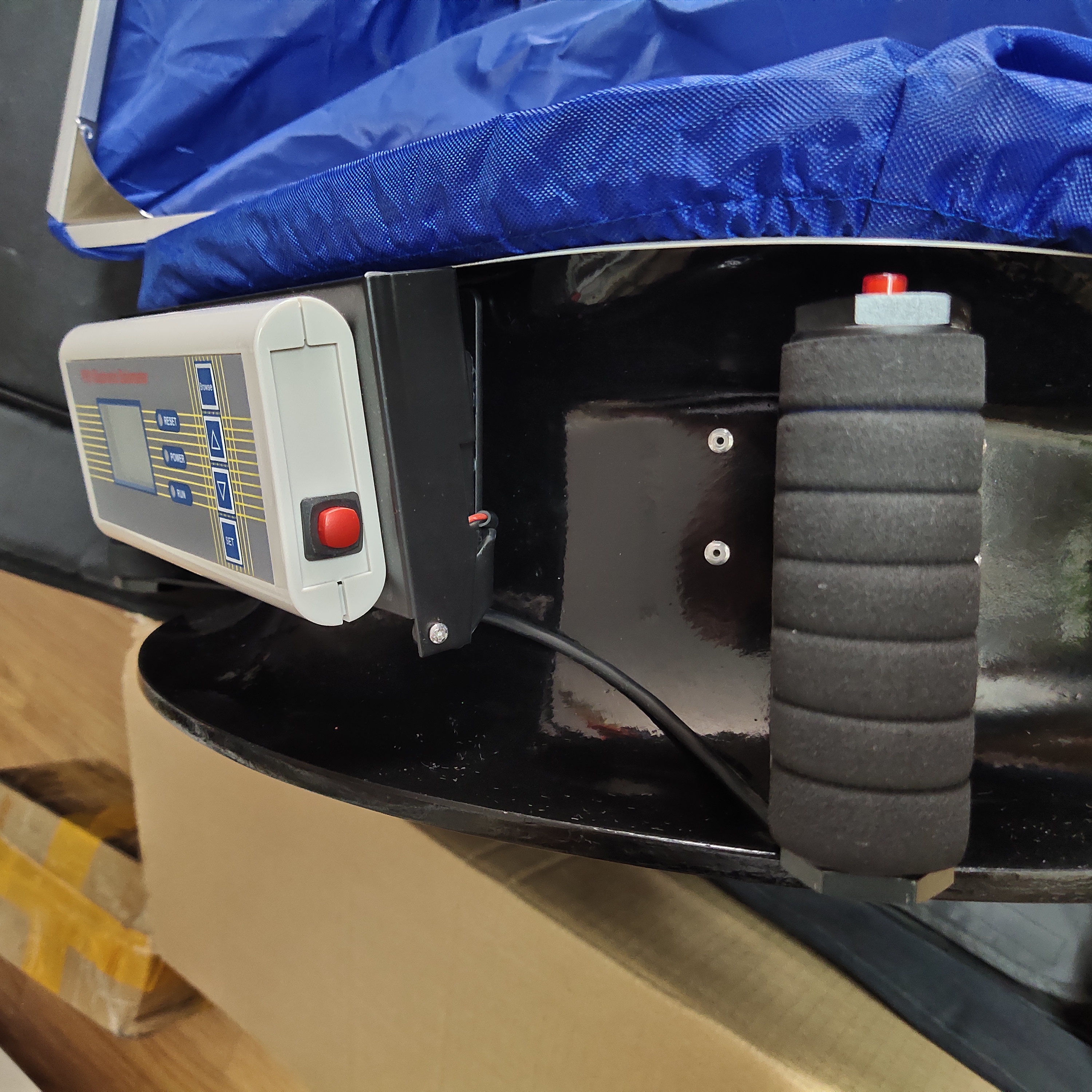

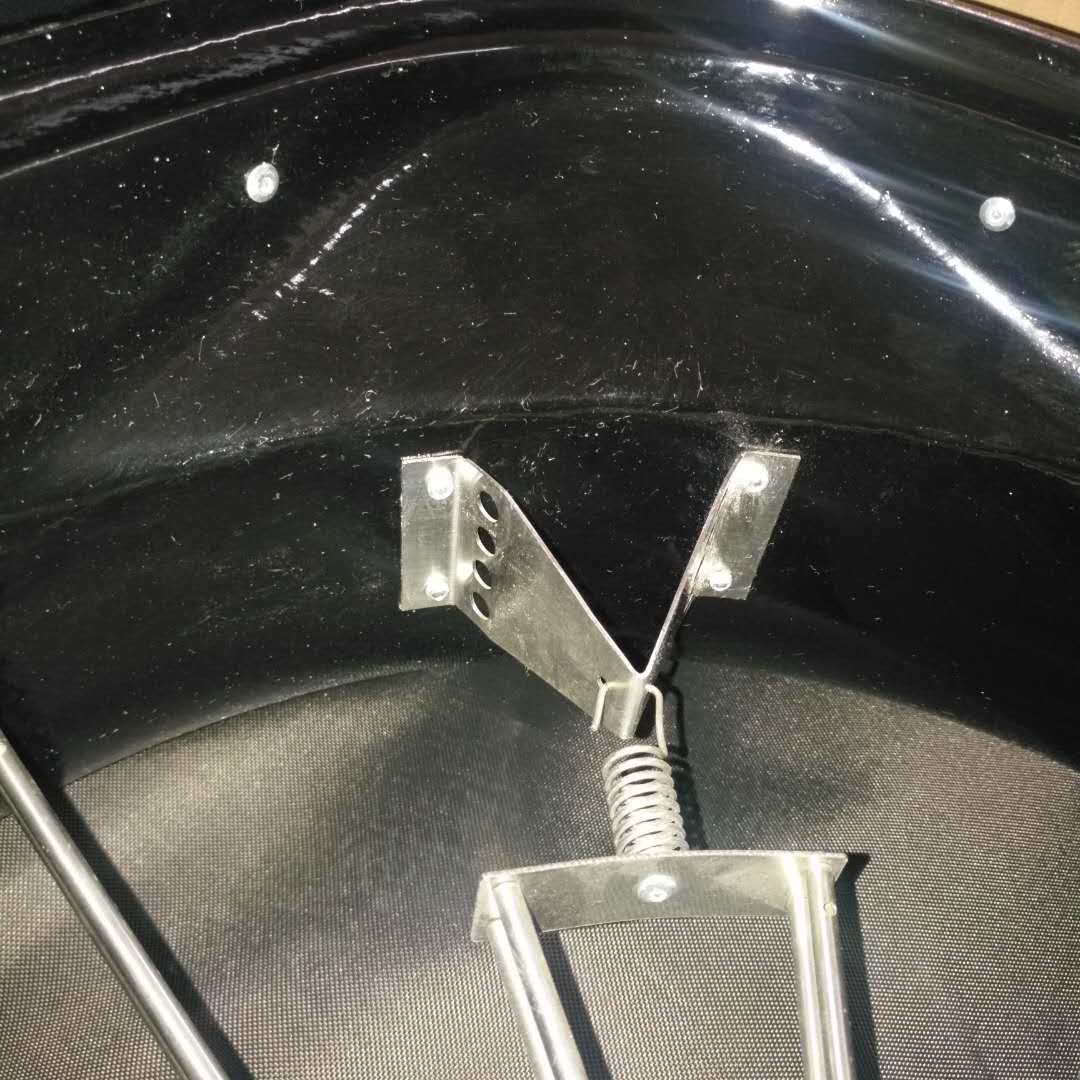

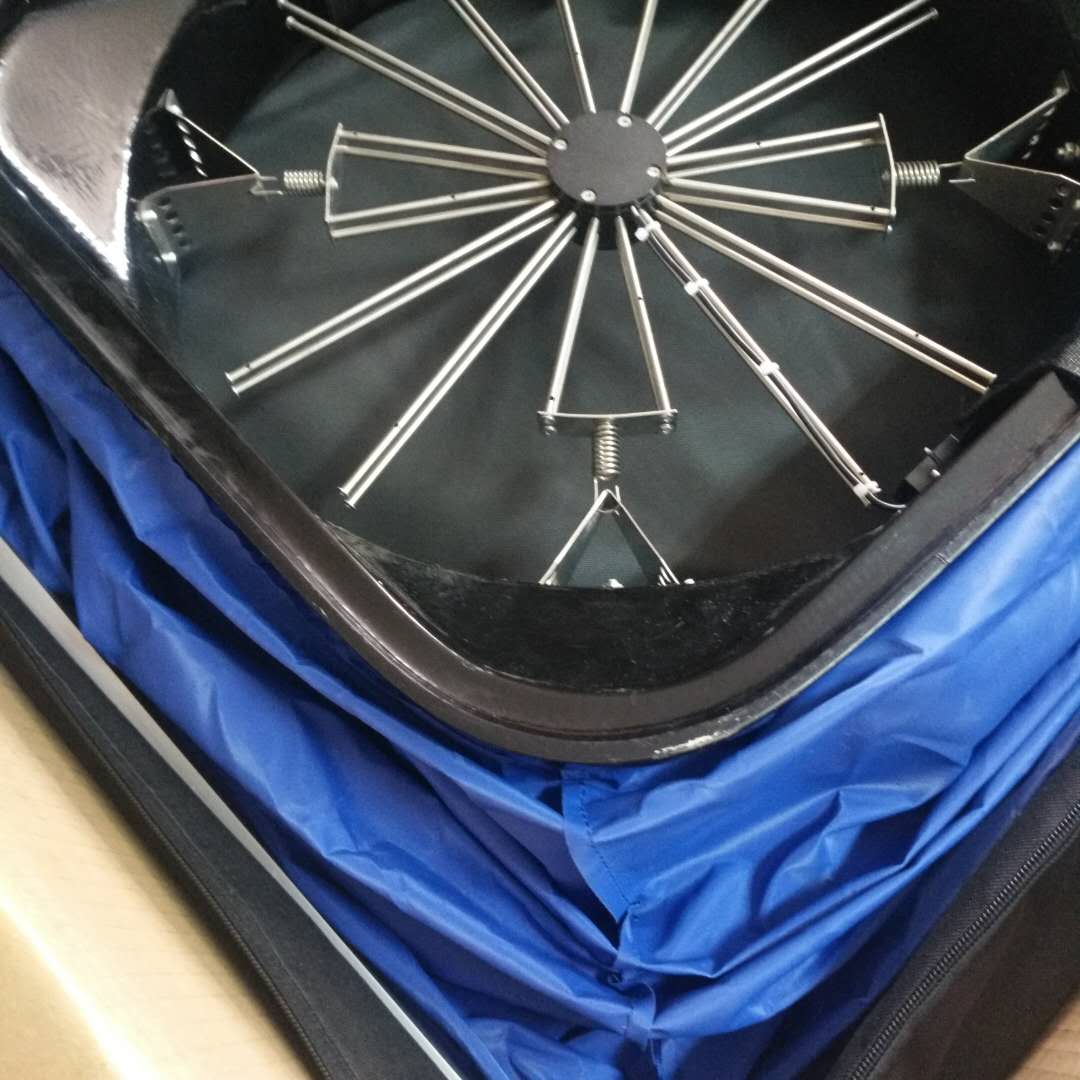

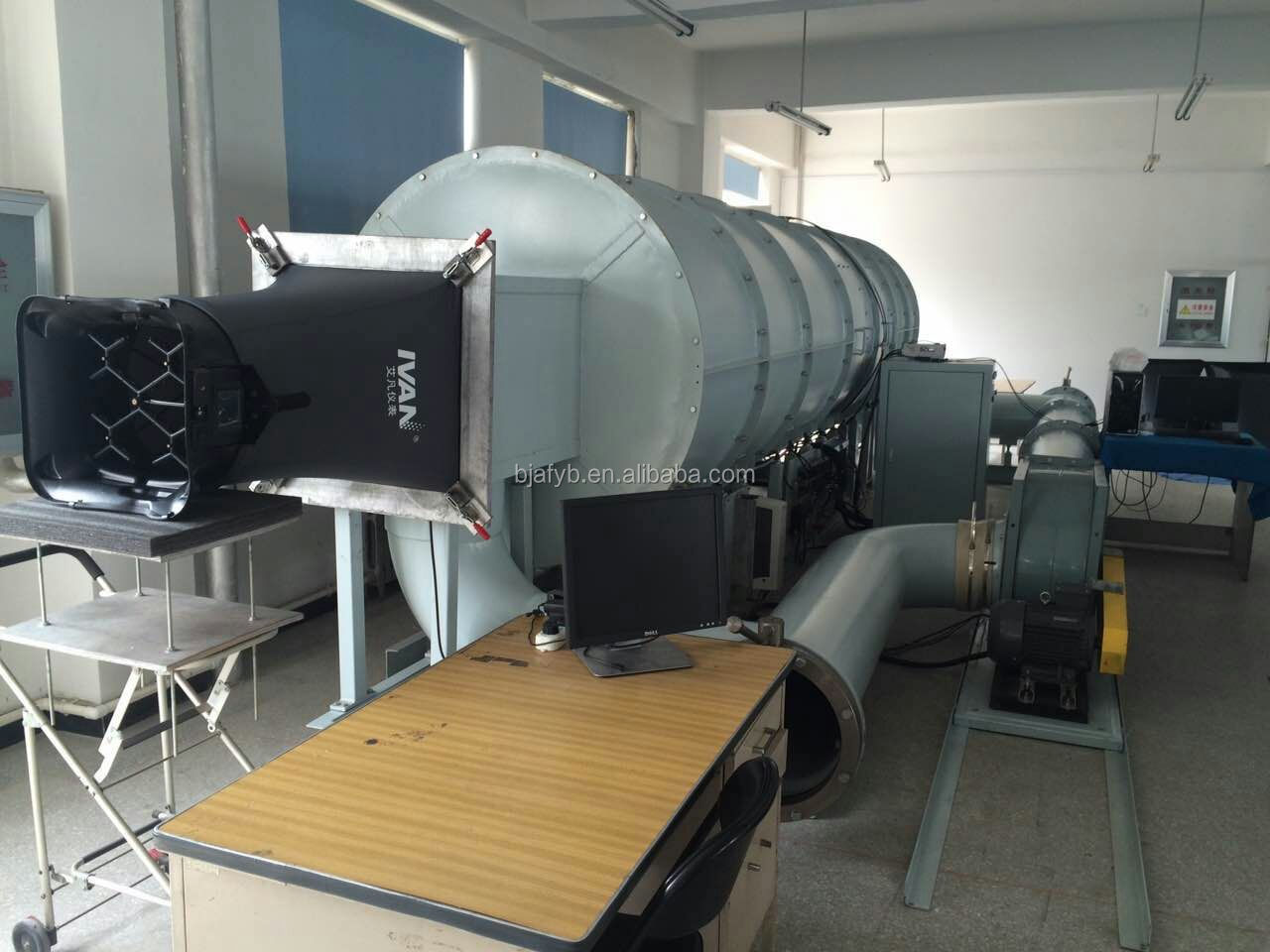

detailed drawing
