smt batch custom solar LED street light PCBA

Product details
Minute line width:0.07mmPackage preview:
Surface treatment:HASL/OSP/Immersion GoldCopper thickness:0.5-3OZ
Layers:1-2 floorsProcessing technology:DIP, red glue, solder paste, plug-in, test
color:Green, blue, white, black, yellow and redMinute Hole Size:0.10mm
Supply capacity:1,000,000 pieces per monthMinute line spacing:0.07mm
brand:GDM/ITEQ/Knowledge BaseSubstrate:FR-4, AI, CEM-3
Plate thickness:0.10mm~3.2mmpayment terms:L/C, D/P, D/P, T/T
place of origin; place of origin:Guangdong, Chinatype:solar led
Equipment:AOI, braiding machine, placement machine, reflow soldering, wave solderingBoard Dimensions:10mm*1200mm
model:300Wport:Shenzhen
Packaging Details:Vacuum moisture-proof bead foam carton packaging
Product Description

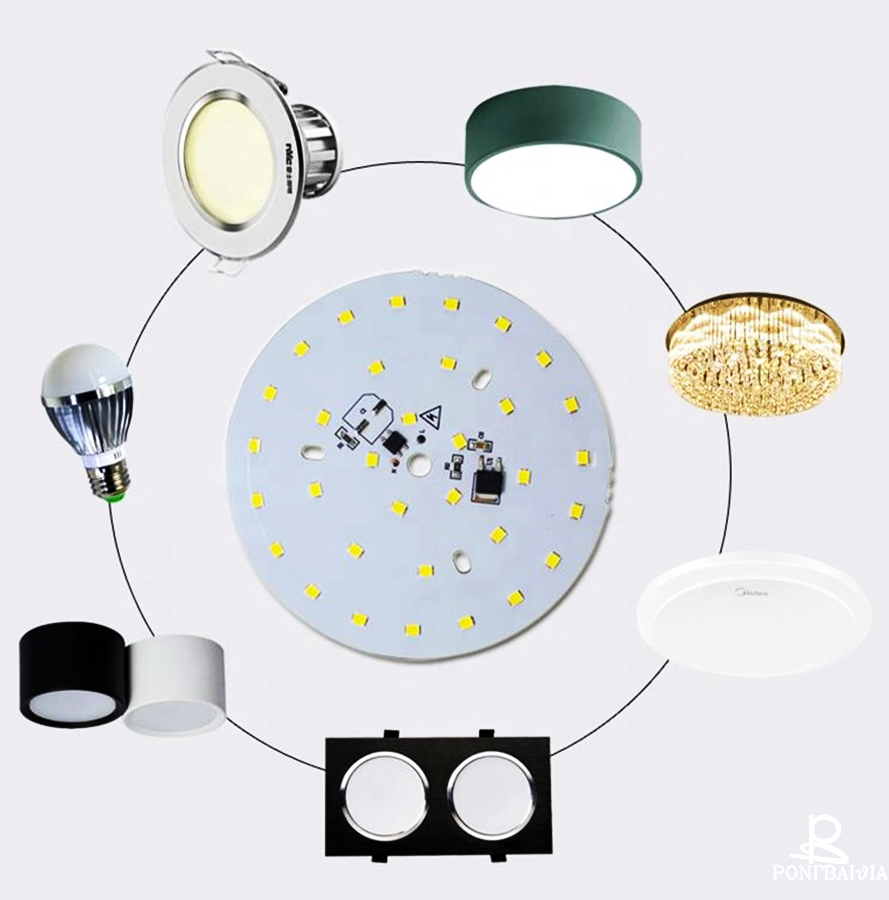

PCB%PCBA solar LED street light
LED light is a kind of electroluminescent semiconductor material chip, which is cured on the bracket with silver glue or white glue, and then connected with silver wire or gold wire to the circuit board, and sealed with epoxy resin to protect the inner core wire, and finally installed The outer casing makes the LED lamp have good shock resistance.
LED can directly emit red, yellow, blue, green, blue, orange, purple, white light.White LED bulbs are highly efficient and lead in low-wattage markets such as flashlights, solar garden lights, and pedestrian and bicycle lights. Monochromatic LED lights are commonly used in traffic lights and holiday lighting.
Low calorific value, no heat radiation, cold light source, safe to touch, can accurately control light type, light angle, light color, no glare, and does not contain mercury, sodium and other substances that are harmful to health.

Application field

1. Solar powered
(1) Solar power supply: used in remote areas without electricity such as plateaus, islands, pastoral areas, and border posts.
Other military and civilian household electricity, such as lighting, television, radio recorders, etc.;
(2) Household rooftop grid-connected power generation system;
(3) Photovoltaic water pump: solve the drinking and irrigation of deep water wells in areas without electricity.
2. Traffic

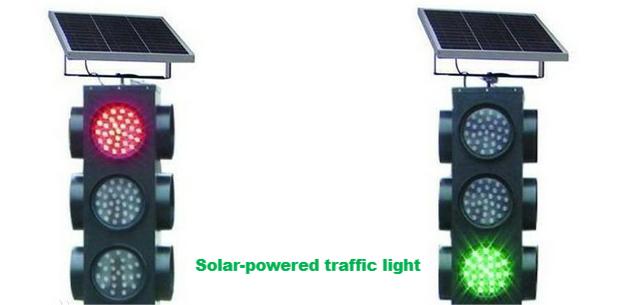

Such as navigation lights, traffic/railway signal lights, traffic warning/sign lights, Yuxiang street lights, high-altitude
Obstruction lights, road/railway wireless telephone booths, unattended road power supplies, etc.
3. Communications

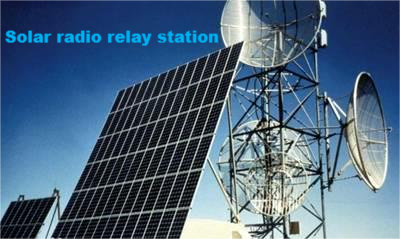

Solar unattended microwave relay station, optical cable maintenance station, broadcast/communication/paging power supply system;
Rural carrier telephone photovoltaic system, small communicator, GPS power supply for soldiers, etc.
4. Petroleum, marine and meteorological fields
Petroleum pipeline and reservoir gate cathodic protection solar power supply system, oil drilling platform life and emergency power supply
Supply, maritime testing equipment, meteorological/hydrological observation equipment, etc.
5. Lamp power supply

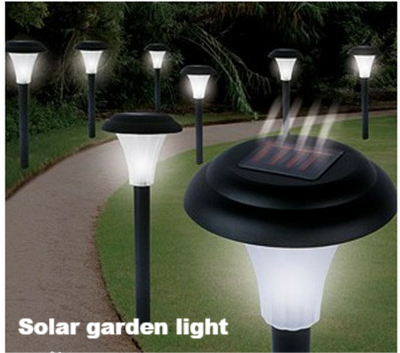

Such as garden lights, street lights, portable lights, camping lights, climbing lights, fishing lights, black lights, tapping lights,
Energy-saving lamps, etc.
6. Photovoltaic power station
Independent photovoltaic power station, solar (firewood) complementary power station, various large parking lot charging stations
station etc.
7. Solar buildings
Combining solar power generation with building materials to make future large buildings self-sufficient in electricity is a major focus
future direction of development.
Eight. other areas include
(1) Supporting vehicles: solar cars/electric cars, battery charging equipment, car air conditioners, ventilation fans, cooling
Beverage boxes, etc.;
(2) Solar hydrogen production and fuel cell regeneration power generation system;
(3) Seawater desalination equipment power supply;
(4) Satellites, spacecraft, space solar power plants, etc.
specialty--

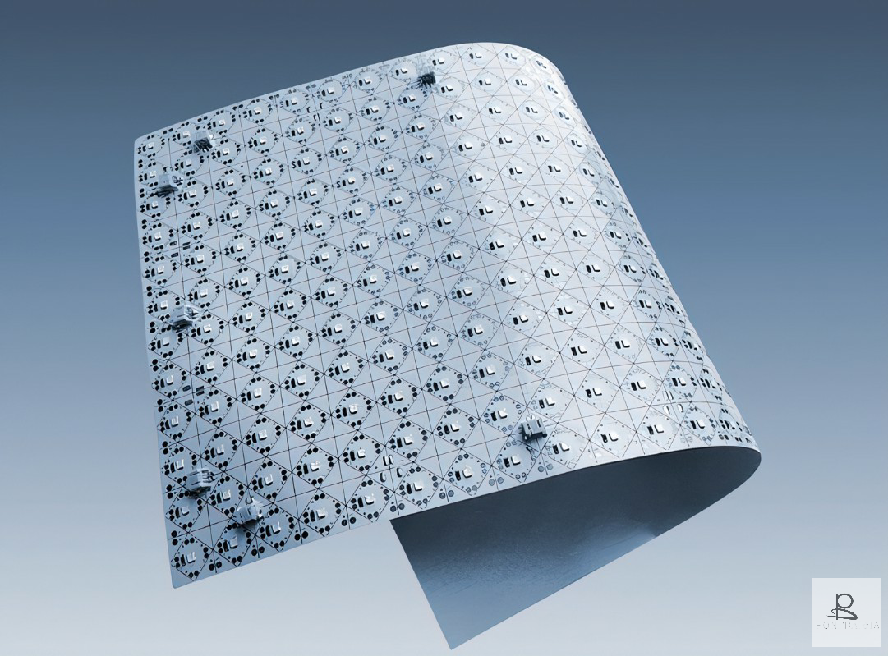

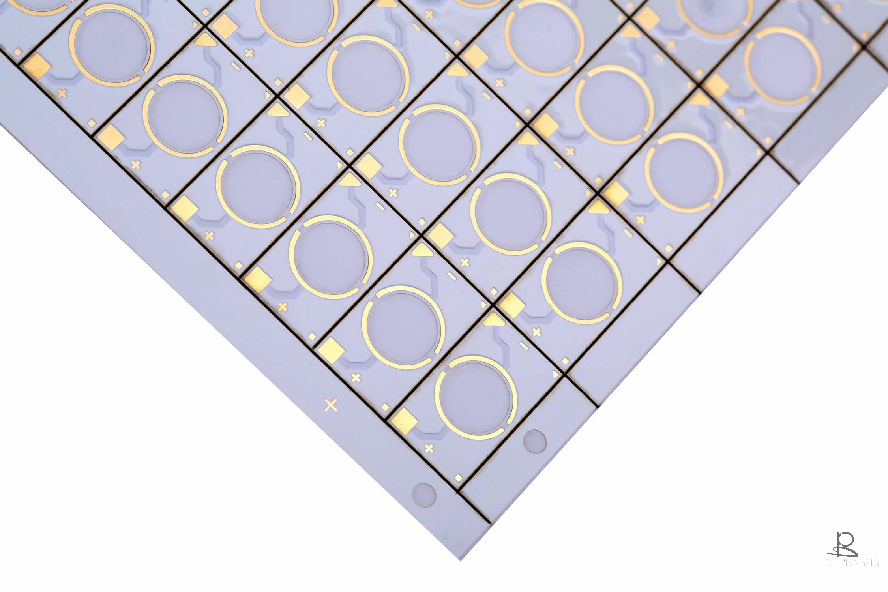

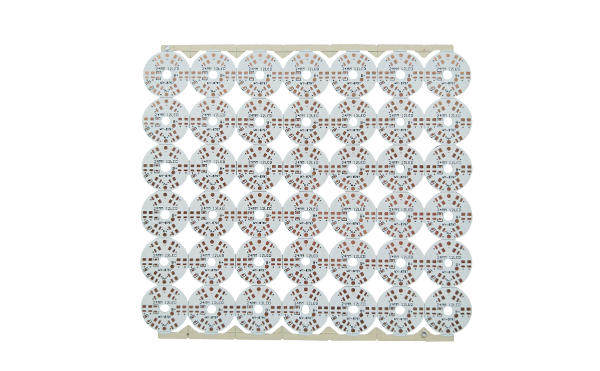

● SMT on the surface of PCB aluminum substrate; PCB aluminum substrate has good heat dissipation performance in circuit design.
●PCB aluminum substrate can lower the temperature, improve the power density and reliability of the product, and prolong the service life.
product life;
●PCB aluminum substrate can reduce the size, reduce hardware and assembly costs;
●The PCB aluminum substrate can replace the ceramic substrate, and the mechanical life is better.
