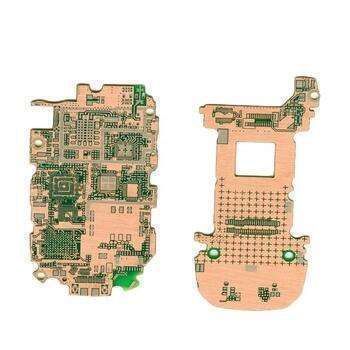

China PCB manufacturer provides one-stop service electronic printed circuit board/pcb assembly

Supplier: Kinglisheng(Shenzhen) Electronics& Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Christal Huang
Price: $0.50 / 1 - 99 pieces
$0.10 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	type:	thick copper plate
port:	Shenzhen	Minute line width:	3 million 0.075 mm
Solder mask color:	Green. Black. Red. Yellow. White. Blue. Purple. Matte Green. matte black	Minute line spacing:	4000000
size:	custom size	Minute Hole Size:	6 million 0.15 mm
Serve:	One-stop service	Substrate:	FR-4/aluminum/ceramic/cem-3/FR-1, heavy copper
Surface treatment:	HASL\OSP\Immersion Gold, ENIG, OSP, Immersion Silver, Gold Plating	Supply capacity:	10000 cubic meters per month
Floor:	1-32 floors	MOQ:	1
place of origin; place of origin:	Guangdong, China	Plate thickness:	20-25um
Certificate:	ISO9001/ISO13485/CE/ROHS	brand:	Kunlun
Copper thickness:	1/2OZ 1OZ 2OZ 3OZ, inner diameter: 12-175um outer diameter: 35-350um	Packaging Details:	Vacuum plastic bag and carton
model:	VI-007	Board Dimensions:	custom made
Package preview:		Testing service:	AOI X-Ray function test

1. We can handle small size components 0201, as well as 0.25mm pitch BGA and 0.2mm pitch connectors; 2. The PCB board substrate we use is of high quality; 3. We can manufacture Rigid PCB, Flexible, Rigid-flex, HDI board, High TG PCB; 4. Manufacture PCB boards up to 32 layers, raw materials: Fr4, Rogers, Arlon, Teflon, Taconic, Nelco, Isola, Ceramic, Metal core. For more information, please feel free to contact us.

project	Capability - aluminum substrate
laminate	CEM-1/3, FR4, Ceramic, Aluminum, PI, PET, Rogers
layers	2 layer
biggest size	600mm X 350mm
plate thickness	0.2-3mm
Finished Copper	0.5oz - 2oz
Minimum Line Width	5000000
Minimum line spacing	3000000
Maximum aspect ratio	10:1
Thermal conductivity (w/mk)	1.0; 2.0; 3.0; 10.0－80.0
surface finish	HAL(SnPb/Pb-free), ENIG, OSP, Silver Plated
	Capability - Rigid PCB
laminate	FR4(TG130, TG150, TG170), High Frequency, Halogen Free, Halogen Free, aluminum base
biggest size	1-32 floors
Minimum plate thickness	2L:0.20mm, 4L:0.40mm, 6L:0.60mm, 8L:0.80mm, 10L:1.20mm
Finished Copper	Inner diameter: 12-175um Outer layer: 35-350um
Minimum Line Width	3/3 million
Minimum line spacing	0.075/0.075mm
Maximum aspect ratio	10:1
Hole tolerance	+/-2 million
surface finish	HAL (SnPb/Pb-free), ENIG, OSP, Immersion Silver, Gold Plated, Gold Finger.

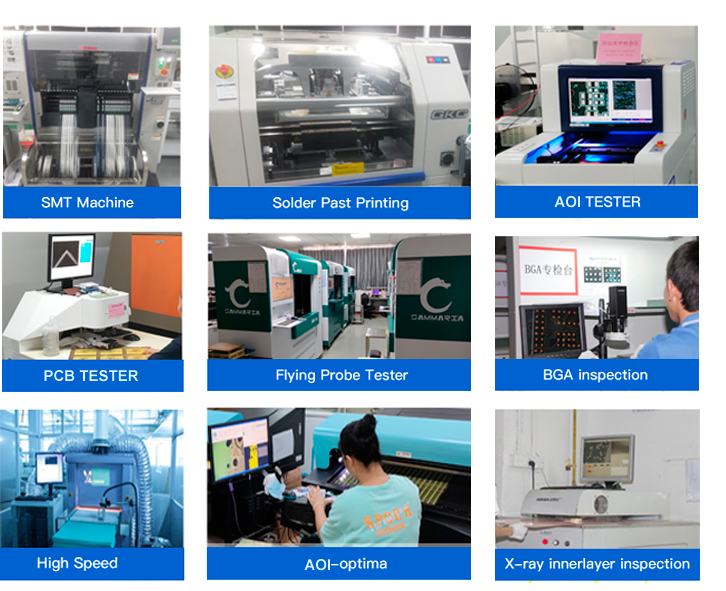

We have 3 SMT lines, 2 DIP lines, 3 assembly lines; the following are just some machines in our factory, because there are too many to show here, we welcome you to visit our factory, then we will introduce you more many.

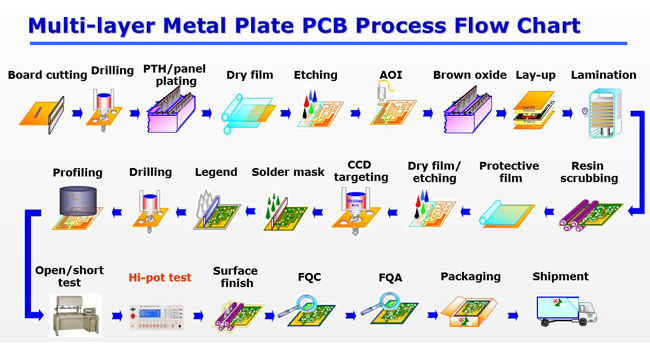

At least 23 processes are required to complete a PCB board.

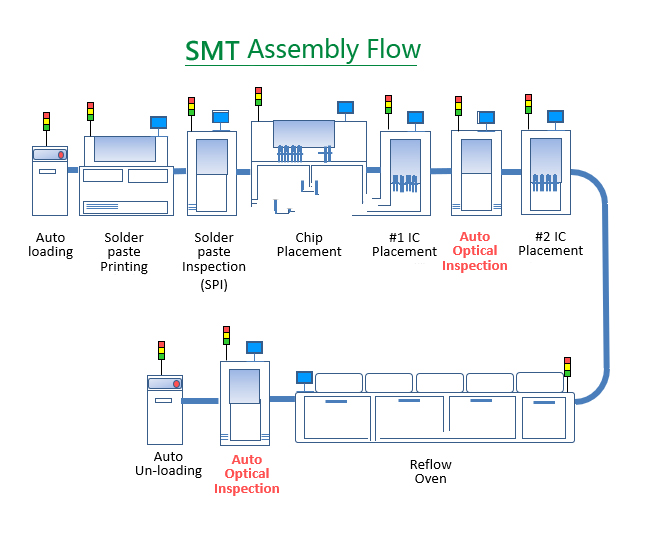

Once the PCB is complete and tested, assembly continues.

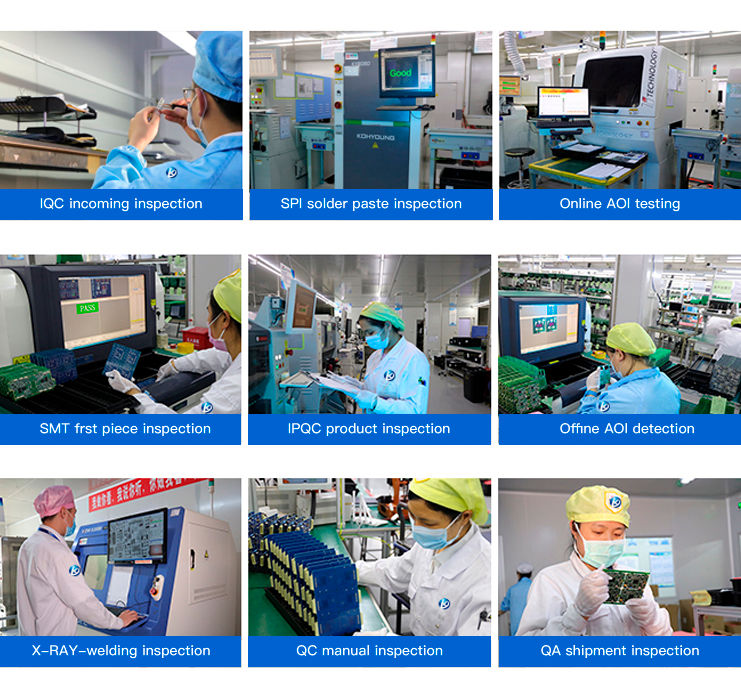

In order to ensure that the delivered products are 100% good, we have strict quality control, such as IQC incoming material inspection, SPI solder paste inspection, online AOI test, SMT first article inspection, IPQC product inspection, offline AOI inspection, X-RAY-soldering inspection , QC manual inspection, QA shipment inspection.

We have a good quality control system, including ISO 9001, ISO 13485; all materials we use have UL and RoHS marks.

Our main services:

1) PCB Development and Design 2) PCB Manufacturing from 1 to 32 3) Layers (Rigid PCB, Flex PCB, Ceramci PCB, Aluminum PCB) 4) PCB Cloning 5) Component Sourcing 6) PCB Assembly 7) Programming for Customers 8 ) PCB/PCBA testing

Flexible volume assembly alternatives:

1) Prototype PCB Assembly 2) Low Volume, High Mix PCB Assembly 3) High Volume PCB Assembly 4) Contract and Partial PCB Assembly 5) Full Turnkey PCB Assembly 6) Cable and Harness Assembly 7) Box Assembly Services

Q1: Are you a factory or trading company?A: Yes, we are a factory, we have our own PCB manufacturing and assembly factory.Q2: Which PCB file format can you accept for production?A:Gerber, PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350, GCCAM, ODB+(.TGZ)Q3: Are my PCB files safe when I submit them to you for manufacturing?A: We respect the copyright of our customers and will never use your files to manufacture PCBs for others unless we receive written documentation. We also do not share these files with any other 3rd parties without your permission.Q4: No PCB file/Gbr file, only PCB sample, can you make it for me?A: Yes, we can help you clone PCB. Just send us your sample PCB and we can clone the PCB design and do the calculations.Q5: What's the Chuante delivery time?A: Sample: 1-2 layers: 5 to 7 working days 4-8 layers: 12 working days Mass production: 1-2 layers: 7 to 15 working days 4-8 layers: 10 to 18 working days The delivery time depends on your final confirmation quantity.Q6: What payment do you accept?A: -Telegraphic transfer (T/T) -Western Union -Letter of credit (L/C) -Paypal -Ali Pay -Credit CartQ7: How to get the PCB?A: For small packages, we will ship the boards to you by DHL, UPS, FedEx, EMS. Door-to-door service! You will get the PCB at home. For heavy shipments over 300kg, we can ship your PC boards by sea or air to save on shipping costs. Of course, if you have your own forwarder, we may contact them to handle your shipment.Q8: What is your minimum order quantity?A: There is no MOQ.Q9: How about the production capacity of your factory?A: We can provide 100000 square meters/month.Q10: Which countries have you cooperated with?A: USA, Canada, Italy, Germany, Czech Republic, Australia, Japan, etc.
