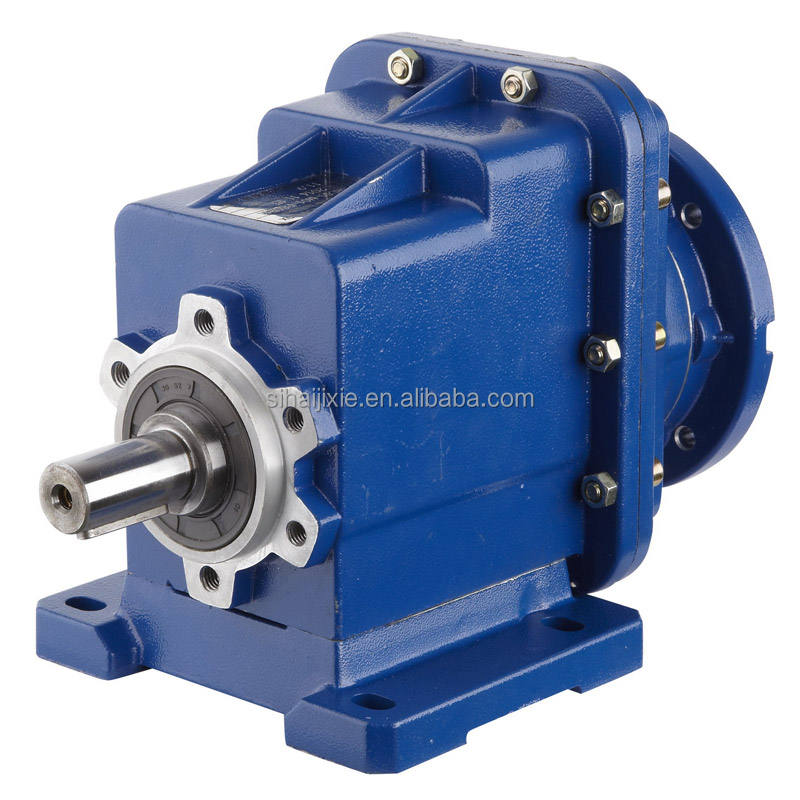

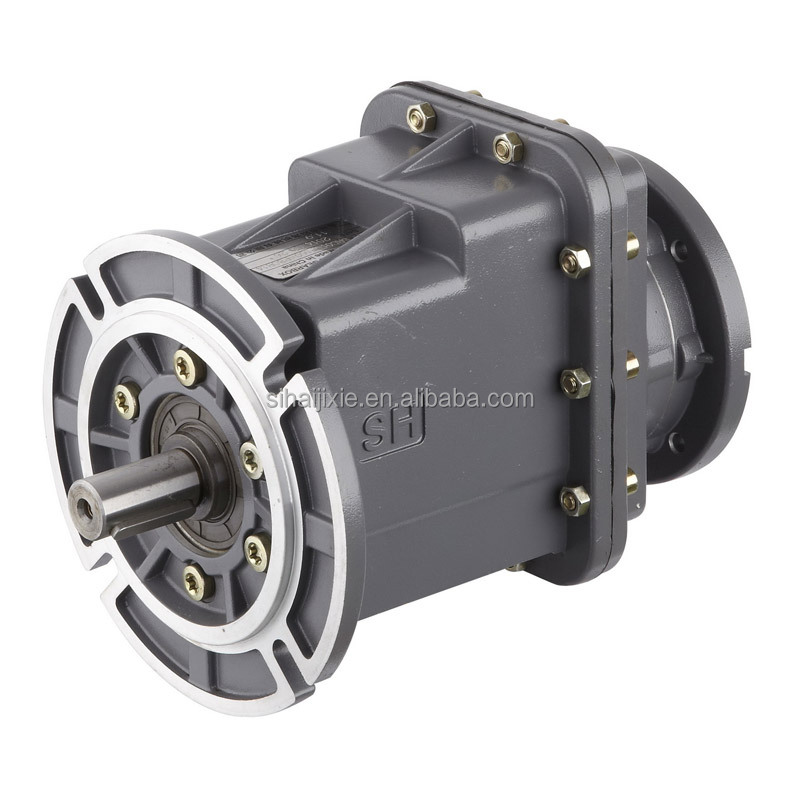

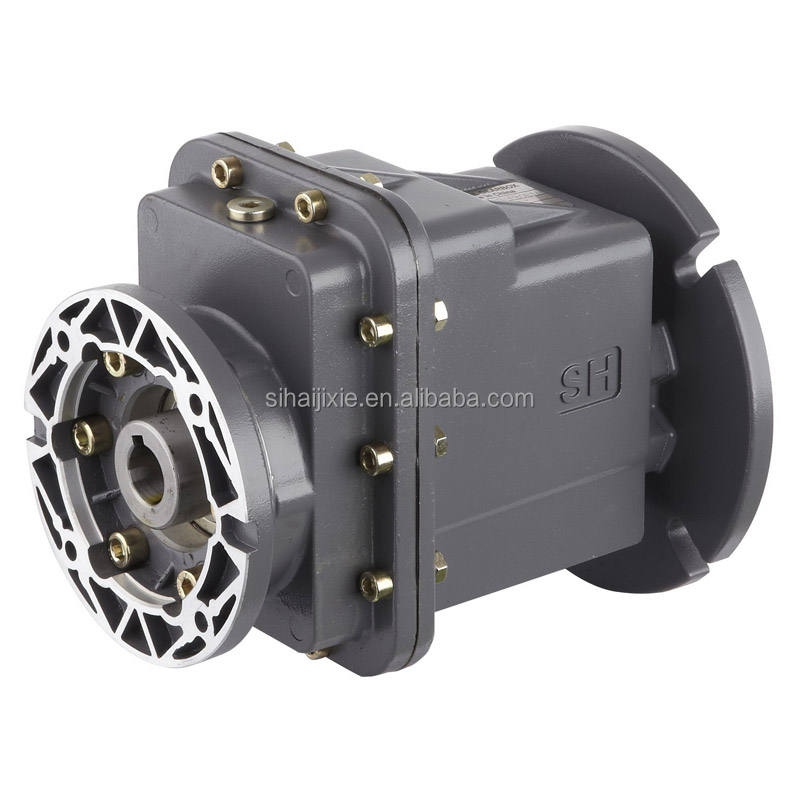

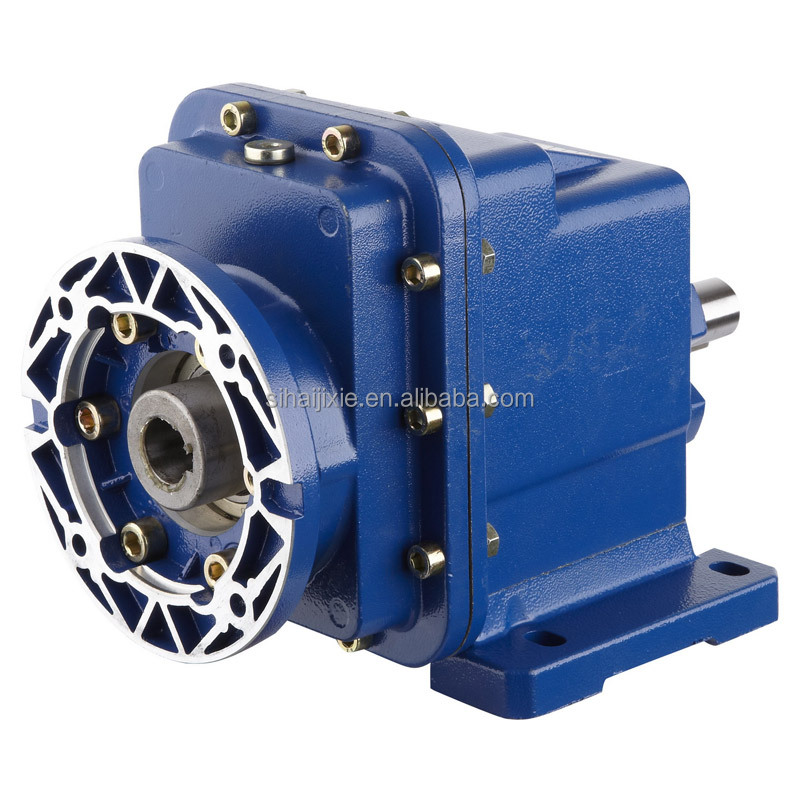

SRC series helical gear reducer for motor reducer

Supplier: Taizhou Sihai Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Hailey Wang
Price: $65.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

brand:	Chen Xin	Mechanical test report:	if
shape:	other	Weight (kg):	4
place of origin; place of origin:	Zhejiang, China	payment terms:	L/C, Western Union, T/T
Material:	Stainless steel	Supply capacity:	5000 pieces per month
Marketing Type:	normal product	Video shipment inspection:	if
port:	Ningbo	Core components:	Bearings, gearboxes, gears
Warranty:	1.5 years	Showroom location:	not any
Health status:	used	Applicable industries:	Building material stores, manufacturing plants, food and beverage plants, energy and mining, food and beverage stores
Standard or non-standard:	standard	Core component warranty:	1 year
Tooth profile:	helical gear	Packaging Details:	1pc/carton, several cartons/wooden pallet

SRC Series Spiral
gear unit

High

output

torque

We produce speed reducers in strict accordance with ISO9001 standard to provide our customers with high quality gearboxes at competitive prices. Our gearboxes are equipped with internationally renowned brand accessories, such as SKF brand oil seals, Shell brand lubricants and NSK brand bearings. Housings and gears are produced in our company with strict quality control. All of our products are in large stock, and we can also provide you with customized reducer solutions, please feel free to contact us.

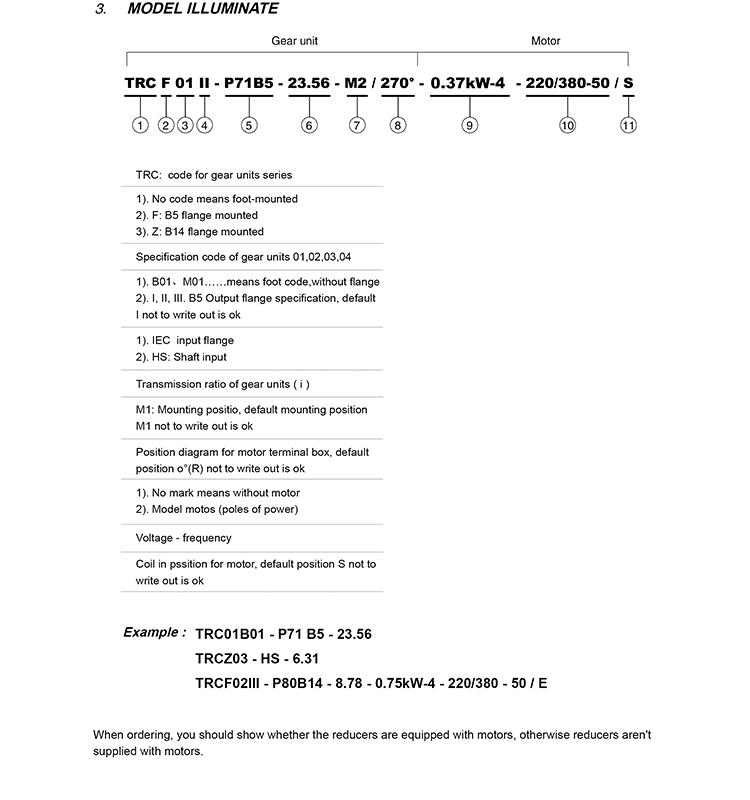

TRC: Gearbox series code

1. No code means feet

2.F: B5 flange installation

3. Z: B14 flange installation

Reducer specification code 01,02.03.04

B01, MO1...indicates the foot code, without flange

1.I.II1.B5 Output flange specification, it can be left blank by default

2. IEC input flange

3.HS: shaft input

gear ratio

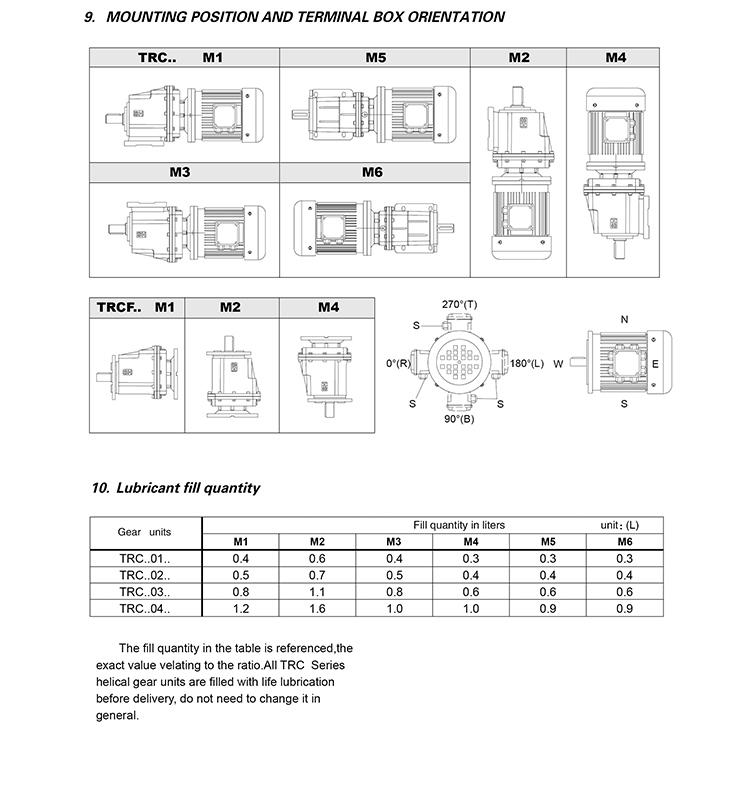

1. M1: installation location, the default installation location M1 can not be written out

1. No mark means no motor

2. Model motor (power pole) voltage-frequency

Voltage frequency

Motor coil input, the default position S can not be written out

Taizhou Sihai Machinery Co., Ltd.

history:More than 20 years of experience in manufacturing reducer products. Scale: covers an area of 13,300 square meters. m, with more than 113 employees.
technology: A group of professionals. Technical engineers and a strong R&D team.
manage: Scientific ERP management and strict quality control system.
equipment: There are 50 CNC lathes and 6 machining machines. Center, 6 gear grinding machines, 2 high-speed hard hobbing machines, 12 gear hobbing machines
machine. 10 CNC cylindrical grinders, 4 CNC internal grinders, 1 spectrometer, 1 high-speed gear shaping machine,
2 gear measuring centers and 1 coordinate measuring machine.
Innovation: Continuously enrich the product range to meet the needs of customers. Production capacity: 1000 pieces/day.
Long-term supplier of world-class enterprises:The main markets are in Southeast Asia, Europe, and the Middle East.
Marketing mode: all export business.

FAQ

Q1: How to choose a reducer that meets our requirements?
A1: Tell me the motor information, or provide the relevant parameter drawings of the motor, or take some clear photos of the motor and related equipment to me. I would appreciate it if you could tell me what type of reducer you were using originally.

Q2: When is the best time to contact you?
I will get back to you as soon as possible, no matter when.

Q3: How is the quality of your products?
A3: Quality is always the foundation of our company. I suggest you buy a sample to evaluate the quality. Taizhou Sihai Machinery Co., Ltd. has been engaged in the R&D, design and production of reducers for more than 20 years.

Q4. Do you provide any visit?
A4: Yes! welcome! Notify me in advance.

Q5. How long does the lead time take?
A5: At that time we agreed
