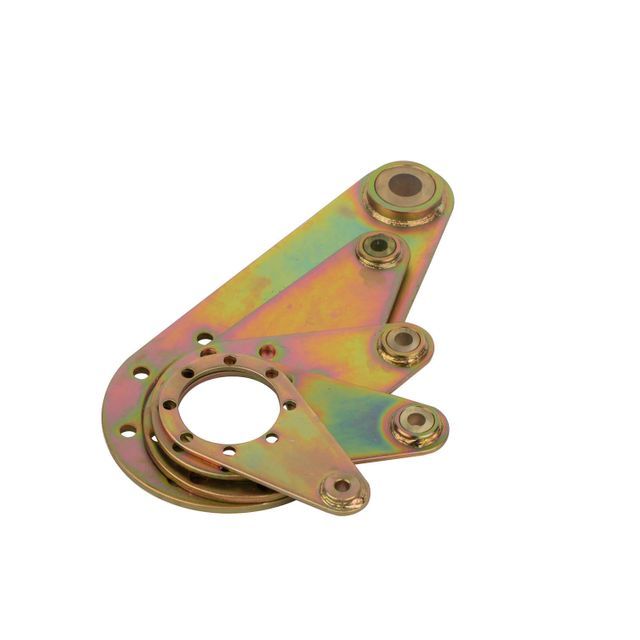

Worm gear reducer spare parts torque arm

Click here to contact
Product details

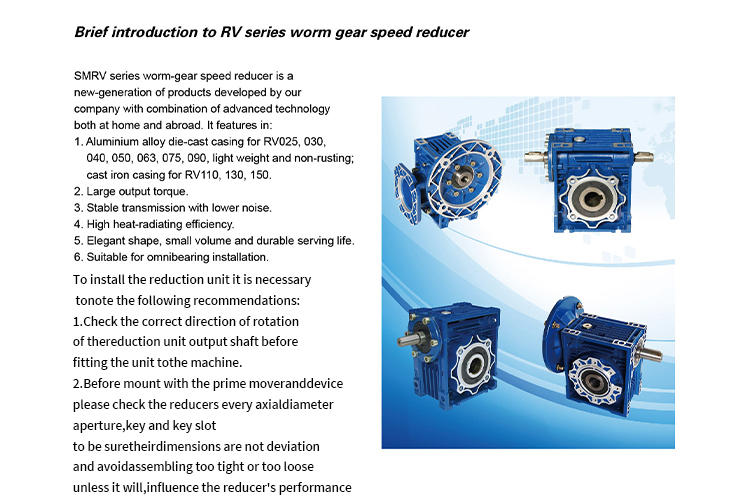

SMRV series worm
gear unit




high

output

Torque
Product Description
Technical performance and selection reference
Motor power
Model
speed ratio
Output speed
Output torque

0.25kW 1400rpm
RV075
60
24 rpm
68.0 nautical miles
RV075
80
18 rpm
80.0 nautical miles
RV075
100
14 rpm
94.0 nautical miles

0.37kW 1400rpm
RV075
40
35 rpm
74.0 nautical miles
RV075
50
28 rpm
88.0 nautical miles
RV075
60
24 rpm
97.0 nautical miles
RV075
80
18 rpm
119.0 nautical miles
RV075
100
14 rpm
139.0 nautical miles



0.55kW 1400rpm
RV075
25
56 rpm
76.0 nautical miles
RV075
30
47 rpm
87.0 nautical miles
RV075
40
35 rpm
108.0 nautical miles
RV075
50
28 rpm
128.0 nautical miles
RV075
60
24 rpm
144.0 nautical miles
RV075
80
18 rpm
177.0 nautical miles
RV075
100
14 rpm
206.0 nautical miles



0.75kW 1400rpm
RV075
15
94 rpm
66.0 nautical miles
RV075
20
70 rpm
85.0 nautical miles
RV075
25
56 rpm
101.0 nautical miles
RV075
30
47 rpm
117.0 nautical miles
RV075
40
35 rpm
147.0 nautical miles
RV075
50
28 rpm
174.0 nautical miles
RV075
60
24 rpm
196.0 nautical miles
RV075
80
18 rpm
250.0 nautical miles




1.1kW 1400rpm
RV075
10
140 rpm
66.0 nautical miles
RV075
15
94 rpm
95.0 nautical miles
RV075
20
70 rpm
122.0 nautical miles
RV075
25
56 rpm
148.0 nautical miles
RV075
30
47 rpm
171.0 nautical miles
RV075
40
35 rpm
216.0 nautical miles
RV075
50
28 rpm
263.0 nautical miles
RV075
60
24 rpm
297.0 nautical miles


1.5kW 1400rpm
RV075
7.5
186 rpm
68.0 nautical miles
RV075
10
140 rpm
89.0 nautical miles
RV075
15
94 rpm
129.0 nautical miles
RV075
20
70 rpm
166.0 nautical miles
RV075
25
56 rpm
202.0 nautical miles
RV075
30
47 rpm
233.0 nautical miles
RV075
40
35 rpm
299.0 nautical miles


2.2kW 1400rpm
RV075
7.5
186 rpm
99.0 nautical miles
RV075
10
140 rpm
131.0 nautical miles
RV075
15
94 rpm
189.0 nautical miles
RV075
20
70 rpm
249.0 nautical miles
RV075
25
56 rpm
304.0 nautical miles
RV075
30
47 rpm
247.0 nautical miles
3.0kW 1400rpm
RV075
7.5
186 rpm
135.0 nautical miles
RV075
10
140 rpm
178.0 nautical miles
RV075
15
94 rpm
258.0 nautical miles
4.0kW 1400rpm
RV075
7.5
186 rpm
180.0 nautical miles
RV075
10
140 rpm
237.0 nautical miles
Specification
Product name

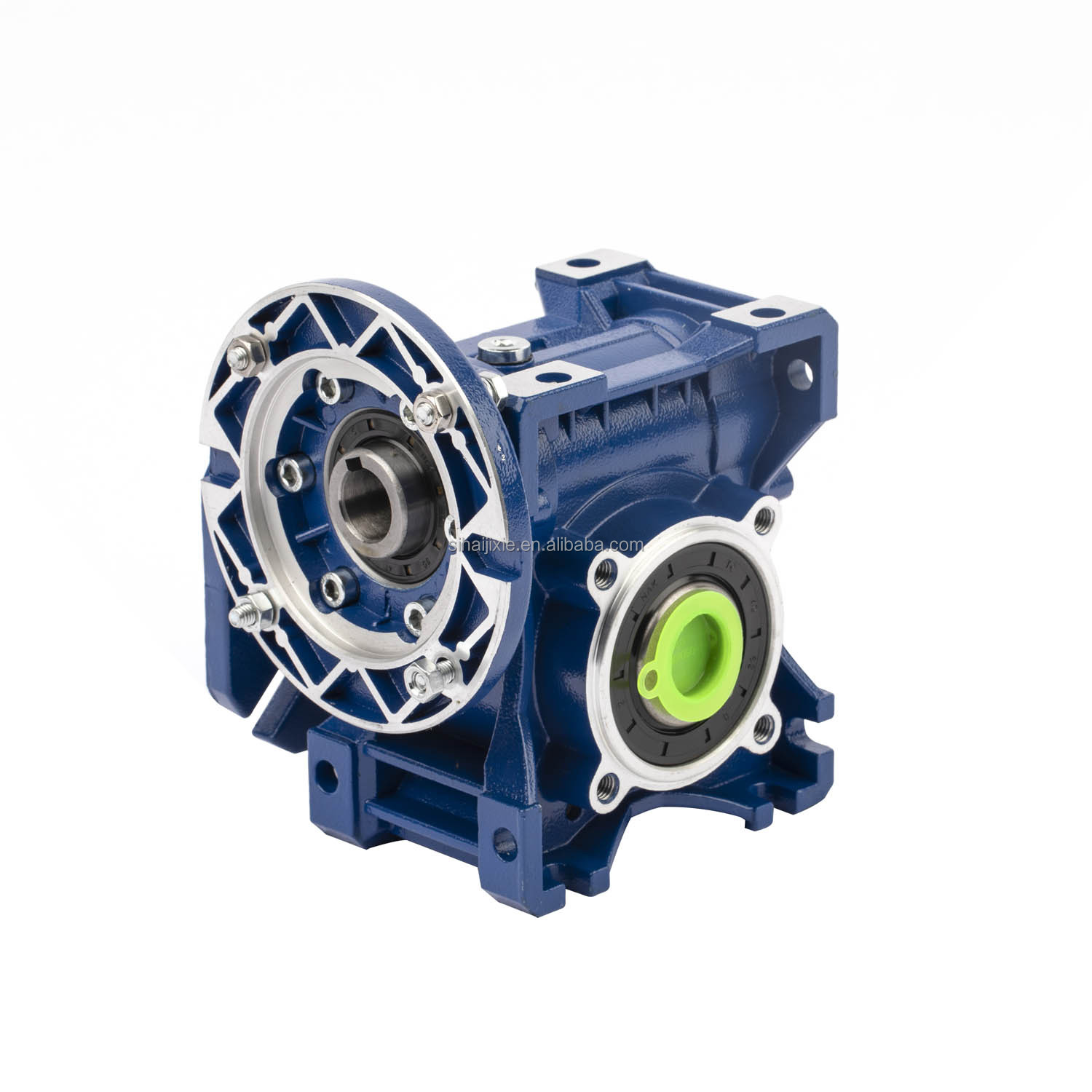

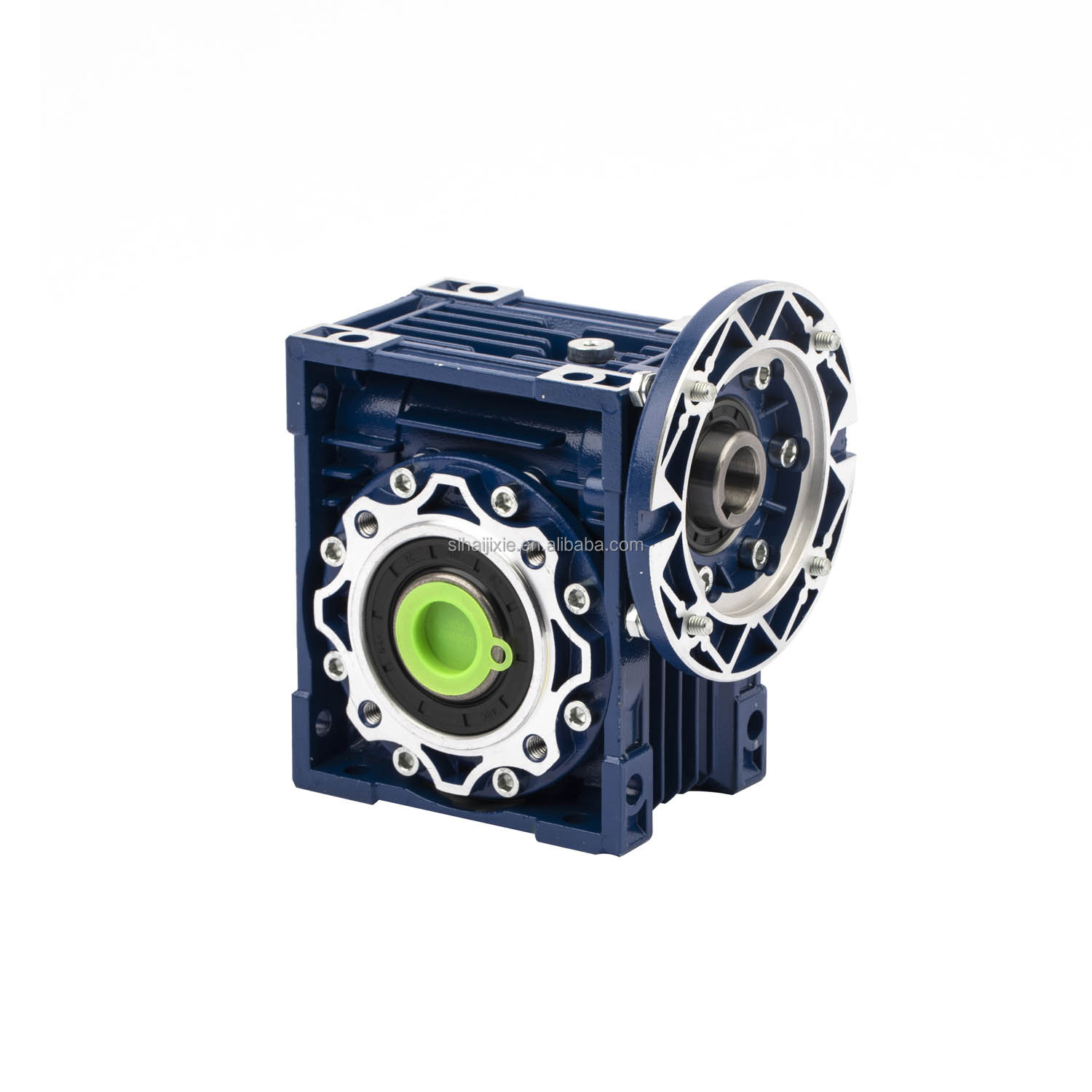

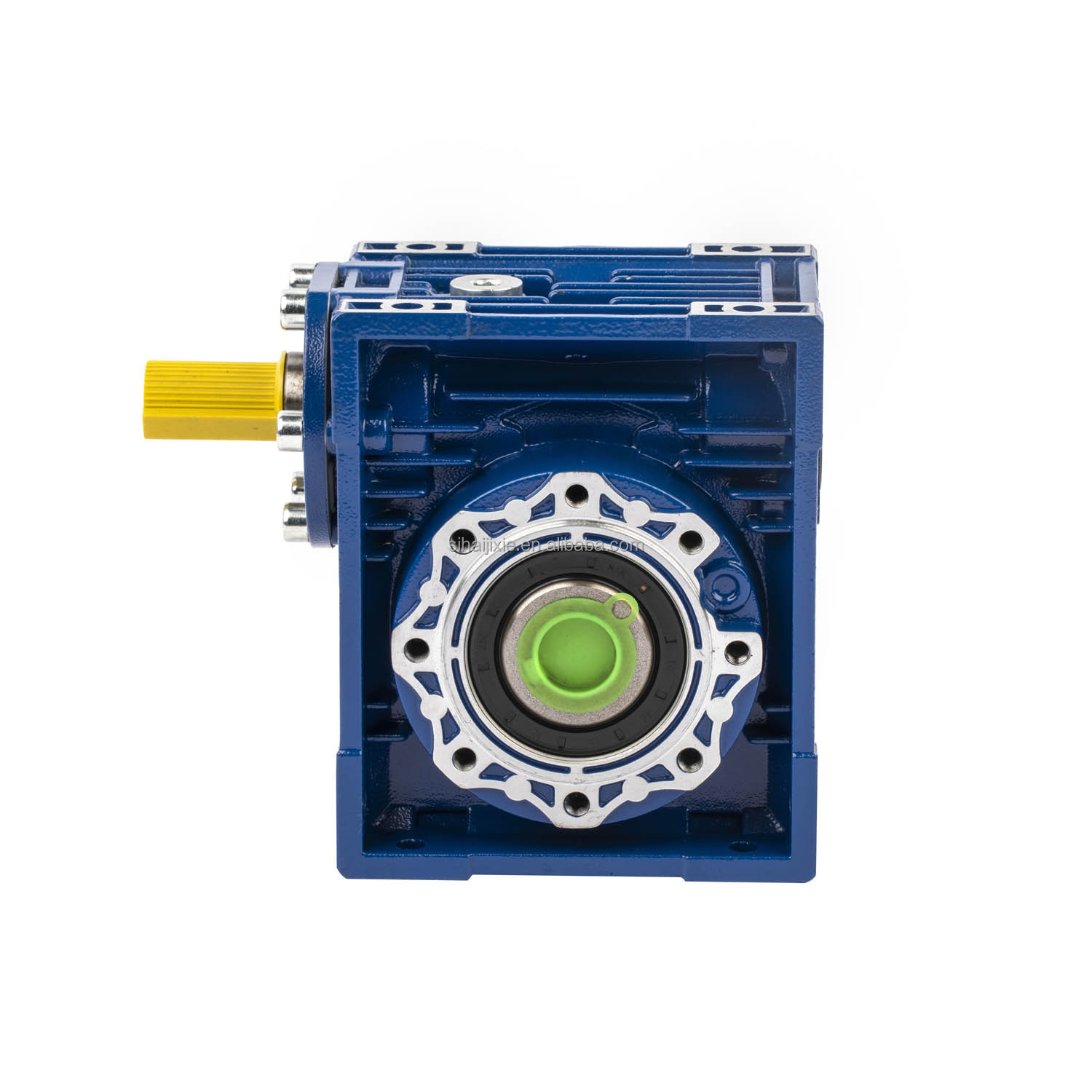

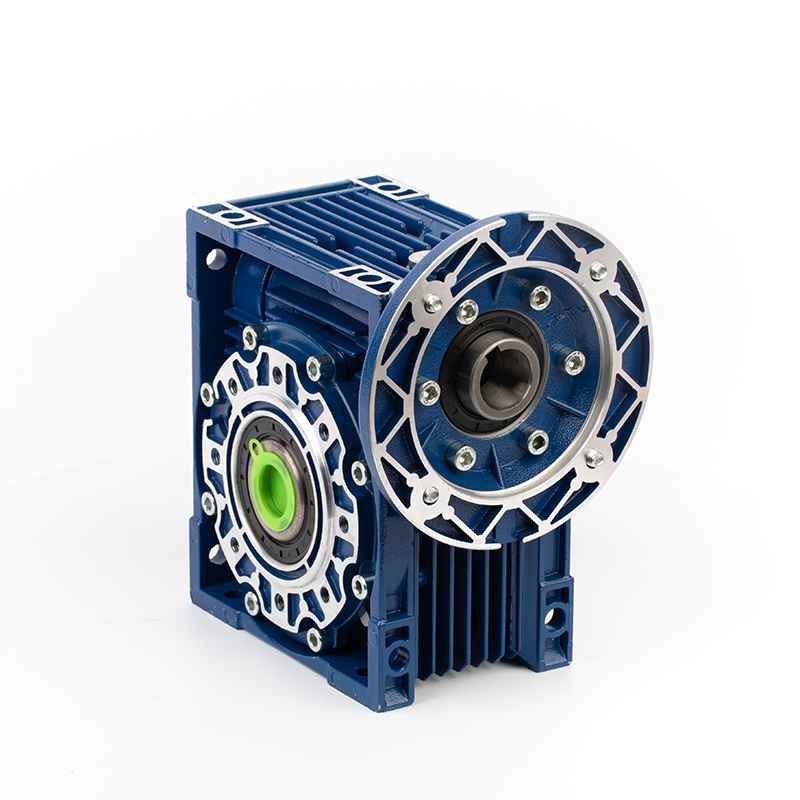

RV075 worm gear reducer/worm gearbox
ratio
7.5,10,15,20,25,30,40,50,60,80,100
strength
0.25~4.0kW
color
blue/silver/black or as per request
weight
9kg


Material
Shell: aluminum alloy
The gears are made of carburized 20CrMnTi material, which has good wear resistance and no noise.
The worm gear is hub cast iron QT500 and bronze ZQSn10-1
Worm shaft: 20Cr steel, surface carburizing, hardness HRC60

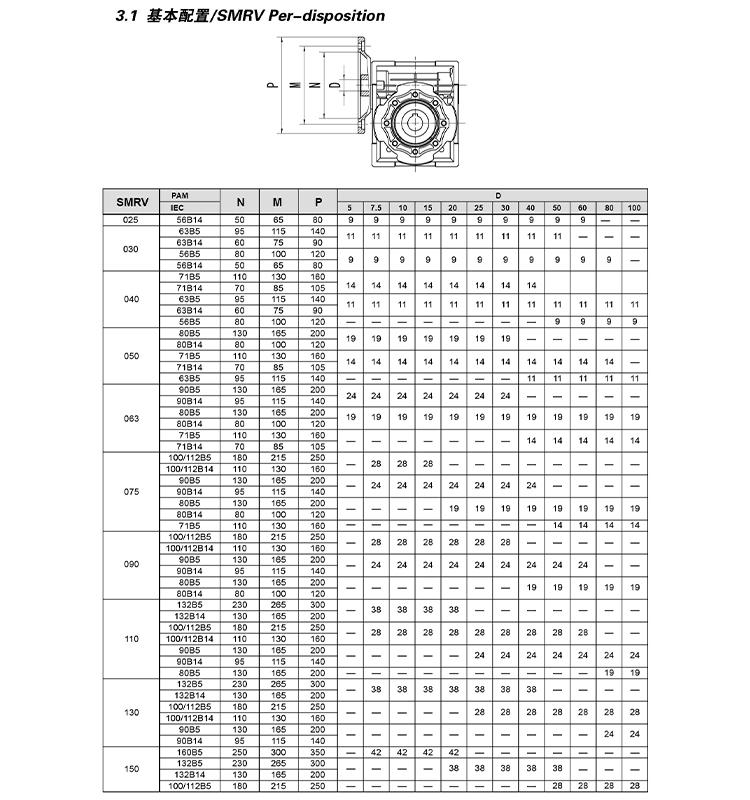

Stand-alone input version
SMRV: suitable for motor flange couplings
SMRV-E: Motor flange coupling with worm extension shaft
SRV: with input shaft
SRV-E: with double extension worm shaft
Applicable number of motor poles
2 pole, 4 pole, 6 pole
Imperial size
available
Personal customization
available
Extra services
Processing
Quality assurance
1 year



feature
High precision, smooth transmission and large output torque. It also means high quality and long service life.
Multiple heat sinks for rapid heat dissipation
Suitable for all-round installation
Various accessories can be easily installed such as torque arms, different types of flanges, shafts, etc.
Good anti-rust properties
We produce reducers in strict accordance with ISO9001 standards and provide customers with high-quality reducers at competitive prices. Our gearboxes are equipped with accessories from internationally renowned brands, such as SKF brand oil seals, Shell brand lubricants, and NSK brand bearings. Housings and gears are produced under our company's strict quality control. All our products are in large stock, we can also provide you with customized reducer solutions, please feel free to contact us.

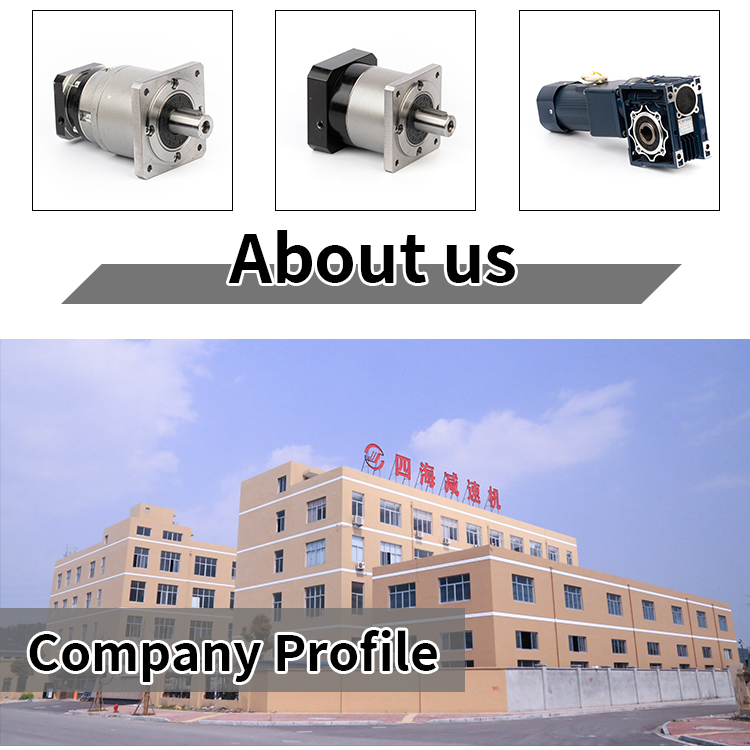

Taizhou Sihai Machinery Co., Ltd.
history:More than 20 years of experience in manufacturing reducer products. Scale: Covering an area of ​​13,300 square meters. m, with more than 113 employees.
technology: A group of professionals. Technical engineers and strong R&D team.
manage: Scientific ERP management and strict quality control system.
equipment: 50 CNC lathes and 6 mechanical processing machines. Center, 6 gear grinding machines, 2 high-speed hard tooth surface gear hobbing machines, 12 gear hobbing machines
machine. 10 CNC cylindrical grinders, 4 CNC internal cylindrical grinders, 1 spectrometer, 1 high-speed gear shaping machine,
The gear measurement center has 2 coordinate measuring machines and 1 coordinate measuring instrument.
Innovation: Continuously enrich product categories to meet customer needs. Production capacity: 1000 pieces/day.
Long-term supplier to world-class enterprises:The main markets are in Southeast Asia, Europe and the Middle East.
Marketing model: all export business.
FAQ
Q1: How to choose a reducer that meets our requirements?
A1: Tell me the motor information, or provide drawings of relevant parameters of the motor, or take some clear photos of the motor and related equipment for me. I would appreciate it if you could tell me what type of reducer you originally used.

Q2: When is the best time to contact you?
No matter what time, I will reply to you as soon as possible.

Q3: How is the quality of your products?
A3: Quality will always be the foundation of our company. I recommend you buy a sample to evaluate the quality. Taizhou Sihai Machinery Co., Ltd. Engaged in reducer R&D, design and production for more than 20 years.

Q4. Do you offer tours?
A4: Yes! welcome! Notify me in advance.

Q5. How long does the delivery time take?
A5: We agreed at that time
