Fully Automatic Multi Pot Sample Dyeing Machine- 6 Pots

Supplier: JOGINDRA INDUSTRIES PRIVATE LIMITED
Region: Rajasthan, India
Contact: Mr. Harmeet Singh
Price: $27000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;	Voltage:	Optional;
Applicable Industries:	Manufacturing Plant;	Batch/Pot:	6 KG;
Place of Origin:	Delhi India;	Payment Terms:	L/C,T/T;
Weight:	400KG;	Supply Ability:	10 Set/Sets per Year;
After-sales Service Provided:	Engineers available to service machinery overseas;	Packaging Detail:	Export Packaging in wooden case if required.;
Certification:	CE , ISO 9001:2015;	Material:	SS316L;
Port:	Mumbai, India;	Brand Name:	JOGSON;
Model Number:	JMP;	Power(W):	Customized;
Controller:	JOGSON Automatic Programmer or ENMOS Simplex 263;	Dimension(LWH):	Customized;
Pressure Switches:	MZ -1& MZ - 7;	Automatic Grade:	Automatic;
Application:	Yarn, Tape, Zipper tape, Narrow Fabric, etc;	Condition:	New;
Heating System:	Steam/ Electric/ Thermic fluid/ Gas;	Warranty:	12 Months;

PRODUCT DESCRIPTION

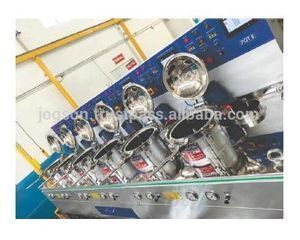

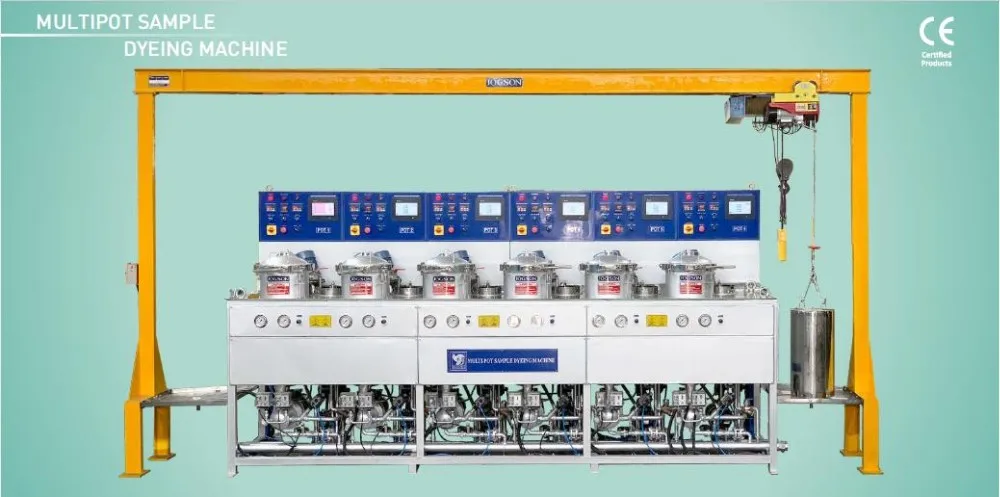

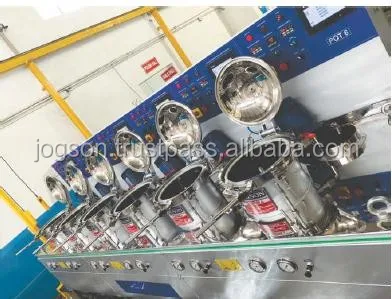

MULTI POT SAMPLE DYEING MACHINE

JOGSON Multi Pot Sample Dyeing Machine is ideal to run 6 Pots coupled to each other, dyeing yarns of same colour or running individually to facilitate dyeing yarn of different colours simultaneously. This is very useful for standardizing the recipes of dyeing before batches are taken in bulk. This avoids trial and error methods, hence saves time and resources utilized. Each pot has a range from 100 gms. To 1.5 kg. per batch as per the requirement. The apparatus allows sampling trails in laboratory. Each vessel can be charged with different type of materials.

Each kier has its own pump and controller. Main feature of this machine is a perfect reproducibility from laboratory to bulk production. The machines are available with different levels of automations. The machine is suitable for dyeing of Polyester, Cotton, Viscose, Nylon, Acrylic, Texturized, Silk, Wool, etc. in various forms like Cone, Tape, Narrow Fabrics, Zipper, Hanks, Ribbons, Tops & Loose Fiber.

MODEL	JMD 6
MAX. BATCH CAPACITY ( KG)	6
ELECTRIC HEATING (KW)	4/POT
MATERIAL	WOOL
FORM	LOOSE FIBRE

FEATURES

* Machine body & all parts coming into contact with the dye liquor are made of AISI SS 316Ti/316L, highly corrosion resistant
* Turbo pump for liquor circulation (In-Out & Out-In) with Inverter drive for varying speed
* Control panel with JOGSON dyeing programmer TPR13I/PLC & touch interface (Optional)
* MLR Fully flooded - 1:8
With Air pad - 1:7
* Air pad system to insert air manually into the machine to create static pressure and to minimize the liquor ratio
* Colour addition tank with Injection Pump for dozing the dye liquor into the machine
* High efficient heat exchanger which has no heat loss to the ambient (Optional)
* HT Drain - the machine can be drained at 130° C
* Pneumatically operated front door locking / unlocking
* Human/Machine safety interlocks

TECHNICAL DATA

* Maximum design pressure 5 bar
* Maximum design temperature 140°C
* Heating gradient 25°C - 130°C approx at 5°C /min. (Dry Saturated steam pressure at 7 bar)
* Cooling gradient 130°C - 85°C approx at 3.5°C/min. (Cold water of 25°C at 3 bar)

CERTIFICATIONS
